LCD- GD02S-MT
[SST-GD02S-MT]
№: ++487 Manufacturer: SilverStone

€423 66

Notify me of updates to

available: no
This product is not available
423.66 EUR

Specifications:

Introduction

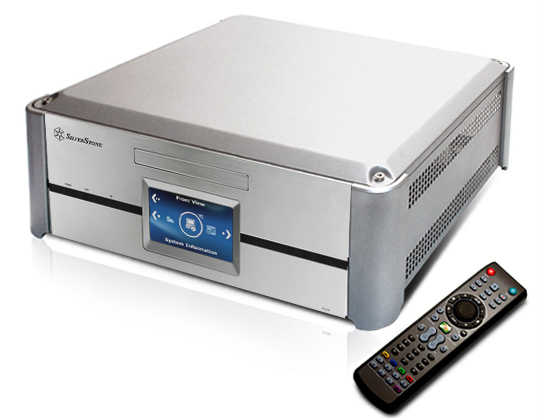

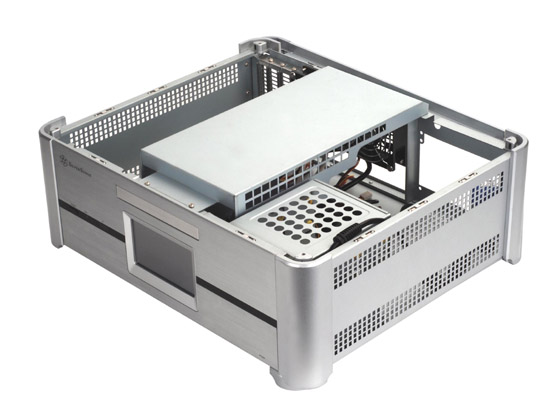

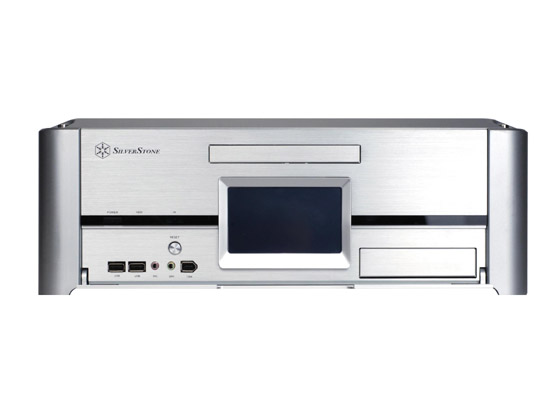

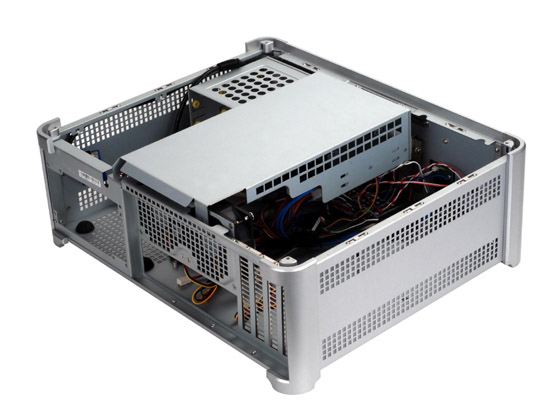

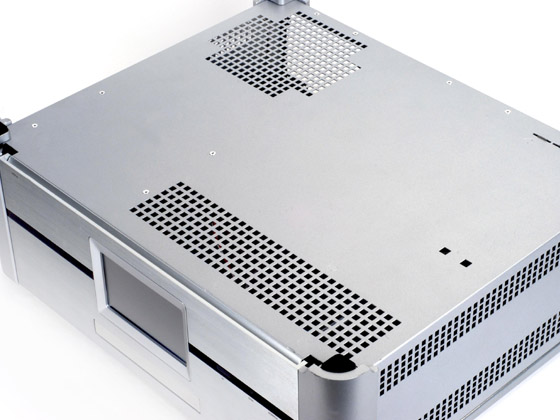

Grandia represents brilliance, and SilverStone’s Grandia GD02 is certainly a brilliant chassis that seamlessly integrates innovation and aesthetics. For the first time, a unique optional 4.3 inch touchscreen makes a debut in a home theater PC enclosure along with a brand new multimedia interface. Its friendly interface allows users to easily control onscreen actions while also providing a dedicated media player right on the front panel. An HTPC enclosure also has never been so powerful yet so compact like the GD02. With a depth of only 360mm, it will comfortably fit inside home theater cabinets but still accommodate a regular sized power supply, Micro-ATX motherboard, and even high end graphics cards up to 11.5 inches. With exquisitely finished hair-brushed aluminum front panel and organic spherical appearance, GD02 is not only designed brilliantly but also looks brilliant.

Special Feature

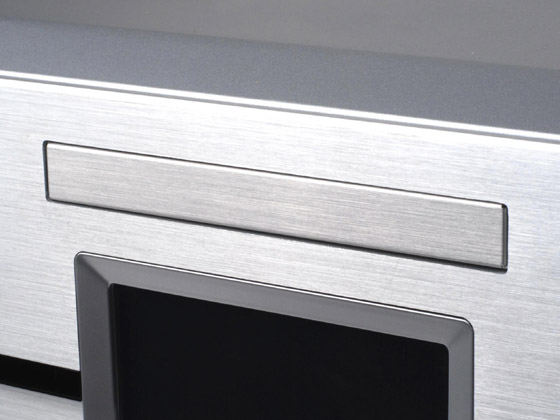

Classic SilverStone aluminum front panel

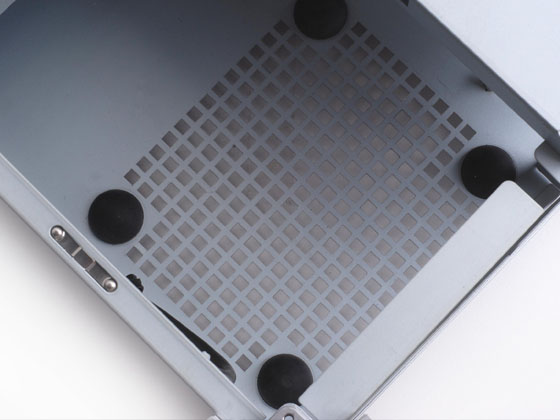

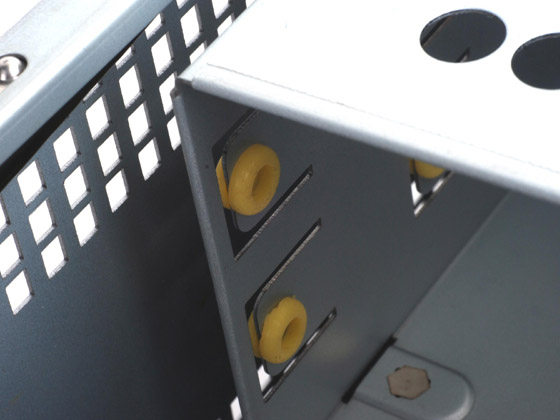

Designed for silent operation with anti-vibration drive mounts
Included software fully compatible with Windows Vista 32/64 bit
Support 11.5 inch graphics card
Individual space for power supply

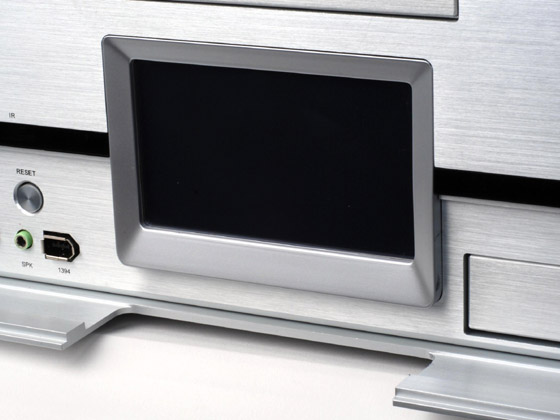

Optional integrated 4.3” touchscreen (GD02MT)
Two hard drive capacities (for up to 2 Terabytes)

Remark

Below are screen shots of some of the functions available for use on the touchscreen! FrontView (Touch LCD)

System Info	Media Info	Media Control

FrontView Player	Movie Play	Music Play

Specifications

Model No.

SST-GD02B-MT (Black w/ multimedia + 4.3” touchscreen)

SST-GD02S-MT (Silver w/ multimedia + 4.3” touchscreen)

Material

Aluminum front panel & corners, SECC body

Motherboard

Micro ATX, DTX, Mini-ITX

Multimedia

4.3” touchscreen, IR, remote control with on/off function iMON media center software

Resolution

Native resolution: 480 x 272
Supported resolution: 640 x 480, 800 x 600, 1024 x 768

Drive Bay

External

Slim optical drive x 1

3.5” x 1

Internal

3.5” x 2 (vibration dampening)

Cooling System

Front

Rear

2 x 80mm exhaust fan, 2050rpm

Side

Top

Bottom

Internal

Expansion Slot

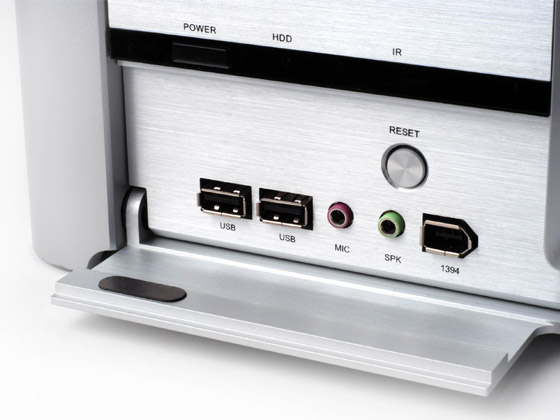

Front I/O Port

USB2.0 x 2
IEEE1394 x 1
Audio x 1
MIC x 1

Power Supply

Optional Standard PS2(ATX)

Expansion Card

Compatible with expansion card up to 11.5 inch

Net Weight

7.86kg

Dimension

430mm(W)x155mm(H)x360mm(D)

Extra
