SilverStone HTPC Case LASCALA Silver 120W - LC19S-R
[SST-LC19S-R]
№: ++565 Manufacturer: SilverStone

€156 46

Notify me of updates to

available: no
This product is not available
156.46 EUR

Specifications:

Introduction

With an increasing number of mobile CPUs moving to desktop systems, SilverStone engineers once again saw a great opportunity to create a case that would truly take advantage of this movement. The result is an amazingly slim 68mm (2.68 inches) tall enclosure that is still capable of accommodating a Micro-ATX motherboard and widely available storage components. For people who prefer to build a system that is easy on the eyes (and occasionally, out of sight) with power to do almost anything, the LC19 is perfect.

Special Feature

Ultra-slim profile at 68mm tall
Sturdy steel chassis suitable for silent operation
Understated styling for any settings
Fanless PSU included
Full size 3.5 hard drive compatible
Available slim optical drive and expansion slot

Specifications

Model No.	SST-LC19B (black)
	SST-LC19S (silver)
	SST-LC19B-R (black + card reader)
	SST-LC19S-R (silver + card reader)

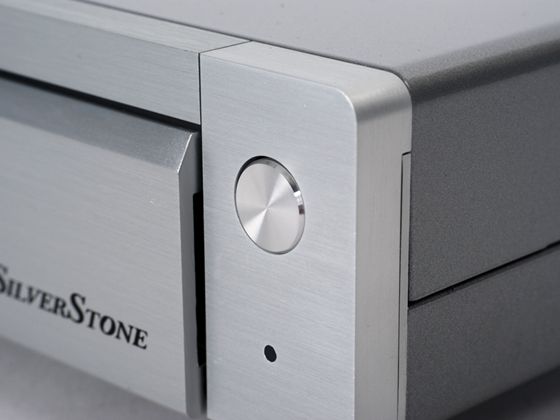

Material	Aluminum front panel, 1.0mm SECC body (LC19R:0.8mm)
Motherboard	MoDT Micro ATX, Mini-ITX, DTX
Multimedia	--
Drive Bay	External	Slim optical x 1
		None
	Internal	3.5" x 1 or 2.5" x 1 (vibration dampening)( LC19R only )
Cooling System	Front	--
	Rear	1 x 50mm exhaust fan, 2200rpm, 19dBA ( LC19R only )
	Side	3 x 50mm fan slots ( LC19R only )
	Top	Oversized CPU/NB vents
	Bottom	--
	Internal	--

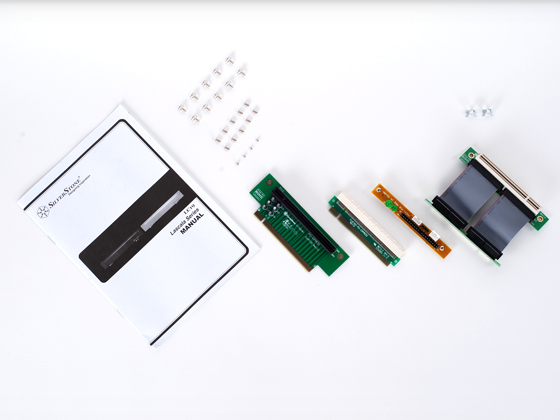

Expansion Slot	1 (includes 1 x PCI riser card and 1 x PCI-Ex16 riser card) for LC19R

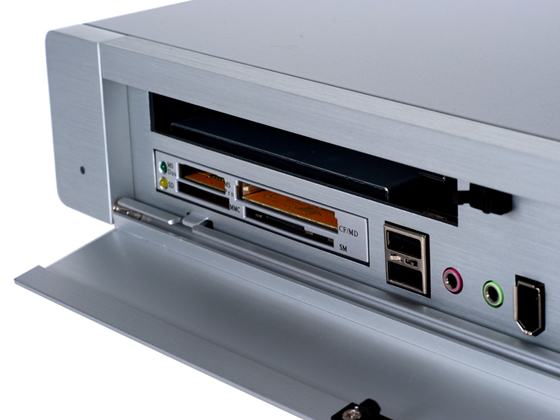

Front I/O Port	USB2.0 x 2 IEEE1394 x 1 audio x 1 MIC x 1 52-in-1 card reader (LC19R only)

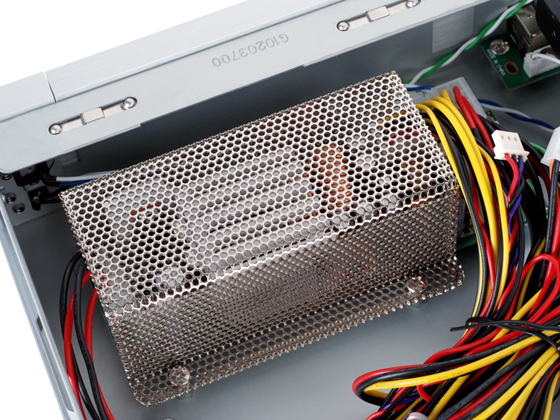

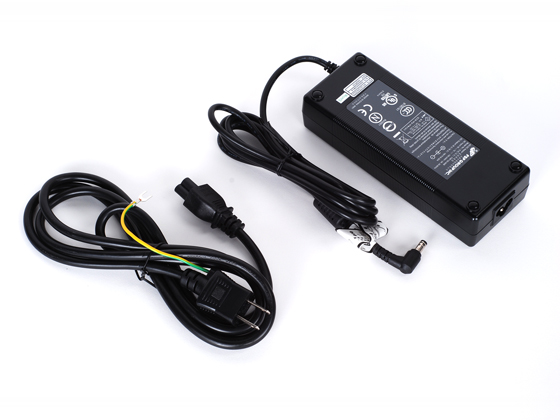

Power Supply	Fanless 120W DC/DC board & AC adapter
Expansion Card	--
Net Weight	3.9 kg
Dimension	390 mm (W) x 68 mm (H) x 348 mm (D)
Extra	Slim optical drive IDE adapter

Specifications of Power Supply

Max.DC Output	120W
Load Range
	+3.3V	+5V	+12V	+5VSB	-12V	-5V
Max.(Amps)	7A	7A	8A	2A	0.2A	/
Peak(Amps)	/	/	/	/	/	/
Min.(Amps)	0A	0A	0A	0A	0A	/
Range(%)	+/-5%	+/-5%	+/-5%	+/-5%	+/-5%	/

Card reader support

Smart Media -

SM, SSFDC, SM Ram, XD

Compact Flash -

CF I, CF II, Hitachi Microdrive, IBM Microdrive, Magicstor, HS-CF, Extreme CF, Extreme III CF, Ultra CF, Ultra II CF, Ultra-X CF

Secure Digital-

SD, HS SD, Extreme SD, Extreme III SD, Ultra SD, Ultra II SD, Ultra II SD plus, SD Elite Pro, *Mini-SD, *Micro SD, *T Flash, *C-Flash, SDHC card

Multimedia -

MMCI, MMCII, HS MMC, DV-RS-MMC, *MMC Mobile, *RS MMC, *RS MMC Mobile, *HS RS MMC

Memodery Stick -

MS, MS Magic Gate, MS Pro, MS Pro(MG), Extreme MS Pro, Extreme III MS Pro, HS MS Pro, HS MS MG Pro, MS Select, MS Pro Ultra II, *MS Duo, *MS Duo(MG), *MS Pro Duo, *MS Pro Duo(MG), *HS MS Pro Duo, * HS MS MG Pro Duo, *MS Pro Duo Ultra II, * MS Rom
