SilverStone HTPC Case MILO Black 120W - ML02B-R
[SST-ML02B-R]
№: ++568
Manufacturer: SilverStone
Specifications:
Introduction

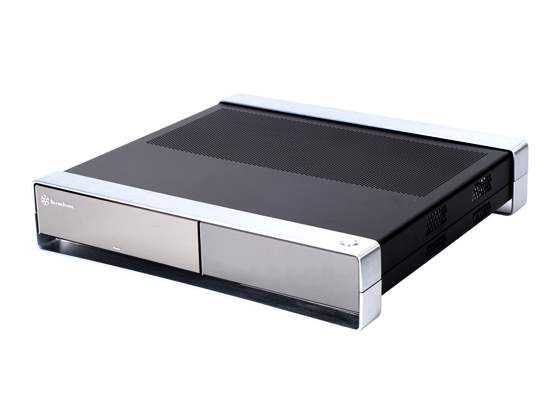

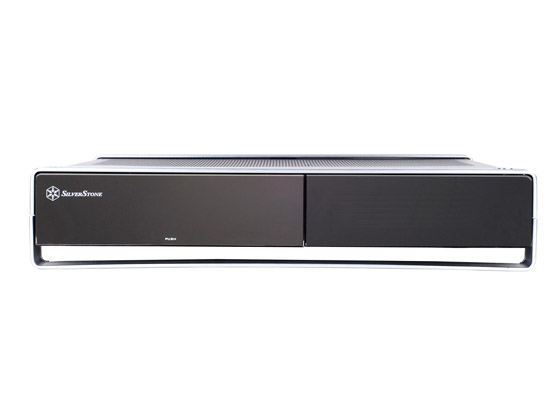

ML02 is what a multimedia MoDT (mobile on desktop) chassis is meant to be, with a height of only 82mm, it is the underlying characteristic of MoDT. ML02 has solid 4.0mm aluminum frames that wrap all around the sturdy SECC body structure. The elegant acrylic front panel with Multilanguage LCD via remote control gives a nice overall contrast, and with the aid of intelligent airflow layout design from LC19, this slimming beauty can make a statement in any multimedia environments.
Special Feature
Designed for MoDT (mobile on desktop) systems
Ultra-slim profile at 82mm tall
Sturdy steel chassis suitable for silent operation
Multilanguage LCD and remote control included (ML02MX only)
Fanless PSU included
Ultra-slim profile at 82mm tall
Sturdy steel chassis suitable for silent operation
Multilanguage LCD and remote control included (ML02MX only)
Fanless PSU included
Specifications
|
Model No. |
SST-ML02B-R (black + card reader) | |
|
-- | ||
|
SST-ML02B-MXR (black + LCD/IR + multimedia + card reader) | ||
|
-- | ||
|
Material |
Acrylic front panel, 4.0mm aluminum frames, 0.8mm SECC body | |
|
Motherboard |
MoDT Micro ATX, Mini-ITX, DTX | |
|
Multimedia |
Multimedia software, remote with on/off function, Multilanguage LCD/IR | |
|
Drive Bay |
External |
Slim optical x 1 |
|
None | ||
| Internal |
3.5" x 1 or 2.5" x 1 (vibration dampening) | |
|
Cooling System |
Front |
-- |
| Rear |
1 x 50mm exhaust fan, 2200rpm, 19dBA | |
| Side |
3 x 50mm fan slots | |
| Top |
Oversized venting holes | |
| Bottom |
-- | |
| Internal |
-- | |
|
Expansion Slot |
1 (includes 1 x PCI riser card and 1 x PCI-Ex16 riser card) | |
|
Front I/O Port |

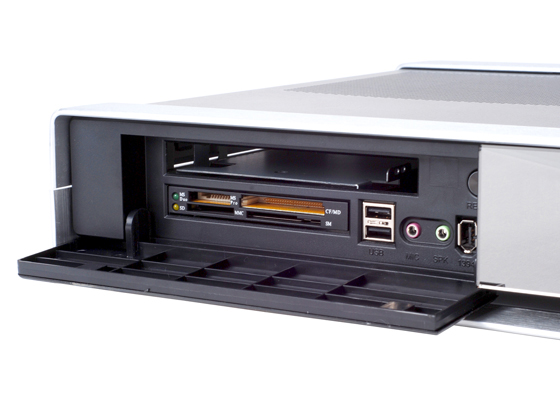

USB2.0 x 2 IEEE1394 x 1 audio x 1 MIC x 1 52-in-1 card reader | |
|
Power Supply |

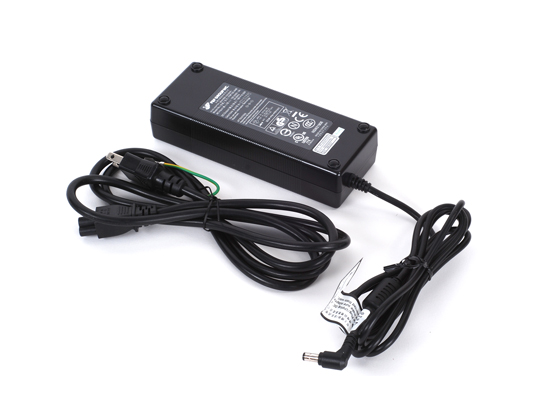

Fanless 120W DC/DC board & AC adapter | |
|
Expansion Card |
-- | |
|
Net Weight |
4 kg | |
|
Dimension |
397 mm (W) x 82 mm (H) x 375 mm (D) | |
|
Extra |
-- | |
|
Specifications of Power Supply |
| Max.DC Output |
120W | |||||
|
Load Range | ||||||
|
+3.3V |
+5V |
+12V |
+5VSB |
-12V |
-5V | |
| Max.(Amps) |
7A |
7A |
8A |
2A |
0.2A |
/ |
| Peak(Amps) |
/ |
/ |
/ |
/ |
/ |
/ |
| Min.(Amps) |
0A |
0A |
0A |
0A |
0A |
/ |
| Range(%) |
+/-5% |
+/-5% |
+/-5% |
+/-5% |
+/-5% |
/ |
|
Card reader support
Smart Media -
SM, SSFDC, SM Ram, XD
Compact Flash -
CF I, CF II, Hitachi Microdrive, IBM Microdrive, Magicstor, HS-CF, Extreme CF, Extreme III CF, Ultra CF, Ultra II CF, Ultra-X CF
Secure Digital-
SD, HS SD, Extreme SD, Extreme III SD, Ultra SD, Ultra II SD, Ultra II SD plus, SD Elite Pro, *Mini-SD, *Micro SD, *T Flash, *C-Flash, SDHC card
Multimedia -
MMCI, MMCII, HS MMC, DV-RS-MMC, *MMC Mobile, *RS MMC, *RS MMC Mobile, *HS RS MMC
Memodery Stick -
MS, MS Magic Gate, MS Pro, MS Pro(MG), Extreme MS Pro, Extreme III MS Pro, HS MS Pro, HS MS MG Pro, MS Select, MS Pro Ultra II, *MS Duo, *MS Duo(MG), *MS Pro Duo, *MS Pro Duo(MG), *HS MS Pro Duo, * HS MS MG Pro Duo, *MS Pro Duo Ultra II, * MS Rom |
