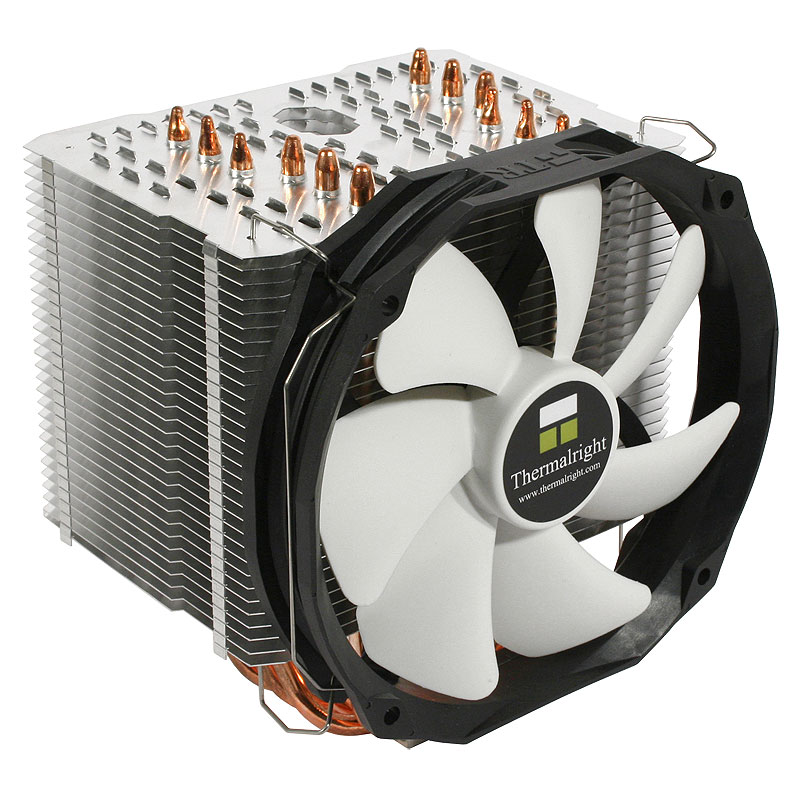

Thermalright CPU Cooler HR-02 Macho Rev.A
[HR-02]

№: ++1541   Manufacturer: Thermalright

Specifications:

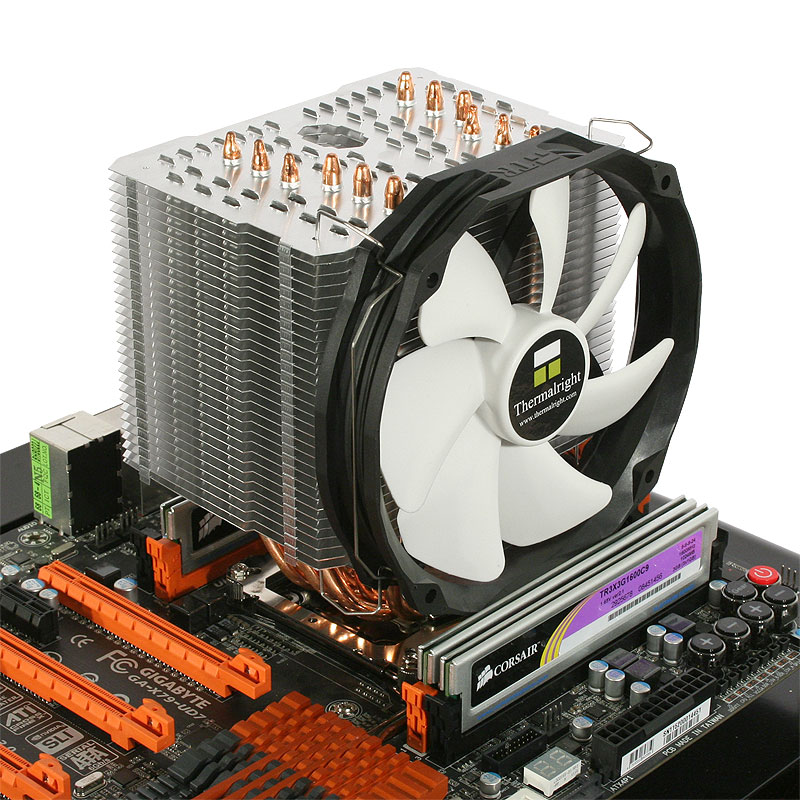

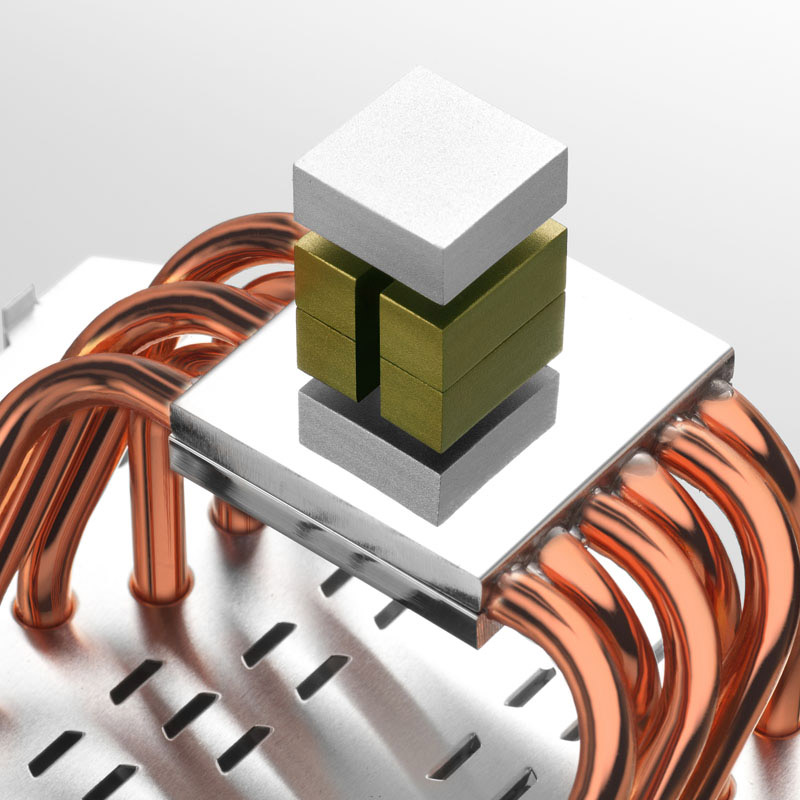

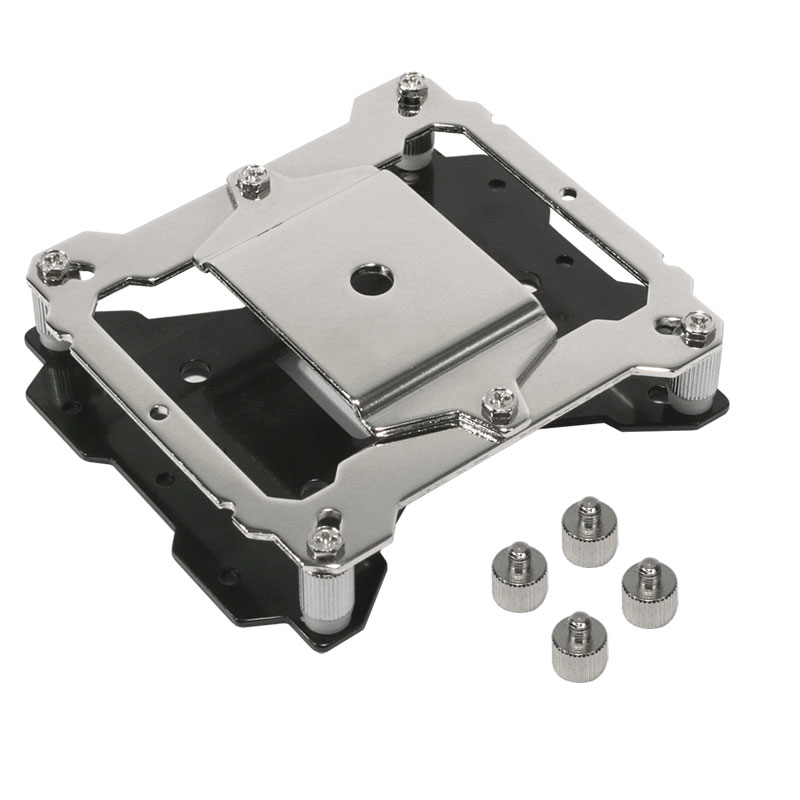

Multiple support bracket system For Socket 2011/1150/1155/1156/1366/775 & AM2/AM3/FM1 .

The Best C/P CPU Cooler for Overclockers & Gamer !

Proprietary through holes on fins for efficient ventilation.

Fanless design for low-noise operation.

Including one Thermalright TY-147 Utra-low noise 900~1300RPM PWM-Fan (MAX21 dBA).

Convex copper base design, to ensure the highest thermal conducting thermal efficiency between the cpu and the heatsink.

Technical Spec :

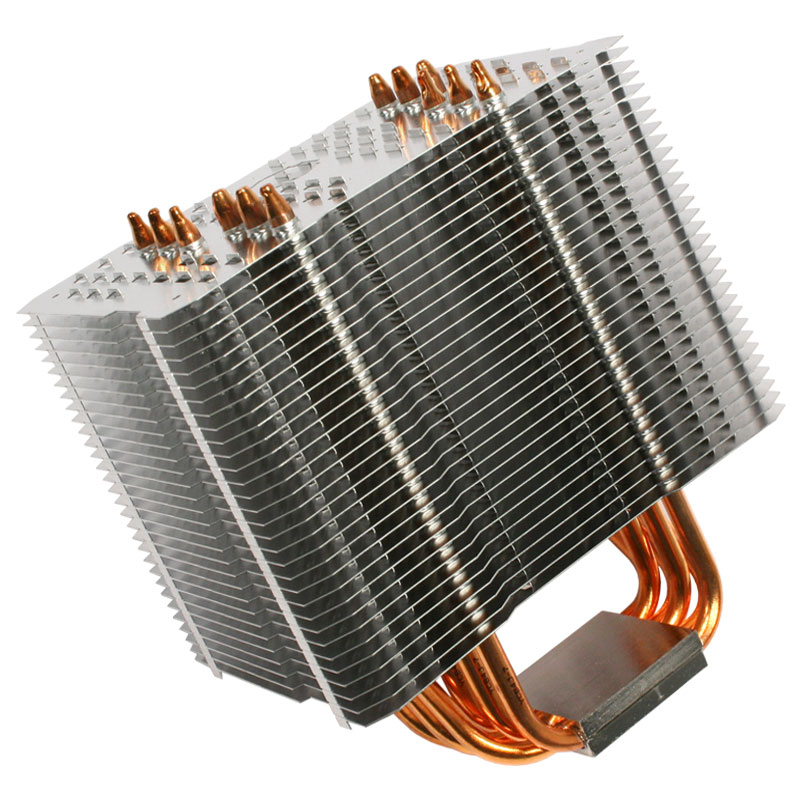

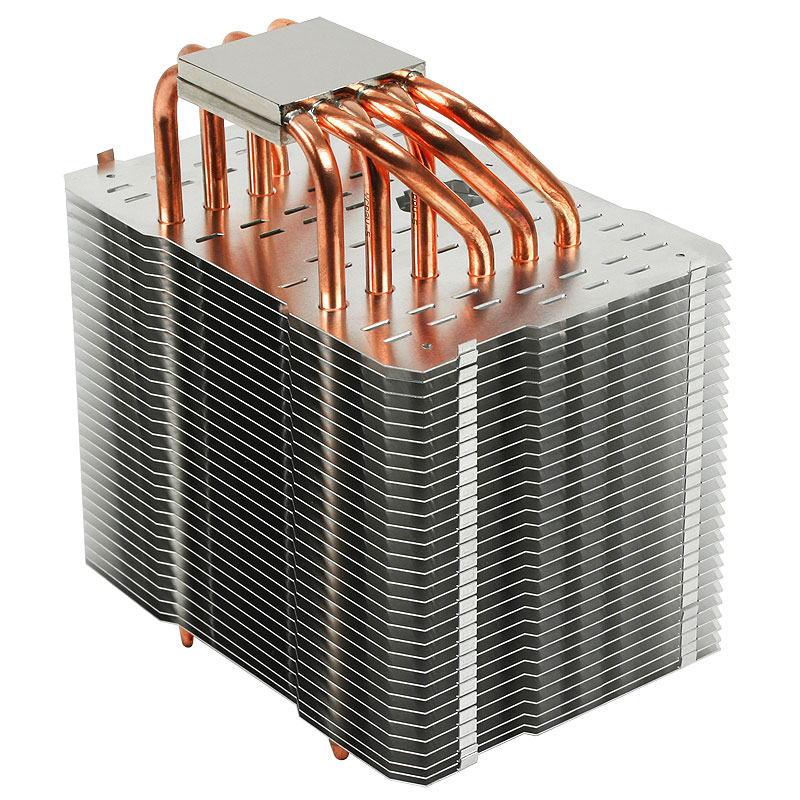

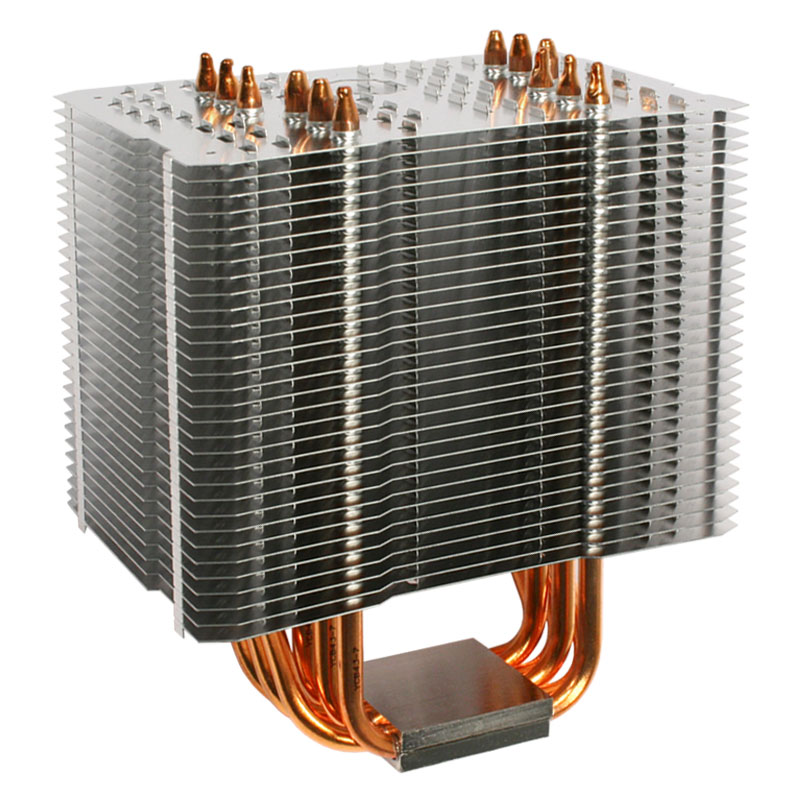

Heatsink Specifications: Dimension: L140mm x W102mm x H162mm Weight: 710g Heat pipes: 6mm heatpipe*6 units Fin: T = 0.4 mm ; Gap = 3.1 mm Fin Pcs: 31 pcs Copper Base: C1100 Pure copper nickel plated Motherboard to Fin: 45 + 8 = 53 mm
TY-147 FAN Spec Dimension: L152mm x H140mm x W26.5mm Weight: 160g Rated Speed: 900~1300RPM (PWM controlled) Noise Level: 17~21dBA Air Flow: 28.3~73.6CFM Connector: 4 Pin (PWM Fan connector)
