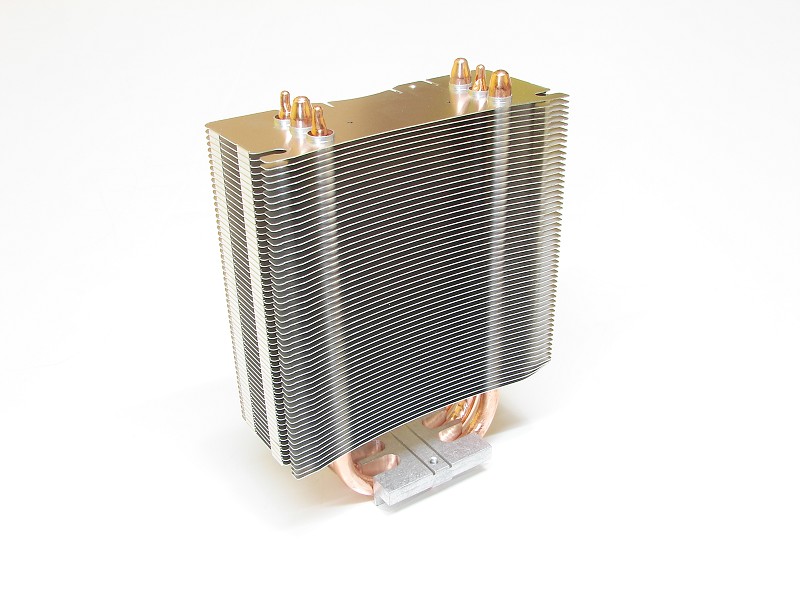

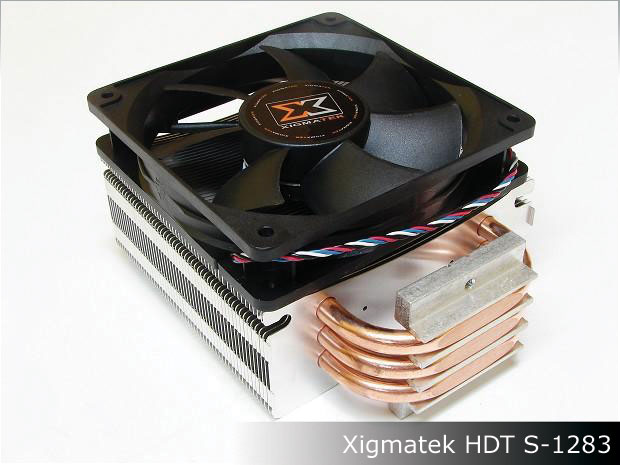

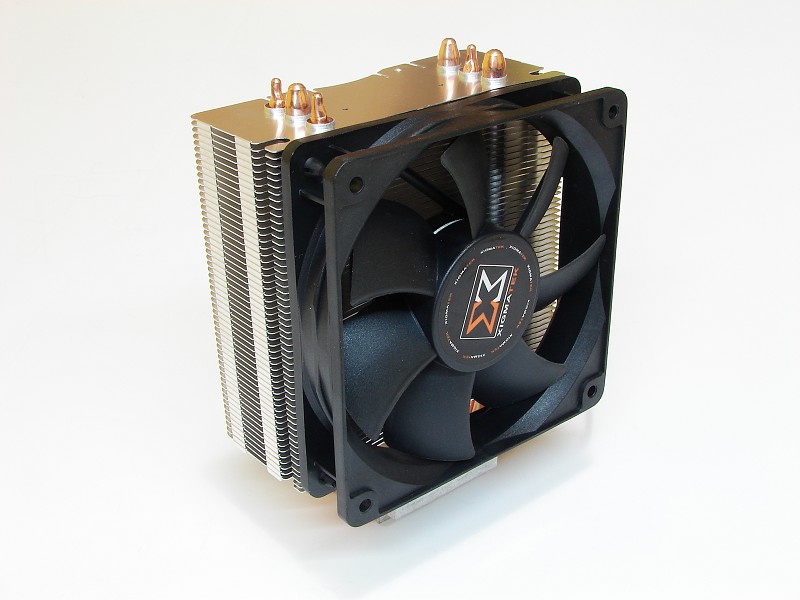

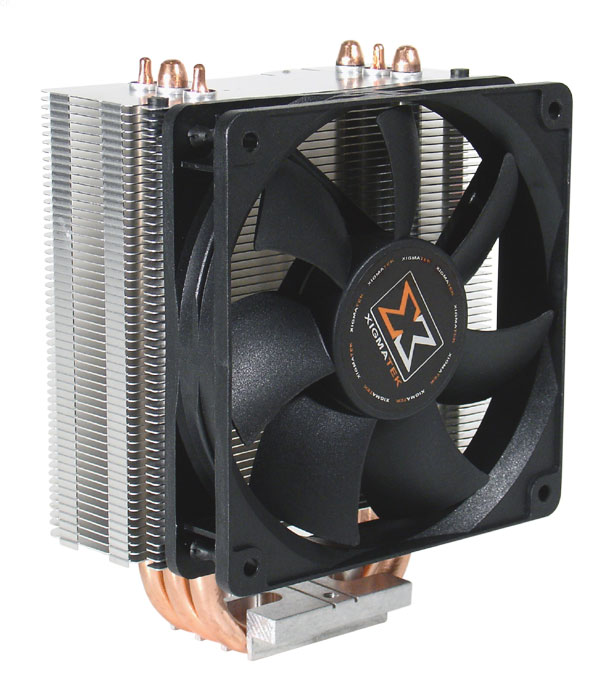

Xigmatek Cooler Heatpipe Direct Touch HDT-S1283
[CAC-SXHH3-U01]

№: ++402   Manufacturer: Xigmatek

Heat-pipe Direct Touch
120mm quiet but powerful PWM fan, 3pcs Φ8 mm heat-pipe and H.D.T. technology, HDT-S1283 is not only outstanding performing but also silent. With Anti-vibration rubber, spoiler design and Push-pin/Clip for INTEL & AMD, HDT-S1283 offers friendly, easy to install, reliable and powerful performance for users.

An outstanding performance air cooler with heat-pipe direct touch CPU, HDT-S1283 creates most efficient heat conduction and particular spoiler design to cool down components around CPU.

With anti-vibration rubber for fan and 3 in 1 application retention module design, HDT-S1283 provides users not only easier and quicker installation, but also lowest noise level.
HDT-S1283 combines 120mm PWM fan, anti-vibration rubber, 3pcs Φ8 heat-pipe, spoiler and 3 in 1 application retention module.

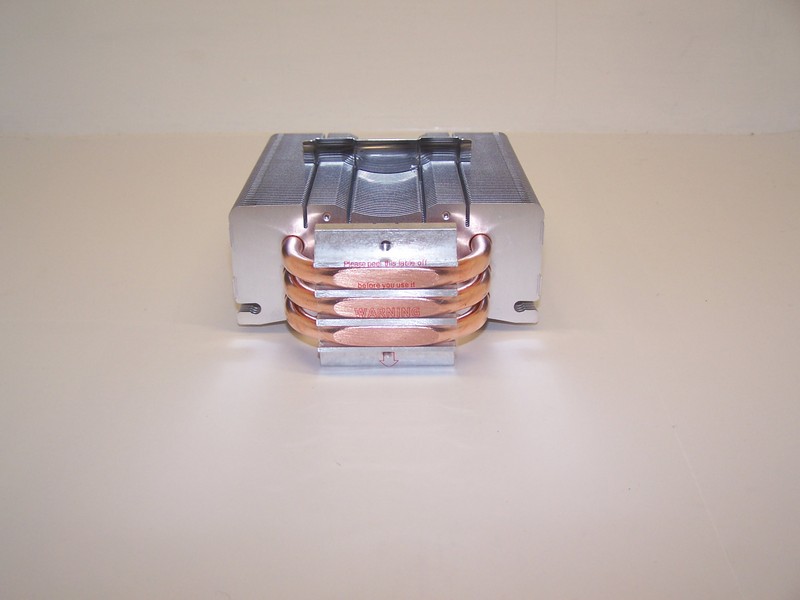

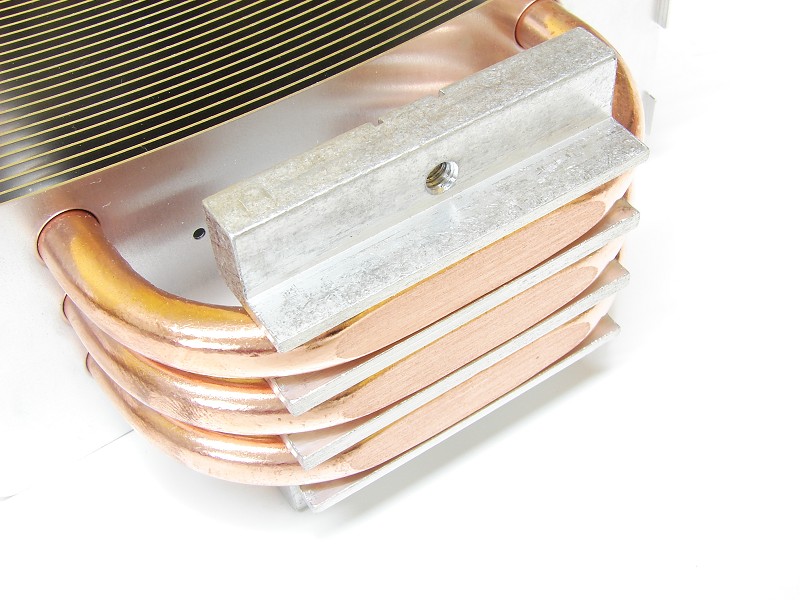

H.D.T. (Heat-pipe direct touch) technology.
Anti-vibration rubber design.
Particular spoiler design.

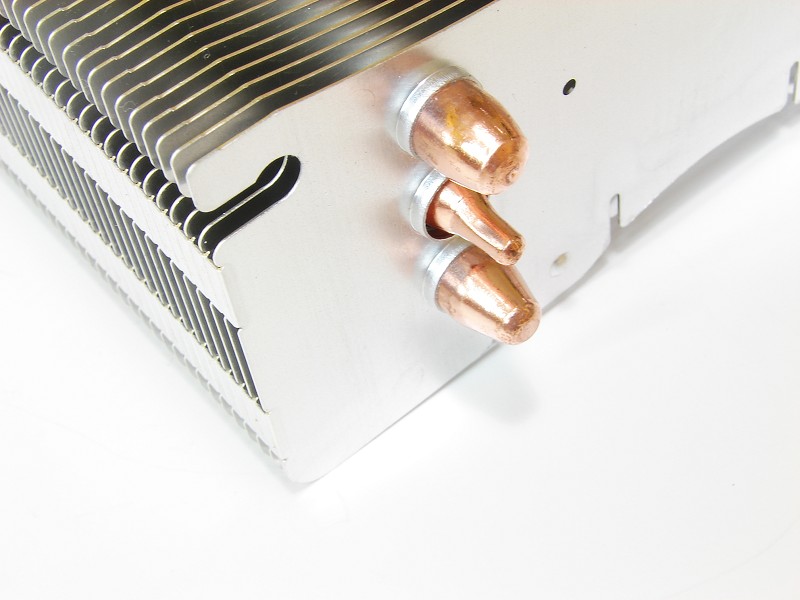

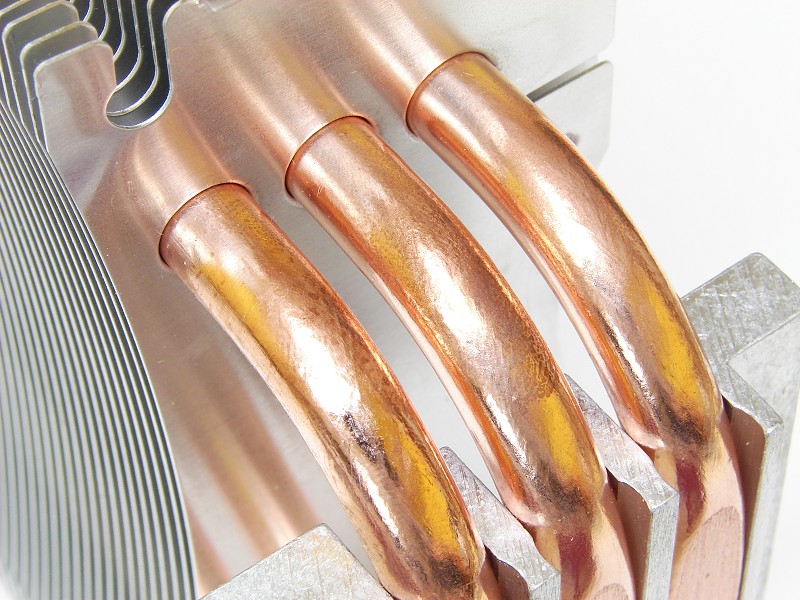

3pcs high performance U type heat-pipe.
Light weight.
High performance & easy installation.

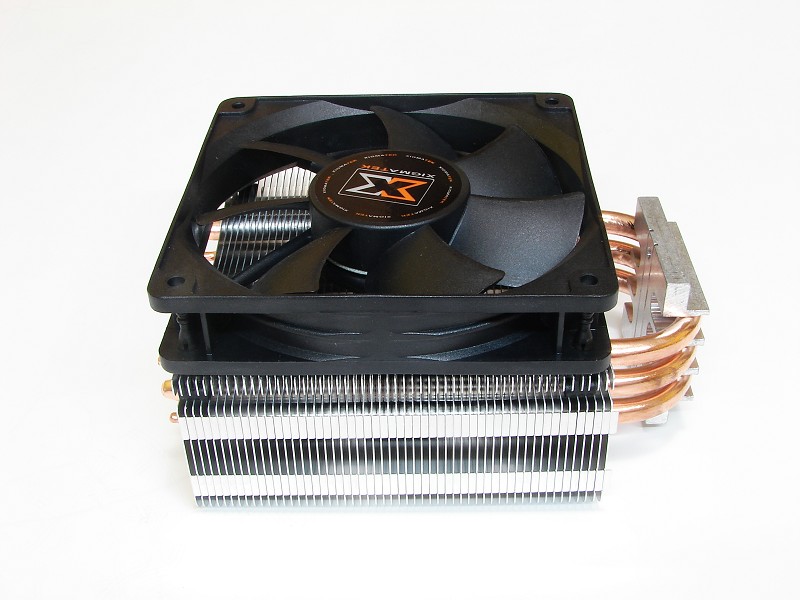

120mm highly efficient PWM fan.

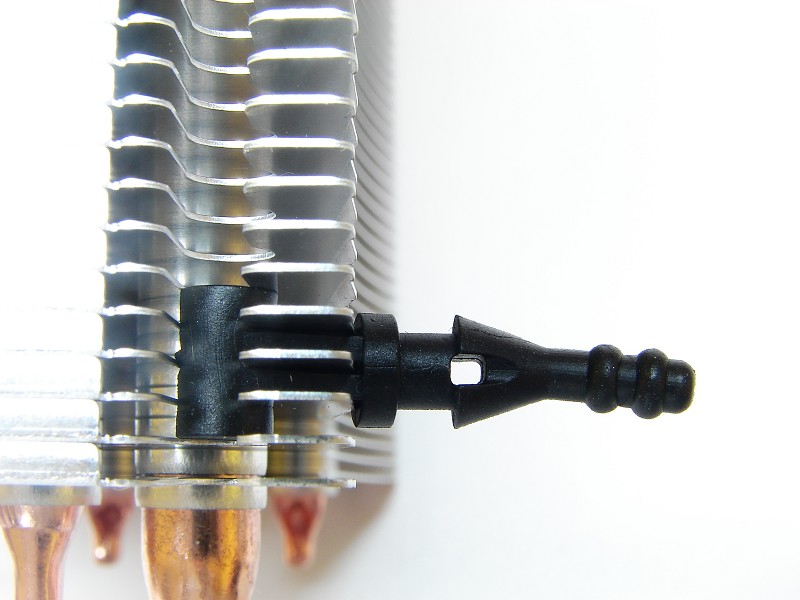

3 in 1 application: LGA775 push-pin/K8 & AM2 tool-less clip.

Product Name ‧ HDT-S1283
Product Number
‧ CAC-SXHH3-U01
Outside Dimension
‧ Dimension 120(W) x 50(H) x 159(D) mm

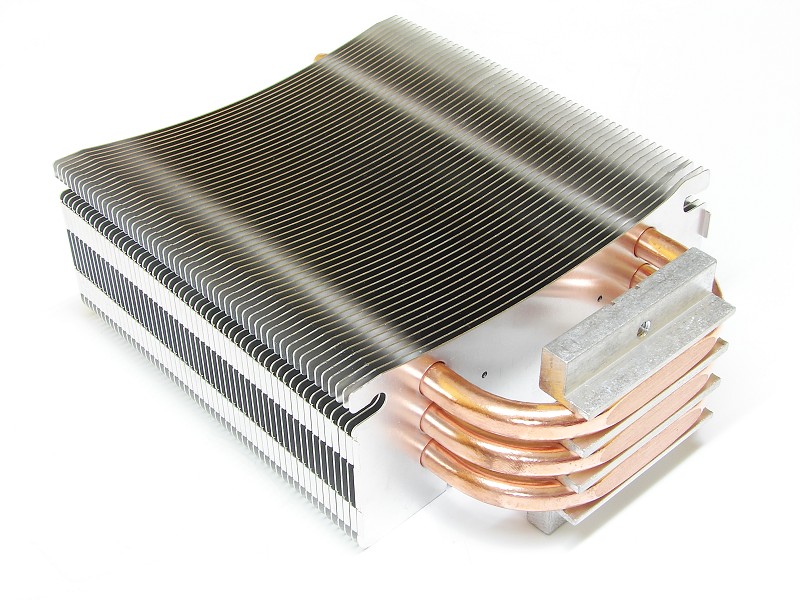

Heat Sink
‧ Material
Aluminum Alloy
‧ Heat-pipe Φ8 x 3

‧ Dimension 120(W) x 120(H) x 25(D) mm PWM fan
‧ Voltage Rating 12V
‧ Speed 800~1500 R.P.M.
‧ Bearing Type Rifle Bearing
‧ Air Flow 56.3 CFM

‧ Noise Level 20.6 dBA
‧ Air Pressure 1.57mmH2O
‧ Life Expectance 40,000 hrs
‧ Connector 4 Pin with PWM

Weight

‧ 600g (w/fan)

Thermal Resistance
‧ 0.16 ℃/W





‧ All Intel Socket 775 CPU
‧ Core 2 Extreme / Quad / Duo
‧ Pentium Extreme Edition / D
‧ Celeron D
‧ All AMD Socket AM2 / 754 / 939 / 940 CPU
‧ Athlon 64 / FX / X2 / Opteron / Sempron



---

---

---

---

---

---

---

---

---
