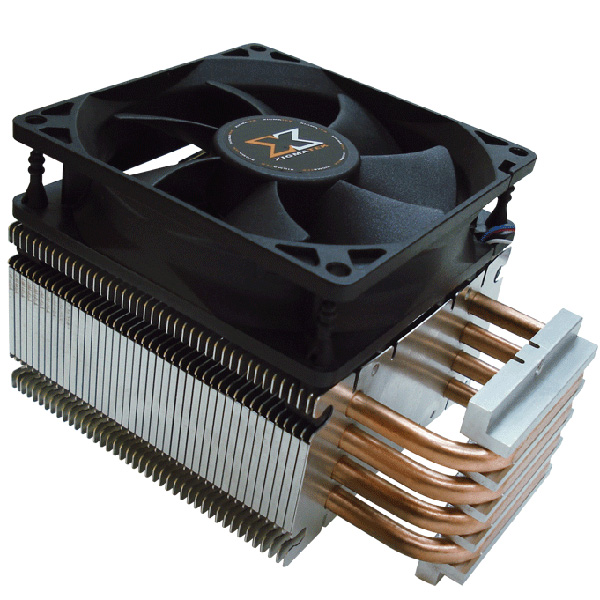

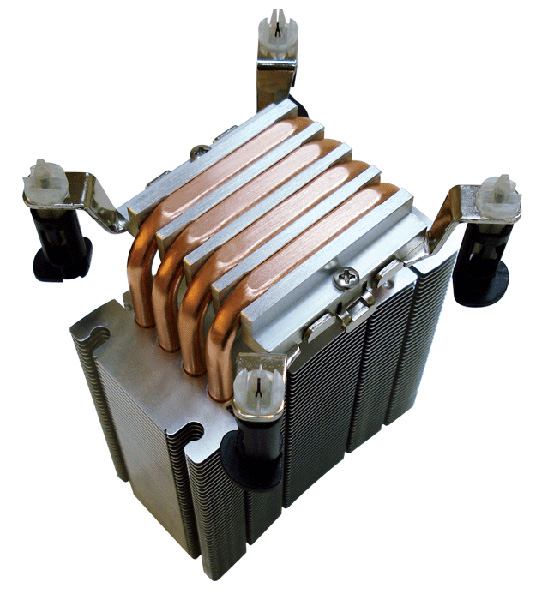

Xigmatek Cooler Heatpipe Direct Touch HDT-SD964
[CAC-S9HH4-U01]
№: ++463 Manufacturer: Xigmatek

€19 97

Notify me of updates to

available: no
This product is not available
19.97 EUR

Specifications:

Heat-pipe Direct Touch

Inherited H.D.T. series outstanding performance,
HDT-SD964 offers users one more option of using Double Fans and 4pcs Φ6mm heat-pipe. With Anti-vibration rubber, light material fin design and Push-pin/Clip for Intel & AMD, HDT-SD964 is user friendly, easy to install, reliable and excellent performing.

PRODUCT OVERVIEW

▎	An outstanding performance air cooler with heat-pipe direct touch CPU, HDT-SD964 creates most efficient heat conduction and option of Double fans installed to provide efficient air flow.

▎	With anti-vibration rubber for fan and 3 in 1 application retention module design, it provides users not only easier and quicker installation, but also lowest noise level.

▎	It combines 92mm PWM fan, anti-vibration rubber, and 4pcs Φ6mm heat-pipe.

FEATURES

▎	H.D.T. (Heat-pipe direct touch) technology.

▎	Anti-vibration rubber design.

▎	Option of Double fans installed design.

▎	4pcs high performance U type heat-pipe.

▎	Light weight.

▎	High performance, easy installation.

▎	92mm highly efficient PWM fan.

▎	3 in 1 application: LGA775: push-pin / K8 & AM2: tool-less clip.

SPECIFICATION

Product Name	‧ HDT-SD964
Product Number	‧ CAC-S9HH4-U01
Heat Sink	‧ Base Material	‧ Copper (Heat-pipe Direct Touch)
Heat Sink	‧ Fin Material	‧ Aluminum Alloy
Heat-pipe	‧ Heat-pipe SPEC	Φ6mm
Heat-pipe	‧ Heat-pipe Q'ty	4 pcs.
Fan	‧ Dimension	92(W) x 92(H) x 25(D) mm
	‧ Voltage Rating	12V
	‧ Speed	1200~2800 R.P.M.
	‧ Bearing Type	Rifle Bearing
	‧ Air Flow	39~54.6 CFM
	‧ Air Pressure	1.7~3.3 mmH2O
	‧ Life Expectance	50000 hrs
	‧ Noise Level	22~34 dBA
	‧ Connector	4 pin with PWM
Dimension	‧ 92(W) x 51(H) x 133(D) mm
Thermal Resistance	‧ 0.18℃/W
Weight	‧ 466g (w/fan)
Application	‧All Intel® Socket 775 CPU ‧Core™2 Extreme / Quad / Duo ‧Pentium® Extreme Edition / D ‧Celeron® D ‧All AMD Socket AM2 / 754 / 939 / 940 CPU ‧Athlon™ 64 / FX / X2 / Opteron™ / Sempron™

APPLICATION

▎	All Intel® Socket 775 CPU

▎	Core™2 Extreme / Quad / Duo

▎	Pentium® Extreme Edition / D

▎	Celeron® D

▎	All AMD Socket AM2 / 754 / 939 / 940 CPU

▎	Athlon™ 64 / FX / X2 / Opteron™ / Sempron™

▎

User's Manual

[ 5.98 MB ]
