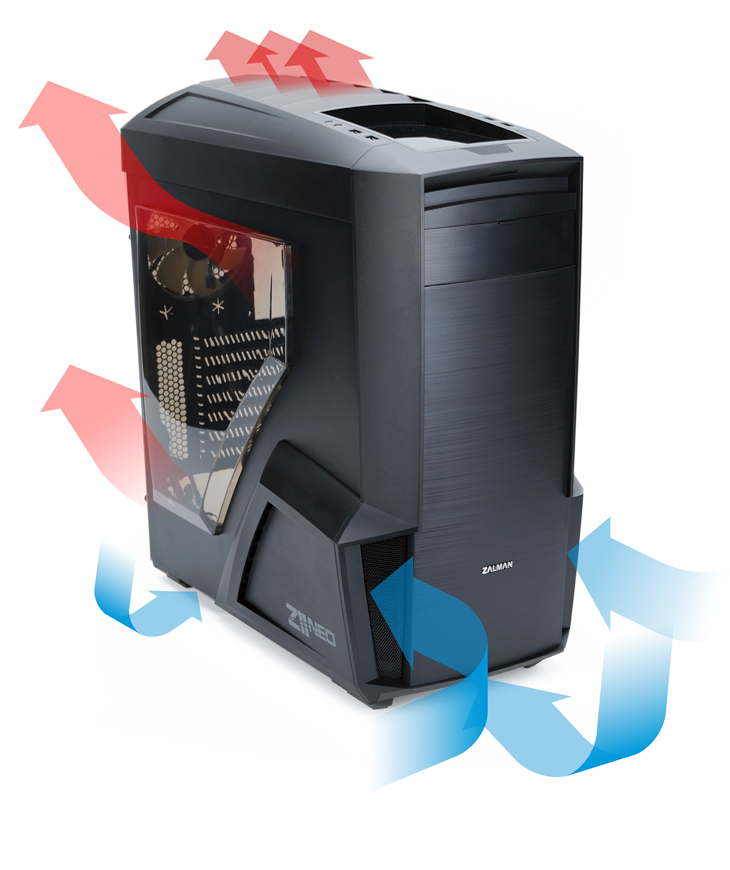

Optimized Cooling Structure for Air Flow |
Strong cooling performance with low noise thanks to Zalman Cooling Solution
|
 |

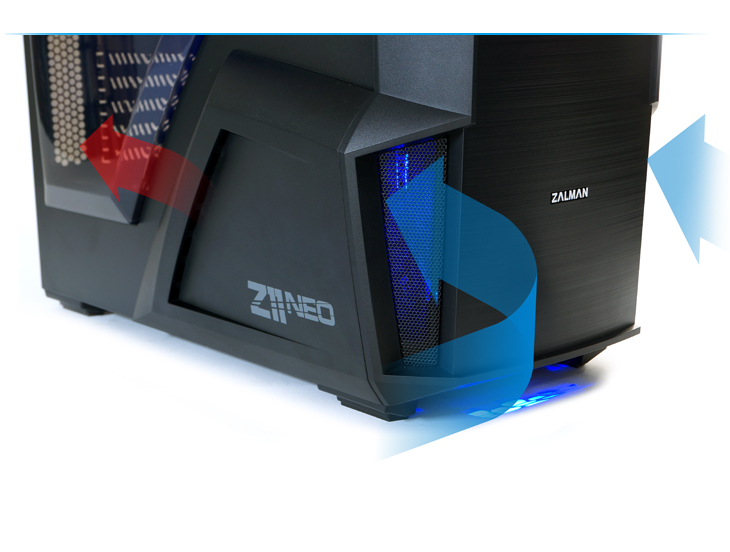

Interactive Cooling System |
HDD bay emits the heated air on both sides and maximizes its cooling function that the Case can provide
|
 |

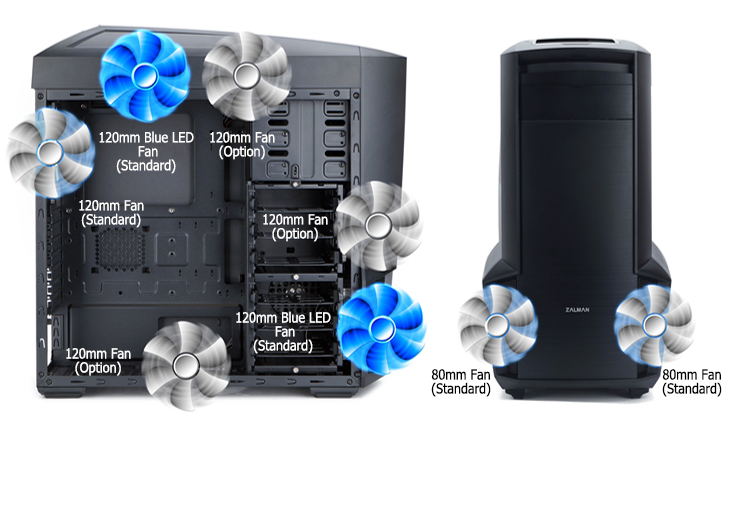

Maximum 8 system fans installable |
5 basic standard fans. 3 more fans can be installed on front/top/bottom vents
|
 |

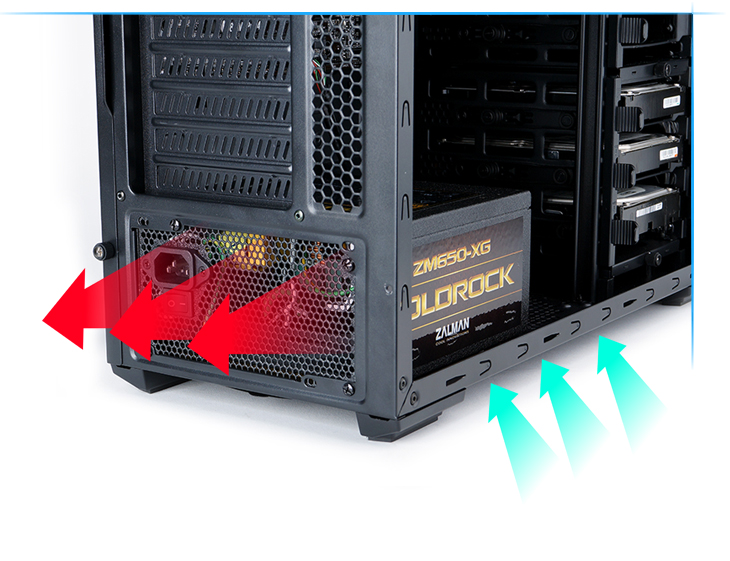

Exclusive Cooling for Power Supply |
PSU located on the bottom for improvement of air flow and cooling performance
|
 |

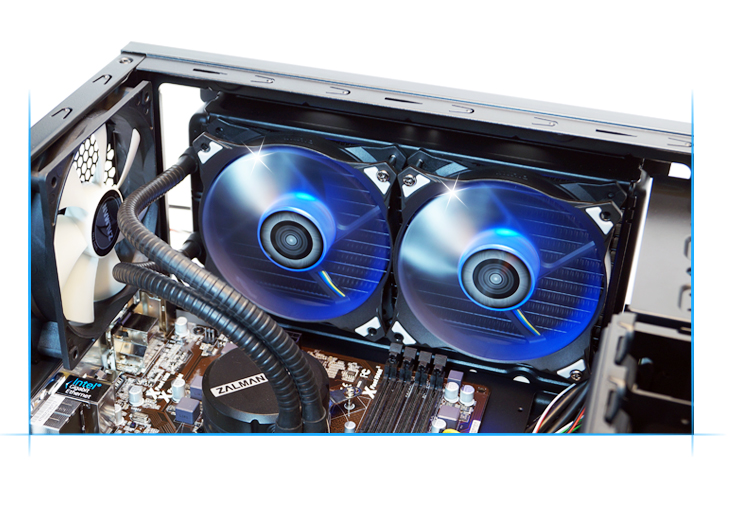

Dual Radiator Water Cooler installable |
| Spacious room for dual radiator water cooler installation |
 |
| |

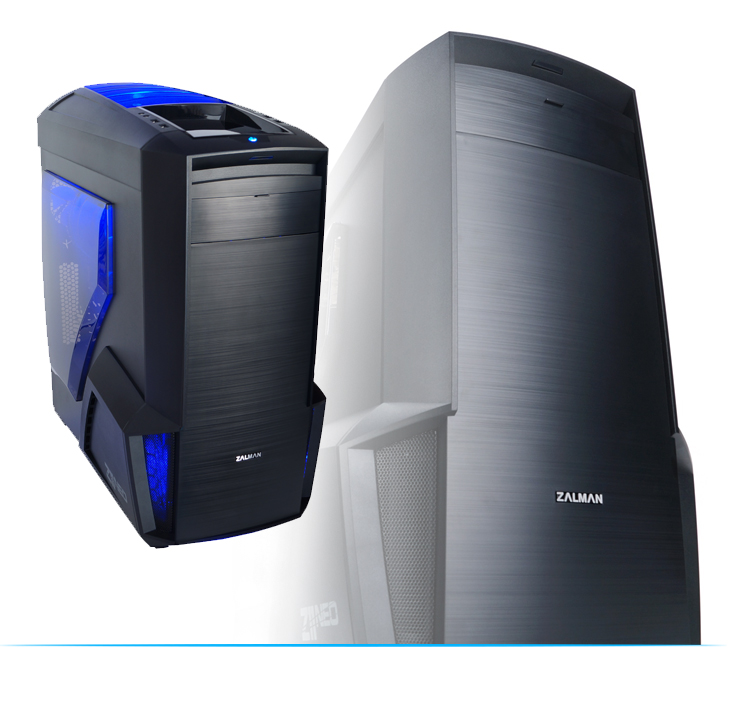

| With brushed aluminum style frontal door and SFX styled top Air Vent gives off dynamic feel |
 |
| |

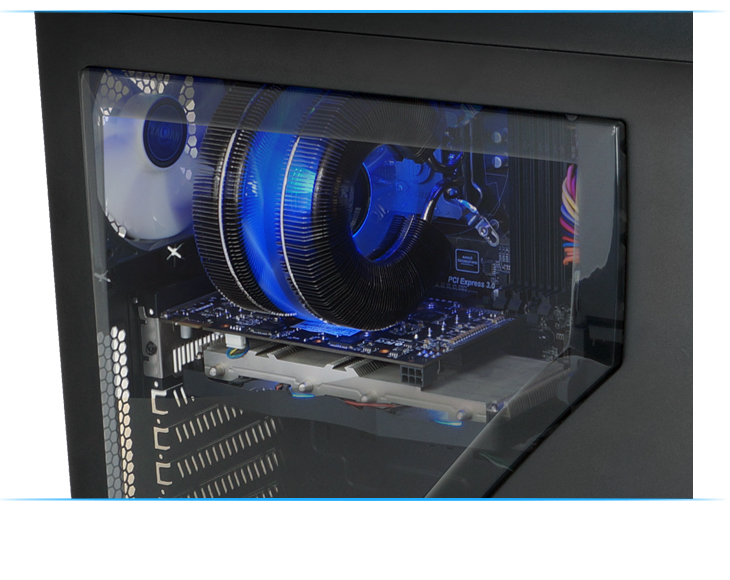

Transparent Acryl side to show internal system
|
 |

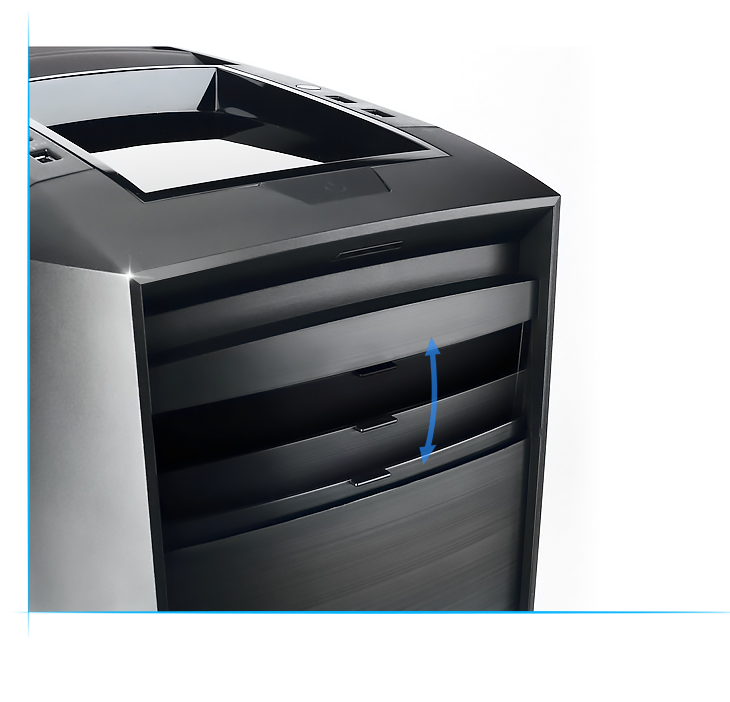

One-touch Sliding ODD door |
| One touch Sliding ODD door for simpler design |
 |
| |

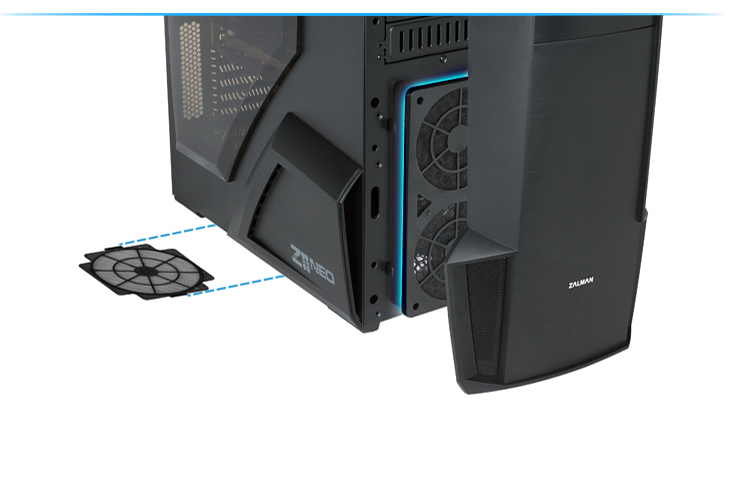

| Dust filter applied on top& bottom |
 |

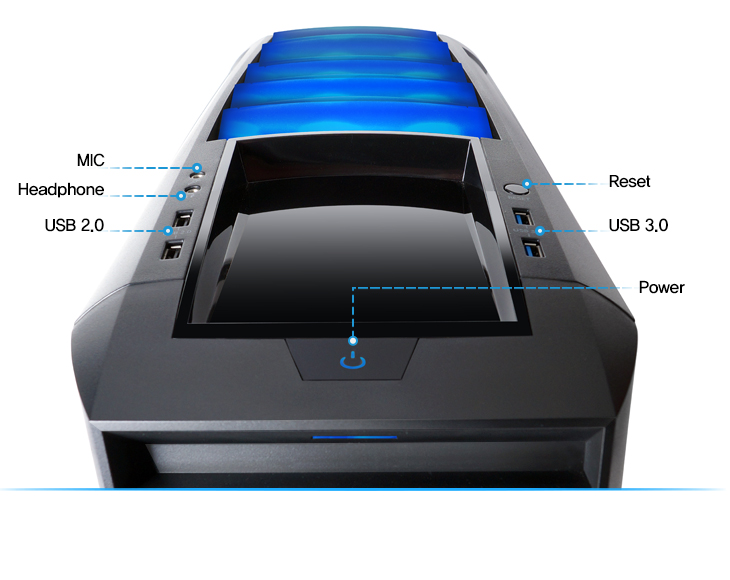

Convenient Interface and USB 3.0 support |
| USB 3.0 on Frontal Part (Top), Audio Port, Convenience enhanced by relocating power and reset button |
 |
| |

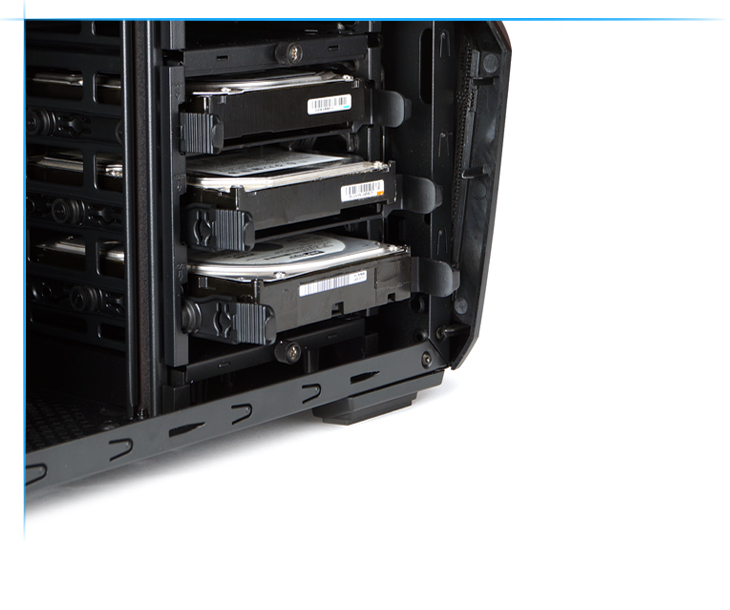

| Can install and uninstall up to 8 HDD max without any additional tools |
 |

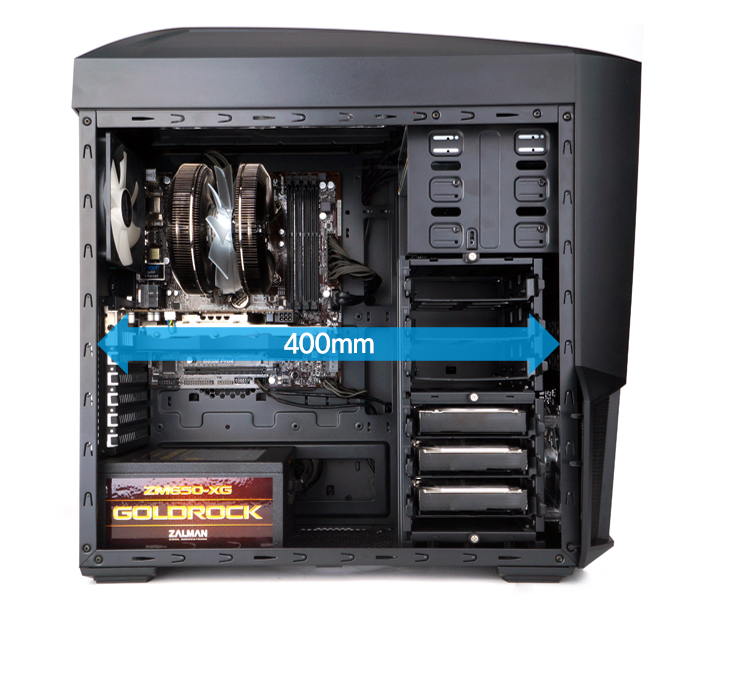

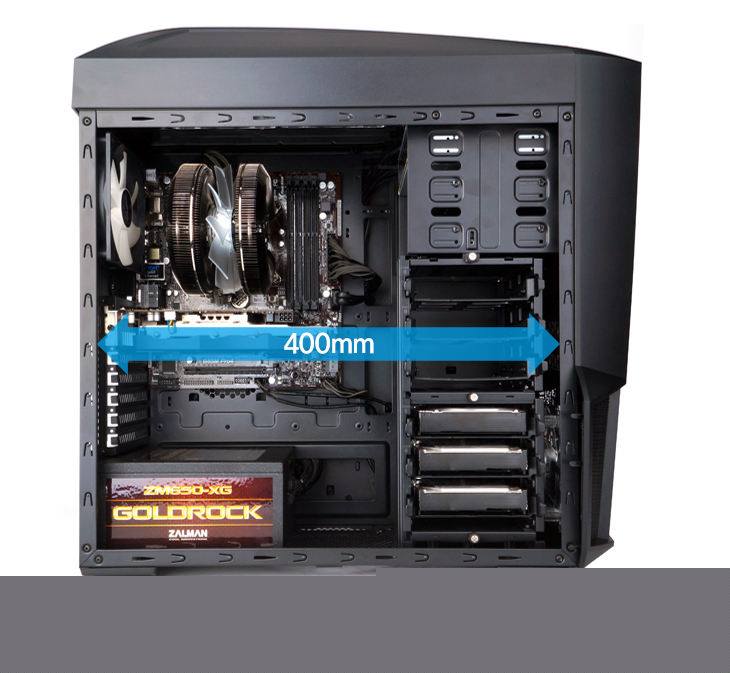

High Performance Graphic Card |
High Specification VGA card can be installed within 400mm size maximum
|
 |

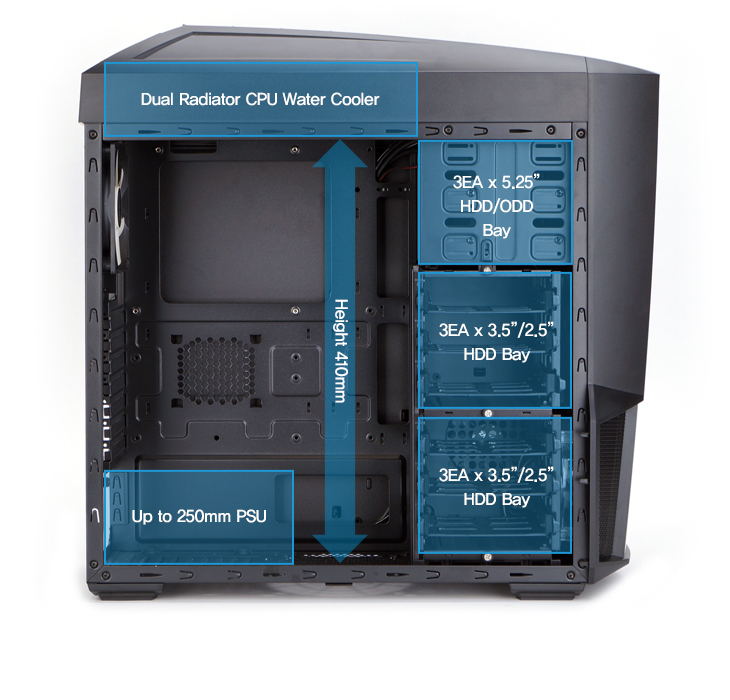

Excellent Expandability and Spacing |
Up to 8 ODD/HDD/SSD, 175mm tall CPU Cooler, dual radiator water cooler can be installed
|
 |

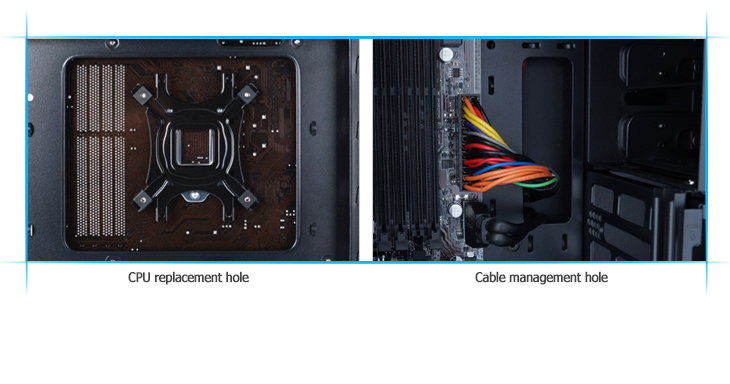

Hole for replacing CPU cooler and
organizing cables |
CPU Cooler installing hole on M/B CPU part so that M/B doesn’t need to be separated when replacing CPU cooler.
Also cable hole for organizing cables
|
 |

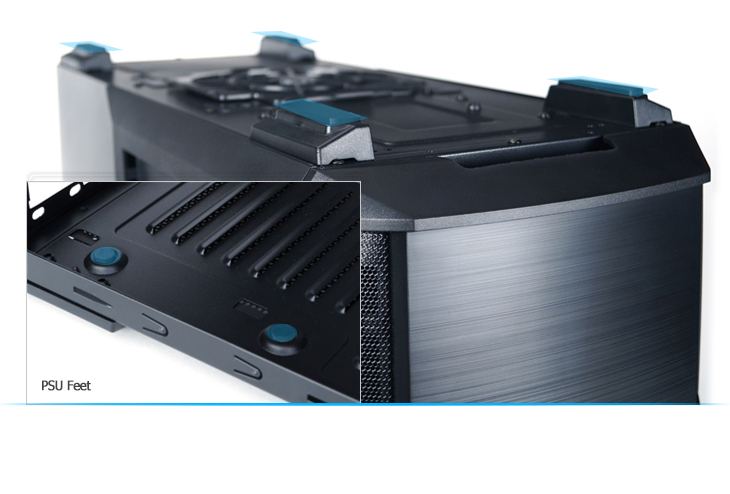

Anti-vibration and noise absorption |
Rubber pods applied on the bottom of the case and power supply to prevent slipping and noise
|
 |
| |

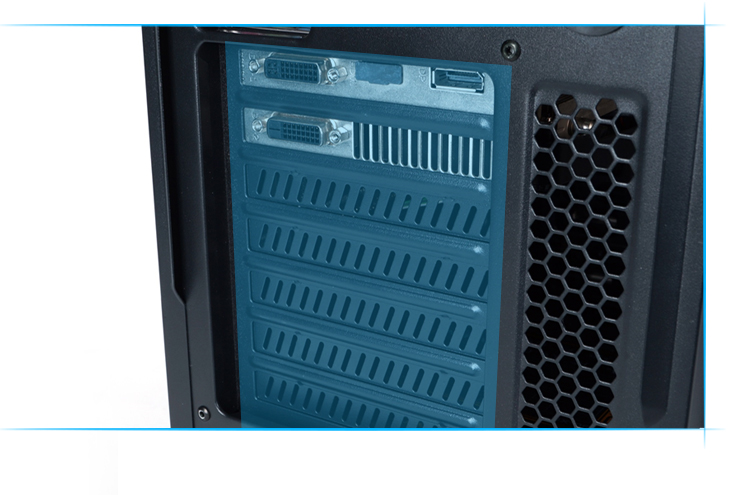

Great expandability with 7 PCI slots
|
 |
 |
| |
| |
 |
| | Case Type | ATX Mid Tower Case | | Dimensions ( W x H x D) | 205 x 465 x 515mm | | Motherboards | Standard ATX / Micro ATX | Power Supply Unit | Standard ATX / ATX 12V | | PCI / AGP Card Compatiblility | Full size 270~400mm | Expansion Slots | 7 slot | Color | Black | | Drive Bays | 5.25" | External Bay x 1 | | 3.5" | Internal Bay x 6 | | 2.5” | External Bay x 2 | Cooling
Components
(Fans) | Front | 2 x 120mm Fan Vent (1 LED Fan Included) | Rear | 1 x 120mm Fan Vent (1 Fan Included) | Top | 2 x 120/140mm Fan Vent (1 LED Fan Included) | Bottom | 1 x 120/140mm Fan Vent (Fan Optional) | | Side | 2 x 80mm Fan Vent (2 Fan Included) | | I/O Ports | Ports | 1 x Microphone, 1 x Headphones, 2 x USB 3.0, 2 x USB 2.0 |
|
|
