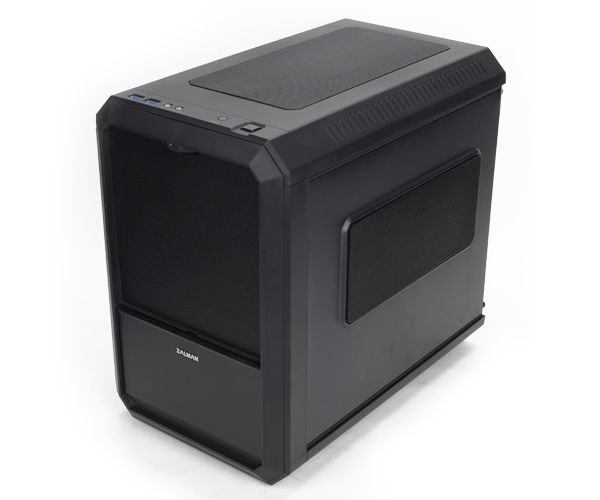

Zalman Case mini ITX M1 USB3.0
[ZM-M1]
№: ++2101 Manufacturer: Zalman

€71 11

Notify me of updates to

available: no
This product is not available
71.11 EUR

Specifications:

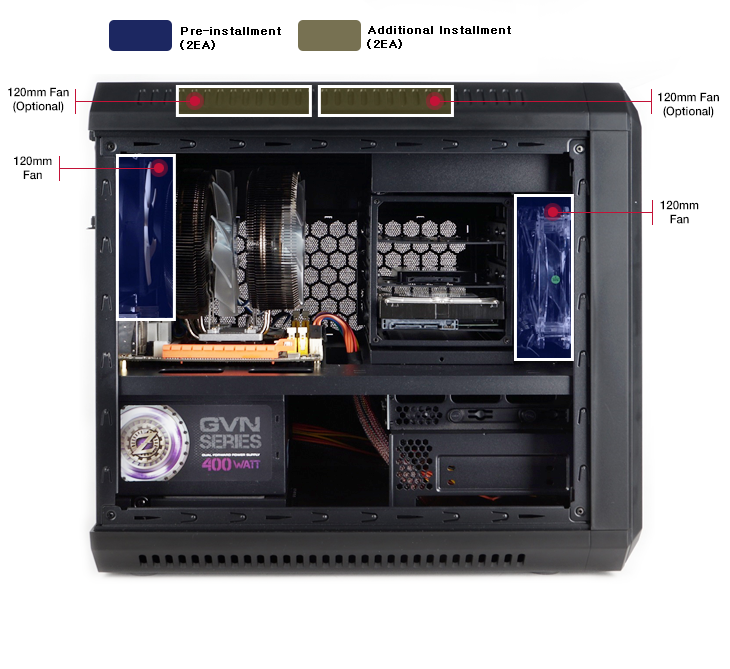

Install up to 4 System Fans

Efficient internal heat ventilation via maximum four system fans (top, bottom, and sides)

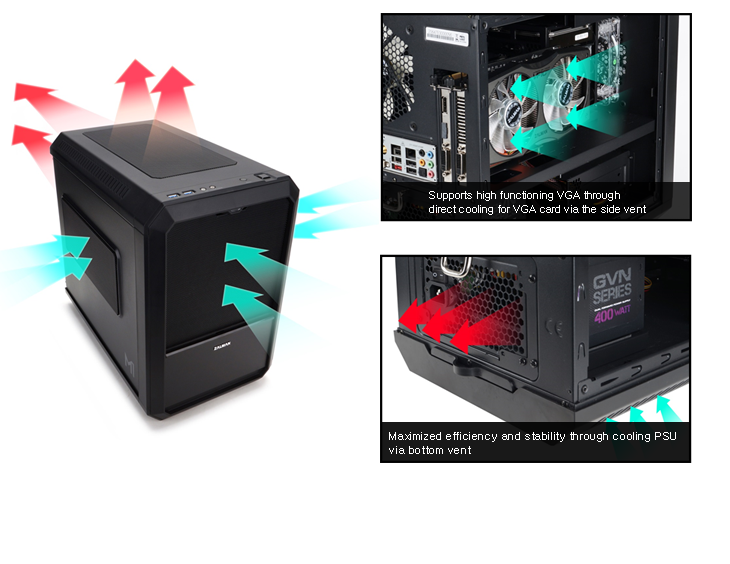

Broadband Mesh Ventilation Structure

Upgradedrn cooling function for HDD and CPU by circulating great amount of air rninto the broad empty space in front surface. Upgraded overall system rnfunction via direct cooling for VGA and PSU through the side and bottom rnvent.

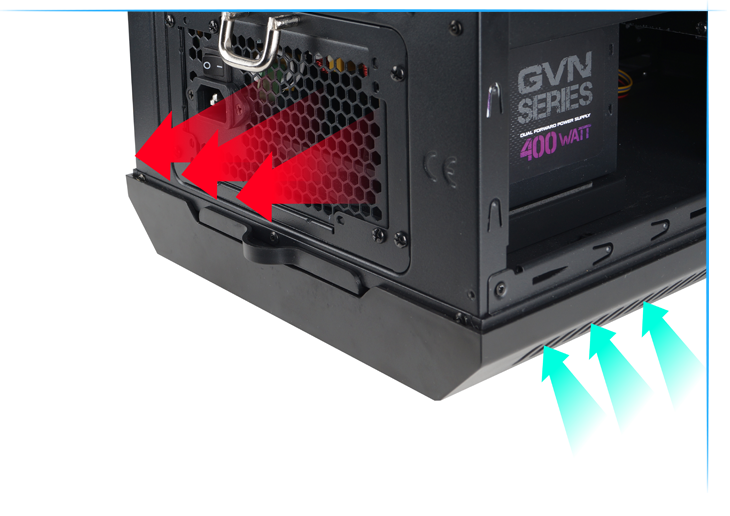

Exclusive Cooling for Power Supply

Cools the power supply directly via the bottom air absorbing panel, maximizing efficiency and stability.

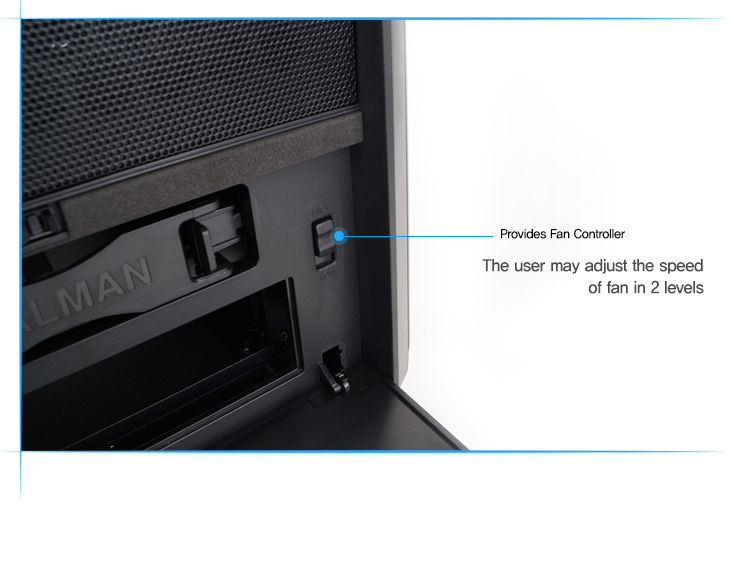

Provides Fan Controller

The user may adjust the speed of fan in 2 levels

The convenient User-Centered Interface

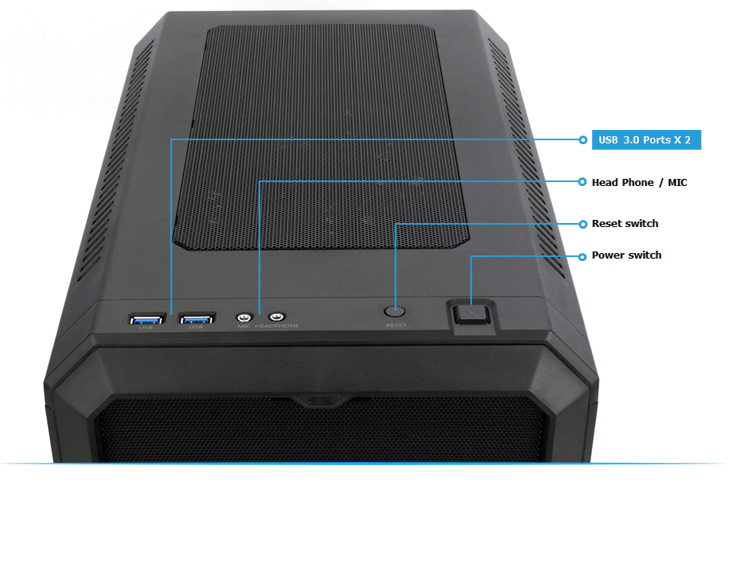

Has USB 3.0 port, audio ports/power and reset button on the top, providing convenience for users

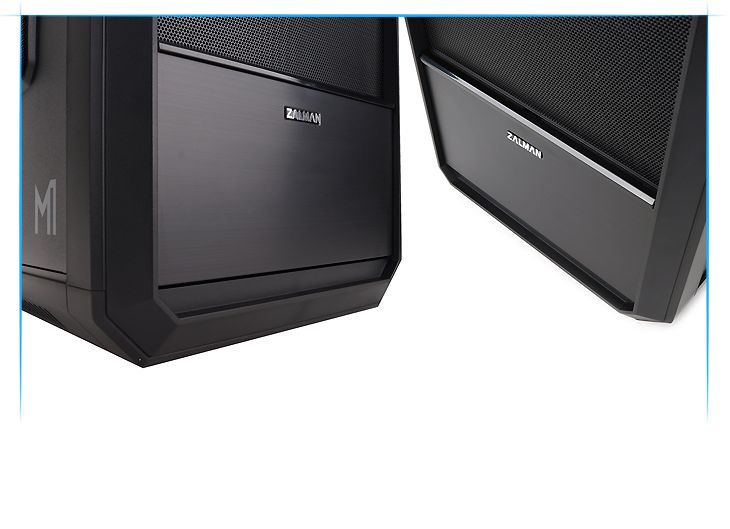

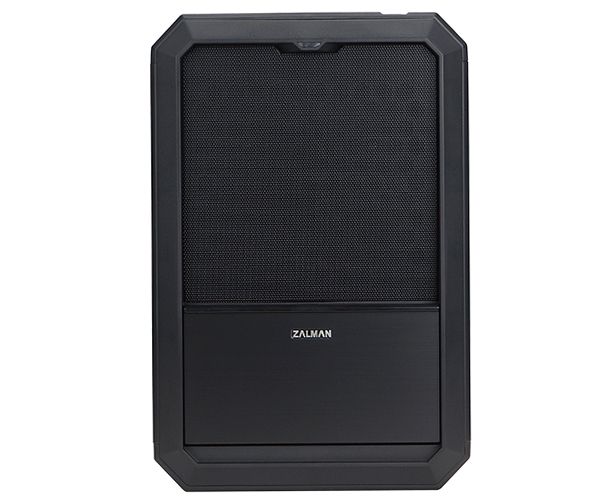

Stylish Aluminum Material Door

Applied black brushed aluminum on the surface of the door for a luxurious look

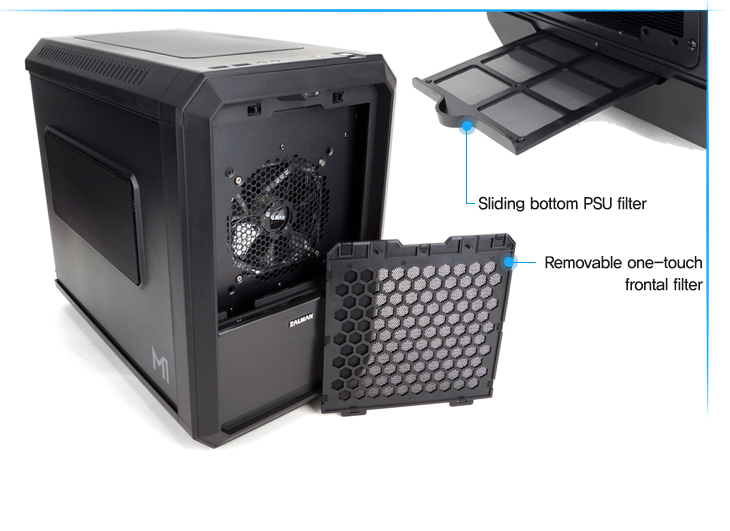

Dust Filter Installed

Prevents dust entering through bottom and frontal vent, extending the system life and increasing cooling efficiency

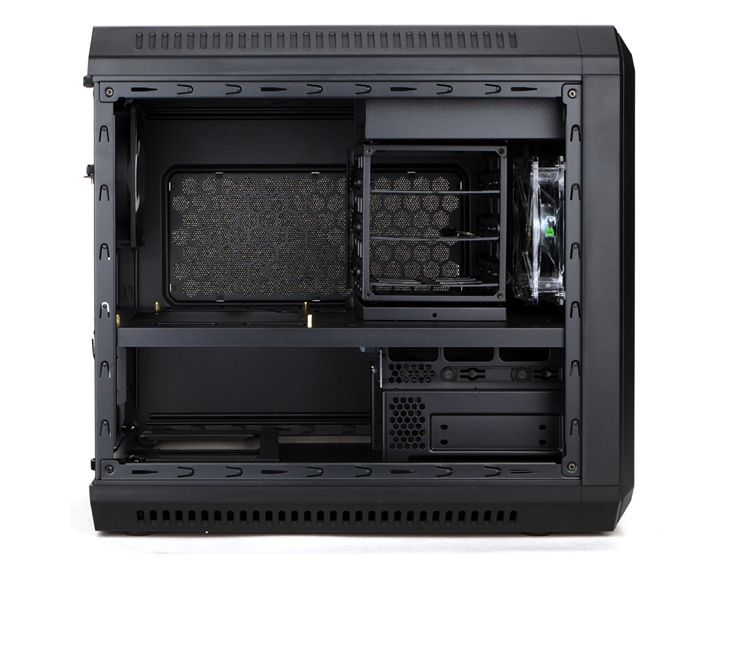

Black Cover Chassis

Designed the internal Chassis with deep black, giving a elegant finish

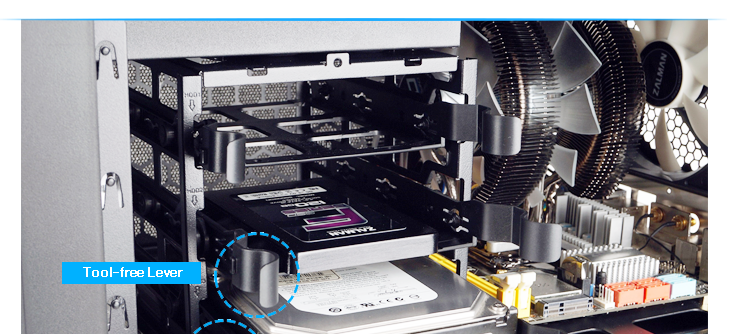

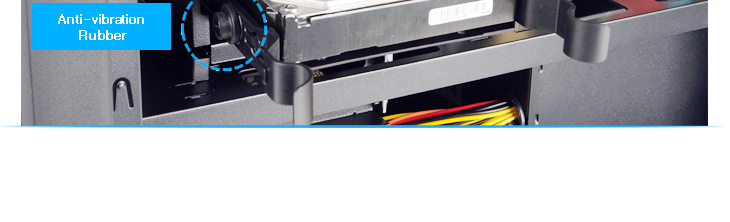

Installed Tool Free HDD to prevent vibration

Designed the hard disc trey in server Tool-Free method
It is very easy to take out an in the hard disc and easy to maintain.
Applied rubber to prevent vibration and minimizing HDD noise

Excellent Expandability

Withrn the expandability beyond mini ITX case, it can install multi HDD/SSD, rn160mm high CPU cooler, 350mm VGA card, dual radiator water cooler.

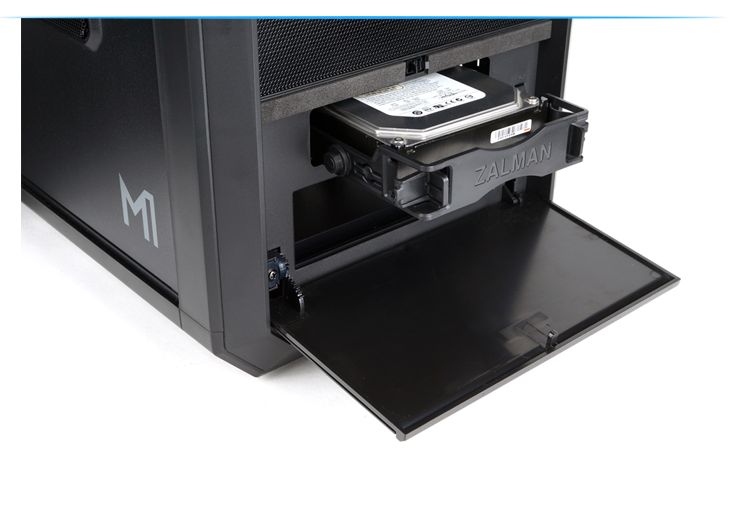

Supports Hot-Swap Installment

Can easily switch out the data storage through the frontal Hot-Swap Bay

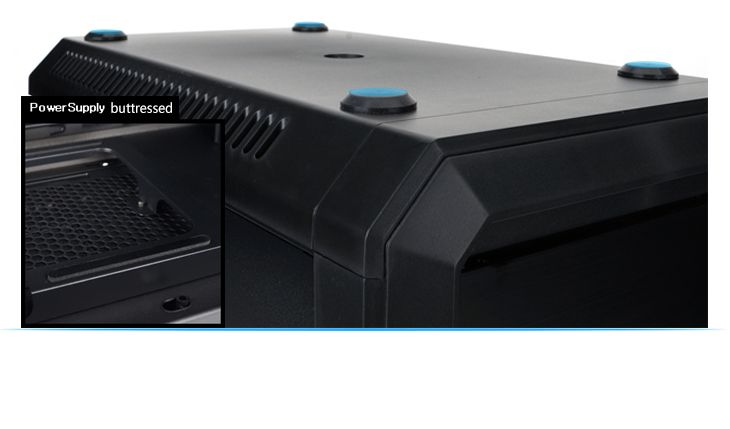

Vibration and Noise Absorbing Pad

Applied the rubber pad on the bottom of the power supply and case to prevent sliding and noise that may be created

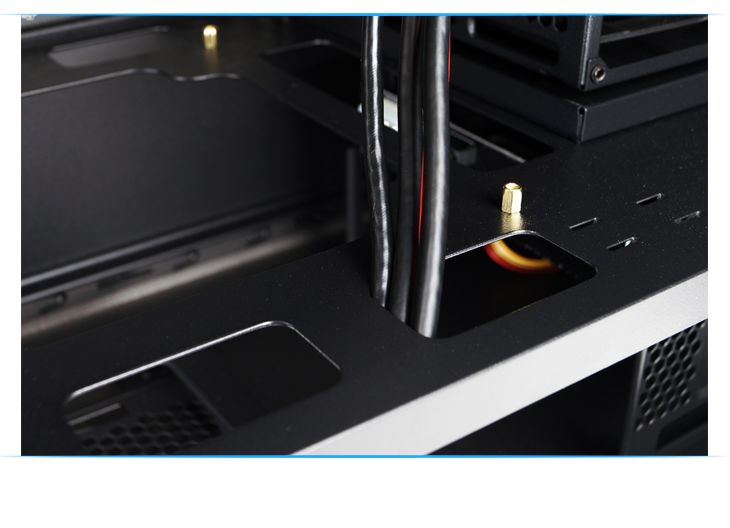

Hole for organizing cables and cords

A hole for organizing cables is provided so that the internal space may be used efficiently


Enclosure Type		ATX Mini Tower
Dimensions		261(W) x 394(H) x 426(D)mm
Motherboard Compatibility		MINI-ITX Board
Power Supply Compatibility		Standard ATX / ATX12V
PCI/AGP Card Compatibility		Full Size 350 mm (12.5 inch)
Drive Bays	5.25"	External Bay x 1
	2.5/3.5"	Internal Bay x 3, Hot-swap Bay x 1
	2.5"	Internal Bay x 2
Cooling Components (Fans)	Top	120mm Fan Vent x 2 (Fan optional)
	Rear	120mm Fan Vent x 1 (1 Fan included)
	Front	120mm LED Fan x 1 (1 LED Fan included)
Fan controller		2ch
Acrylic Side /Vent		Yes (vent)
I/O Ports		Headphones x 1, Mic x 1, USB 3.0 x 2
Expansion Card Slots		2 Slots
