Zalman CPU Cooler CNPS10X OPTIMA 2011/1366/1150/775/AMD
[CNPS10X-OPTIMA-2011]
№: ++1928   Manufacturer: Zalman

€26 83

available: no
This product is not available
26.83 EUR
share in facebook      share in facebook


Specifications:




  Socket    CPU    CPU Compatibility

Intel  1155/1156  Core i7 Extreme  Supports all speeds
Core i7
Core i5
Core i3
1150  Core i7  Supports all speeds
Core i5
1366  Core i7 Extreme  Supports all speeds
Core i7
775  Core 2 Quad  Supports all speeds
Core 2 Duo
Core 2 Extreme
Pentium Dual Core
Pentium D
Pentium 4
Celeron D
AMD  FM1  LIano  Supports all speeds
FM2  Trinity  Supports all speeds
AM3+  Vishera  Supports all speeds
Zambezi
AM3  Phenom II  Supports all speeds
Athlon II
AM2+  Phenom II  Supports all speeds
Phenom
Athlon FX
Athlon X2
Athlon
Sempron
AM2  Athlon FX  Supports all speeds
Athlon X2
Athlon
Dual-Core Opteron
Opteron
Sempron









Dimensions

132(L) x 85(W) x 152(H)mm
Weight  630g
Materials  Fins: Aluminum / Base: Copper
Dissipation Area  6,553㎠
Heatpipes  4
Fan Bearing  FSB (Fluid Shield Bearing)
PWM Duty Cycle  30 ~ 100 ± 5%
Fan RPM  1,000 ~ 1,700 rpm ± 10%
Noise  17 ~ 28 dBA ± 10%
Rated Voltage  12V






Color  Gray
Capacity  1g
Temperature Stability  -40°C ~ +150°C (-40℉ ~ +302℉)

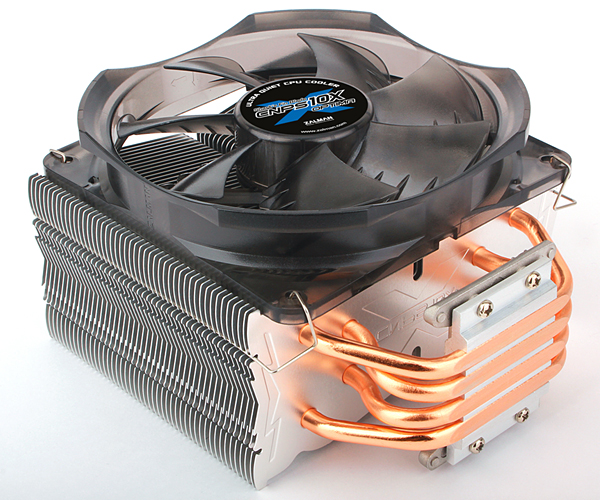

Powerful Cooling Performance


Optimally designed aluminum fins disperse heat away from the CPU via 4 heatpipes, while switching noise free, high capacity 120mm fan quickly cools the heatsink for stable operation of high performance CPUs.

※ Heat Displacement Area: 6,553㎠
※ `Switching Noise` is the high frequency harmonic noise that can result from voltage regulation.

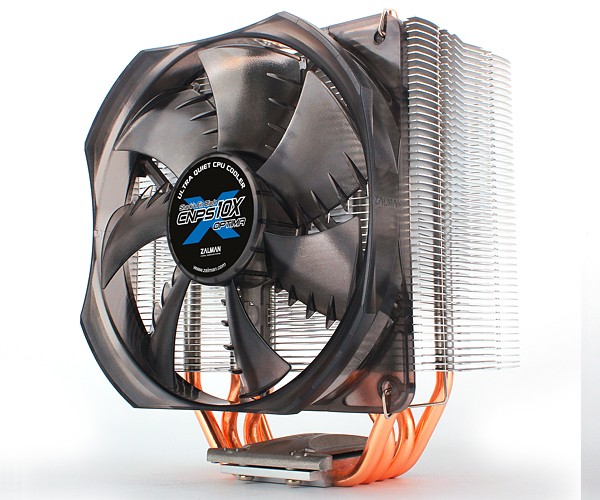

Shark`s Fin Blade / Dual Fan Support


Optimized for maximum airflow, Shark`s Fin Blade Fan greatly
reduces the turbulence caused by fan rotation, thus decreasing the noise and vibration while increasing the airflow. The heatsink is designed to mount one or two fans according to the users` preferences.




Differentiated Design


Direct Touch Heatpipe (DTH) Base Direct Touch Heatpipe (DTH) Base technology transfers the CPU`s heat directly to heatpipes, thereby minimizing heat resistance and maximizing cooling performance.


Compatible with Mid Tower Case(180mm Width)


For optimum case compatibility the heatsink`s height is set to 152mm which ensures compatibility with case width of 180mm or greater.




Versatile Compatibility


CNPS10X Optima accommodates a broad range of sockets.
- Intel LGA1155 / 1156 / 1150 / 1366 / 775
- AMD FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2



High Performance Super Thermal Grease ZM-STG2M


The high performance super thermal grease ZM-STG2M maximizes heat transfer from the CPU to the base of
CNPS10X Optima for intensified cooling performance.
