| | | Socket | | CPU | | CPU Compatibility | |
Intel | 1155/1156 | Core i7 Extreme | Supports all speeds | Core i7 | Core i5 | Core i3 | 1150 | Core i7 | Supports all speeds | Core i5 | 1366 | Core i7 Extreme | Supports all speeds | Core i7 | 775 | Core 2 Quad | Supports all speeds | Core 2 Duo | Core 2 Extreme | Pentium Dual Core | Pentium D | Pentium 4 | Celeron D | AMD | FM1 | LIano | Supports all speeds | FM2 | Trinity | Supports all speeds | AM3+ | Vishera | Supports all speeds | Zambezi | AM3 | Phenom II | Supports all speeds | Athlon II | AM2+ | Phenom II | Supports all speeds | Phenom | Athlon FX | Athlon X2 | Athlon | Sempron | AM2 | Athlon FX | Supports all speeds | Athlon X2 | Athlon | Dual-Core Opteron | Opteron | Sempron | |
|
|
|

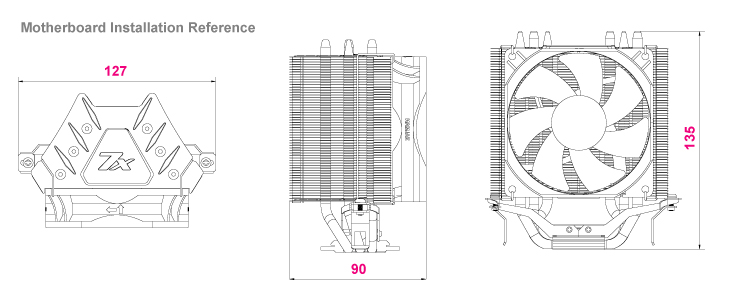

The
cooler`s installation requires an unobstructed space of 90mm(L),
127mm(W), and 135mm(H), with the CPU as a central reference point.
Please check if components such as ODD, VGA and PSU protrude into the
required space. |
|
|
|
|
|
|
|

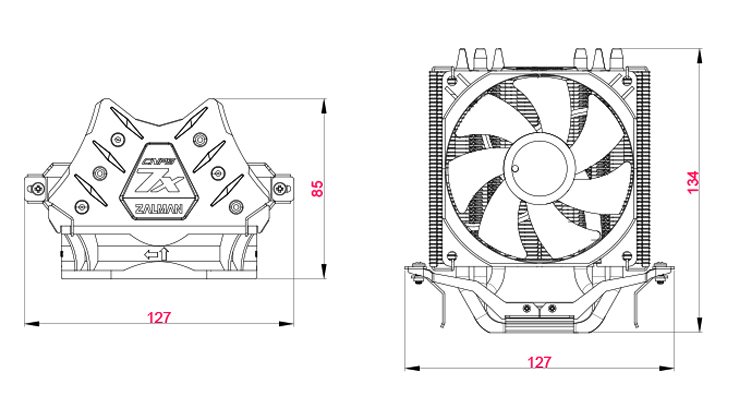

Dimensions | 90(L) x 127(W) x 135(H)mm | Weight | 360g | Materials | Pure Copper, Aluminum | Fan Bearing | Long Life Bearing | Fan RPM | Quiet Mode (with RC33P) | 1,250 ~ 1,500rpm ± 10% | Performance Mode (without RC33P) | 1,500 ~ 1,950rpm ± 10% | Noise | Quiet Mode (with RC33P) | 17 ~ 20dBA ± 15% | Performance Mode (without RC33P) | 20 ~ 25dBA ± 15% | Input Voltage | 12V | Function | PWM Control, Auto Restart | |
|
|
|
Color | Gray | Capacity | 1g | Temperature Stability | -40°C ~ +150°C (-40℉ ~ +302℉) | |
|
|
|

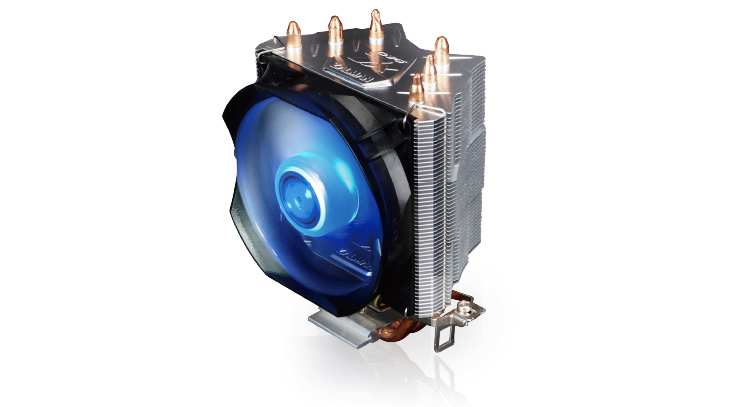

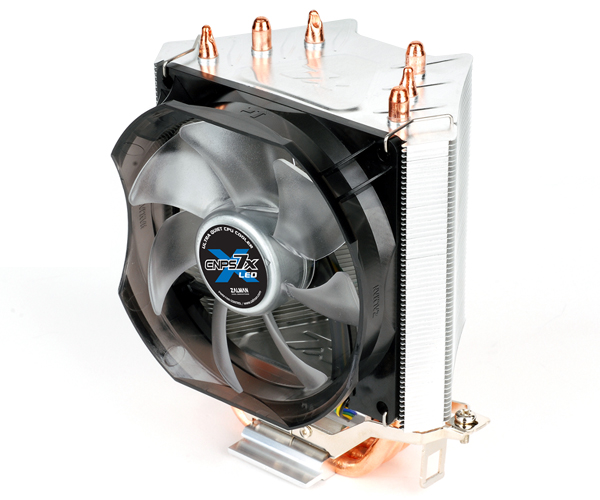

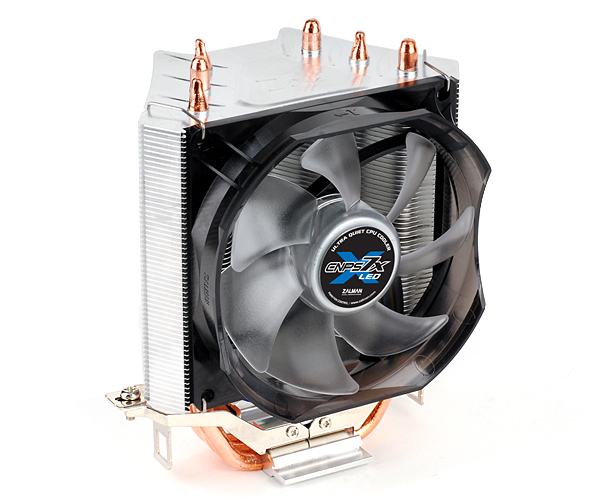

Powerful Cooling PerformanceOptimally
designed aluminum fins effectively disperse heat away from the CPU via 3
composite heatpipes, while 92mm fan quickly cools the heatsink for

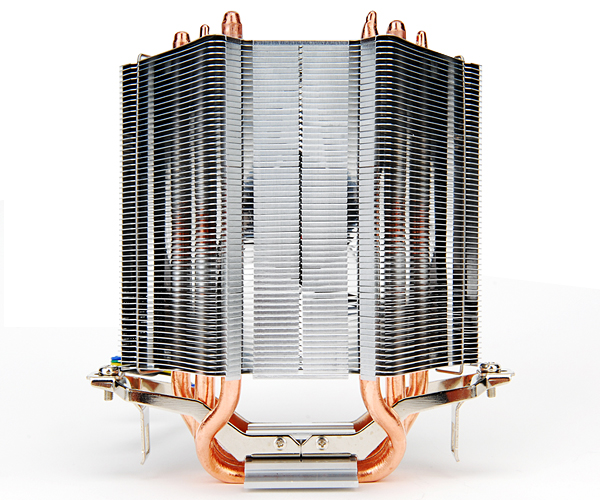

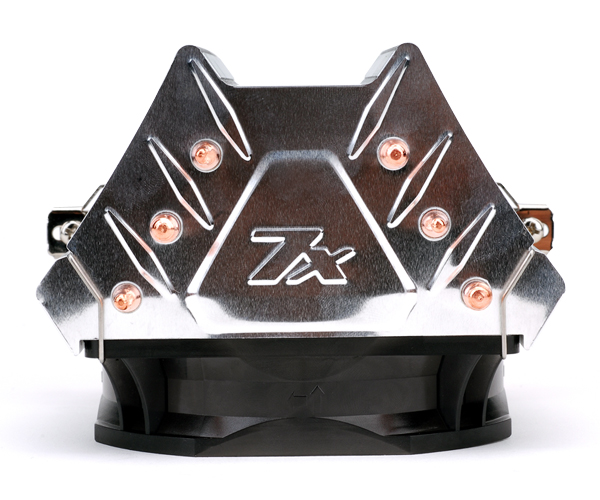

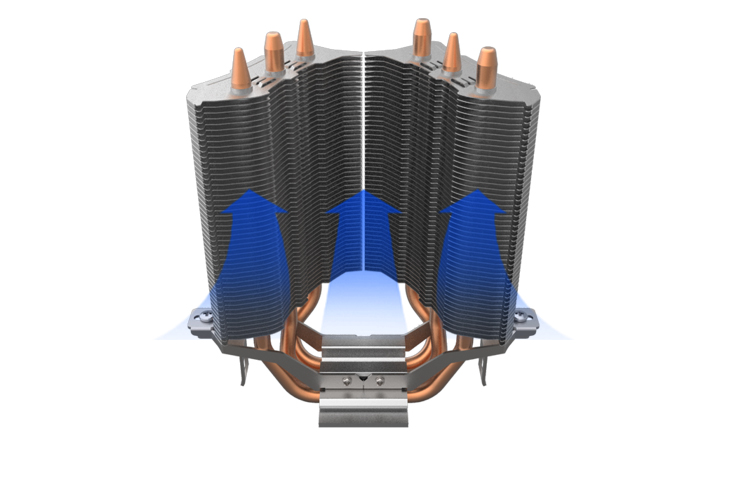

stable operation of high performance CPUs. | | V-Shaped Dual HeatsinksTwo independent heatsinks are designed in a V-shape to minimize air resistance and optimize airflow, providing the best cooling performance.
※ Heat Resistance : 0.126 ℃/Watt | |
|
|

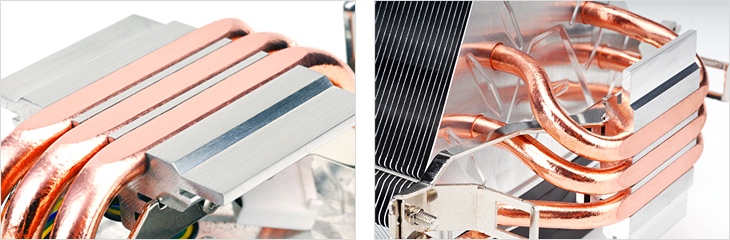

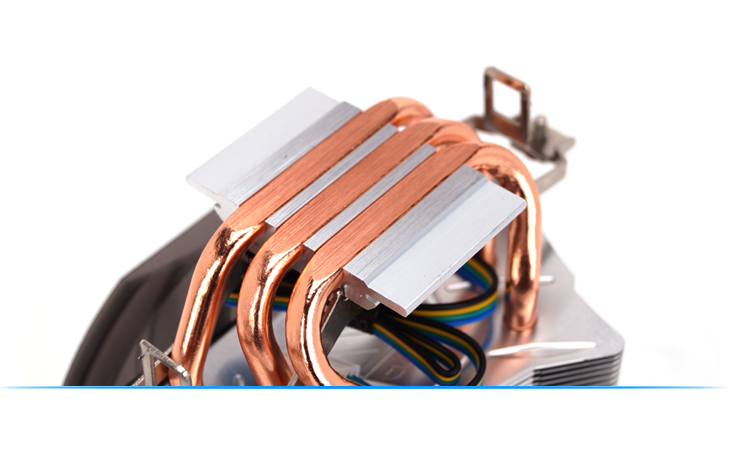

Direct Touch Heatpipe (DTH) BaseDTH
technology transfers the CPU`s heat directly to heatpipes, thereby

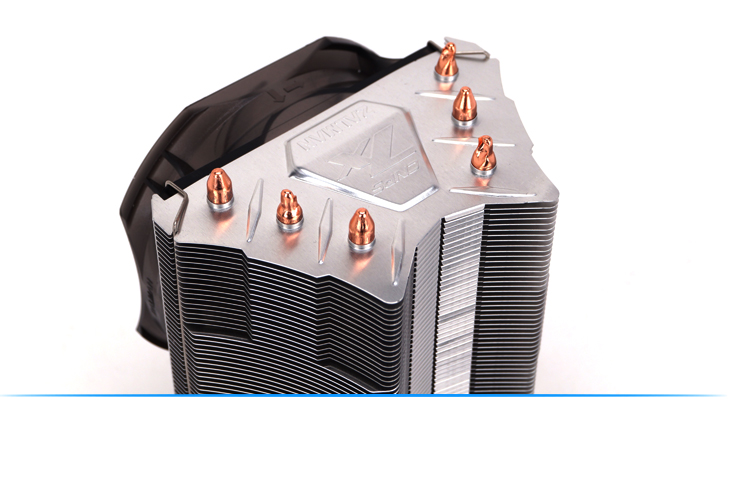

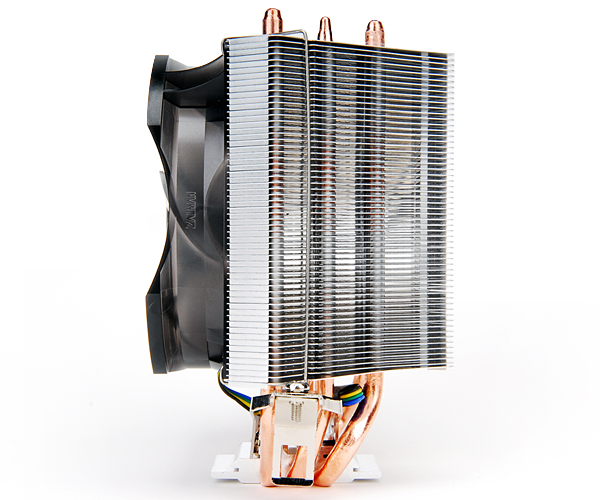

minimizing heat resistance and maximizing cooling performance. | | Composite HeatpipesBy
utilizing Composite heatpipes, the heat transfer capacity is enhanced
by1.5 times compared to regular sintered-type heatpipes. | |
|
|

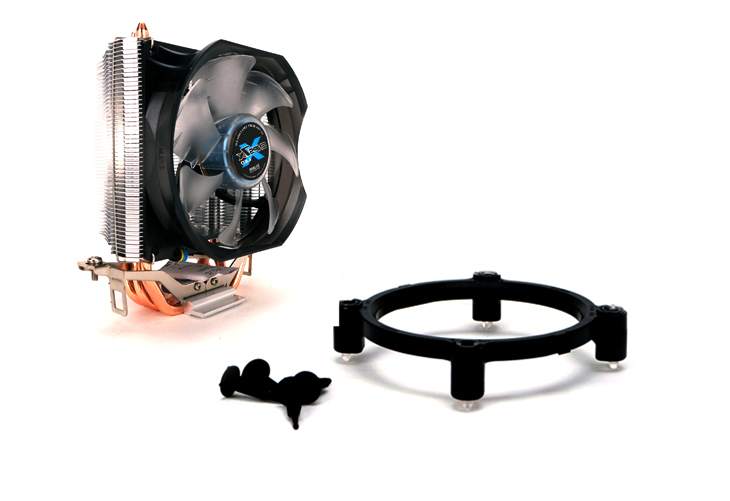

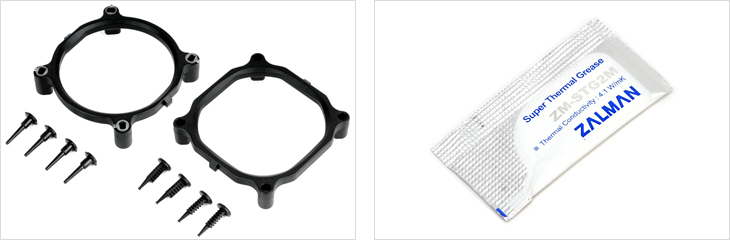

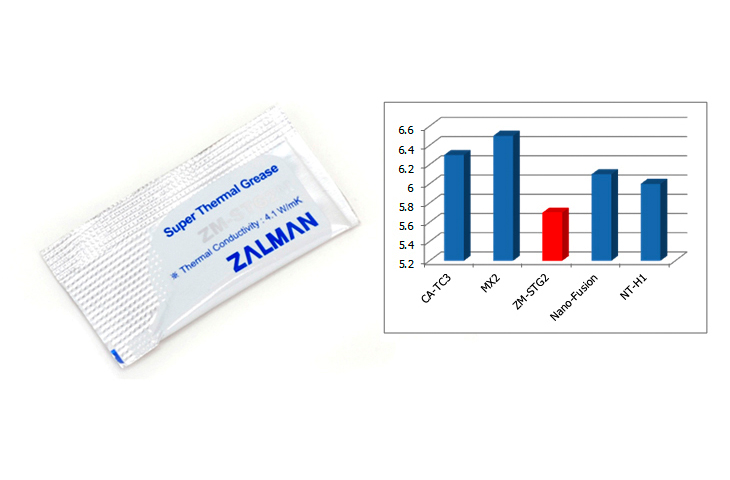

Versatile CompatibilityCNPS7X LED accommodates a broad range of desktop CPU sockets. - Intel LGA1150 / 1155 / 1156 / 775 / 1366 - AMD FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 | | High Performance Super Thermal Grease ZM-STG2MThe high performance super thermal grease ZM-STG2M maximizes heat transfer from the CPU to the base of CNPS7X LED for intensified cooling performance. | |
|
|

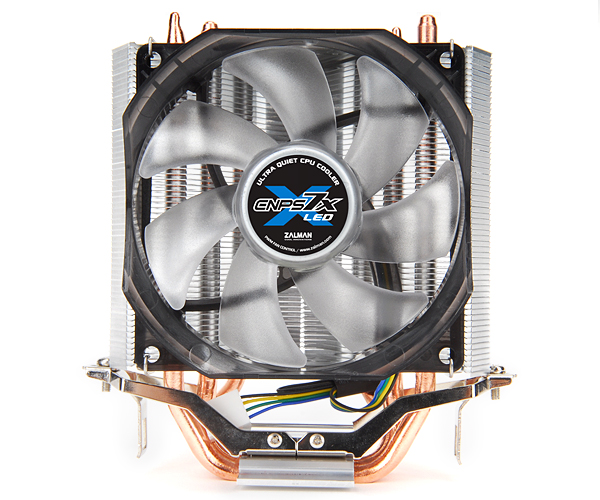

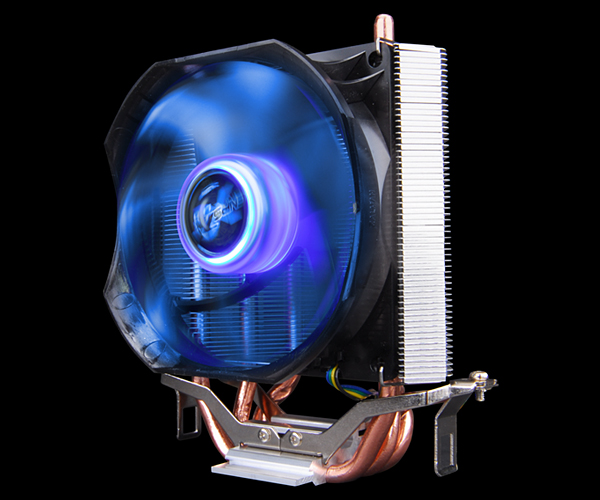

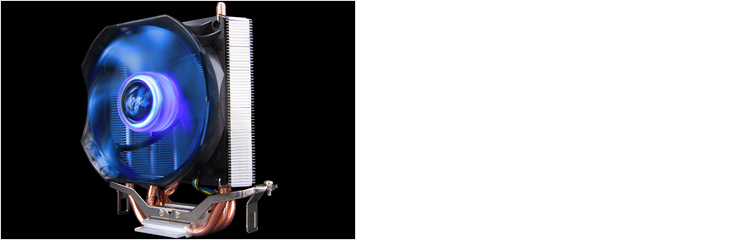

Ultra Quiet 92mm Blue LED PWM FanSwitching
noise-free 92mm PWM fan is incorporated for ultra quiet operation(20dBA
only at Max. w/RC33P), and Blue LED Fan, included in a black
translucent housing is for cool aesthetics. | | |
