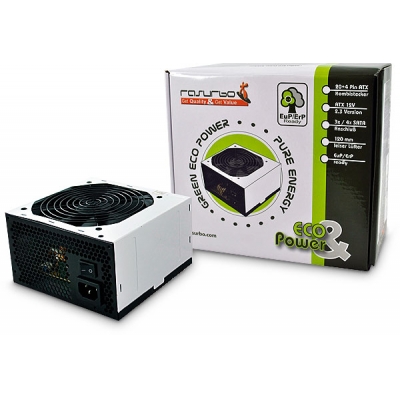

Rasurbo PSU Eco Power 550W EAP550
[EAP550]

Каталожен №: ++1080   Производител: Rasurbo

Характеристики:

“Rasurbo's new ECO and Power series power supplies offers EuP/ErP and ATX 2.3 standards and complies with the statutory guidelines for increased energy and better efficiency.”

Description

Rasurbo's new ECO and Power series power supplies offers EuP/ErP and ATX 2.3 standards and complies with the statutory guidelines for increased energy and better efficiency (less than 1% power consumption in stand-by mode). As well as the aforementioned standards, the ECO PSUs offer excellent performance and stability while remaining extremely quiet.

Features

1. New updated Rasurbo PSUs
2. ATX 12V 2.3 support
3. Very quiet 120mm temperature controlled fan, average 16 dB
4. Over voltage, capacity overload and short circuit protection
5. Excellent value for money

Specifications

Model Number - EAP550
ATX12V Version - v2.3
20+4-pin ATX Connector - Yes
ATX12V (4-pin) support - Yes
EPS12V (8-pin) support - No
PCI-E support (6-pin) - Yes, x1
PCI-E support (6+2-pin) - No
Number of floppy drive connectors - 1
Number of molex connectors - 2
Number of SATA power connectors - 3
Master power on/off switch - Yes
Acoustic noise level - 16 dB average
Fan size - 120mm, thermally controlled
Length of motherboard power cable - 50 cm (approx)
+3.3V maximum output current - 19 A
+5V maximum output current - 23 A
+12V1 maximum output current - 19 A
+12V2 maximum output current - 18 A
-12V maximum output current - 0.3 A
+5VSB maximum standby current - 2.5 A
Mains input voltage 230 VAC, 50 Hz
Physical dimensions - H 85 x L 150 x W 140 mm
Protection - Active PFC, OVP, OPP and short-circuit
Certificates - CE
