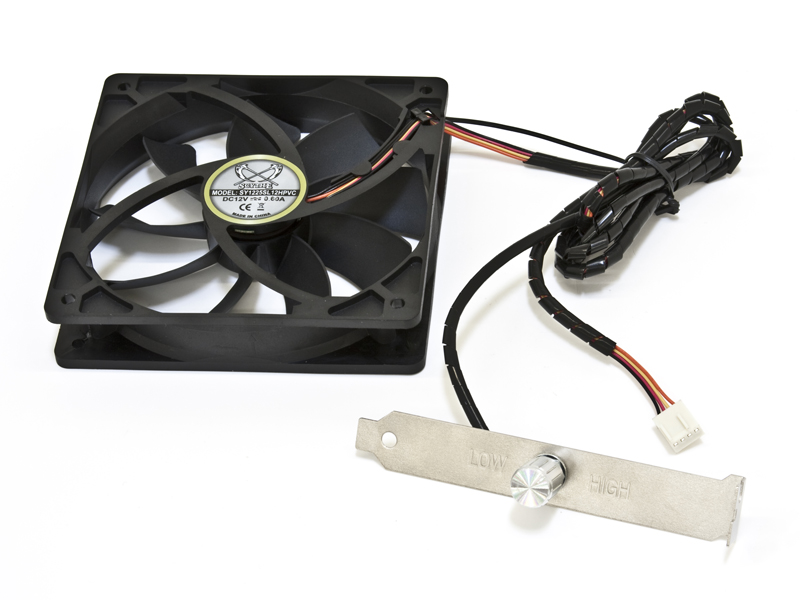

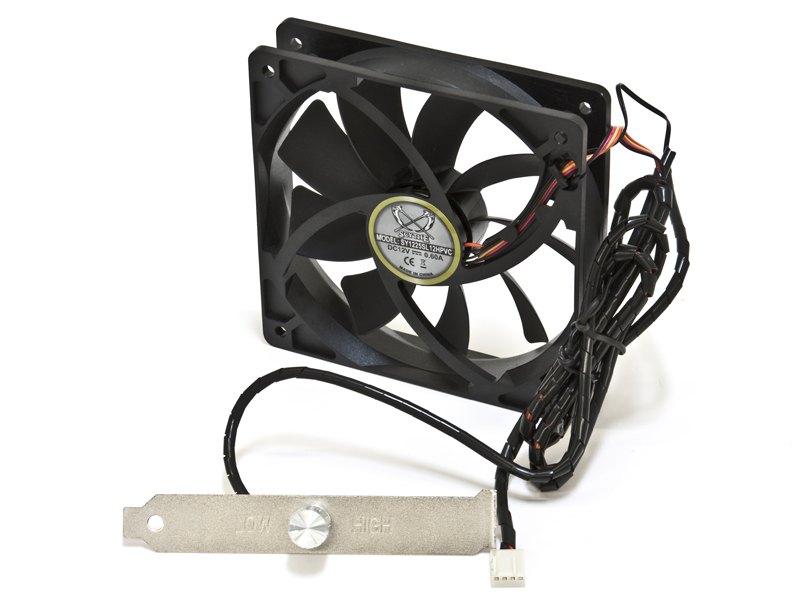

Slip Stream Adjustable PWM fan is the third new version of the PWM
Slip Stream series. As needed, users can adjust the PWM bandwidth
manually to control the fan speed by sliding the switch on a PCI
bracket, so the fan is optimized for quiet operation or highest
performance. PWM function is still maintained as the general feature. Speed of this fan variation is continuously adjustable between 470 (± 30%) to 1,340 rpm (± 10%) and 740 (± 25%) to 1,900 rpm (± 10%).
Specifications
Model Name:
Slip Stream 120 PWM Adjustable
Model No.:
SY1225SL12HPVC
Fan Dimensions:
120 x 120 x 25 mm
Fan Speed:
Max. Band 740 (±25%) - 1,900 rpm (±10%)
Min. Band 470 (±30%) - 1,340 rpm (±10%)
Noise Level:
Max. Band 9.8 - 37.0 dBA
Min. Band: 7.05 - 27.3 dBA
Air Flow:
Max. Band 37.15 - 110.31 CFM = 63 - 187 m³/h
Min. Band: 23.0 - 76.53 CFM = 39 - 130 m³/h
Weight:
117 g
Connector:
3-Pin (4-Pin Molex Adapter include)
Bearing Type:
Sleeve Bearing
MTBF:
30,000 Hours
Mounted in following CPU Cooler:
Yasya
Features
PWM Adjustable
Equipped with Scythe original Slip Stream
PWM 120 mm PWM Adjustable fan, it
allows a user to choose the fully
automatic PWM feature fan speed control
or alternatively adjust the PWM band
range to fulfill demands from silent to high performance users!
Performance
By reducing the dimension of the center
hub and enlarging the blade surface area,
high airflow is generated at low RPM.

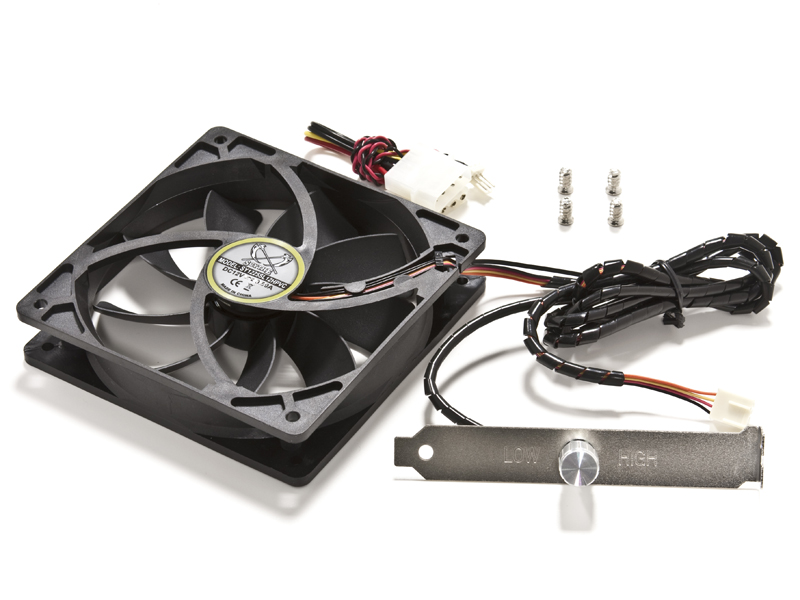

4-Pin Peripheral Adapter Provided
To be versatile, this case fan comes with
the 4-pin peripheral adapter.
