Scythe Fan 120mm - Slip Stream PWM Adjustable 1900rpm
[SY1225SL12HPVC]

№: ++860   Manufacturer: Scythe

Specifications:

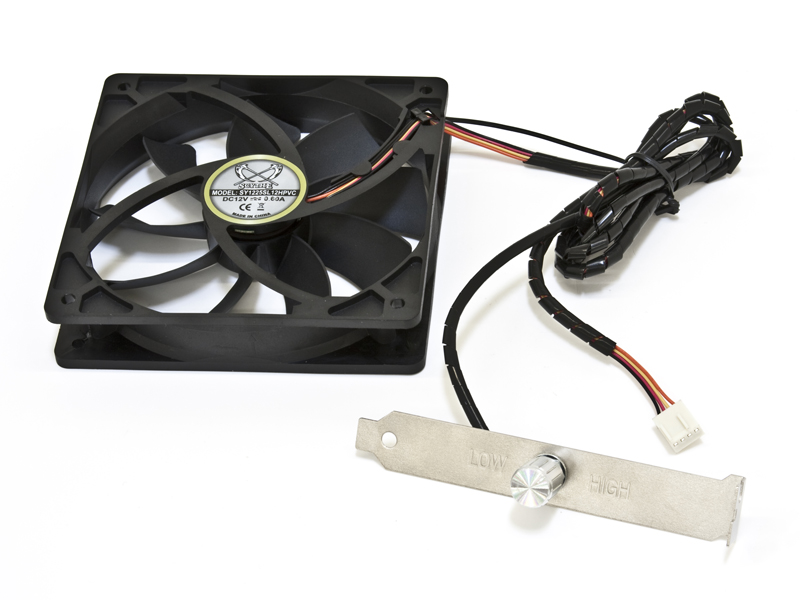

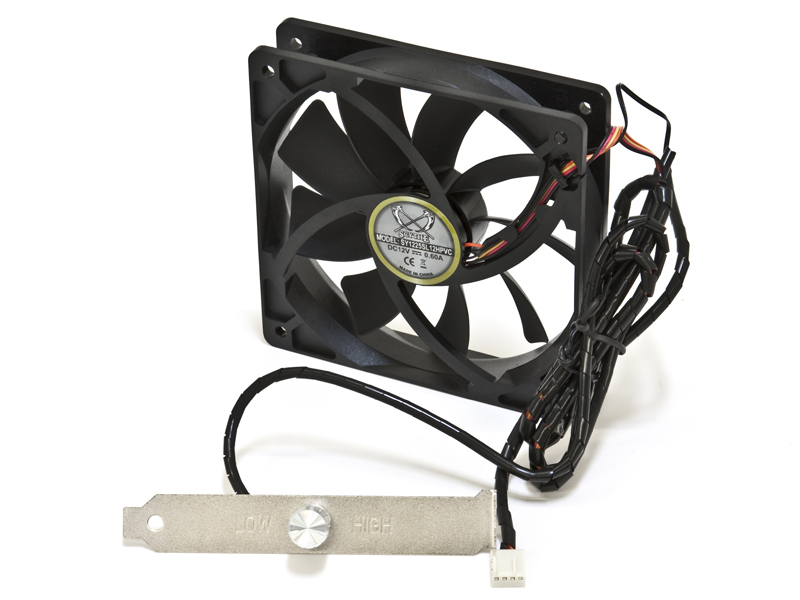

Slip Stream Adjustable PWM fan is the third new version of the PWM
Slip Stream series. As needed, users can adjust the PWM bandwidth
manually to control the fan speed by sliding the switch on a PCI
bracket, so the fan is optimized for quiet operation or highest
performance. PWM function is still maintained as the general feature.   Speed of this fan variation is continuously adjustable between 470 (± 30%) to 1,340 rpm (± 10%) and 740 (± 25%) to 1,900 rpm (± 10%).

Specifications

Model Name:
Slip Stream 120 PWM Adjustable

Model No.:
SY1225SL12HPVC

Fan Dimensions:
120 x 120 x 25 mm

Fan Speed:
Max. Band 740 (±25%) - 1,900 rpm (±10%)
Min. Band 470 (±30%) - 1,340 rpm (±10%)

Noise Level:
Max. Band 9.8 - 37.0 dBA
Min. Band: 7.05 - 27.3 dBA

Air Flow:
Max. Band 37.15 - 110.31 CFM = 63 - 187 m³/h
Min. Band: 23.0 - 76.53 CFM = 39 - 130 m³/h

Weight:
117 g

Connector:

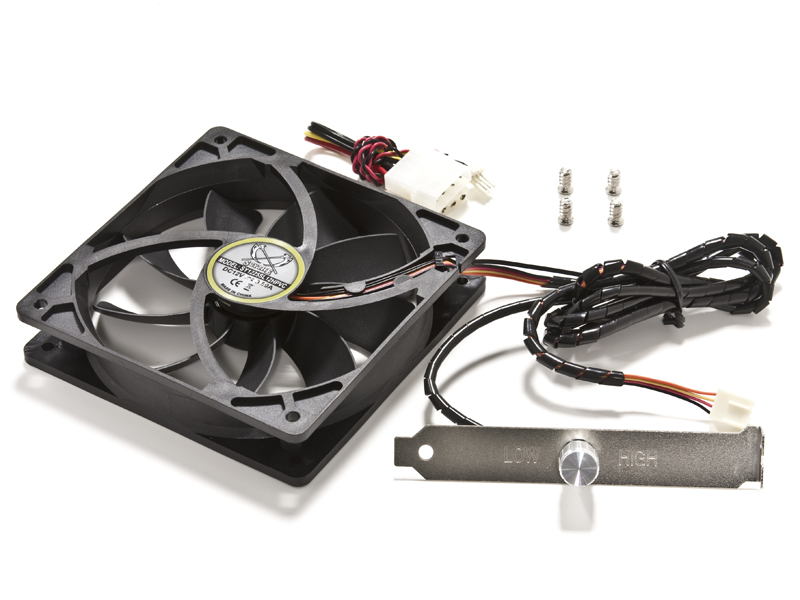

3-Pin (4-Pin Molex Adapter include)

Bearing Type:
Sleeve Bearing

MTBF:
30,000 Hours

Mounted in following CPU Cooler:

Yasya
