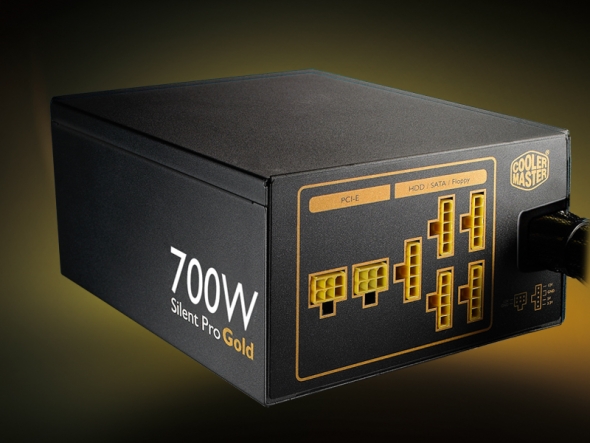

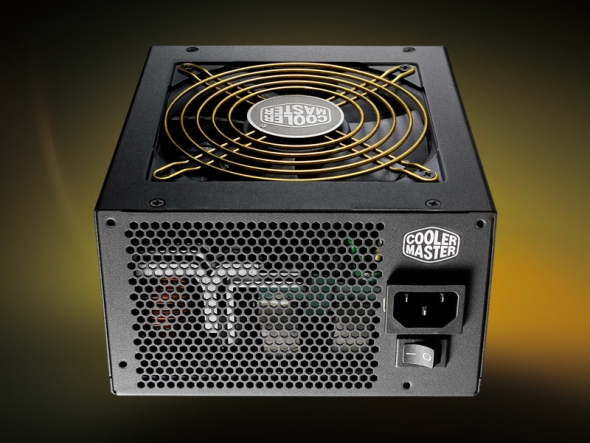

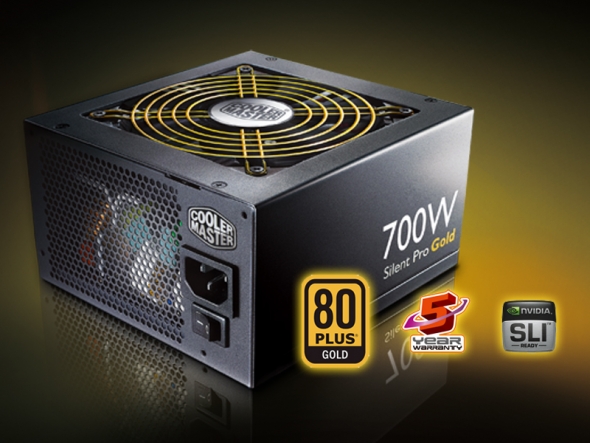

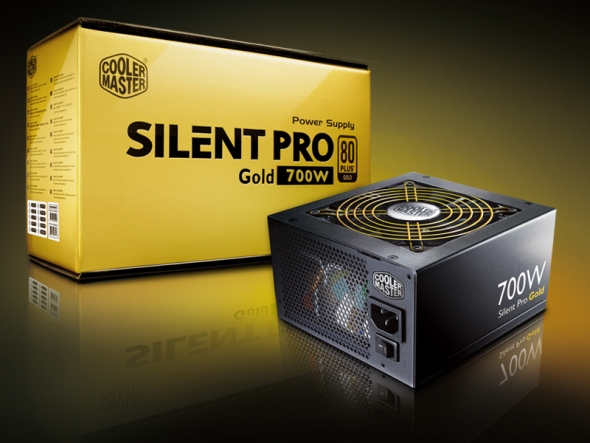

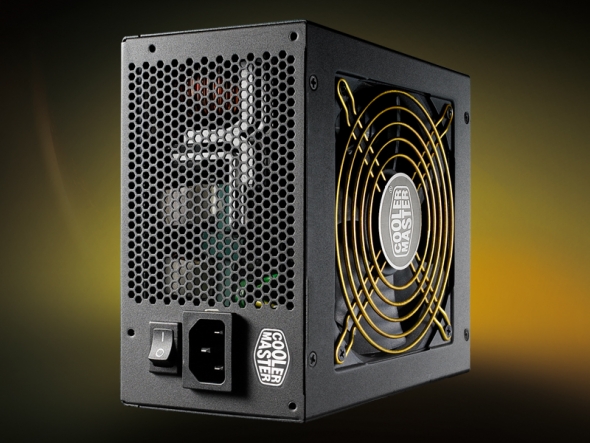

CoolerMaster PSU Silent PRO GOLD 700W
[RS-700-80GA-D3]
Каталожен №: ++974 Производител: CoolerMaster

276 00 лв.

Изпращайте ми известия

на склад: не
Продуктът не е наличен
276.00 BGN

Характеристики:

Introduction

Ranging from the ever-efficient 600W all the way up to the 1200W power supply, the Silent Pro Gold will satisfy the energy cravings of any system. With a power efficiency rating of 90%, the Silent Pro Gold line meets the 80Plus Gold Standard. To achieve this goal, Cooler Master incorporates three visionary patents into this innovative design. The Hybrid Transformer™ incorporates the transformer with the heat sink, not only reducing the size by 25% over traditional transformers, but by keenly conducting heat, superiorly increasing efficiency. The Heat Transfer Technology™ crafted especially for powerful, demanding power units utilizes and L-shaped design to ingeniously route air flow by the heat sink, resulting in greater heat dissipation and therefore providing an optimal performance. The Hyper Path™ adeptly places the integrated circuits tightly to the transformers, shortening the path and creating a more direct energy channel, reducing the energy loss to nearly nothing. Combining these elements with the integrated active PFC with PWN controller, an intelligent 120/135 mm speed-adjustable fan, a powerful single rail engaging the most energy-greedy peripherals with ease, and countless other features, the Silent Pro Gold Series will handle all your computer power needs.

Features

Hybrid Transformer™:

Specially design transformer to improve thermal and efficiency.
Patent design transformer mount with heat sink, the size was reduced by up to 25% than the traditional transformer providing lesser energy consumption, while conducting the heat for better overall efficiency
HTT™ - Heat Transfer technology:

Patent design “L” shaped heat sink layout.

This technology helps to guide the air flow along the heat sink to improve the air circulation for maximum performance.
Hyper Path™:

Patent design hyper link between IC and the relative components.

Patent energy conversion design path provides super efficient connection from the transformer to components. The signal can be transfer directly without any energy loss.
Single 12 V Power Rail
Tackling challenges from the most power-intensive peripherals head on, this solitary 12 V power rail provides ample power and strong resistance to any overloading.
Double-Layer EMI Filter
Dual protection from electromagnetic interference, thus restraining noise and interference for greater protection for you and your connections.
Intel Compliant
ATX12V v 2.3 and EPS version 2.91 compliant.
Intelligent Fan Speed Control
Speed control makes the 120 mm fan adept for any user’s circumstances and need.
Active PFC+ PWM Combo Controller
Integrating this active controller will increase the efficiency of any computer, making PFC higher than 99%.
Multiple Protection Design
Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), Short Circuit Protection (SCP) and Over Current Protection (OCP).
Efficient Transformer
- Adeptly holding power for minimal loss in the 5V standby voltage so the system is promptly up and ready from power on or sleep modes
- Highly efficient design on par with 80Plus Gold requirements (90% typical).
And More
- Multiple updated connectors for all types of interfaces (PCIe, SATA etc.)

- Simple cable management utilizing flat modular cables for increased airflow.

- High reliability with an MBTF of at least 100,000 hours of use.
- NVIDIA SLI-Ready Certified guarantees enough ample power and up-to date connectors for SLI graphics cards.
- Japanese made capacitors

- Five Year Warranty.

Specifications

Model	RS-700-80GA-D3

Type	Intel Form Factor ATX 12V V2.3 SSI Form Factor EPS 12V V2.92

Dimension (W / H / D)	150 X 160 X 86 mm 5.9 x 6.29 x 3.4 inch

Input Voltage	90-264Vac (Auto Range)

Input Current	8 - 4A

Input Frequency Range	47-63Hz

PFC	Active PFC (0.99)

Power Good Signal	100~500ms

Hold Up Time	>17ms

Efficiency	90% typical

MTBF	>100,000 hours

Protection	OVP / UVP / OCP / OPP / OTP / SCP

Output Capacity	700W

Max. Output Capacity	840W

Operation Temperature	0~40°C (Nominal Input Voltage)

Regulatory	CE / FCC / UL / TUV / C-Tick / GOST / BSMI / CCC / KCC

Fan	120mm Ultra Silent Fan

Certifications	SLI / CrossFire / 80 Plus Gold

Connector	M/B 20 + 4 pins x 1 CPU 4 + 4 pins x 1 PCI-e 6+2 pins x 3 / PCI-e 6 pins x 3 (One PCI-e 6+2 pins connector extends to one PCI-e 6 pins connector) SATA x 9 / Peripheral 4 pins x 4 Floppy 4 pins x 1
