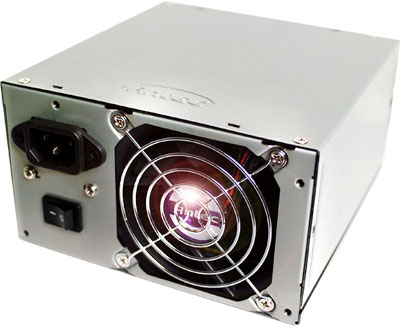

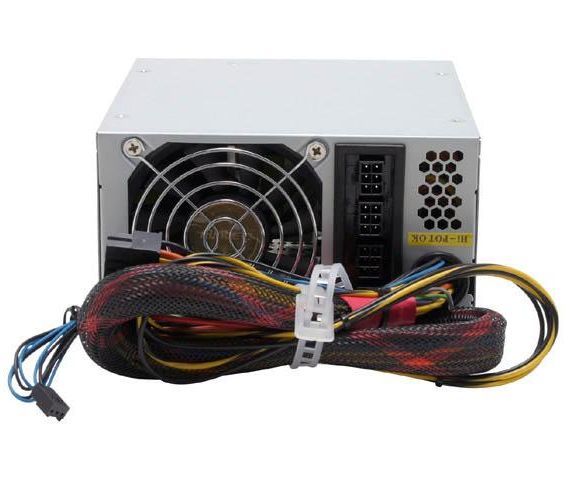

Antec SmartPower 2.0 450W PSU
[127]
№: ++127 Manufacturer: Antec

€62 87

Notify me of updates to

available: no
This product is not available
62.86 EUR

Specifications:

Product Details:

The NEW SmartPower 2.0 is ATX12V v2.0 compliant, with dual+12V rails, 4 serial ATA connectors, and Antec's Unique Dual Fans Design for virtually silent operation. All SmartPower 2.0 power supplies carry UL, CUL, TÜV, CB, FCC Class B, CE and CCC certified safety approvals.

Features:

ATX12V version 2.0
Dual 12V output circuitry provides added system stability and meets 240VA UL requirements and safety purpose: 12V1 for Motherboard and peripherals; 12V2 for processor

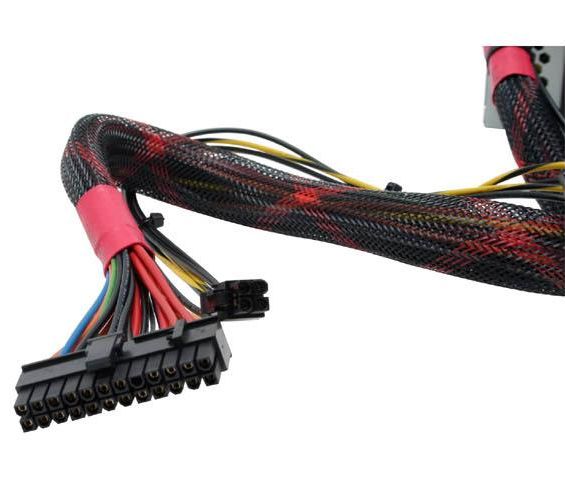

ATX12V v2.0 compliance allows SmartPower 2.0 to consume up to 25% less power than standard power supplies, saving you money on your electric bill. 24-pin power connector with detachable 4-pin section.
4 SATA Connectors support Serial ATA drives
Flow-through dual 80mm fans (one intake and one exhaust)
Unique Dual Fans Technology: exhaust fan starts to spin when the power supply reaches certain temperatures to ensure proper airflow, the second fan spins on power up
Industrial grade protection prevents damage resulting from short circuits, power overloads, excessive current, low voltages and excessive voltages
Increased 12V output capability for system components that consume more power from 12V rail
PCI-E graphic connector
Safety approvals: UL, CUL, TUV, CB, FCC Class B, CE, CCC
Increased MTBF: 80,000 hours
Size: 5.9" (W) x 3.4" (H) x 6.1"(D)
PF value greater than 90% (EU only)
Gold plated connector for superior conductivity

FEATURES
Maximum Power	450 Watts
Switches	ATX Logic on-off additional power rocker switch 115/230 Volt selector switch
Special Connectors	ATX12V 3-pin Fan Sensor SATA
Transient Response	+5V, +12V and 3.3V outputs return to within 5% in less than 1ms for 20% load change.
P. G. Signal	100-500ms
Over Voltage Protection recycle AC to reset	+5V trip point < +6.5V +3.3V trip point < +4.1V +12V trip point < +14.4V
Leakage Current	< 3.5mA @ 115VAC

DIMENSIONS
Unit Size	5.9"(W) x 3.4"(H) x 6.1"(D) 14.9cm (W)x 8.5cm (H) x 15.8cm (D)
Net Weight	5lbs.; 2.3kg

INPUT
Input Voltage	115 VAC / 230VAC
Input Frequency Range	47Hz to 63Hz
Input Surge Current	< 60A @ 115VAC
Input Current	12.0A for 115VAC 6 .0A for 230VAC
Hold-up Time	> 17ms at Full Load
Efficiency	> 70%
EMI/RFI	FCC Class B CISPR22 Class

OUTPUT
	+3.3V	+5V	+12V1	+12V2	+5V SB	-12V
Max. Load	32.0A*	30A*	15A*	17A	2.0A	0.3A
Min. Load	0.5A	0.5A	0.4A	0.4A	0A	0A
Load Reg.	±5%	±5%	±5%	5%	±5%	±5%
Ripple V(p-p)	50mV	50mV	120mV	120mV	50mV	120mV
* +5V, +12V1, 12V2 and +3.3V maximum output: 410 Watts max * +5V and +3.3V combined output: 150Watts

ENVIRONMENTAL
Operating Temp.	10 to 50℃
Operating Alt.	Sea Level 10,000 ft.
Non-Operating Vibration	Operating: 10-300 Hz, 0.5G, 3 axes, 1 hr. ea. axis Non-operating: 10-300 Hz, 2.0G, 3 axes, 1 hr. ea. axis
MTBF	80,000 hrs. @ 25℃
Approvals	UL, TUV, CB, FCC CLASS B, CUL
