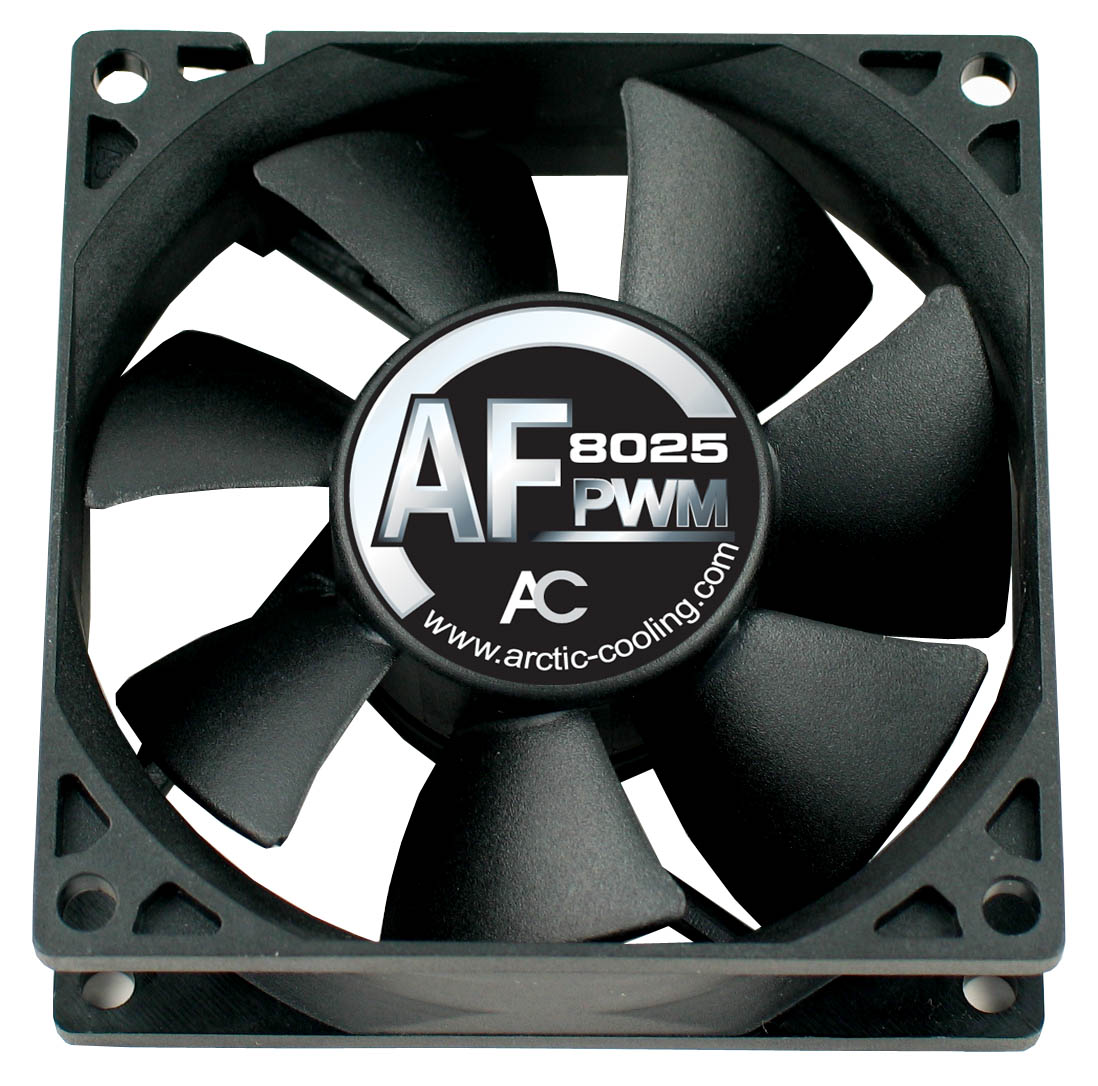

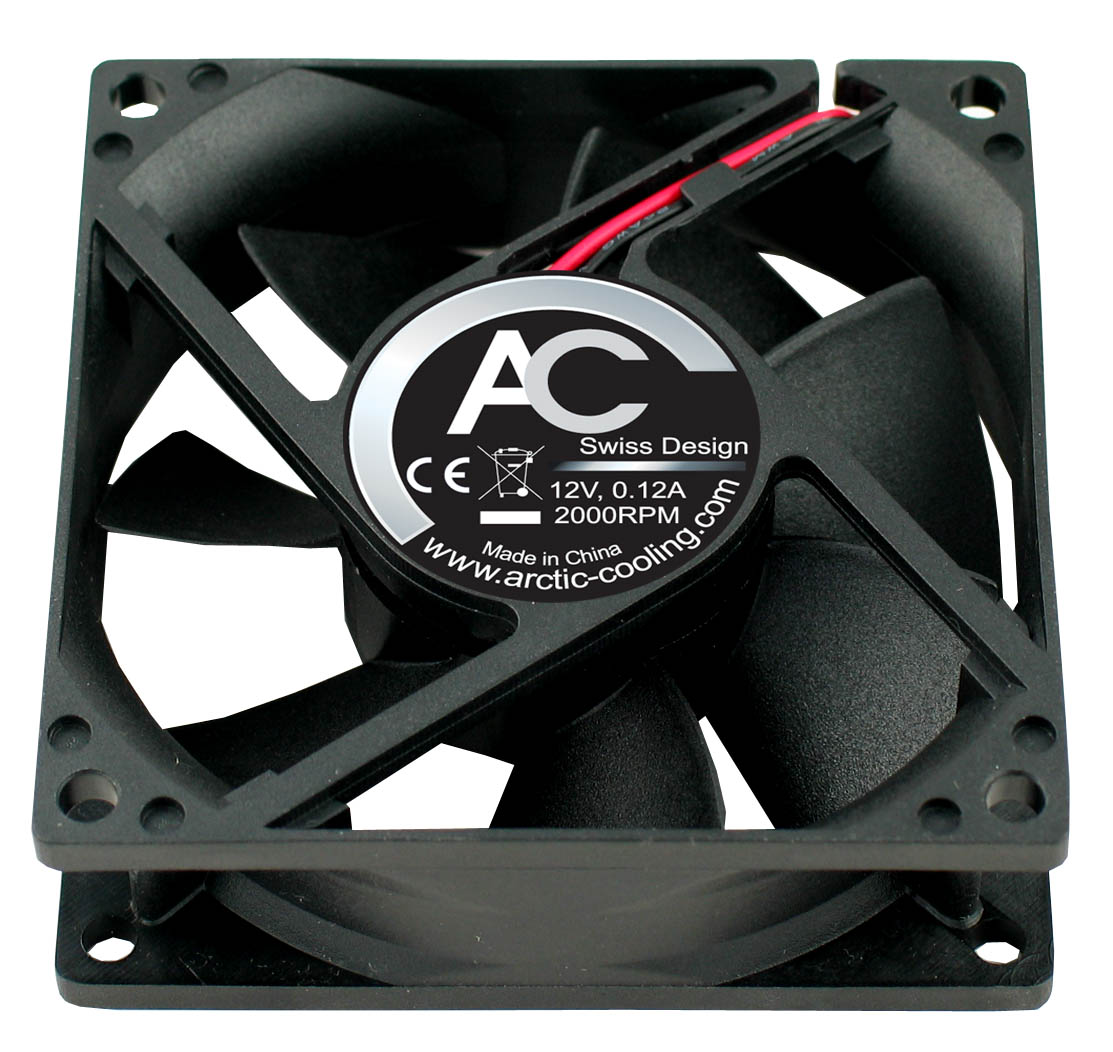

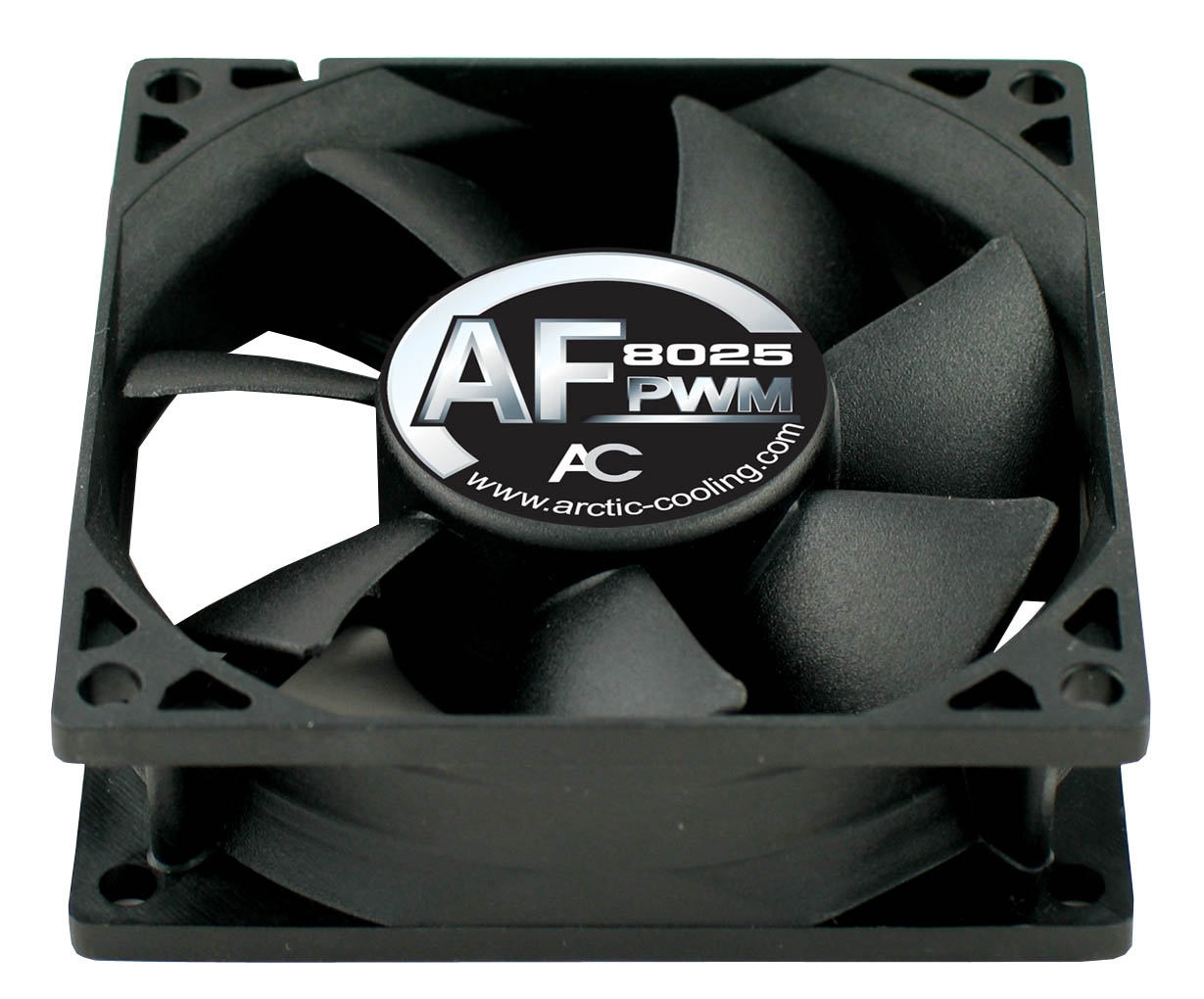

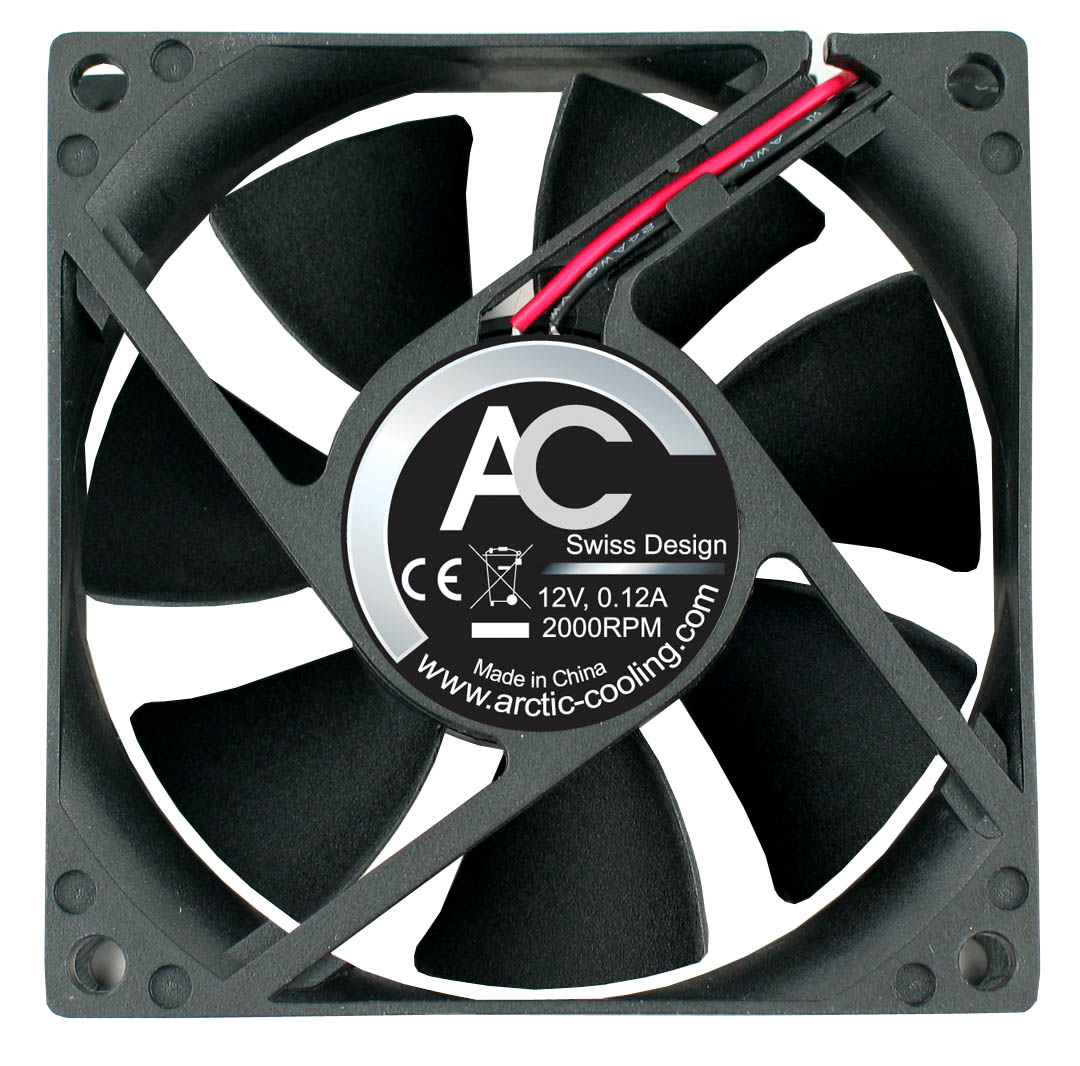

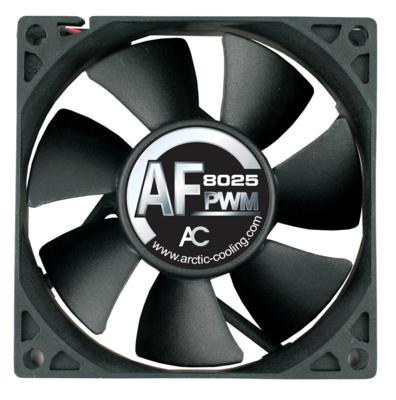

Arctic AF8025 PWM(4pin) - 80mm
[AF8025 PWM]
№: ++200 Manufacturer: Arctic

€5 12

Notify me of updates to

available: no
This product is not available
5.12 EUR

Specifications:

80 mm PWM Case Fan

Patented PST (PWM Sharing Technology)

Regulate RPM speed of up to 5 fans by the onboard CPU fan controller

Lowest noise level for a given system load

Control the entire cooling for your needs (silent / quiet / overclocking) via BIOS settings

Circulation Optimized Fan Blades

High Airflow

High Static Pressure

Long Lifetime

6 Years Warranty
The Fluid Dynamic Bearing offers a unique 400'000 h MTTF at 40°C. Therefore we grant a unique 6 years warranty.

PST:		PWM amplifier integrated on motor circuit
		4 pin plug for receiving power and PWM signal from motherboard
		4 pin socket for CPU cooler or second fan
		3 pin plug to send fan RPM signal to motherboard
Dimensions:		80 x 80 x 25mm
Rated Fan Speed:		600 - 2000 RPM
Air Flow:		26.8 CFM / 45.5 m3/h
Noise Level:		9.5 dB(A) - 21.0 dB(A), 0.08 Sone - 0.4 Sone
Power Consumption:		12 V, 0.12 Amp
Weight:		84 g
Bearing:		Fluid Dynamic Bearing
Cable Length:		400 mm
