Evercool Fan 80x80x15 5V EL (2500 RPM) EC8015M05EA
[EC8015M05EA]
№: ++1099 Manufacturer: Evercool

€4 92

available: yes

4.92 EUR
warranty: 24 months

Declaration of Conformity_Evercool_EC8015M05EA.pdf

Specifications:

DC Fan Product

Model Type : EC-8015xxxx Dimension : 80 x 80 x 15 mm
	Voltage	5V		12V		24V
				V		V
	Fan Speed	LL	L	M	H	HH	TH
		1500	2000	2500	3000	3500	4000
	Certificate	UL		CE		TUV
		V		V		V
	Bearing Type	Sleeve		1Ball	2Ball	EL
		V		V	V	V

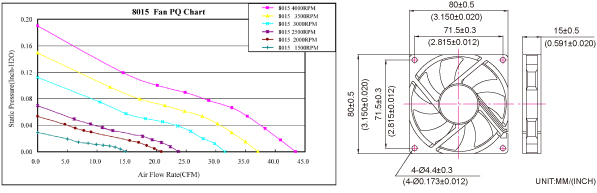

P&Q Curve / Dimensions Drawing

Model Number System

Specifications

Please read cataloge firstly !

Model	Voltage VDC	Current AMP	Input WATTS	Fan Speed RPM	AirFlow CFM	Pressure lnch-H2O	Noise dBA
EC8015TH12X	12	0.3	3.6	4000	43.46	0.19	<40
EC8015HH12X	12	0.25	3	3500	37.1	0.15	<35
EC8015H12X	12	0.2	2.4	3000	31.51	0.11	<32
EC8015M12X	12	0.16	1.92	2500	23.67	0.07	<26
EC8015L12X	12	0.14	1.68	2000	20.85	0.05	<20
EC8015LL12X	12	0.08	0.96	1500	14.84	0.03	<13.8
EC8015HH24X	24	0.13	3.12	3500	37.1	0.15	<35
EC8015H24X	24	0.11	2.64	3000	31.51	0.11	<32
EC8015M24X	24	0.09	2.16	2500	23.67	0.07	<26
EC8015L24X	24	0.07	1.68	2000	20.85	0.05	<20

E - EL bearing , B - Two ball bearing , C - One ball One sleeve bearing , S - Sleeve bearing

• Material:impeller&Frame:Plastic(UL 94V-0)
• Lead Wires:
UL 1007 AWG #28 Or Equivalent
Red Wire Positive(+),Black Wire Negative(-),Yellow Wire Or Blue Wire Signal(FG)
• Function type is optional.
• The max air flow and the speed are measured in free air;max air pressure is measured at zero air flow.
• Noise is measured in anechoic chamber in free air,one meter from intake side.
• All readings are typical values at rated voltage.
• Specifications are subject to change without notice.
• Additional special function may be added according the requirement of customer.
