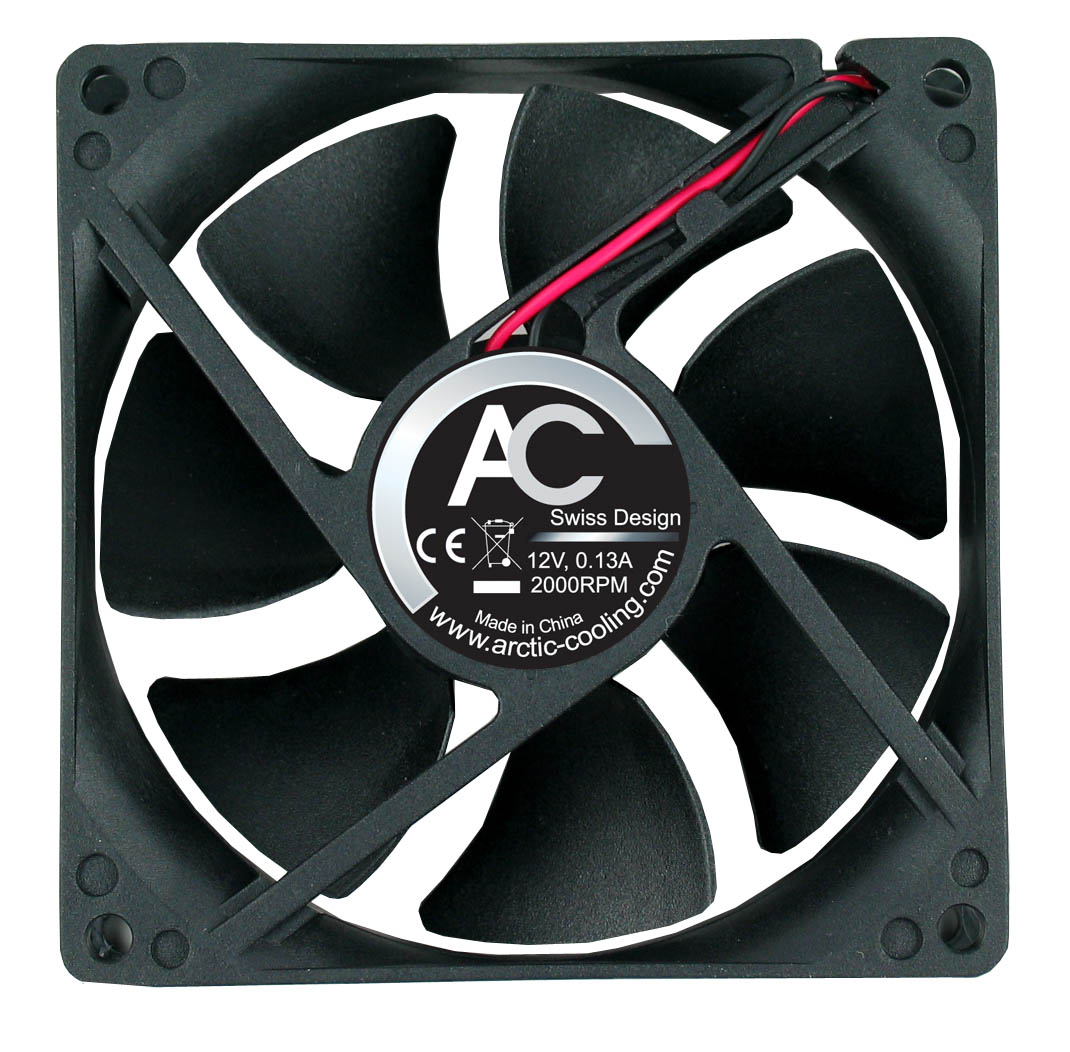

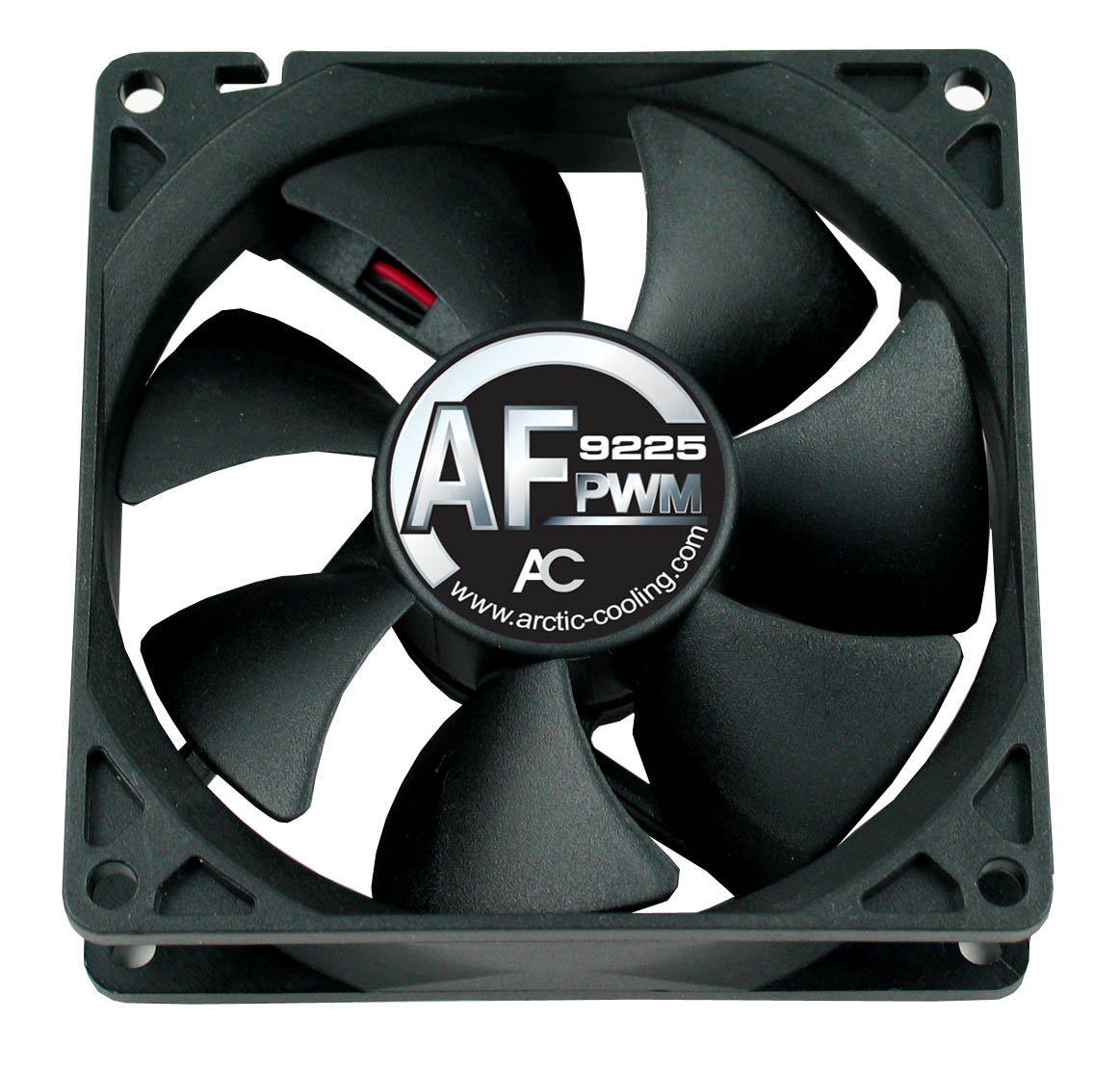

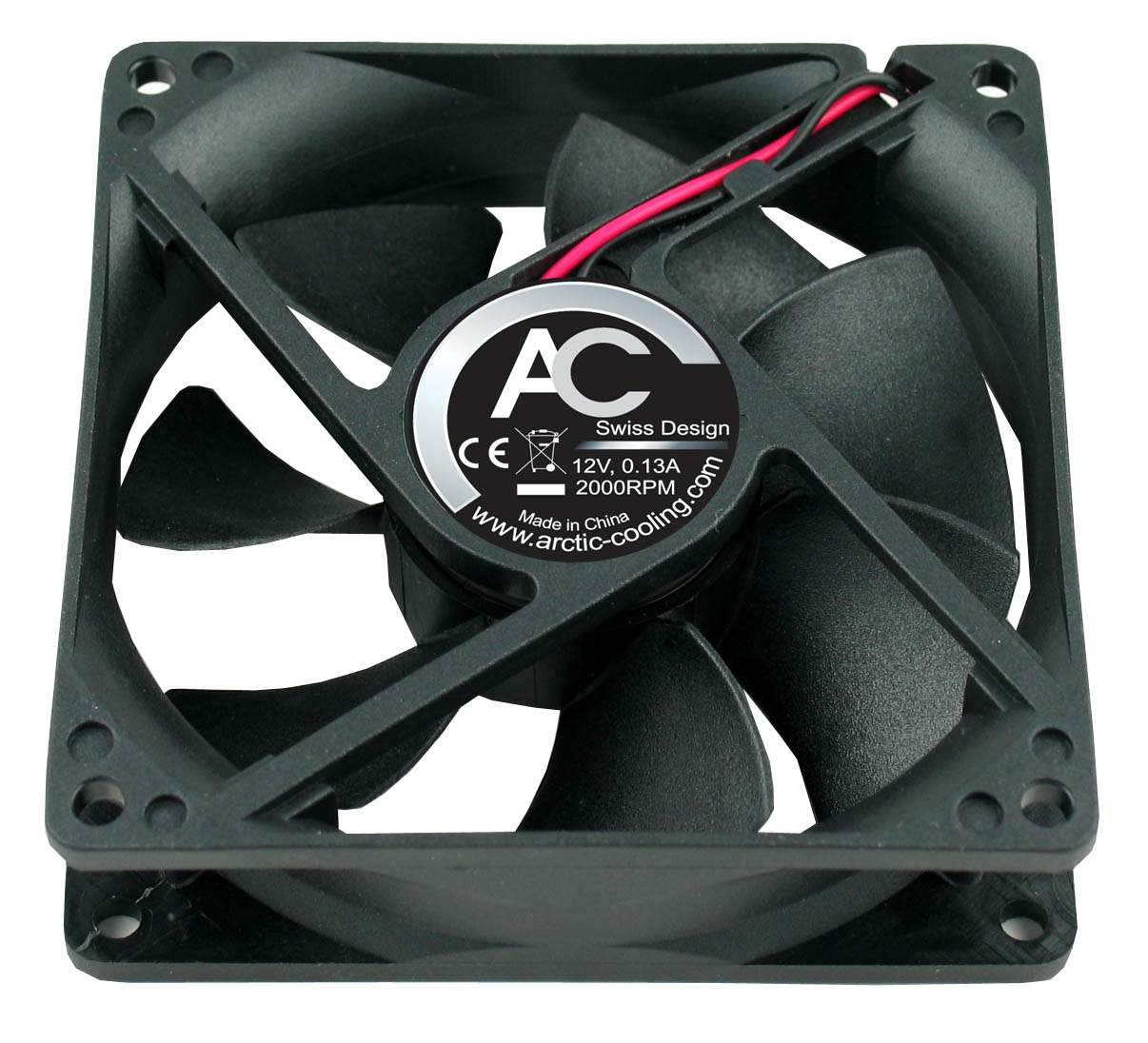

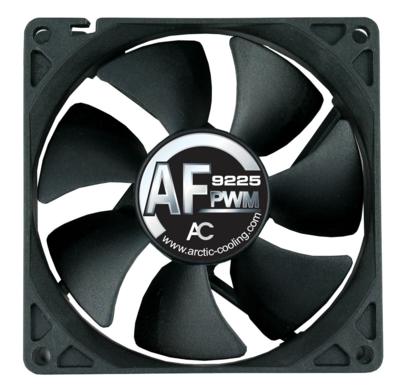

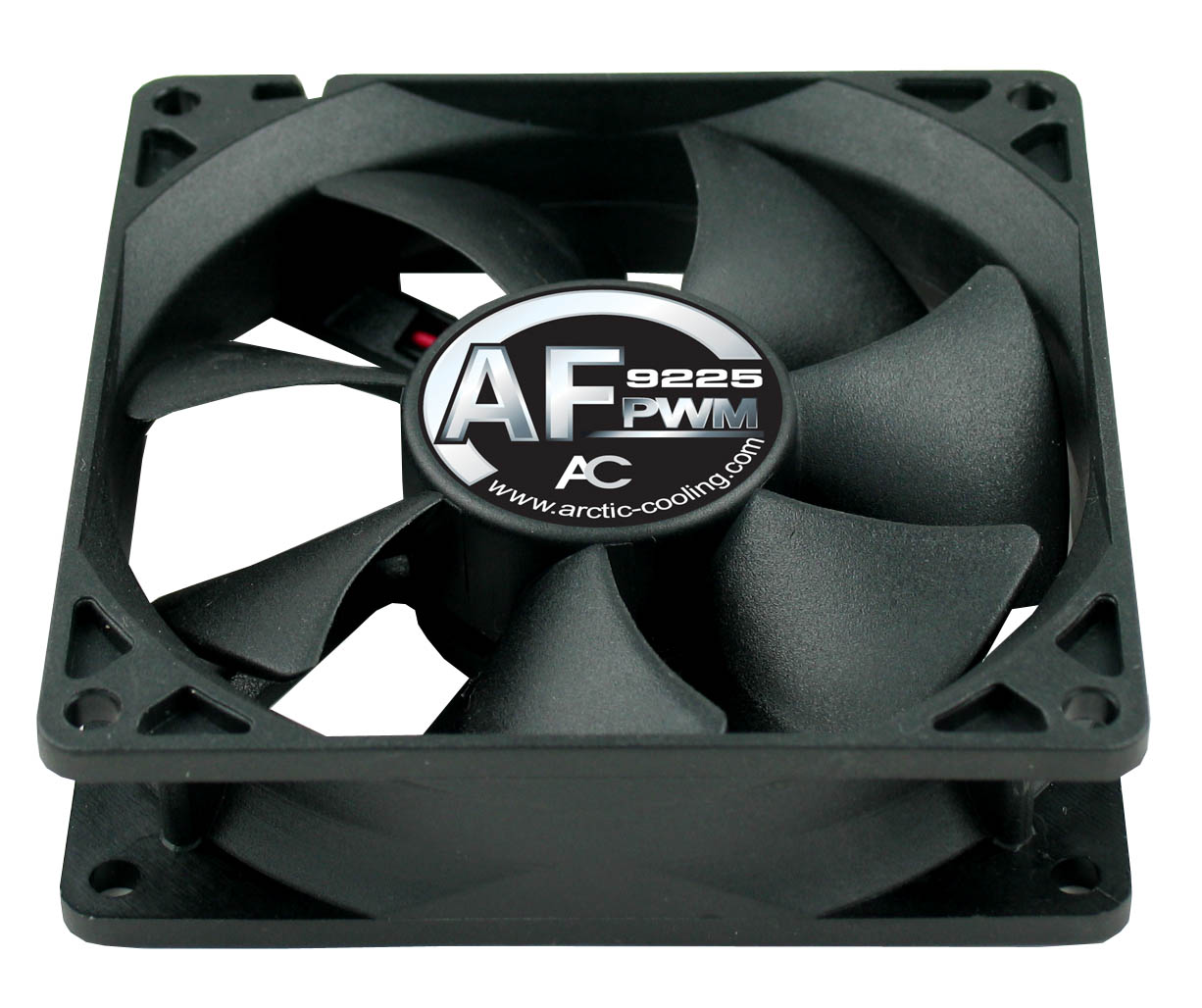

Arctic AF9225 PWM(4pin) - 92mm
[AF9225 PWM]
№: ++202 Manufacturer: Arctic

€5 44

Notify me of updates to

available: no
This product is not available
5.44 EUR

Specifications:

92 mm PWM Case Fan

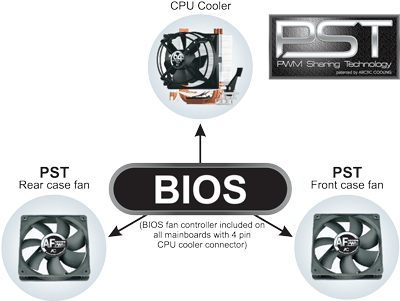

Patented PST (PWM Sharing Technology)

Regulate RPM speed of up to 5 fans by the onboard CPU fan controller

Lowest noise level for a given system load

Control the entire cooling for your needs (silent / quiet / overclocking) via BIOS settings

Circulation Optimized Fan Blades

High Airflow

High Static Pressure

Long Lifetime

6 Years Warranty
The Fluid Dynamic Bearing offers a unique 400'000 h MTTF at 40°C. Therefore we grant a unique 6 years warranty.

PST:		PWM amplifier integrated on motor circuit
		4 pin plug for receiving power and PWM signal from motherboard
		4 pin socket for CPU cooler or second fan
		3 pin plug to send fan RPM signal to motherboard
Dimensions:		92 x 92 x 25mm
Rated Fan Speed:		600 - 2000 RPM
Air Flow:		34 CFM / 57.7 m3/h
Noise Level:		10 dB(A) - 24.5 dB(A), 0.08 Sone - 0.6 Sone
Power Consumption:		12 V, 0.13 Amp
Weight:		94 g
Bearing:		Fluid Dynamic Bearing
Cable Length:		400 mm
