Noctua Fan 92mm NF-A9 FLX
[NF-A9-FLX]

№: ++2032   Manufacturer: Noctua

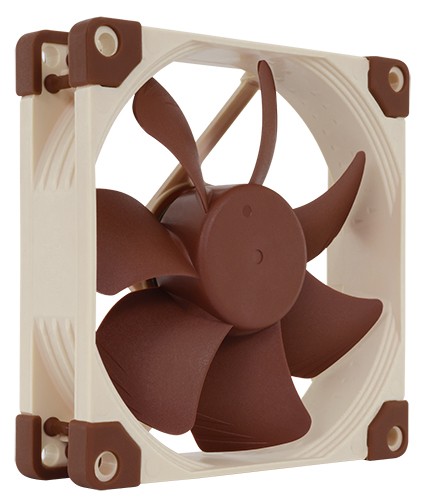

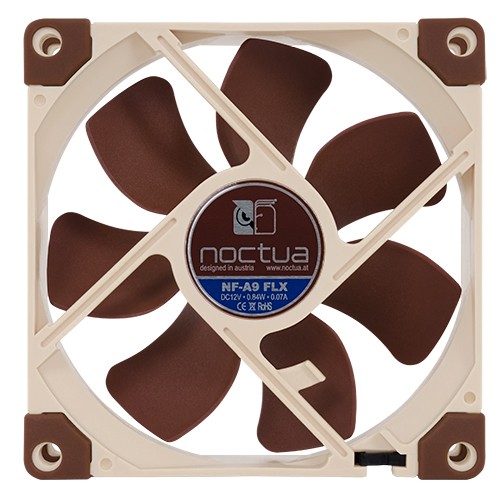

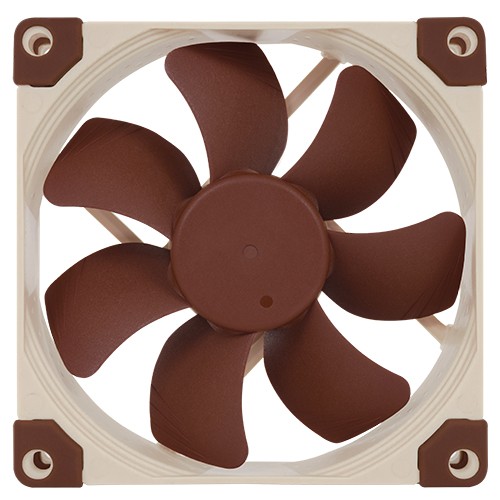

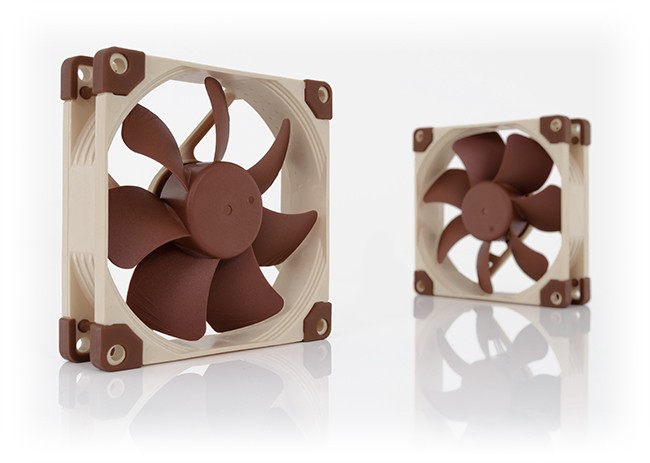

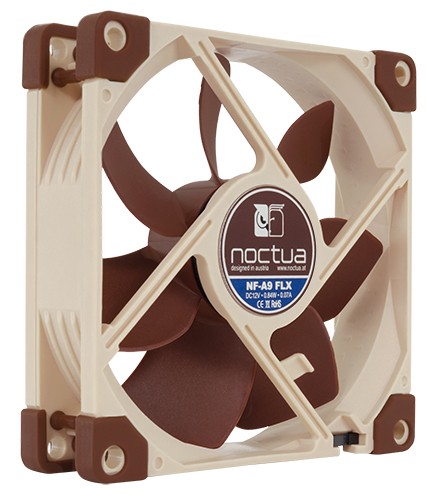

The NF-A9 is a highly optimised, premium quality quiet 92mm fan. Featuring Noctua’s AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A9 further improves the renowned quiet cooling performance of the award-winning NF-B9. The FLX version provides 1600/1250/1050rpm speed settings via the supplied Low-Noise Adaptors in order to provide full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.


Specifications

Size		92x92x25 mm
Connector		3-pin
Bearing		SSO2
Blade Geometry		A-Series with Flow Acceleration Channels
Frame Technology		AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%)		1600 RPM
Rotational Speed with L.N.A. (+/- 10%)		1250 RPM
Rotational Speed with U.L.N.A. (+/- 10%)		1050 RPM
Airflow		64,6 m³/h
Airflow with L.N.A.		51,1 m³/h
Airflow with U.L.N.A.		42,9 m³/h
Acoustical Noise		17,1 dB(A)
Acoustical Noise with L.N.A.		11,6 dB(A)
Acoustical Noise with U.L.N.A.		8,4 dB(A)
Static Pressure		1,62 mm H2O
Static Pressure with L.N.A.		1,04 mm H2O
Static Pressure with U.L.N.A.		0,71 mm H2O
Max. Input Power		0,84 W
Max. Input Current		0,07 A
Voltage		12 V
MTBF		> 150.000 h

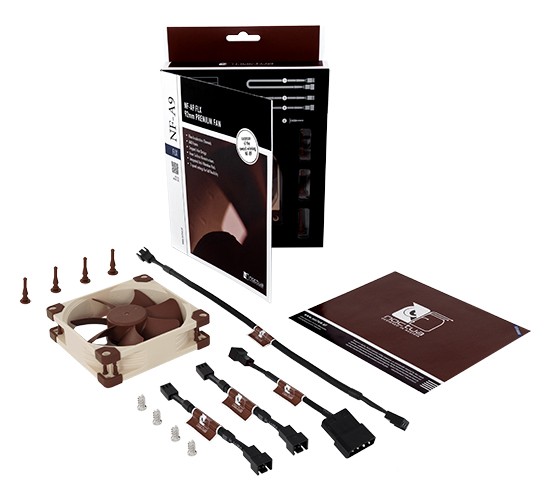

Scope of Delivery		Low-Noise Adaptor (L.N.A.) Ultra-Low-Noise Adaptor (U.L.N.A.) 3:4-Pin Adaptor 30cm Extension Cable 4 Vibration-Compensators 4 Fan Screws
Warranty		6 years

Details

	Succeeding the award-winning NF-B9 Noctua’s NF-B9 fan has become a default-choice among PC enthusiasts looking for a premium quality quiet 92mm fan. Thanks to its thoroughgoing aerodynamic optimisations, the NF-A9 provides higher static pressure and an even better airflow/noise ratio than its much acclaimed predecessor.
	Flow Acceleration Channels The NF-A9 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
	AAO Frame Noctua’s AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua’s proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan’s performance/noise efficiency.
	Stepped Inlet Design Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments.
	Inner Surface Microstructures With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
	Integrated Anti-Vibration Pads Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
	SSO2 Bearing The NF-A9 features the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
	Smooth Commutation Drive 2 The latest version of Noctua’s advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-A9 remarkably quiet even at very close distance.
	3 speed settings for full flexibility Providing 1600, 1250 and 1050 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adapters, the NF-A9 FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness.
	Extensive Cabling Options The fan’s short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.
	6 years manufacturer’s warranty Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A9 features an MTBF of more than 150.000 hours rating and comes with a full 6 years manufacturer’s warranty.
