Design
|
Space Contracted Design
|
|
|

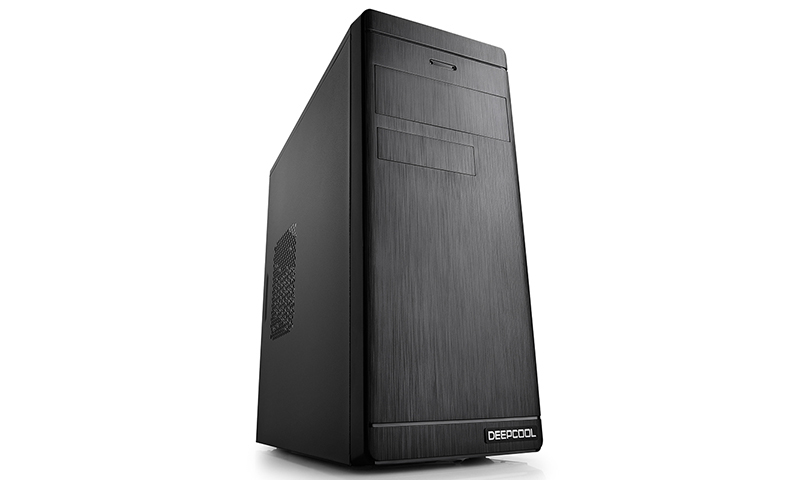

Classical Small Case Management

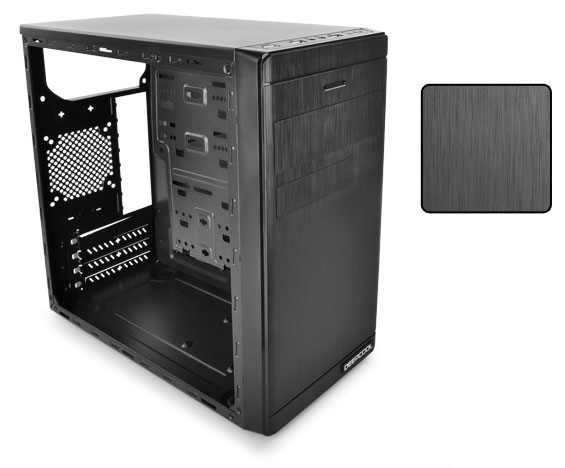

- The unique surface treatment gives it a simple and handsome appearance
- 390 x 217 x 435 mm Case Dimensions
- Support VGA card installation up to 320mm length
|
|

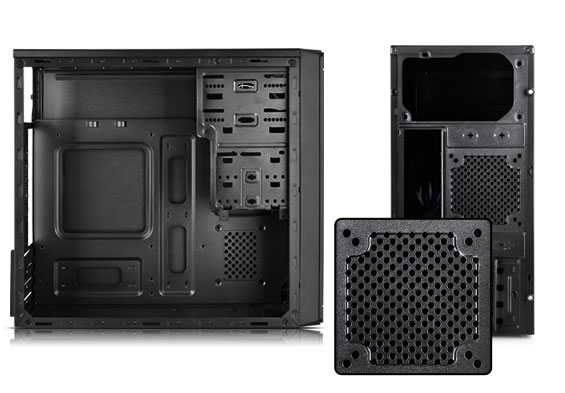

Good Heat Ventilation Performance
|
|
|
- Optimized Airflow Design & Cooling System 1 x 120mm fan mounting holes on the front panel
- 120mm, 90mm/80mm mounting holes on the front/ rear panel

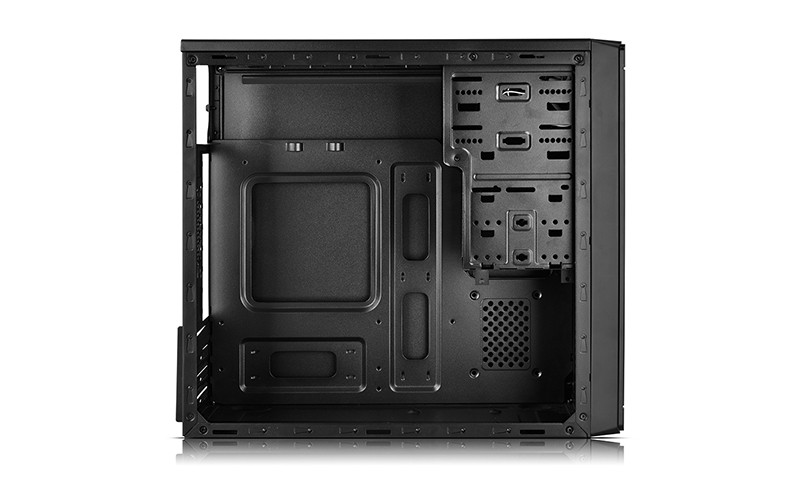

- Support cable management to ensure a neat interior of your case
|
|
Detailed Designs
|
|
|
- Attachable 5.25” and 3.5” drive bay covers

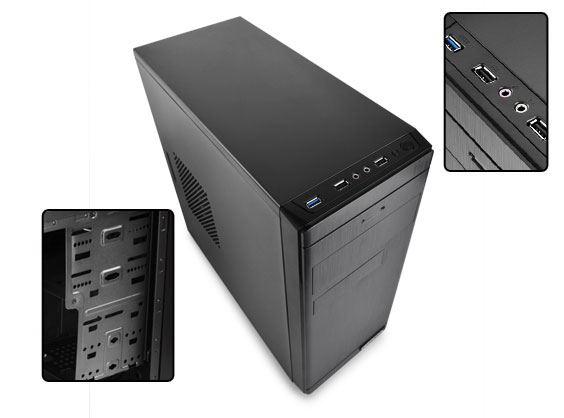

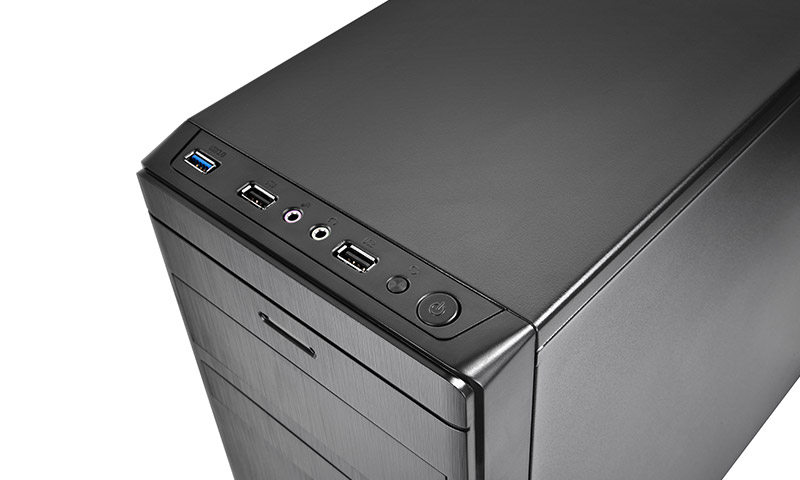

- One USB 3.0 + two USB 2.0 Ports
|
Features

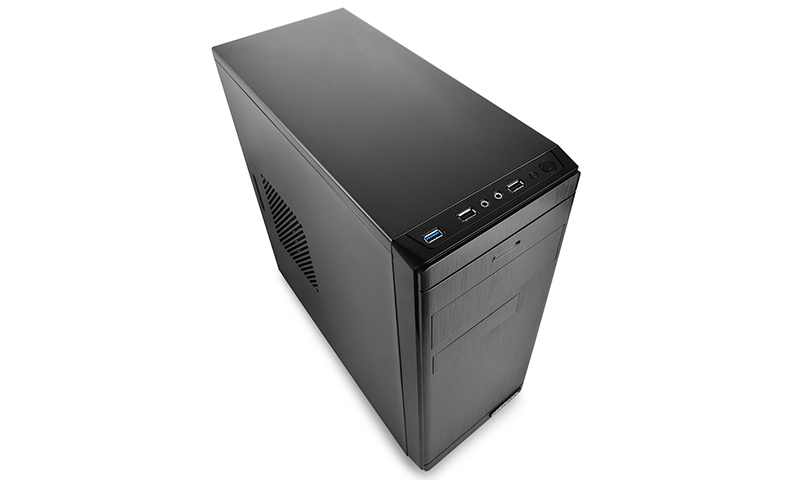

Classic MATX case with handsome looking front panel
One USB 3.0 + two USB 2.0 Ports
Fully black painted interior with 0.5mm panel thickness
Support 320mm (MAX) long VGA Card installation
Support cable management
Spec
Technical Spec
|
Motherboards |
MATX/MINI-ITX |
|
Materials |
SPCC+PLASTIC (ABS) (Panel thickness: 0.5mm) |
|
Dimension (LxWxH) |
Product: L387*W175*H353.5mm (Package: L390*W217*H435mm) |
|
Net Weight |
3.2KG (Gross Weight: 3.8KG) |
|
5.25" Drive Bays |
1 (External) |
|
3.5" Drive Bays |
3 (1 external, 2 internal ) |
|
2.5" Drive Bays |
3 (internal) |
|
I/O Panel |
1×USB3.0/2×USB2.0/Audio×1/Mic×1 |
|
Expansion Slots |
4 |
|
Cooling Fans |
Optional: Front: 1×120mm fan
side: 1×120mm, Rear: 1×80/90mm |
|
Power Supply Type |
ATX PS2 |
|
CPU Cooler Compatibility |
145mm height /Liquid Cooler: 120mm at front |
|
VGA Compatibility |
320mm |
