Evercool Fan 140x140x25 2Ball (1200 RPM) - EC14025L12BA
[EC14025L12BA]
№: ++1785 Manufacturer: Evercool

€7 21

available: yes

7.21 EUR
warranty: 24 months

Declaration of Conformity_Evercool_EC14025L12BA.pdf

Specifications:

DC Fan Product

Model Type : EC-14025 xxxx Dimension : 140 x 140 x 25 mm
	Voltage	5V		12V		24V
				V
	Fan Speed	SL	LL	L	M	H
		600	900	1200	1500	1800
	Certificate	UL		CE		TUV
		V		V		V
	Bearing Type	Sleeve		1Ball	2Ball	EL
		V		V	V	V

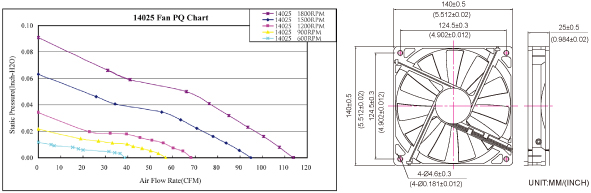

P&Q Curve / Dimensions Drawing

Model Number System

Specifications

Please read cataloge firstly !

Model	Voltage VDC	Current AMP	Input WATTS	Fan Speed RPM	AirFlow CFM	Pressure lnch-H2O	Noise dBA
EC14025H12X	12	0.72	8.64	1800	113.87	0.09	<30.9
EC14025M12X	12	0.45	5.4	1500	94.89	0.06	<26.9
EC14025L12X	12	0.28	3.36	1200	68.23	0.03	<22.1
EC14025LL12X	12	0.18	2.16	900	56.74	0.02	<15.8
EC14025SL12X	12	0.1	1.2	600	38.58	0.01	<7

E - EL bearing , B - Two ball bearing , C - One ball One sleeve bearing , S - Sleeve bearing

• Material:impeller&Frame:Plastic(UL 94V-0)
• Lead Wires:
UL 1007 AWG #28 Or Equivalent
Red Wire Positive(+),Black Wire Negative(-),Yellow Wire Or Blue Wire Signal(FG)
• Function type is optional.
• The max air flow and the speed are measured in free air;max air pressure is measured at zero air flow.
• Noise is measured in anechoic chamber in free air,one meter from intake side.
• All readings are typical values at rated voltage.
• Specifications are subject to change without notice.
• Additional special function may be added according the requirement of customer.
