Evercool Fan 20x20x8 1Ball (5V, 11000RPM) - EC2008M05CA
[EC2008M05CA]
№: ++1275 Manufacturer: Evercool

€5 99

available: yes

5.99 EUR
warranty: 24 months

Declaration of Conformity_Evercool_EC2008M05CA.pdf

Specifications:

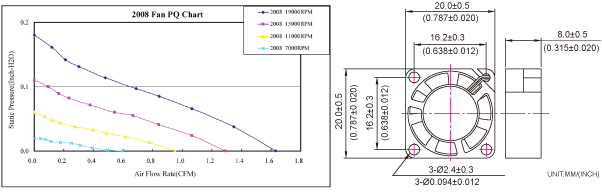

P&Q Curve / Dimensions Dreawing

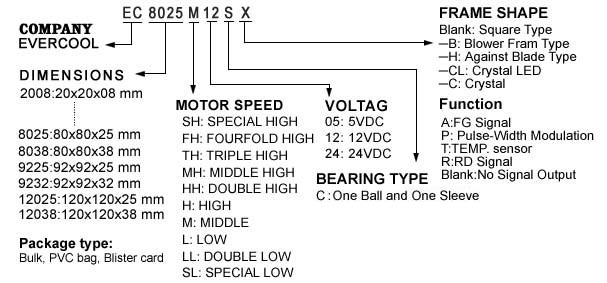

Model Number System

Specifications

Model	Voltage VDC	Current AMP	Input WATTS	Fan Speed RPM	AirFlow CFM	Pressure lnch-H2O	Noise dBA


EC2008M05C	5	0.16	0.8	11000	0.95	0.06	<21.3

C - One ball One sleeve bearing •
Material:impeller&Frame:Plastic(UL 94V-0)
• Lead Wires:
  UL 1007 AWG #28 Or Equivalent
  Red Wire Positive(+),Black Wire Negative(-),Yellow Wire Or Blue Wire Signal(FG)
• Function type is optional.
• The max air flow and the speed are measured in free air;max air pressure is measured at zero air flow.
• Noise is measured in anechoic chamber in free air,one meter from intake side.
• All readings are typical values at rated voltage.
• Specifications are subject to change without notice.
• Additional special function may be added according the requirement of customer.
※ If any fan requests,please do no hesitate to contact us.
