Evercool Fan 50x50x10 5V EL (4500RPM) EC5010M05EA
[EC5010M05EA]
№:++1098

€3 59

available: yes



3.59 EUR
warranty: 6 months


share in facebook


Specifications


    DC Fan Product
  Model Type : EC-5010xxxx   Dimension : 50 x 50 x 10 mm
EC-5010
Voltage

5V

12V

24V


V

V

Fan Speed

LL

L

M

H

HH

SH

3500

4000

4500

5000

5500

6000

Certificate

UL

CE

TUV

V

V

V

Bearing Type

Sleeve

1Ball

2Ball

EL

V

V

V

V

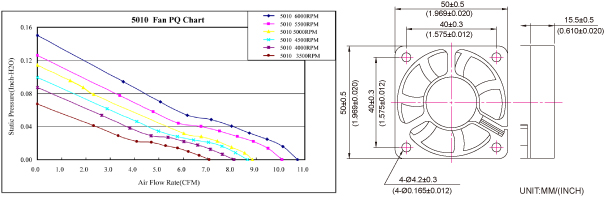

    P&Q Curve / Dimensions Drawing
P&Q Curve / Dimensions Drawing


    Model Number System
Model Number System


    Specifications    Please read cataloge firstly !   Please read cataloge firstly !
Model

Voltage
VDC

Current
AMP

Input
WATTS

Fan Speed
RPM

AirFlow
CFM

Pressure
lnch-H2O

Noise
dBA

  EC5010TH05X
5

0.28

1.4

6000

10.71

0.15

<29

  EC5010HH05X
5

0.25

1.25

5500

10.07

0.13

<27

  EC5010H05X
5

0.22

1.1

5000

8.84

0.11

<25

  EC5010M05X
5

0.19

0.95

4500

8.63

0.1

<23

  EC5010L05X
5

0.16

0.8

4000

8.08

0.09

<20

  EC5010TH12X
12

0.16

1.92

6000

10.71

0.15

<29

  EC5010HH12X
12

0.14

1.56

5500

10.07

0.13

<27

  EC5010H12X
12

0.12

1.44

5000

8.84

0.11

<25

  EC5010M12X
12

0.09

1.08

4500

8.63

0.1

<23

  EC5010L12X
12

0.07

0.84

4000

8.08

0.09

<20

  EC5010LL12X
12

0.06

0.72

3500

7.07

0.07

<17.26



        E - EL bearing , B - Two ball bearing , C - One ball One sleeve bearing , S - Sleeve bearing
• Material:impeller&Frame:Plastic(UL 94V-0)
• Lead Wires:
  UL 1007 AWG #28 Or Equivalent
  Red Wire Positive(+),Black Wire Negative(-),Yellow Wire Or Blue Wire Signal(FG)
• Function type is optional.
• The max air flow and the speed are measured in free air;max air pressure is measured at zero air flow.
• Noise is measured in anechoic chamber in free air,one meter from intake side.
• All readings are typical values at rated voltage.
• Specifications are subject to change without notice.
• Additional special function may be added according the requirement of customer.
