Evercool Fan 80x80x10 EL Bearing (3000 RPM) EC8010M12EA

PN
EC8010M12EA
Catalog number
1096

  Manufacturer: Evercool
€3.25

available: yes
warranty24 months


Buy now






Description and specifications


Specifications:

    DC Fan Product
  Model Type : EC-8010xxxx Dimension : 80 x 80 x 10 mm
EC-8010
Voltage

5V

12V

24V

V

V


Fan Speed

LL

L

M

H

HH

2000

2500

3000

3500

4000

Certificate

UL

CE

TUV

V

V

V

Bearing Type

Sleeve

1Ball

2Ball

EL

V

V

V

V

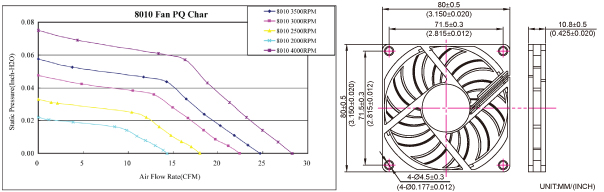

    P&Q Curve / Dimensions Drawing
P&Q Curve / Dimensions Drawing

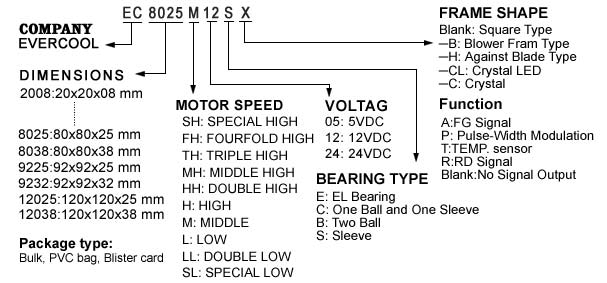

    Model Number System
Model Number System



    Specifications    Please read cataloge firstly !   Please read cataloge firstly !
Model

Voltage
VDC

Current
AMP

Input
WATTS

Fan Speed
RPM

AirFlow
CFM

Pressure
lnch-H2O

Noise
dBA

  EC8010H05X
5

0.65

3.25

3500

24.71

0.06

<30.6

  EC8010M05X
5

0.5

2.5

3000

22.44

0.05

<27.3

  EC8010L05X
5

0.28

1.4

2500

18

0.03

<23.3

  EC8010LL05X
5

0.26

1.3

2000

14.32

0.02

<22

  EC8010HH12X
12

0.32

3.84

4000

28.24

0.08

<33.5

  EC8010H12X
12

0.26

3.12

3500

24.71

0.06

<30.6

  EC8010M12X
12

0.2

2.4

3000

22.44

0.05

<27.3

  EC8010L12X
12

0.16

1.92

2500

18

0.03

<23.3

  EC8010LL12X
12

0.12

1.44

2000

14.32

0.02

<22




       E - EL bearing , B - Two ball bearing , C - One ball One sleeve bearing , S - Sleeve bearing
• Material:impeller&Frame:Plastic(UL 94V-0)
• Lead Wires:
  UL 1007 AWG #28 Or Equivalent
  Red Wire Positive(+),Black Wire Negative(-),Yellow Wire Or Blue Wire Signal(FG)
• Function type is optional.
• The max air flow and the speed are measured in free air;max air pressure is measured at zero air flow.
• Noise is measured in anechoic chamber in free air,one meter from intake side.
• All readings are typical values at rated voltage.
• Specifications are subject to change without notice.
• Additional special function may be added according the requirement of customer.
