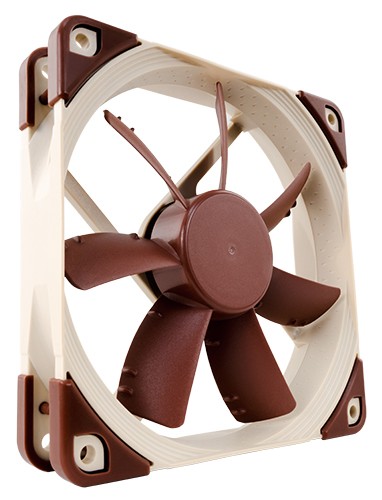

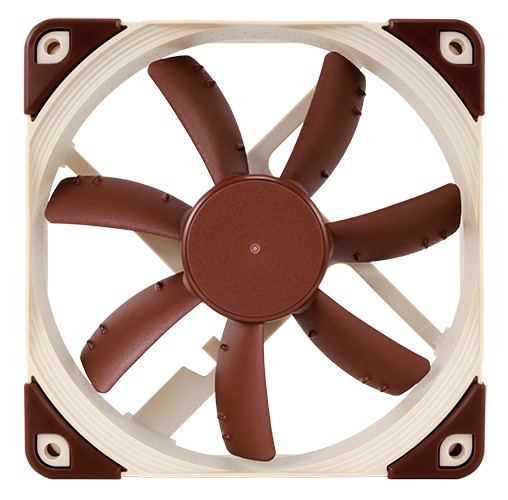

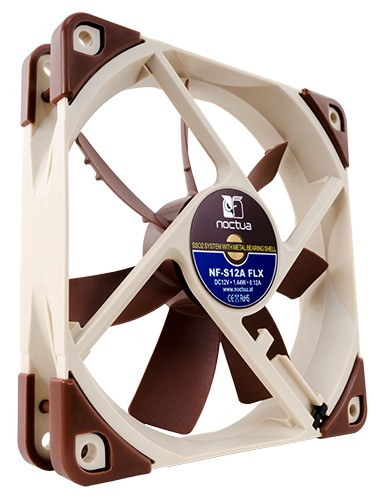

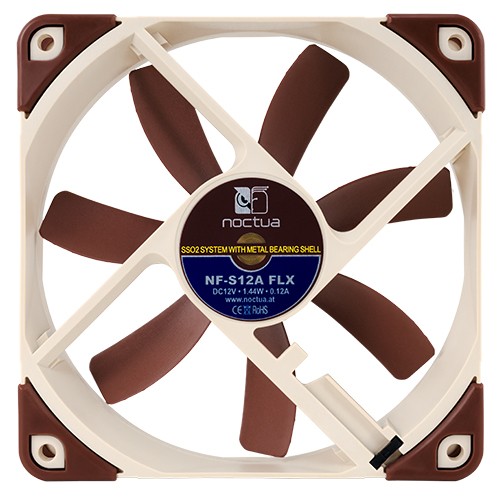

Noctua Fan 120mm NF-S12A FLX
[NF-S12A-FLX]
№: ++1410   Manufacturer: Noctua

€20 40

available: yes



20.40 EUR
warranty: 72 months

share in facebook      share in facebook


Specifications:

The NF-S12A marks the third generation of Noctua’s signature S12 series quiet case fans, which have received more than 250 awards and recommendations from the international press. Featuring a further refined blade design with Anti-Stall Knobs that works in tandem with the new AAO (Advanced Acoustic Optimisation) frame, the NF-S12A improves the airflow/noise efficiency of its renowned predecessor by up to 8%. The FLX version provides 1200/900/700rpm speed settings via the supplied Low-Noise Adaptors in order to give you full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for quiet case cooling.


More information:
button  Anti-Stall Knobs
button  AAO Frame
button  Stepped Inlet Design
button  Inner Surface Microstructures
button  SSO2 Bearing
button  Metal Bearing Shell
button  Which Noctua 120mm fan should I choose?



Size      120x120x25 mm



Connector      3-pin



Bearing      SSO2



Blade Geometry      S-Series with Anti-Stall Knobs



Frame Technology      AAO (Advanced Acoustic Optimisation)



Rotational Speed (+/- 10%)      1200 RPM



Rotational Speed with L.N.A. (+/- 10%)      900 RPM



Rotational Speed with U.L.N.A. (+/- 10%)      700 RPM



Airflow      107,5 m³/h



Airflow with L.N.A.      83,2 m³/h



Airflow with U.L.N.A.      65,8 m³/h



Acoustical Noise      17,8 dB(A)



Acoustical Noise with L.N.A.      10,7 dB(A)



Acoustical Noise with U.L.N.A.      7,4 dB(A)



Static Pressure      1,19 mm H2O



Static Pressure with L.N.A.      0,73 mm H2O



Static Pressure with U.L.N.A.      0,51 mm H2O



Max. Input Power      1,44 W



Max. Input Current      0,12 A



Voltage      12 V



MTBF      > 150.000 h

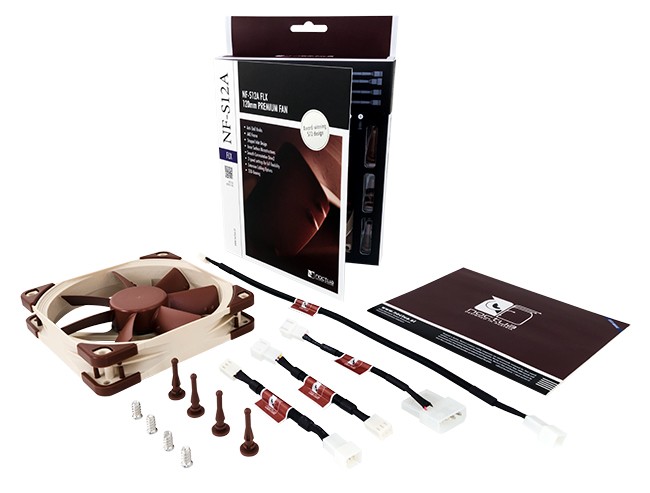

Scope of Delivery
  • Low-Noise Adaptor (L.N.A.)
  • Ultra-Low-Noise Adaptor (U.L.N.A.)
  • 3:4-Pin Adaptor
  • 30cm Extension Cable
  • 4 Vibration-Compensators
  • 4 Fan Screws




Warranty      6 years




NF-S12A    Award-winning S12 design
The NF-S12A features the third evolution of Noctua’s classic Straight Blade Design that has earned its S12 series countless recommendations from hardware journalists and enthusiasts around the world. Further optimised for even better airflow/noise efficiency, it makes the NF-S12A an ideal quiet case fan.


NF-S12A    Anti-Stall Knobs
The NF-S12A’s Anti-Stall Knobs reduce flow separation phenomena in medium to high impedance situations and thereby increase the fan’s stall margin. This means that the NF-S12A is even more versatile than its renowned predecessor and can achieve better performance on heatsinks and radiators. button


NF-S12A    AAO Frame
Noctua’s AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua’s proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan’s performance/noise efficiency. button


Stepped Inlet Design    Stepped Inlet Design
Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments. button


Inner Surface Microstructures    Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency. button


Integrated Anti-Vibration    Integrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.


PWM    Smooth Commutation Drive 2
The latest version of Noctua’s advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-S12A remarkably quiet even at very close distance. button


LNA    3 speed settings for full flexibility
Providing 1200, 900 and 700 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adapters, the NF-S12A FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness.


Cabling Options    Extensive Cabling Options
The fan’s short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.


SSO2    SSO2 Bearing
The NF-S12A features the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. button


Metal Bearing Shell    Metal bearing shell
In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-S12A sports a CNC milled bearing shell made entirely from brass. button


Warranty    6 years manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-S12A features an MTBF rating of more than 150.000 hours and comes with a full 6 years manufacturer’s warranty.







Video:

Noctua NF-S12A
