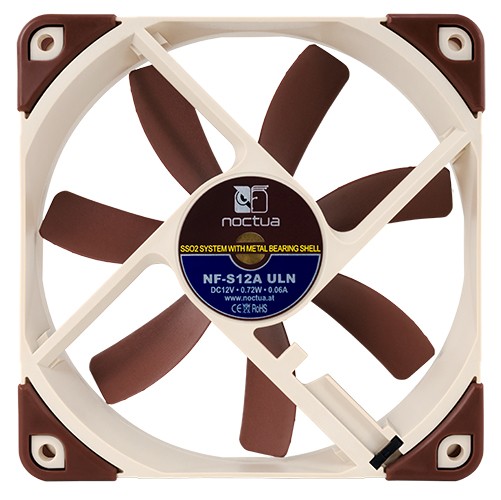

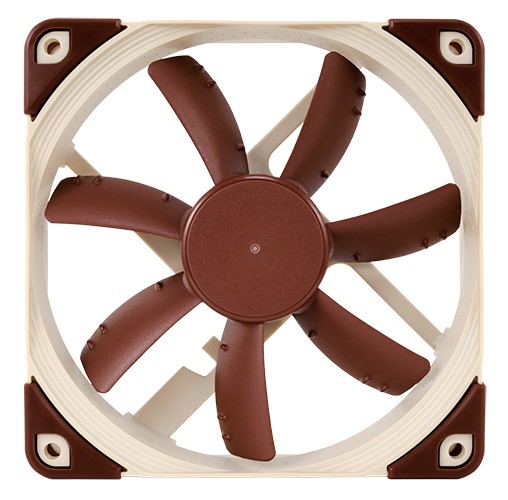

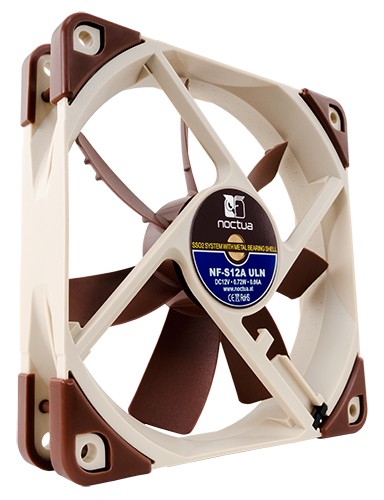

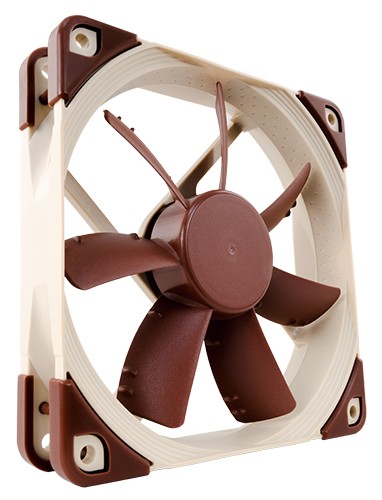

Noctua Fan 120mm NF-S12A ULN
- PN
- NF-S12A-ULN
- Catalog number
- 1409
Specifications:
The NF-S12A marks the third generation of Noctua’s signature S12 series quiet case fans, which have received more than 250 awards and recommendations from the international press. Featuring a further refined blade design with Anti-Stall Knobs that works in tandem with the new AAO (Advanced Acoustic Optimisation) frame, the NF-S12A improves the airflow/noise efficiency of its renowned predecessor by up to 8%. The ULN version provides super-slow 800/600rpm speed settings for ultra-low-noise applications and highly noise sensitive users who demand near-silent operation. Its superb running smoothness, SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for quiet case cooling.
More information:
Anti-Stall Knobs
AAO Frame
Stepped Inlet Design
Inner Surface Microstructures
SSO2 Bearing
Metal Bearing Shell
Which Noctua 120mm fan should I choose?
| Size | 120x120x25 mm | |
| Connector | 3-pin | |
| Bearing | SSO2 | |
| Blade Geometry | S-Series with Anti-Stall Knobs | |
| Frame Technology | AAO (Advanced Acoustic Optimisation) | |
| Rotational Speed (+/- 10%) | 800 RPM | |
| Rotational Speed with L.N.A. (+/- 10%) | 600 RPM | |
| Airflow | 74,3 m³/h | |
| Airflow with L.N.A. | 57,5 m³/h | |
| Acoustical Noise | 8,6 dB(A) | |
| Acoustical Noise with L.N.A. | 6,7 dB(A) | |
| Static Pressure | 0,62 mm H2O | |
| Static Pressure with L.N.A. | 0,44 mm H2O | |
| Max. Input Power | 0,72 W | |
| Max. Input Current | 0,06 A | |
| Voltage | 12 V | |
| MTBF | > 150.000 h | |

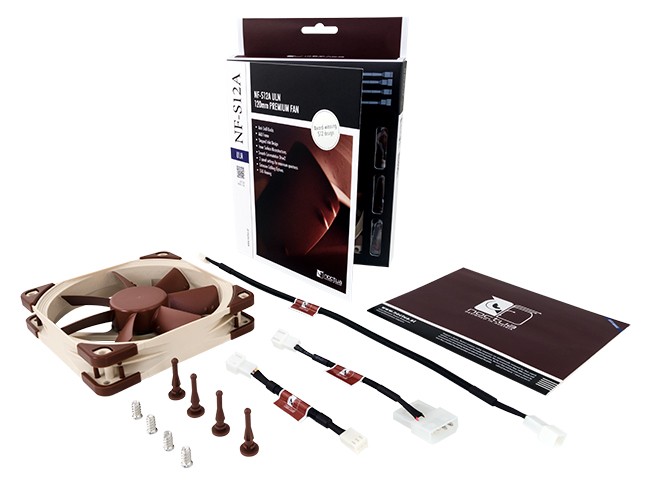

| Scope of Delivery |
| |
| Warranty | 6 years | |
|
