 Technical data | |
 Fan speed |
500-2,000 rpm |
| Airflow m³/h |
0-54 m³/h |
| Airflow CFM |
0-31.7 CFM |
| Noise level db(A) |
1-17 db(A) |
| Physical data | |
| Width |
80 mm |
| Height |
25 mm |
| Distance of mounting holes |
72.5 mm |
| Diameter of mounting holes |
4.3 mm |
| Electrical data | |
| Voltage |
9-13.8 V |
| Power consumption |
2.04 W |
| Connector |
4 pol. Mainboardstecker |
| Other data | |
| Bearing type |
NB-NanoSLI® |
| MTBF |
140000 Hours |
| Thermo controlled |
no |
| PWM controlled |
yes |
| Tachometer signal |
yes |
Gerneral information

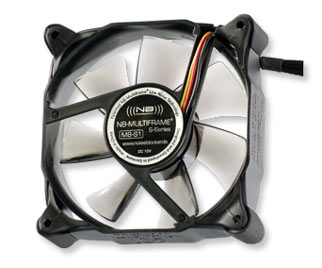

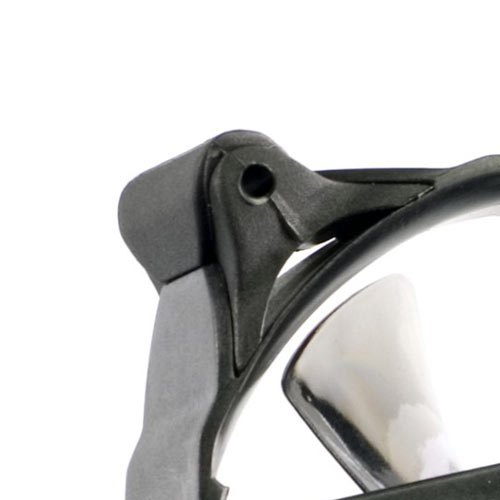

The newly developed Noiseblocker-Multiframe® M8-P fan integrates decouplers into the frame of the fan. Therefore its up to 30% quieter than standard fans and that without additional decouplers. The standard mounting allows to replace standard fans easly.
In addition to the multipart frame the Noiseblocker Multiframe® M8-P fan is equipped with a nearly silent Noiseblocker NanoSLI® longlife bearing. The fan blades are optimized for low noise operation and have an AntiDust surface.
The fan can be controlled by PWM by the mainboard. The fan is equipped with a 4pin mainboard connector.
Scope of delivery
1x Noiseblocker Multiframe® NB-M8-P fan
1x Mounting materials
