Specifications
Model Name:

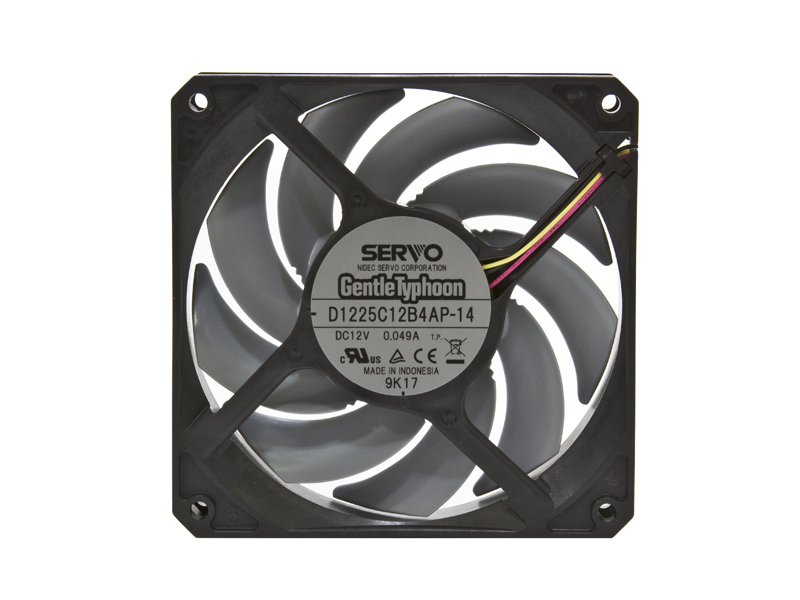

GentleTyphoon 120 mm Fan
Model-No.:
D1225C12B4AP-14 (1,450 rpm)
Manufacturer:
Nidec Servo Corporation (Japan)
Weight:
200 g / 7.05 oz
Dimensions:
119 x 119 x 25 mm / 4.68 x 4.68 x 0.98 in
Technical Data:
1,450 rpm: 0.049 A - 21 dBA - 85 m³/h
Bearing Type:
Double Ball Bearing
MTBF:
100,000 h / 35°C or 60,000 h / 60°C
*1,850 rpm Model 55,000 h / 60°C
Accessory:
4-pin Molex Adapter, 4x Screws
Static Pressure (P/Q Curve)
-
Features
High Performance:
The GentleTyphoon achieves high airflow volume and low noise with the newly designed impeller, enabling silent cooling of the latest devices which run very hot.
Silent Operation:
The GentleTyphoon has a different type of tone. The fan propeller is designed to reduce the disturbing frequency fan noise to human ears.
Innovative Technology:
The newly designed motor and motor support mechanism of the GentleTyphoon uses a double vibration reduction structure. The new support mechanism uses coil dampers to greatly reduce vibration.
For further information regarding Nidec Servo Corporation, please visit their website at: www.nidec-servo.com/en/index.html
