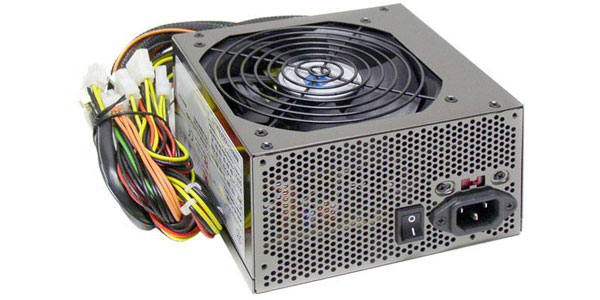

SilverStone PSU Strider - Silent - 400W SST-ST40F

PN
SST-ST40F
Catalog number
562

  Manufacturer: SilverStone
PSU Strider - Silent - 400W SST-ST40FClick to enlarge
PSU Strider - Silent - 400W SST-ST40FPSU Strider - Silent - 400W SST-ST40FPSU Strider - Silent - 400W SST-ST40FPSU Strider - Silent - 400W SST-ST40F
€49.69


available: no

This product is not available
49.70 EUR

Description and specifications


Specifications:

Introduction
The ST40F is power supplies with elevated performance that also satisfy both users and the environment. Their smart running 120mm fan will ensure maximum efficiency with the least amount of noise possible while the advanced active PFC circuitry helps reduce overall power consumption. As the norm for all Strider series, the exterior of all three models are dressed in durable black surface to reflect the quality components within.

Special Feature
Strong continuous power output
Components designed for reliability
Dual +12V rails for newest systems
6pin PCI-E connectors
Four serial ATA connectors
Intelligent 120mm variable speed fan
Active PFC

Specifications
 Model No.
SST-ST40F

 Max. DC Output
400W

Load Range

  		 +3.3V   +5V   +12V1   +12V2   -12V   +5VSB
Max.(Amps)
  		 30A   30A   14A   15A   0.5A   2.0A
Peak (Amps)
  		 /   /   16A   16.5A   /   2.5A
Min.(Amps)
  		 0.5A   0.3A   1A   1A   0A   0A
Range (%)
  		 ±5%   ±5%   ±5%   ±5%   ±10%   ±5%
Line Reg.(%)
  		 ±1%   ±1%   ±1%   ±1%   ±1%   ±1%
Ripple(mVp-p)
  		 50mV   50mV   120mV   120mV   120mV   50mV

 combined +3.3, +5V
152W

 combined +12V
29A/350W

 Input Voltage
90V ~ 264V

 Input Frequency Range
47Hz ~ 63Hz

 PFC
Active PFC (PF>0.95 at full load)

 Efficiency
80% Efficiency at Typical Loading

 MTBF
100,000 hours at 25°C , full load

 Operating temperature
0 ~ 50°C

 Protection
over current protection, over power protection, under voltage protection, over voltage protection, short circuit protection, no load protection

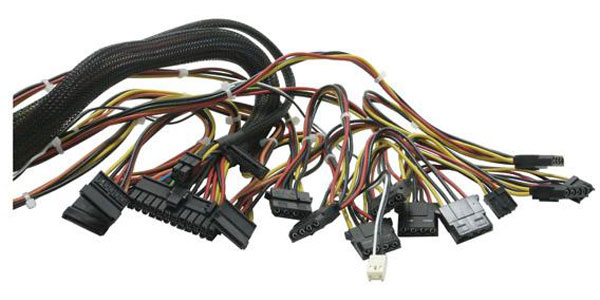

 Connectors

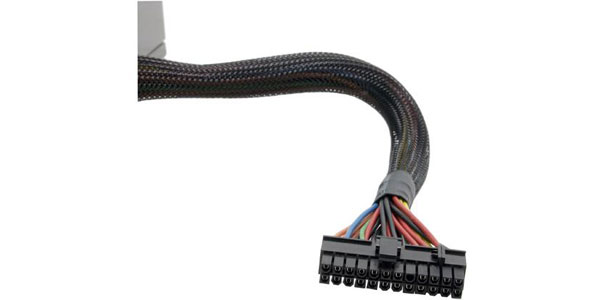

1 x 24/20-pin motherboard connector (550mm)
1 x 4-pin ATX12V connector (550mm)
1 x 6-pin PCI-E connector (550mm)
2 x triple SATA connector (510mm +150mm + 150mm)
2 x triple 4-pin IDE & single floppy power connectors
(510mm + 150mm + 150mm + 150mm)

 Color
black (lead-free paint)

 Cooling System
Single 120mm Fan low noise fan

 Noise Level
22 dBA minimum

 Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)

 Weight
1.65 kg

 Other
