Xigmatek Case ASGARD Pure Black Edition w/400W

PN
CPC-T45UB-U41(W/ 400W PSU)
Catalog number
747

  Manufacturer: Xigmatek

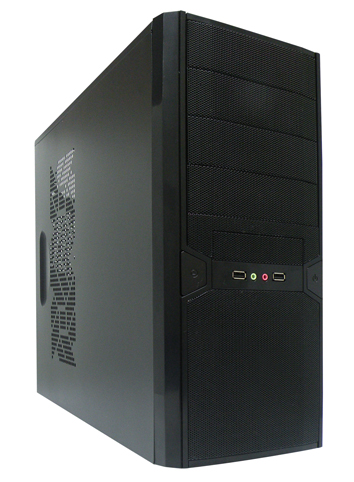

Case ASGARD Pure Black Edition w/400WClick to enlarge
Case ASGARD Pure Black Edition w/400WCase ASGARD Pure Black Edition w/400WCase ASGARD Pure Black Edition w/400WCase ASGARD Pure Black Edition w/400WCase ASGARD Pure Black Edition w/400WCase ASGARD Pure Black Edition w/400WCase ASGARD Pure Black Edition w/400WCase ASGARD Pure Black Edition w/400W
€65.95


available: no

This product is not available
65.96 EUR

Description and specifications


Specifications:

XIGMATEK PURE BLACK EDITION
ON CLASSIC CHASSIS



„Asgard”-The Property of Æsir and castle of Odin. As the country of Gods, the inviolable Asgard is the world’s first black coating entry-level chassis - milestone. Furthermore this chassis is supplied with 1 x 120mm preinstalled black fan, and 3 more fans can be mounted in different areas for best possible airflow. 4 x 5.25” bays will be able to house all your optical drives, but also 5 trays for your 3.5” HDDs are available so you can feel free by ”DIY”. Tool free design and a ”gorgeous” outlook are only a few points why this chassis is a ”must” not only for enthusiast but also for pc beginners.



Overview

   Classic chassis exterior contains pure black coating interior. It is more elegant and fancy design than any other entry-level chassis with ATX and Micro-ATX form factors.
   All angled front panel mesh cover and multiple fan screw holes on left side cover bring users more DIY pleasure.
   Asgard was designed by gaming and cooling thinking within tool-free hard drives and add-on card installation, easy installation CPU cooler back plate window, and four cooling fan space at most.



Features

   Screw-less tooling for 5.25” bay installation.
   Screw-less tooling for expansion slot installation.
   Screw-less tooling for 3.5” bay installation.
   Preinstalled 120mm front fan
   Supports 4 cooling fans in total.
   Back window for easy CPU cooler back plate.
   Dust filter behind front panel for intake airflow.






Angled front panel and mesh.



80/90/120mm rear fan space.




Tool-less holders for 3.5” and 5.25” devices.



Dust filter behind front panel.




Tool-less clips for add-on cards.



Preinstalled front 120mm fan.




Back hole on MB tray for CPU cooler backplate easy installation.



Holes and clips for cable management.




Upper power supply allocation.



Left side cover with two 80/90/120mm fan screw holes.








Specification


 Product Name

ASGARD


 Product Number

  		 CPC-T45UB-U41(W/ 400W PSU)


 Dimension

  		 185(W) x 475(D) x 408(H) mm, 0.6mm thickness SGCC.

 Drive Bay

  		 5.25” External x 4 (Tool-free)
3.5” External x 1 (Tool-free)
3.5” Internal x 5 (Tool-free)

 Expansion Slot

  		 7 slots (tool-free) Available for max. 285mm length VGA card

 Motherboard Support

  		 ATX (12” x 9.6”), Micro ATX (9.6” x 9.6”)

 Power Supply

  		 Standard P/2(ATX) or EPS

 Cooling System

  		 Front Fan: Preinstalled 120mm black fan x 1
(80/90mm fan is available)
Rear Fan: 80/90/120mm x 1 fan is available.
Side Fan: 80/90/120mm x 2 fans are available.

 I/O Panel



Front Panel: USB2.0 x 2, HD Audio in/out x 1
