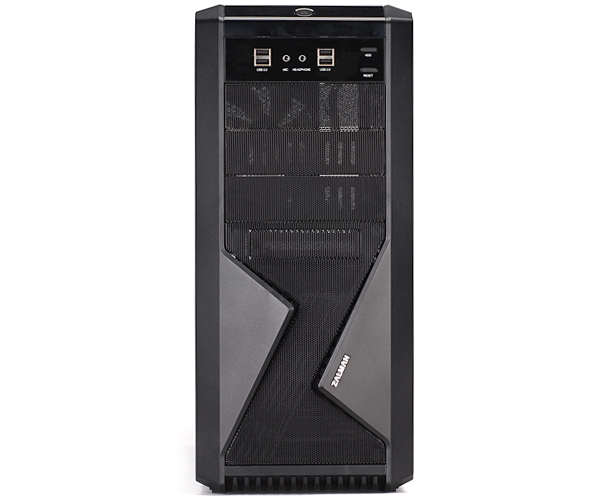

 Front Mesh Cover for High Cooling PerformanceThe front mesh bay cover provides cool air into the system while dust filters prevent dust from entering. |
| Supports up to 7 System FansUp to 7 system fans are installed to expel hot air effectively from the case. |
|
| |
 |

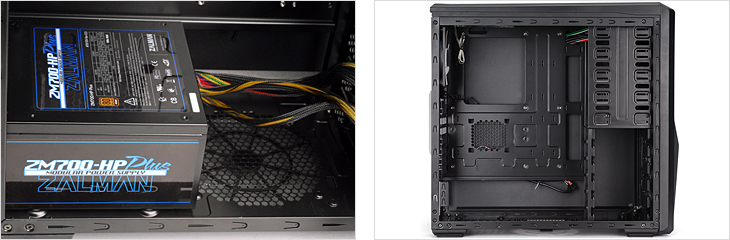

| Supports Bottom PSU Installation and Aperture for Cable ManagementZ9 Plus supports bottom PSU installation and provides an aperture for cable management to make better use of interior space. |
| Black Interior CoatingThe interior of chassis is coated black to provide a sense of unity and elegant design. |
|
|
 |

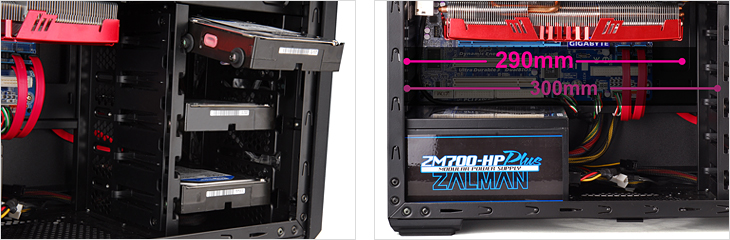

| Tool Free HDD Installation with Anti-Vibration RubberThe server-type Tool-Free HDD Mount Trays allow easy HDD installation/removal and maintenance. |

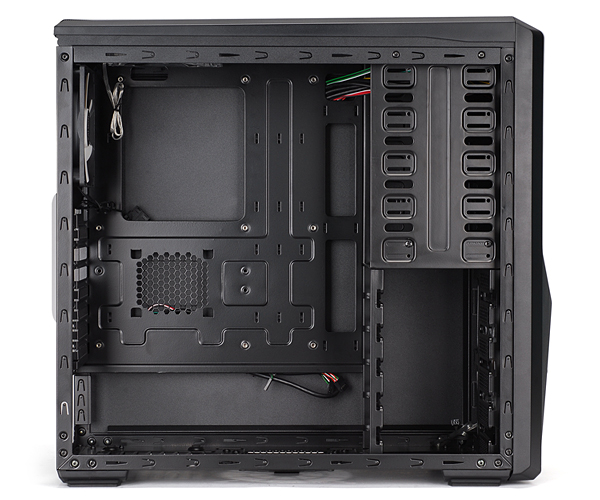

| Spacious Interior for Installing 290mm CardThe interior has been designed to be spacious for easy installation and maintenance of various components. |
|
| |
 |

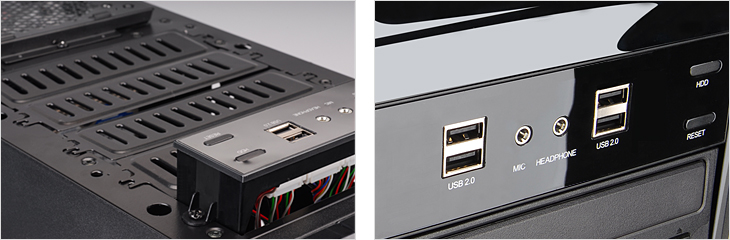

| Front I/O module for Easy Component ChangeFront I/O module enables the location of DVD-ROM and other components to be changed easily according to user preference. |
| Supports 4 USB 2.0Front I/O module provides 4 USB 2.0 ports for user convenience and expandability. |
|
| |
 |

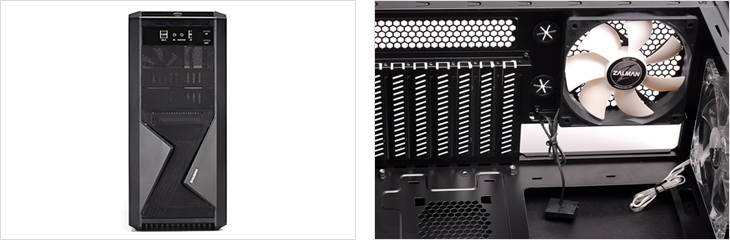

Supports Front and Rear 120mm FanTwo 120mm fans deliver maximum cooling, and 1 Blue LED fan emphasizes cool aesthetics.
※ One front 120mm Blue LED and 1 rear 120mm White Impeller fan are provided. |

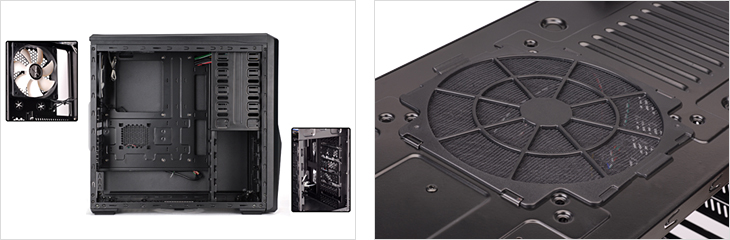

| Front and Bottom Dust FiltersDust
filters in the front and bottom mesh covers prevent dust from entering
the system and keep the internal components dust-free. |
|
|
 |

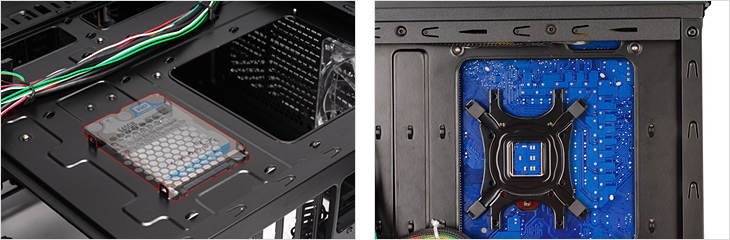

Supports Solid State Drive (SSD)Space is provided on the back of M/B plate for installing 2.5" HDD/SSD.
|
| Separate Apertures for Convenient CPU Cooler InstallationSeparate
apertures for CPU cooler are provided for convenient CPU cooler
installation without having to remove motherboard from case. |
|
| |
 |

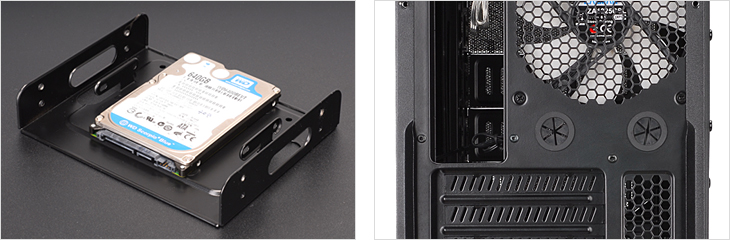

| 3IN1 Adapter Tray Provided3IN1 Adapter Tray is provided for installing FDD / 3.5" HDD / 2.5" HDD/SSD. |

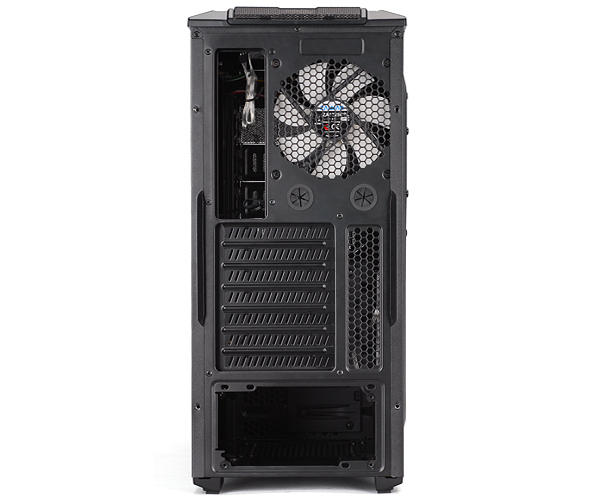

| Tube Apertures for Liquid Cooling SystemsTube apertures are provided at the rear of the case for convenient water cooling set-up and maintenance. |
|
|
 |

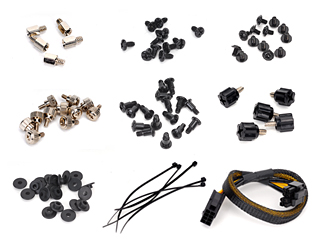

 | - Main Unit
- Stand-off
- A Bolts (BH 6-32*6) [PSU/PCI Slot Installation]
- B Bolts (PWH M3*5) [M/B, FDD, SSD Installation]
- C Bolts (M3*6) [5.25" Bay ODD Installation]
- D Bolts (#6-32*4) [3.5" Bay HDD Installation]
- E-Bolts (#6-32*6) [3.5" HDD Installation]
- HDD Anti Vibration Damper [3.5" Bay HDD Installation]
- Cable Ties
- CPU 12V Extension Cable
- User`s Manual |
|
|
|
| |
 |
|
| Enclosure Type | ATX Mid Tower | | Dimensions | 207(W) x 464(H) x 504(D)mm | | Weight | 7.0kg | | Material | Plastic, Steel | | Motherboard Compatibility | Standard ATX / m-ATX | | Power Supply Compatibility | Standard ATX / ATX12V | | VGA Compatibility | Full Size (290mm) | | Expansion Slot | 7 | | Drive Bay | External 5.25" | 3 | | Internal 3.5" | 5 | | External 3.5" | 1 | | Internal 2.5" | 1 | Cooling
Component | Front | 120㎜ /140㎜ fan x 1 (120㎜ Blue LED fan x 1 standard) | | Top | 120㎜ /140㎜ fan x 2 (option) | | Bottom | 120㎜ /140㎜ fan x 1 (option) | | Rear (L) | 120㎜ fan x 1 (standard) | | Side | 120㎜ fan x 2 (option) | | Front I/O Ports | Mic x 1, Headphones x 1, USB 2.0 x 4 | | Color | Black |
|
