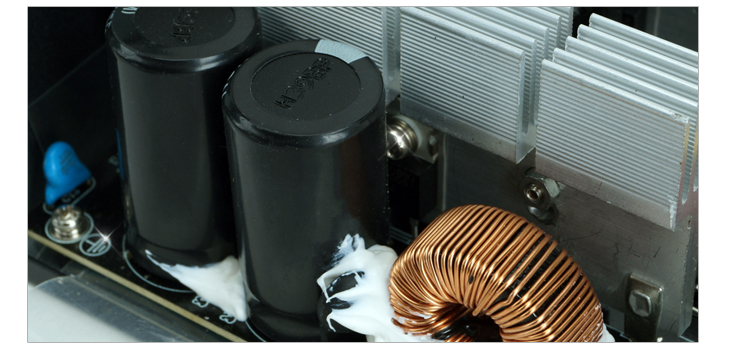

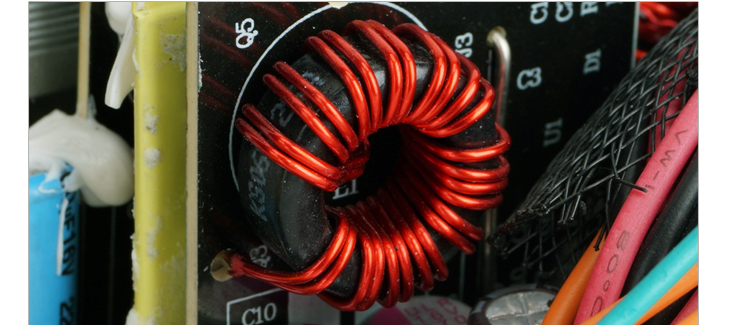

Active PFC
|
| Built-in Active PFC circuit to provide high power factor and high efficiency |
 |
|
Dual Forward Converter Circuit
|
| Dual? Forward Converter Circuit designed for stability |
 |
|

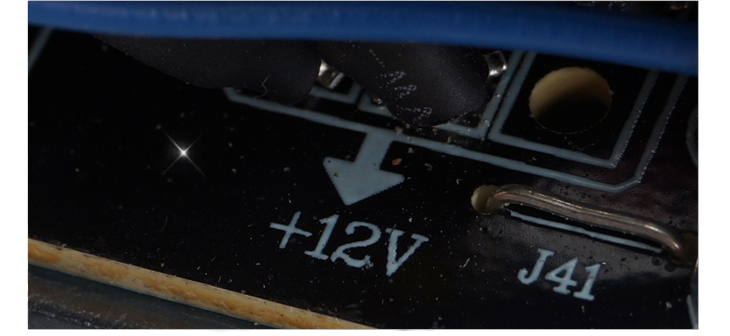

Single Rail +12VDC Output
|
Single+12VDC output design for stabilized voltage supply
|
 |
|

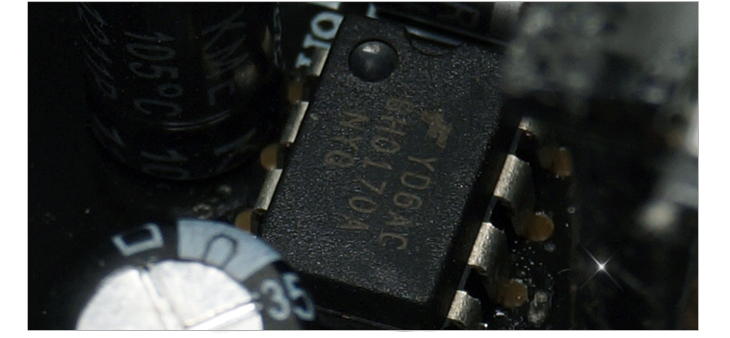

+5Vsb Green IC
|
Meets ErP 2010 Lot6 EU Standby Power Standards Standby power lower than 1W
(ErP : Energy-related Product)
|
 |
|

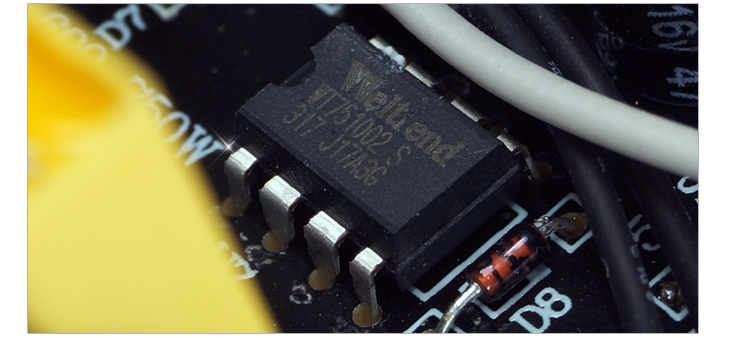

Secondary Protection IC
|
Built-in Over-voltage, Under-voltage, Short-circuit Protection Functions
|
 |
|
DC-DC Converter
|
Circuit design with DC-DC Converter for +5V and +3.3V
|
 |
|

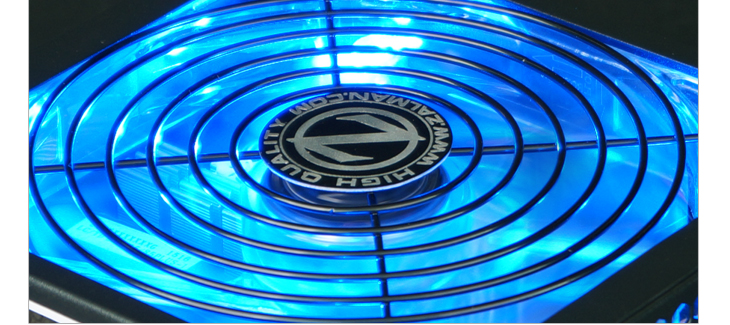

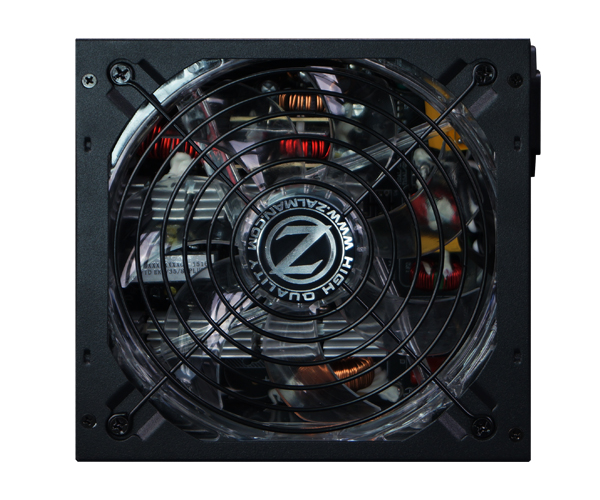

140mm Quiet Blue LED Fan
|
Low noise 140mm Quiet Blue LED Fan controlled by thermal Cooling System
|
 |
| |

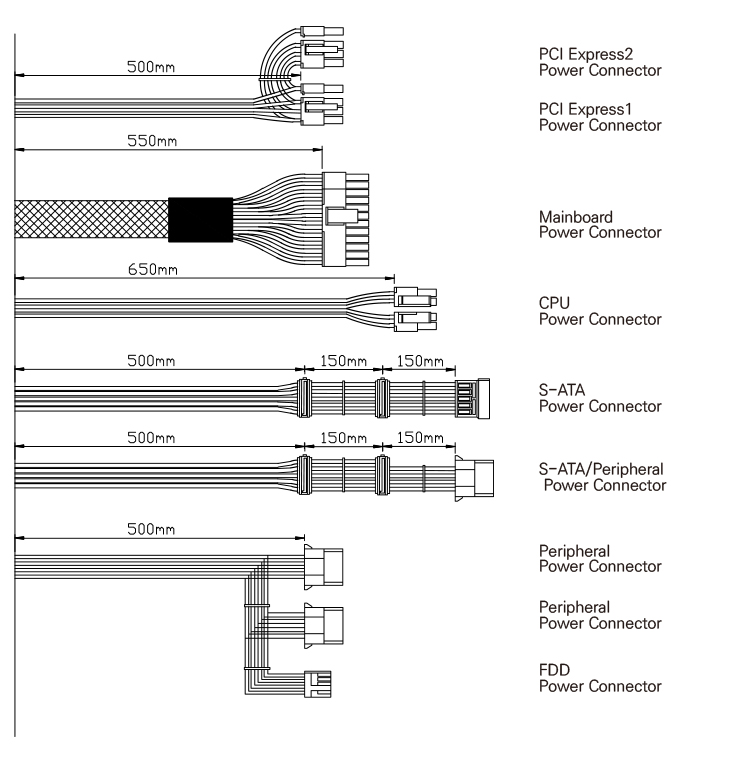

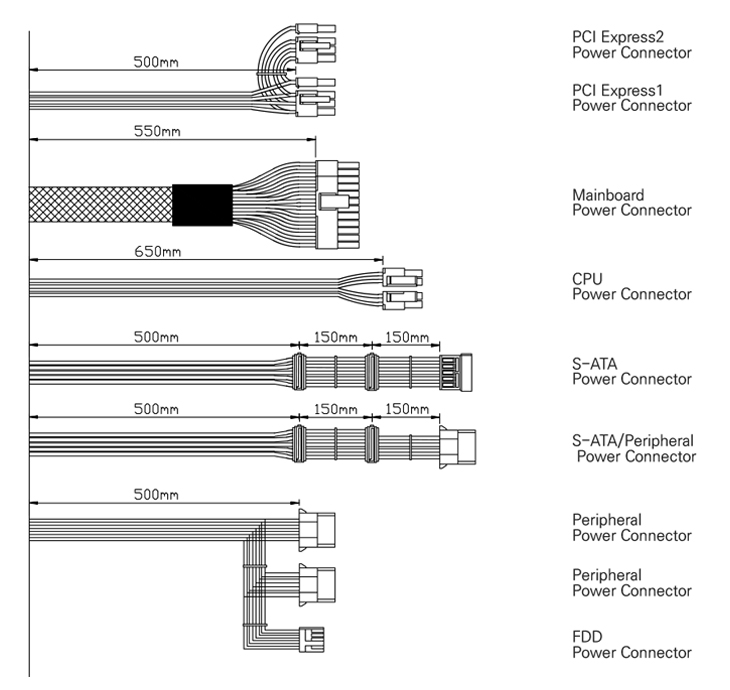

| Output Power Cable Specifications |
|
 |
| |
| International Safety and EMC Certifications |
|
 |

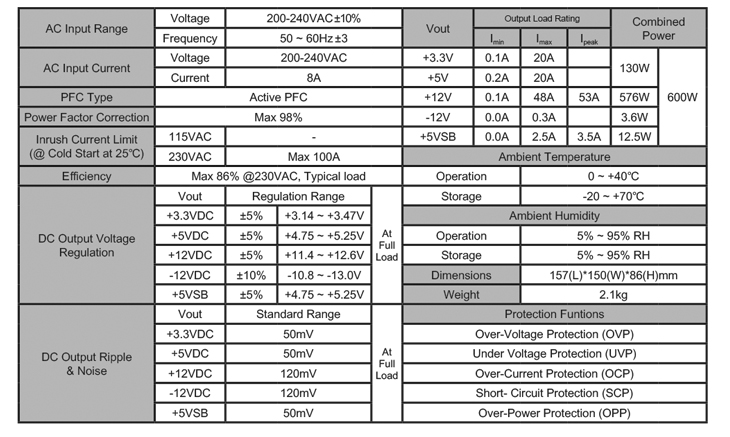

Electrical & Physical Characteristics |
|
| AC Input Range |
Voltage |
200 ~ 240VAC ± 10% |
Vout |
Output Load Rating |
Combined
Power |
| Frequency |
50 ~ 60Hz ± 3 |
Imin |
Imax |
Ipeak |
AC Input Current
(Rated) |
Voltage |
200 ~ 240VAC |
+3.3V |
0.1A |
20A |
|
130W |
600W |
| Current |
8A |
+5V |
0.2A |
20A |
|
| PFC Type |
Active PFC |
+12V |
0.1A |
58A |
53A |
576W |
| Power Factor |
Max 98%
|
-12V |
0.0A |
0.3A |
|
3.6W |
Inrush Current Limit
(@ Cold start at 25°C) |
115VAC |
- |
+5VSB |
0.0A |
2.5A |
3.5A |
12.5W |
| 230VAC |
Max 100A |
Ambient Temperature |
| Efficiency |
Max 86% @ 230VAC, Typical load |
Operation |
0 ~ 40°C |
DC Output
Voltage Regulations |
Vout |
Regulation Range |
At Full
Load |
Storage |
-20 ~ 70°C |
| +3.3VDC |
±5% +3.14 ~ +3.47V |
Ambient Humidity |
| +5VDC |
±5% +4.75 ~ +5.25V |
Operation |
5% ~ 95%RH |
| +12VDC |
±5% +11.4 ~ +12.6V |
Storage |
5% ~ 95%RH |
| -12VDC |
±10% -10.8 ~ -13.0V |
Dimensions |
157(L) x 150(W) x 86(H) mm |
| +5VSB |
±5% +4.75 ~ +5.25V |
Weight |
2.1kg |
DC Output
Ripple & Noise |
Vout |
Standard Range |
At Full
Load |
Protection Features |
| +3.3VDC |
50mV |
Under Voltage Protection(UVP) |
| +5VDC |
50mV |
Short Circuit Protection(SCP) |
| +12VDC |
120mV |
Over Power Protection(OPP) |
| -12VDC |
120mV |
Over Current Protection(OCP) |
| +5VSB |
50mV |
Over Voltage Protection(OVP) |
|
| |
 |
| |
 |
|

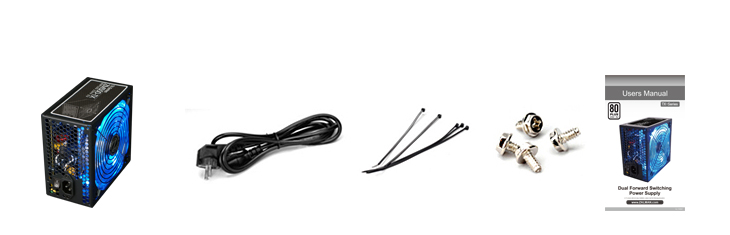

Power Supply |
AC Power Cord |
Cable Ties |
Screw Bolt |
User’s Manual | |
