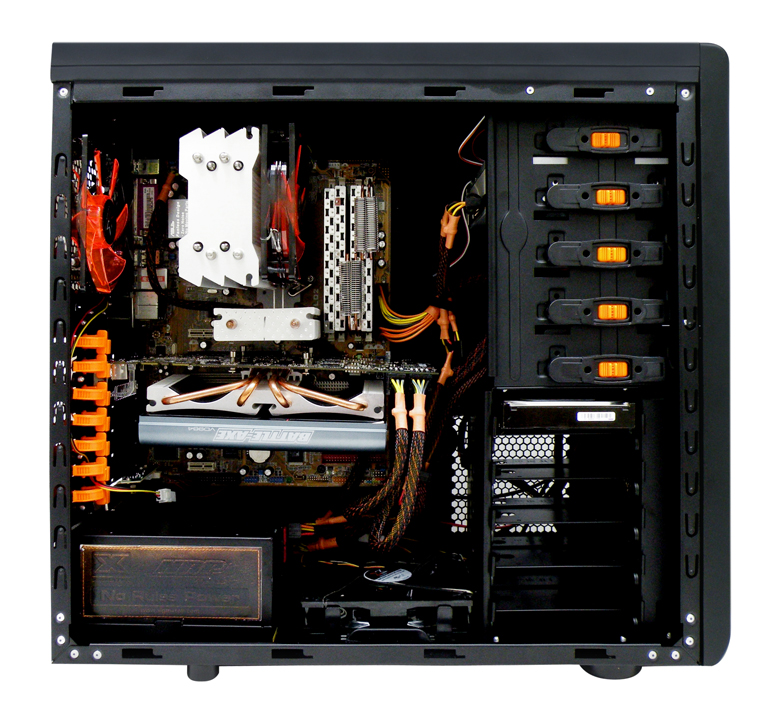

MIDGARD |
|
Product Number |
CPC-T55DB-U01 |
|
Dimension |
Main Unit: 206 x 510 x 477 mm / 8.1 x 20.1 x 18.8 inches Box: 258 x 560 x 583 mm / 10.1 x 22.0 x 23.0 inches |
|
Drive Bay |
5.25" External x 5 (One bay with 5.25" to 3.5" adapter, tool-free) 3.5" Internal x 5 (Tool-free) |
|

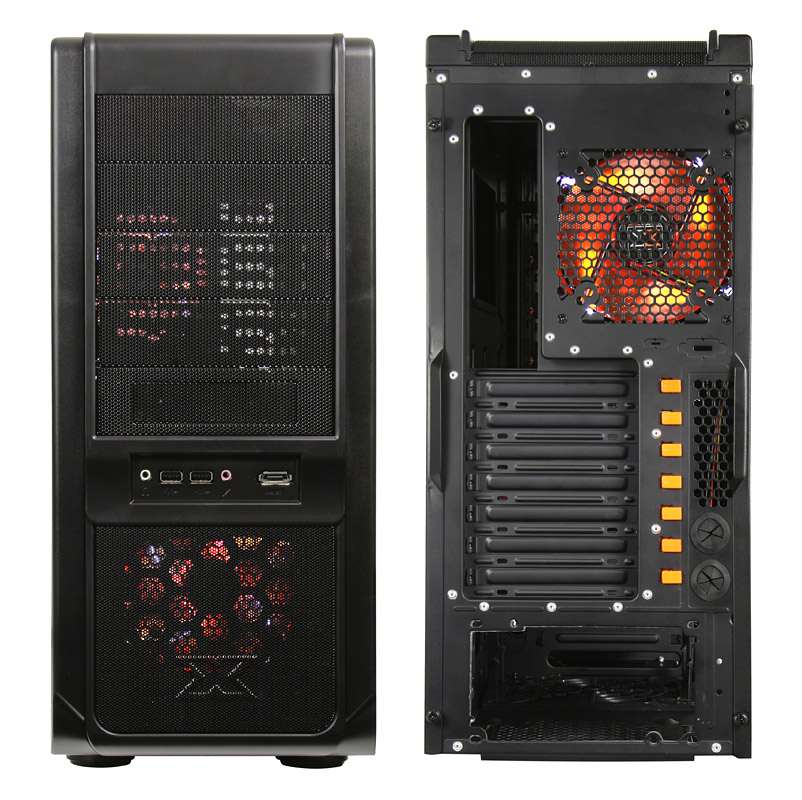

Expansion Slot |
7 slots (tool-free) Available for max. 295mm length VGA card |
|
Motherboard Support |
ATX, Micro ATX (with easy back plant installation window) |
|
Power Supply
|
Standard P/S2 ATX/EPS power supply unit 1. Intake airflow hole with dust filter. 2. Available for face upward and downward installation. 3. Within anti-vibration rubber. |
|
Cooling System |
Water pipe holes x 4 (with rubber cover) |

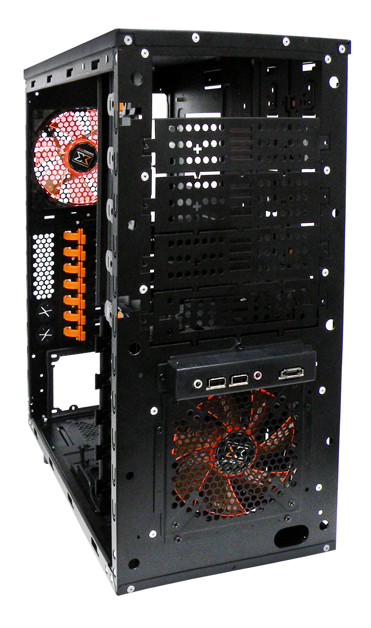

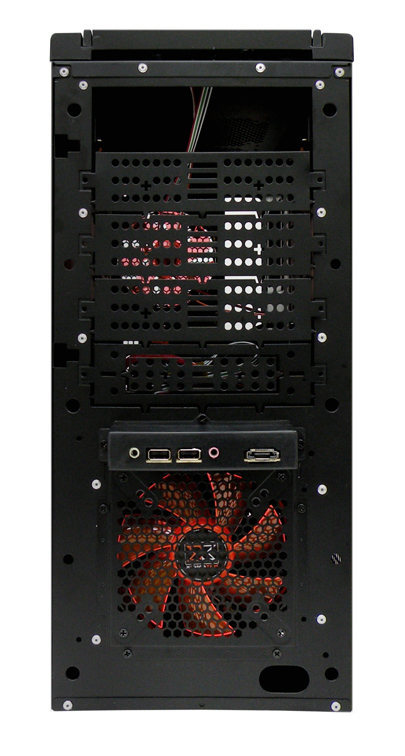

Front Fan: 120mm white LED with orange blades x 1 (Preinstalled) (80/90/140mm fan is available) |
Rear Fan: 120mm white LED with orange blades x 1 (Preinstalled) (80/90 fan is available) |

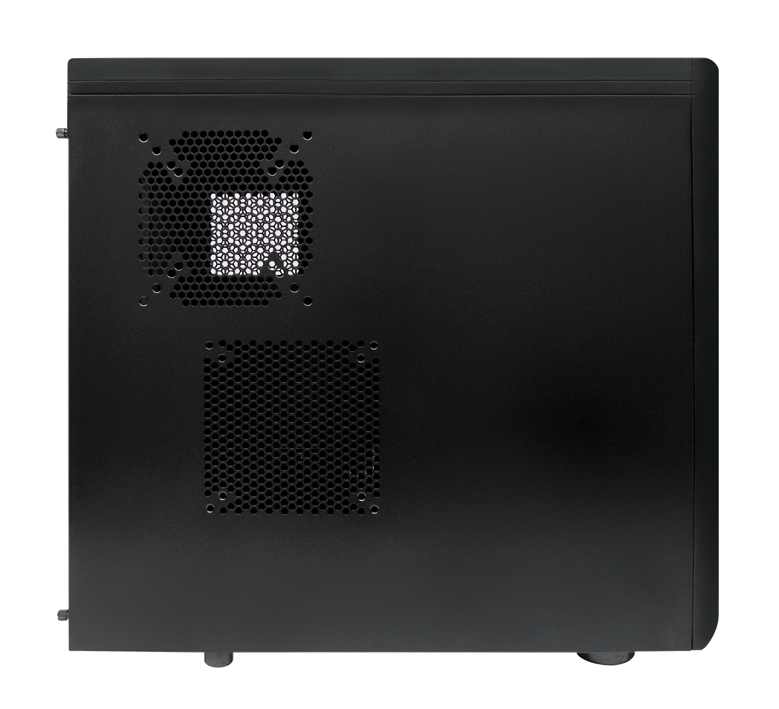

| Side Fan: 80/90/120/140mm fan x 1 (optional) 120/140mm fan x 1 (optional) |

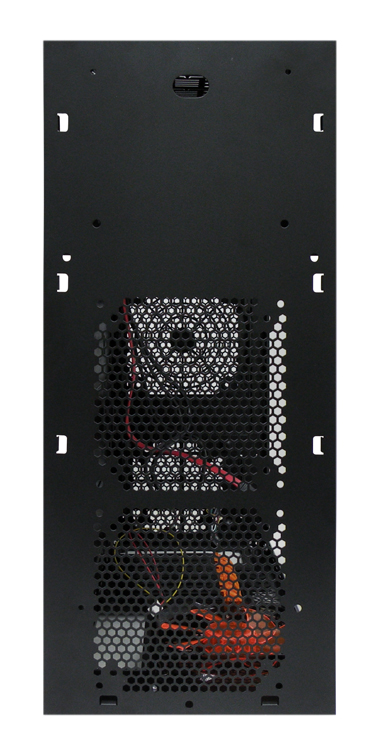

| Bottom Fan: 120/140mm fan x 1 (optional) |
| Top Fan: 120/140mm fan x 2(optional) |
Fan Speed Control: Three fan speeds are adjustable synchronously by one knob on back bracket. |
|
I/O Panel |

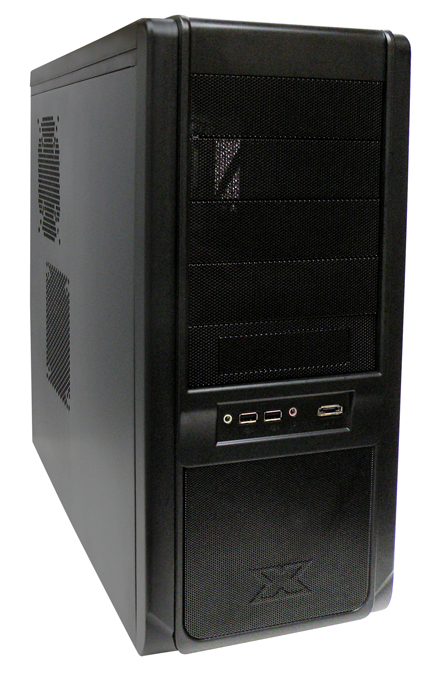

Top Panel: Power On/Off switch and reset button Front Panel: USB2.0 x 2, e-SATA x 1, Audio out x 1, Microphone x 1 |
