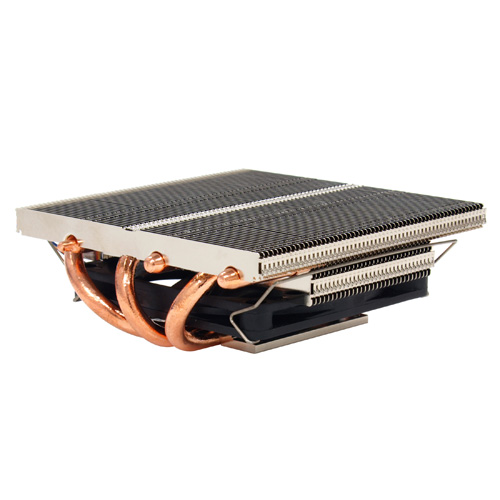

40mm Super-Lowprofile CPU-Cooler Kozuti

Compact fan developed for use in Multimedia PC (HTPC). With the installation of a 80 x 80 x 10mm sized PWM fan positioned below the fins, the total height of the cooler has been reduced significantly. Recommended for processors up to 65 Watt TDP.

Usage up to 95 Watt TDP only with maximum rpm!

Specifications

Model Name:
Kozuti CPU Cooler

Modell No.:
SCKZT-1000

Manufacturer:
Scythe Co., Ltd. Japan

Compatibility:
Intel®:
Socket 775
Socket 1155
Socket 1156
Socket 1366

AMD®:
Socket AM2
Socket AM2+
Socket AM3

Overall Dimensions:
110 x 103 x 40 mm / 4.33 x 4.06 x1.58 in

Weight Included Fan:
250 g

Accessory:
Installation Guide, Thermal Grease


Fan-Spezifications

Model Name:
PWM4-pin fan

Model No.:
SY8010SL12M-P

Fan Dimensions:
80 x 80 x 10 mm

Fan Speed:
800 (±30%)  - 3300upm (±10%) - regulated by PWM

Air Flow:
6.0CFM ～ 24.82CFM

Noise Level:
8.2 ～ 32.5dBA

Input Power:
2,4 W

Input Current:
0,20 A

Voltage Range:
12 V

Features

Super-Lowprofile CPU-Cooler
only 40 mm in height

S.F.M.S. (Stealth Fan Mounting Structure)
By introducing the newly developed S.F.M.S. a super mini cooler -no taller than 40mm- is achieved by mounting a fan directly under the fins, which is compatible with more small form factor PCs, such as Mini-ITX case, slim case, etc.

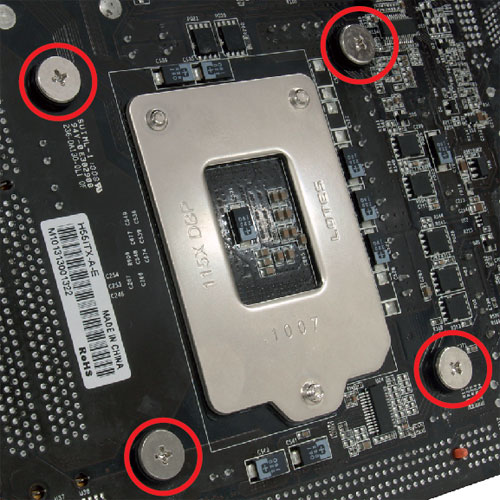

E.I.S. (Easy Installation with Screw)
Easy and safe installation with screws instead of using a backplate.

PWM
Fan speed is automatically regulated by the PWM signal of the mainboard. Equipped with new 80 x 10 mm fan, operating within the range of 800 to 3300 rpm, dependent on load.

Complies to RoHS standard.
