Noctua CPU Cooler NH-C14 775/1155/1366/AMD

PN: NH-C14
Catalog number: 1073

Manufacturer: Noctua

Click to enlarge

€71.06

available: no

This product is not available
71.06 EUR

Description and specifications

Specifications:

The NH-C14 brings top-flow cooling to a new level by offering an exquisite, uniquely flexible 140mm dual fan setup: The two supplied NF-P14 premium fans can be installed on top and underneath the fin-stack to configure the cooler for maximum performance in dual fan mode and either lower profile (105mm) or maximum component clearance in single fan modes. Bundled with the award-winning NT-H1 thermal compound and Noctua’s SecuFirm2™ multi-socket mounting system, the NH-C14 is a highly flexible, premium-class top-flow solution that further boosts the renowned quiet cooling performance of the much acclaimed NH-C12P series.

Specifications

Socket compatibility		Intel LGA1366, LGA1156, LGA1155, LGA775 & AMD AM2, AM2+, AM3 (backplate required)



Height (without fan)		105 mm



Width (without fan)		140 mm



Depth (without fan)		166 mm



Height (with fan)		130 mm



Width (with fan)		140 mm



Depth (with fan)		166 mm



Weight (without fan)		700 g



Weight (with fan)		850/1000* g



Material		Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating



Fan compatibility		140x140x25mm / 120x120x25mm

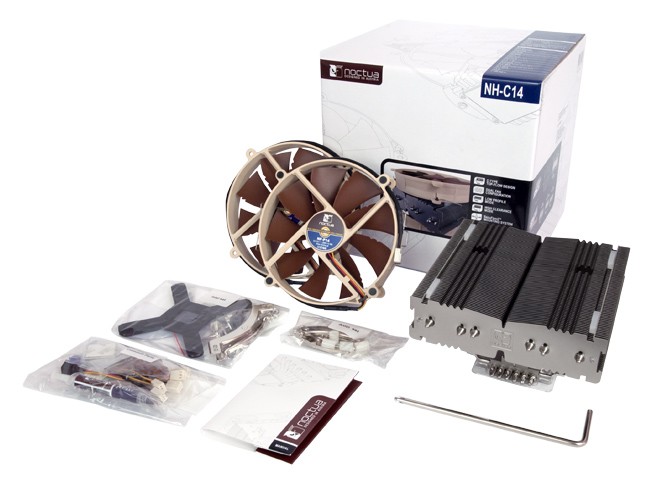

Scope of Delivery		2x NF-P14 premium fan Low-Noise Adaptor (L.N.A.) Ultra-Low-Noise Adaptor (U.L.N.A.) NT-H1 high-grade thermal compound SecuFirm2™ Mounting Kits Noctua Metal Case-Badge



Warranty		6 Years



Fan specifications



Model		Noctua NF-P14



Bearing		SSO-Bearing



Rotational Speed (+/- 10%)		1200 RPM



Rotational Speed with L.N.A. (+/- 10%)		900 RPM



Rotational Speed with U.L.N.A. (+/- 10%)		750 RPM



Airflow		110,3 m³/h



Airflow with L.N.A.		83,7 m³/h



Airflow with U.L.N.A.		71,2 m³/h



Acoustical Noise		19,6 dB(A)



Acoustical Noise with L.N.A.		13,2 dB(A)



Acoustical Noise with U.L.N.A.		10,1 dB(A)



Input Power		1,2 W



Voltage Range		12 V



MTBF		> 150.000 h

* with 2 fans

Details

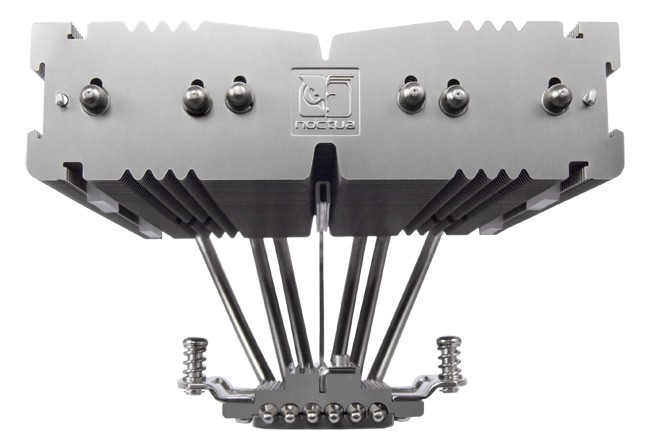

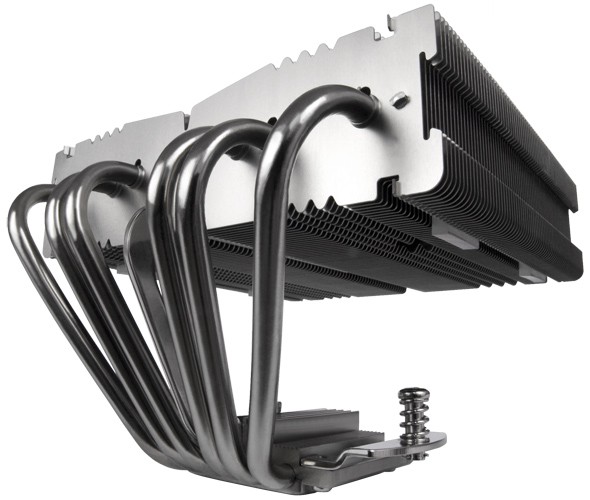

	C-Type top-flow design The NH-C14’s six heatpipe c-type design allows for superb quiet cooling performance while maintaining a much lower profile than today’s tower-style coolers and providing excellent airflow over RAM modules and near-socket mainboard components.

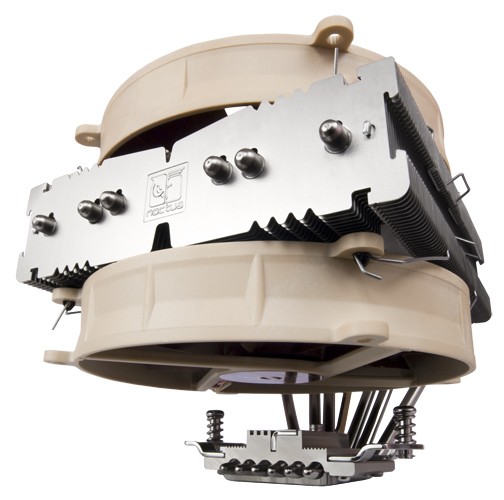

	Dual NF-P14 FLX fans The NH-C14 comes with two of Noctua’s award-winning, premium quality NF-P14 140mm fans that can be fine-tuned according to the user’s needs via the supplied Low-Noise (L.N.A.) and Ultra-Low-Noise Adaptors (U.L.N.A.).

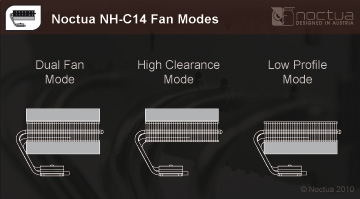

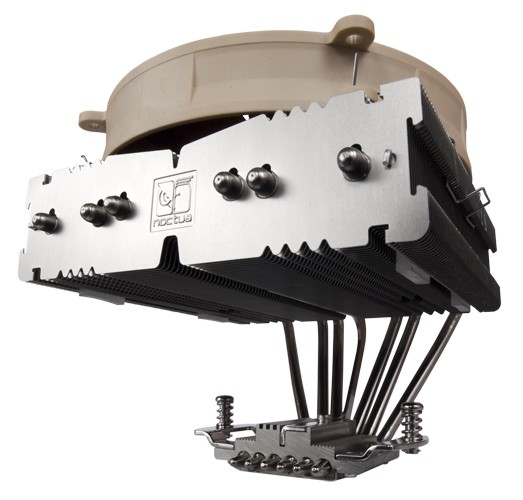

	Low Profile Mode Run with a single NF-P14 fan underneath the fin stack and with the top fan removed, the NH-C14 measures only 105mm in height, which makes it ideal for use in smaller enclosures and HTPC applications.

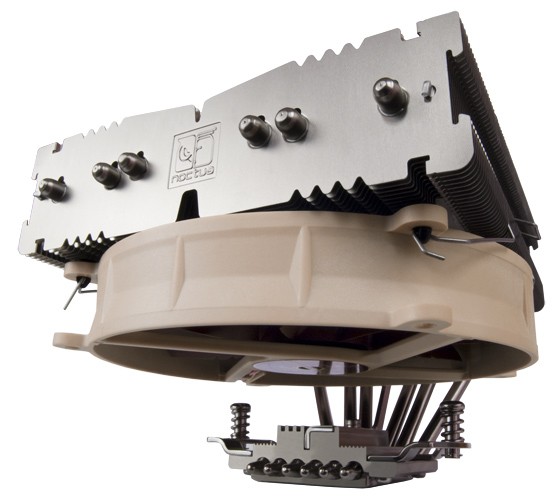

	High Clearance Mode The lower NF-P14 fan can be removed in order to provide additional clearance for chipset coolers or RAM modules with tall heat-spreaders. Run with a single fan on top, the NH-C14 provides a full 65mm of clearance.
	SecuFirm2™ multi-socket mounting system Noctua’s enthusiast grade SecuFirm2™ multi-socket mounting provides broad socket compatibility (LGA1366, LGA1156, LGA1155, LGA775, AM2, AM2+ and AM3) and meets the highest demands in safety, performance and ease-of-use.
	Noctua NT-H1 high-end thermal compound Noctua's much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.
