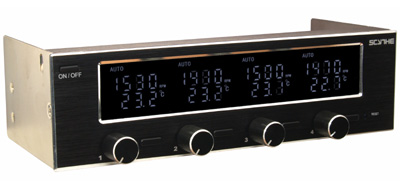

New Scythe Kaze Server Fan Controller New Scythe Kaze Server Fan Controller allows the user to choose 3 method of controlling the fan speed, manual, semi-auto, and automatic control of up to four fans with a freely definable temperature. Reading out of these temperature is done by up to four temperature sensors.
Only the highest quality materials are used: Stylish brushed aluminum coupled with the illuminated blue display makes the Scythe Kaze server a premium fan controller.
Specifications
Model Name:
Kaze Server
Model-No.:
KS01-BK (5.25" Version in Black)
Dimensions (W x H x D):
148.5 x 42.5 x 63 mm | 5.72 x 1.67 x 2.48 in
Display Measurements (W x H):
114 x 20 mm | 4.49 x 0.79 in
Length of the control dial:
10 mm | 0.4 in
DC Input:
5 V or 12 V (From PC Power Supply Unit)
DC Output:
3.7 V (±10%) ~ 12 V (±10%)
Number of Fan Control Channels:
4 (Max. 1 Ampere and max. 12 W per Channel)
Fan Speed Range
0 - 9,990 rpm (Display: 30 rpm Steps)
Number of Temp Channels: .
4 (0 - 100°C / 32 - 199.9°F)
Weight:
162 g | 5.71 oz.
Accessory:

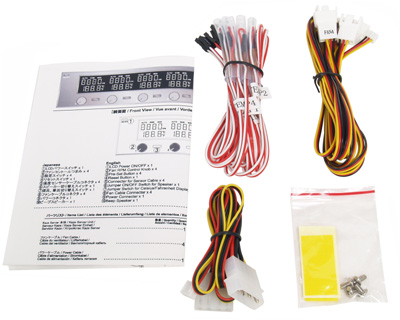

4x Temperature Sensor Cables, 4x Fan Extension, Power Adapter, Adhesive Tape for Temperature Probes, Screws
Features
Precious aluminum design:
High-quality materials were used when producing the Kaze Server. The front consists of brushed aluminum and accentuates the illuminated LCD display in an optimal way.
Fan control and temperature monitoring:
With the Kaze Server, four fans can be controlled independently, and four temperatures (in either ° C or °F) can be monitored.
In addition to manually control the fan speed on four knobs, the Kaze Server Fan controller allows a fully automated and a semi-automatic operation mode.
AUTO mode: Kaze Server switches off the fan, when the real temperature is much lower than the self-defined temperature.
SEMI mode: In addition to AUTO mode, a minimal rpm of the fan can be defined together with the self-defined temperature.
An integrated acoustic alarm function (which can be deactivated by a jumper) warns the user from overheating and failure of a fan.
Wide range of fan controller:
The fan voltage can be independently controlled from 3.7 - 12 V, in addition, the fan can be switched off completely which allows the user to choose between high and ultra-cooling operation.
