The NH-C14 brings top-flow cooling to a new level by offering an exquisite, uniquely flexible 140mm dual fan setup: The two supplied NF-P14 premium fans can be installed on top and underneath the fin-stack to configure the cooler for maximum performance in dual fan mode and either lower profile (105mm) or maximum component clearance in single fan modes. Bundled with the award-winning NT-H1 thermal compound and Noctua’s SecuFirm2™ multi-socket mounting system, the NH-C14 is a highly flexible, premium-class top-flow solution that further boosts the renowned quiet cooling performance of the much acclaimed NH-C12P series.
Specifications
| Socket compatibility |
|
Intel LGA1366, LGA1156, LGA1155, LGA775 & AMD AM2, AM2+, AM3 (backplate required) |
|
|
|
| Height (without fan) |
|
105 mm |
|
|
|
| Width (without fan) |
|
140 mm |
|
|
|
| Depth (without fan) |
|
166 mm |
|
|
|
| Height (with fan) |
|
130 mm |
|
|
|
| Width (with fan) |
|
140 mm |
|
|
|
| Depth (with fan) |
|
166 mm |
|
|
|
| Weight (without fan) |
|
700 g |
|
|
|
| Weight (with fan) |
|
850/1000* g |
|
|
|
| Material |
|
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
|
|
|
| Fan compatibility |
|
140x140x25mm / 120x120x25mm |
|
|
|
| Scope of Delivery |
|
2x NF-P14 premium fan
Low-Noise Adaptor (L.N.A.)
Ultra-Low-Noise Adaptor (U.L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kits
Noctua Metal Case-Badge |
|
|
|
| Warranty |
|
6 Years |
|
|
|
Fan specifications |
|
|
|
|
|
| Model |
|
Noctua NF-P14 |
|
|
|
| Bearing |
|
SSO-Bearing |
|
|
|
| Rotational Speed (+/- 10%) |
|
1200 RPM |
|
|
|
| Rotational Speed with L.N.A. (+/- 10%) |
|
900 RPM |
|
|
|
| Rotational Speed with U.L.N.A. (+/- 10%) |
|
750 RPM |
|
|
|
| Airflow |
|
110,3 m³/h |
|
|
|
| Airflow with L.N.A. |
|
83,7 m³/h |
|
|
|
| Airflow with U.L.N.A. |
|
71,2 m³/h |
|
|
|
| Acoustical Noise |
|
19,6 dB(A) |
|
|
|
| Acoustical Noise with L.N.A. |
|
13,2 dB(A) |
|
|
|
| Acoustical Noise with U.L.N.A. |
|
10,1 dB(A) |
|
|
|
| Input Power |
|
1,2 W |
|
|
|
| Voltage Range |
|
12 V |
|
|
|
| MTBF |
|
> 150.000 h |
|
Details
 |
C-Type top-flow design
The NH-C14’s six heatpipe c-type design allows for superb quiet cooling performance while maintaining a much lower profile than today’s tower-style coolers and providing excellent airflow over RAM modules and near-socket mainboard components.
|
 |
Dual NF-P14 FLX fans
The NH-C14 comes with two of Noctua’s award-winning, premium quality NF-P14 140mm fans that can be fine-tuned according to the user’s needs via the supplied Low-Noise (L.N.A.) and Ultra-Low-Noise Adaptors (U.L.N.A.).
|
 |

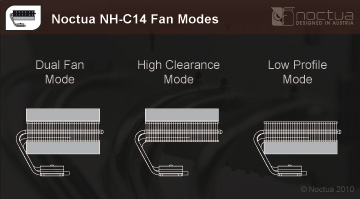

Low Profile Mode
Run with a single NF-P14 fan underneath the fin stack and with the top fan removed, the NH-C14 measures only 105mm in height, which makes it ideal for use in smaller enclosures and HTPC applications.
|
 |
High Clearance Mode
The lower NF-P14 fan can be removed in order to provide additional clearance for chipset coolers or RAM modules with tall heat-spreaders. Run with a single fan on top, the NH-C14 provides a full 65mm of clearance.
|
 |
SecuFirm2™ multi-socket mounting system
Noctua’s enthusiast grade SecuFirm2™ multi-socket mounting provides broad socket compatibility (LGA1366, LGA1156, LGA1155, LGA775, AM2, AM2+ and AM3) and meets the highest demands in safety, performance and ease-of-use.
|
 |
Noctua NT-H1 high-end thermal compound
Noctua's much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability. | |
|
