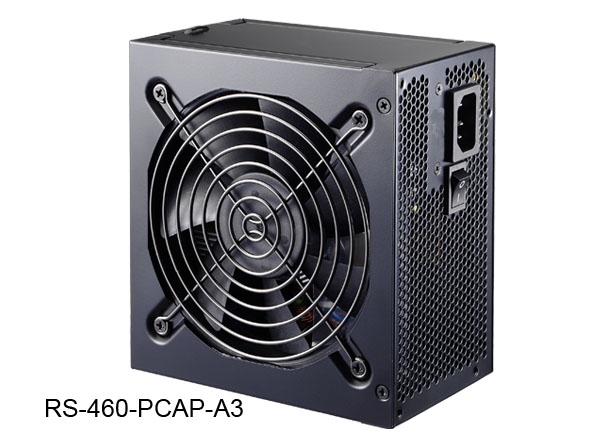

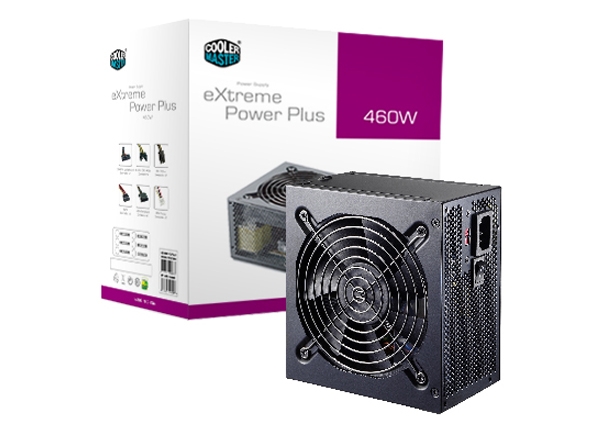

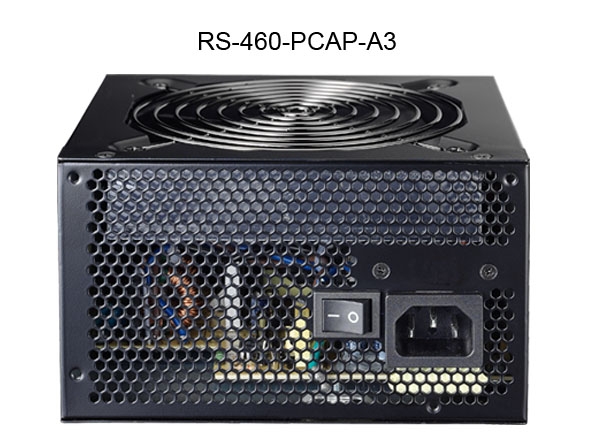

CoolerMaster PSU Extreme 460W PPFC 120mm
[RS-460-PCAP-A3]
№: ++869
Manufacturer: CoolerMaster
CoolerMaster PSU Extreme 460W PPFC 120mm
Introduction
Extreme series packs a powerful punch by delivering stable streams of power through dual +12v outputs. Our Extreme power supplies provides over 70% efficiency at typical loading and meet Energy Star and Blue Angel requirements. With a life-time of 100,000 hours and protection for OVP/OCP/OPP/SCP, these power units are made to last.
Features
Specifications

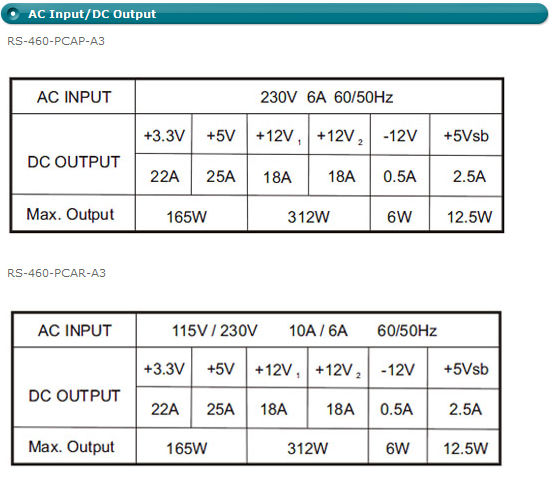

| Model | RS-460-PCAR-A3/RS-460-PCAP-A3 |
| Type | Intel Form Factor ATX 12V V2.3 |
| Dimension (W / H / D) | 150 x 86 x 140 mm |
| Input Voltage | RS-460-PCAR-A3 / 90 ~132V/180~264V (Selectable) RS-460-PCAP-A3 / 180~264 V |
| Input Current | RS-460-PCAR-A3 : 10A @ 115Vac / 6A @ 230Vac RS-460-PCAP-A3 : 6A @ 230Vac |
| Input Frequency Range | 47 ~ 63 Hz |
| Power Good Signal | 100 ~ 500 ms |
| Hold Up Time | > 17 ms |
| Efficiency | >70% Typically |
| MTBF | >100,000 hrs |
| Protection | OVP / OCP / OPP / SCP |
| Output Capacity | 460 Watts |
| Operation Temperature | 0~40°C Nominal Input Voltage? |
| Safety | Nemko / TUV / cUL / CE / BSMI /FCC / C-tick / CCC (Passive Model Only) |
| Fan | Sleeve bearing 120mm fan |
| Connector | M/B 20+4 Pin x 1 CPU 4+4 Pin x 1 PCI-E 6 Pin x 1 4 Pin Peripheral x 5 SATA x 4 4 Pin Floppy x 1 |
