DeepCool Case ATX STEAM CASTLE BKS
[DP-MATX-SCBKL]
№: ++1966 Manufacturer: DeepCool

€61 22

Notify me of updates to

available: no
This product is not available
61.23 EUR

Specifications:

Design

Description

Steam Castle WHS & BKS are dedicated high quality gaming computer case with great compatibility of up to 320mm graphic card installation. Steam punk style bold presentation has made steam castle a unique computer case. Its excellent ventilation performance is contributed by multiple air channels on front, rear, top and bottom panel.

Tool-free Design

Tools-free 2.5/ 3.5 SSD and HDD installation.
Plug indesign of front and Top panel.
Independent two 2.5 drive-bays support SSD RAID build-up.

Aesthetic Appearance

Unique post-modern steam-punk style appearance, strong structure.
Top 4 turbo-type air exhaust holes,good for modding.
Visible acrylic side window.

Optimized Airflow and Anti-dust Design

Pre-installed 120mm LED fan at rear.
Optional: Front: 1×200/140/120mm fan;
Top: 2×120/140mm fan.
With rubber buffer and dust filter for PSU.
3cm ground lifted design for PSU heat dissipation.
Detachable strip on the front panel for dust cleaning.
Two-layer horizontal structure, excellent for heat dissipation.

Excellent compatibility Protective approaches

1 USB 3.0 +1 USB 2.0 Ports at side panel.

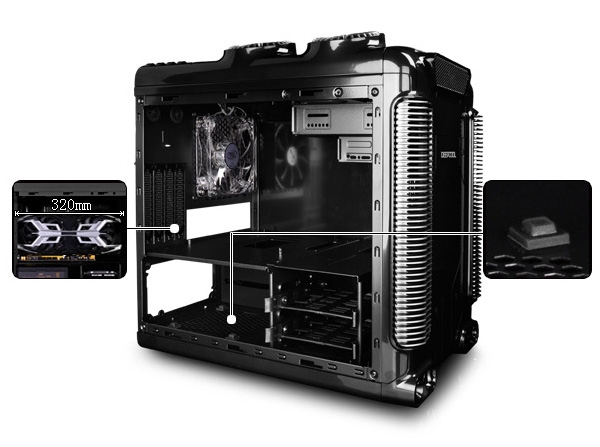

Support long VGA Card installation up to 320mm length.
Bottom located PSU for better space management.
Supports up to 2 PCI graphics card installation.
Shock absorbing pad for PSU protection.

Features

Unique post-modern steam-punk style appearance, strong structure
Side-window and top 4 turbo-type air out-taking holes, good for modding
120mm LED fan pre-installed at rear side
1 USB 3.0 +1 USB 2.0 Ports
Horizontal structure, perfect for top-performance air cooler installation
Two-layer horizontal structure, excellent for heat dissipation & compatibility
Compatible with Micro ATX and Mini-ITX motherboards
Support long VGA Card installation up to 320mm length
Top panel supports max 240mm water cooler installation
2 grommets on the rear are ready for building external water-cooling system
Tool free installation design for 2.5’’/3.5’’ SSD/HDD
Independent two 2.5’’ drive-bays support SSD RAID build-up
With rubber buffer and dust filter for PSU

Technical Specifications:

Motherboards	MICRO ATX/MINI-ITX
Materials	SGCC+PLASTIC (ABS) (Panel thickness: 0.95mm. very strong)
Dimension (LxWxH)	406278420mm
Net Weight	7.17kg
5.25" Drive Bays	1
3.5" Drive Bays	3 (Switchable to 2.5") (2 tool-free installation)
2.5" Drive Bays	2 (tool-free installation)
I/O Panel	1USB3.0/1USB2.0/Audio1/Mic1
Expansion Slots	4
Cooling Fans	Pre-installed: Rear: 1120mm LED fan (140mm holes available), Optional: Front: 1200/140/120mm fan; Top: 2120/140mm
Power Supply Type	ATX PS2 (max: 160mm length) (W150L160H86mm)
CPU Cooler Compatibility	max: 200mm height
VGA Compatibility	max: 320mm length
