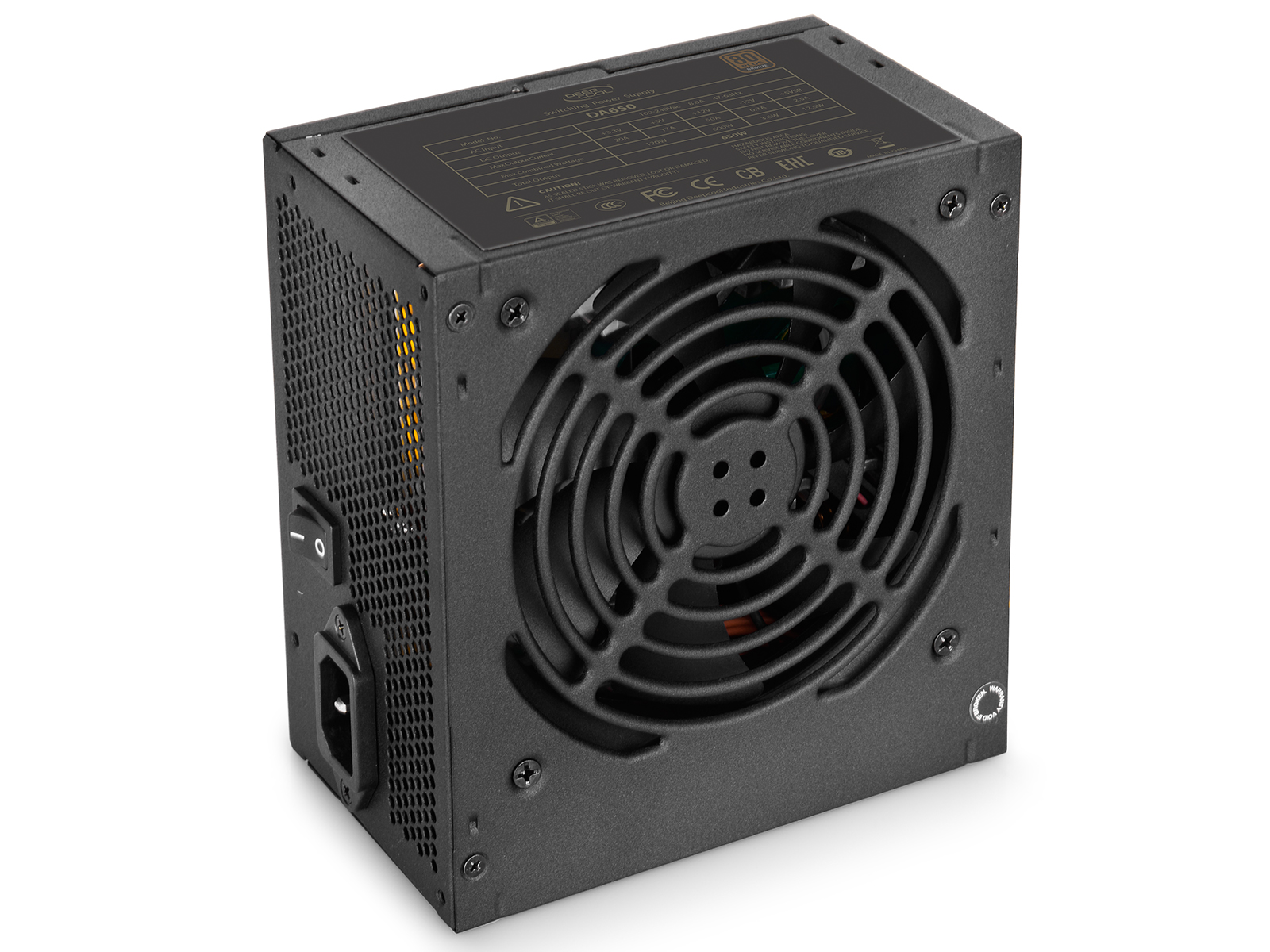

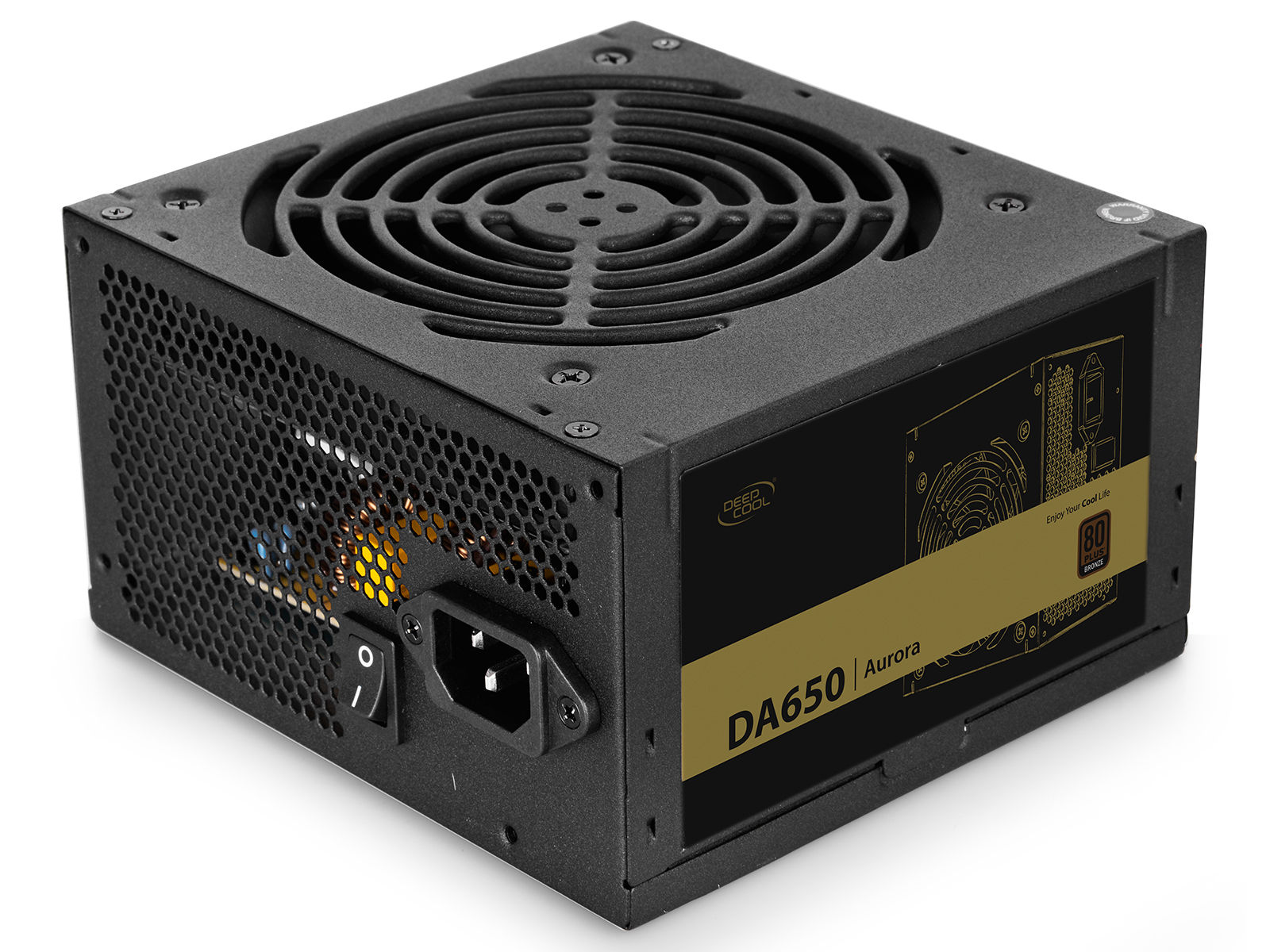

Description

DA 650 is certified with 80 plus bronze with up to 85% electrical efficiency enabling lower heat generation and lower operating cost. Outstanding and stable performance makes it one of the ideal choices for multi-purpose usage. Double layer EMI filters protect from magnetic interference and restrains noise while operating.

80 PLUS Bronze

80 PLUS Bronze certified - Up to 85% efficient.

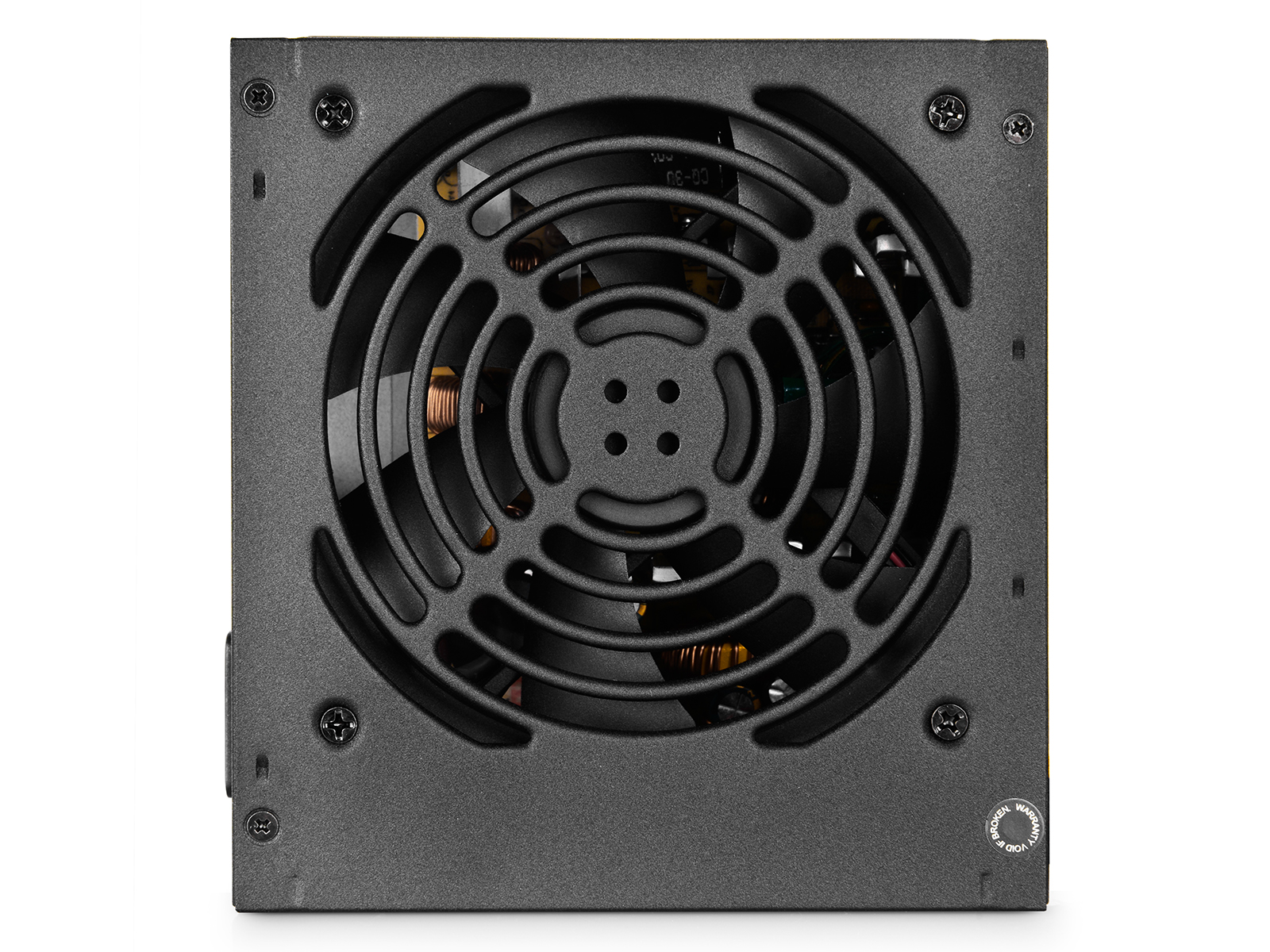

Silent and High Performance Fan

120mm silent fan with PWM function to provide incredible performance-noise ratio

Double-Layer EMI Filter

Double-Layer EMI Filter protects from electromagnetic interference & restrains noise.

Features

Compliant Intel ATX12V v 2.31
The integrated Active PFC+ PWM Combo Controller will increase the efficiency of exchange and make PFC higher than 99%
80 PLUS® Bronze certified — up to 85% efficient
120mm silent fan with PWM function

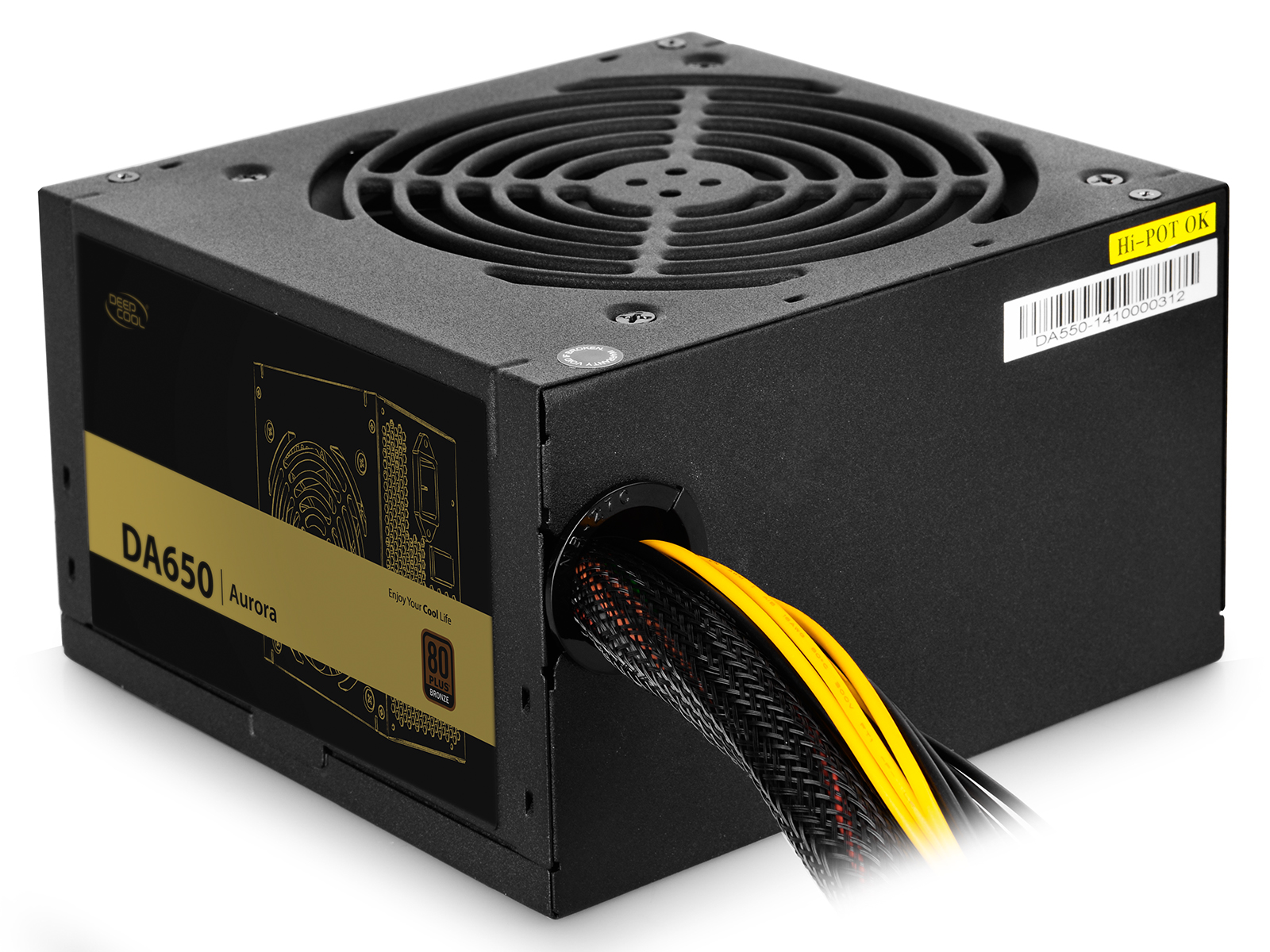

The longer cable design supports cable management perfectly
Double-Layer EMI Filter protects from electromagnetic interference & restrains noise
Intelligentized eco-friendly chipset,  consume < 1W in its off-mode, compliant Erp standard
CircuitShield™ —OVP, UVP, SCP, OPP
Supports Multi-Way SLI / CrossFire + Multi-Core CPUs
High reliability with an MTBF of at least 120,000 hours of use

Output

AC INPUT	VOLTAGE		CURRENT	FREQUENCY
	100-240V		10.0A	47-63Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5VSB
CURRENT(Max)	20A	17A	50A	0.3A	2.5A
OUTPUT(Max)	120W		600W	3.6W	12.5W
TOTAL OUTPUT	650W

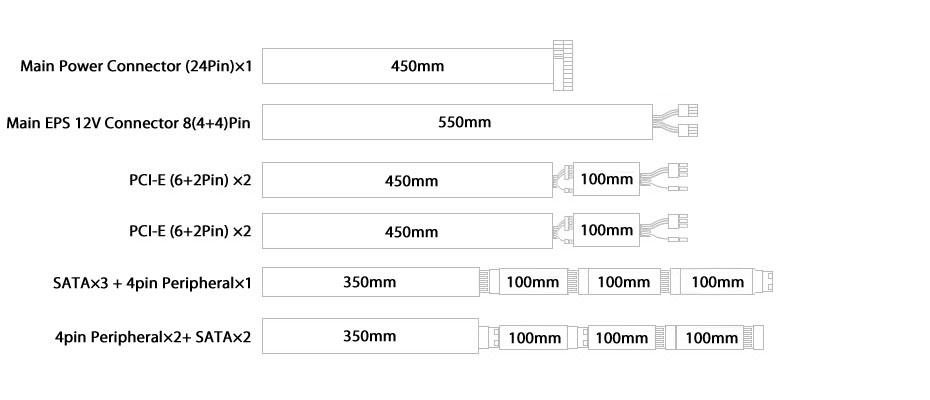

Cables

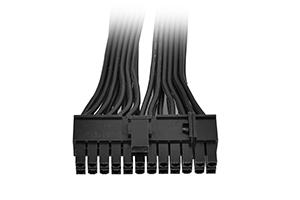

Mainboard (24Pin)	EPS ATX12V (4+4Pin)	PCI-E (6+2Pin)
1	1	4

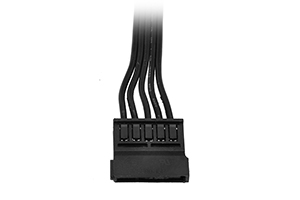

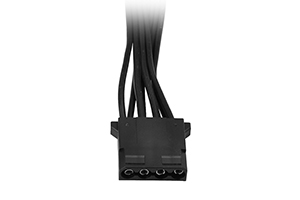

SATA	Peripheral (Big 4Pin)
5	3

Spec

Model	DA650
Type	ATX 12V V2.31
Certifications	80PLUS Bronze
Dimension	150×140×86mm (W x L x H)
Output Capacity	650W
Input Voltage	100~240V
Input Current	10A
Input Frequency Range	47~63Hz
Fan Size	120mm Silent Fan
PFC	Active PFC (>0.9)
Power Good Signal	100-500ms
Hold Up Time	>16ms
Efficiency	>85% Under Typical Load
Protection	OVP / SCP / OTP/UVP/OPP
Operation Temperature	0~40°C
Regulatory	CE / FCC / CCC / CB / EAC / TUV
MTBF	120,000 Hours
