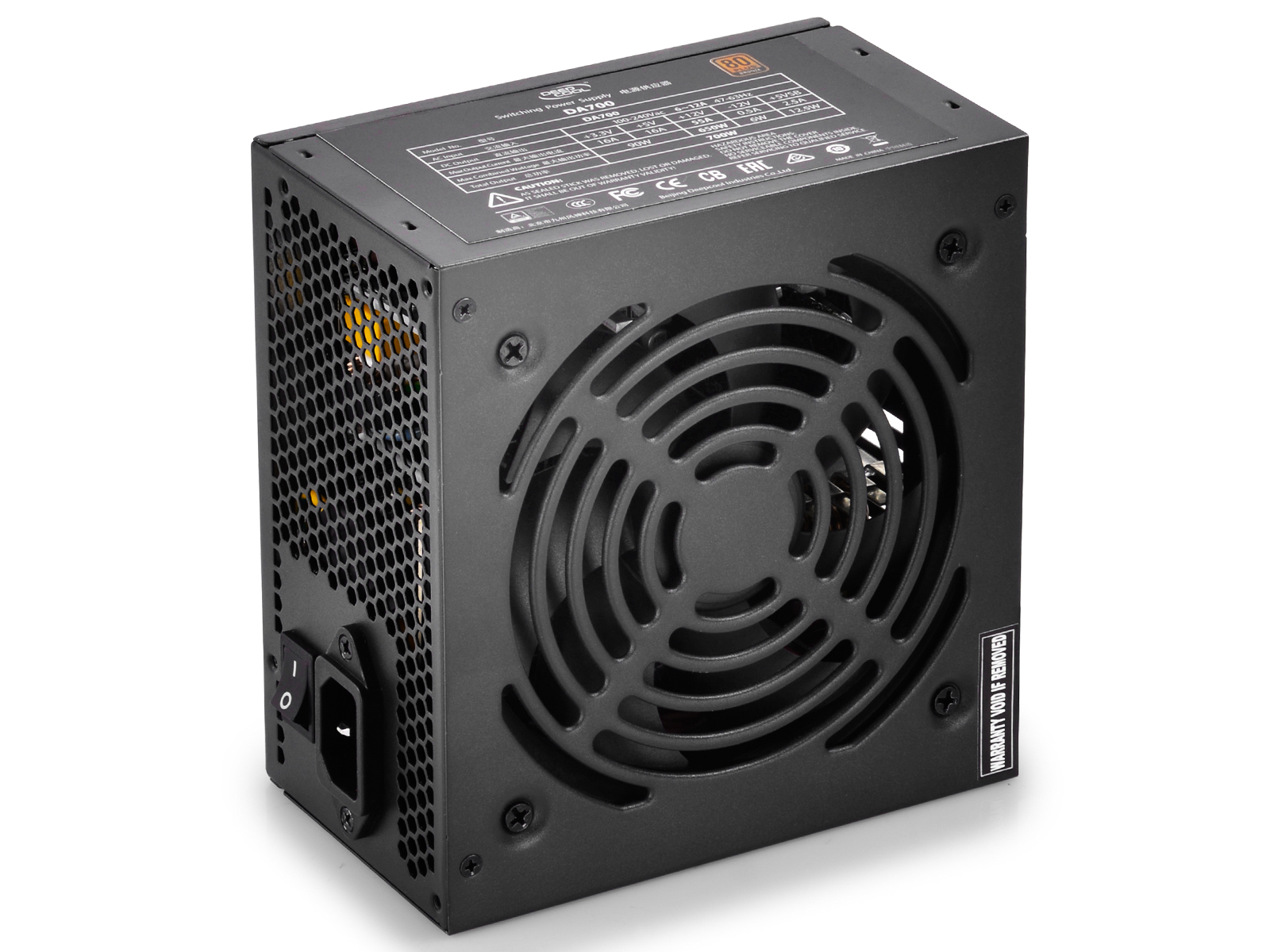

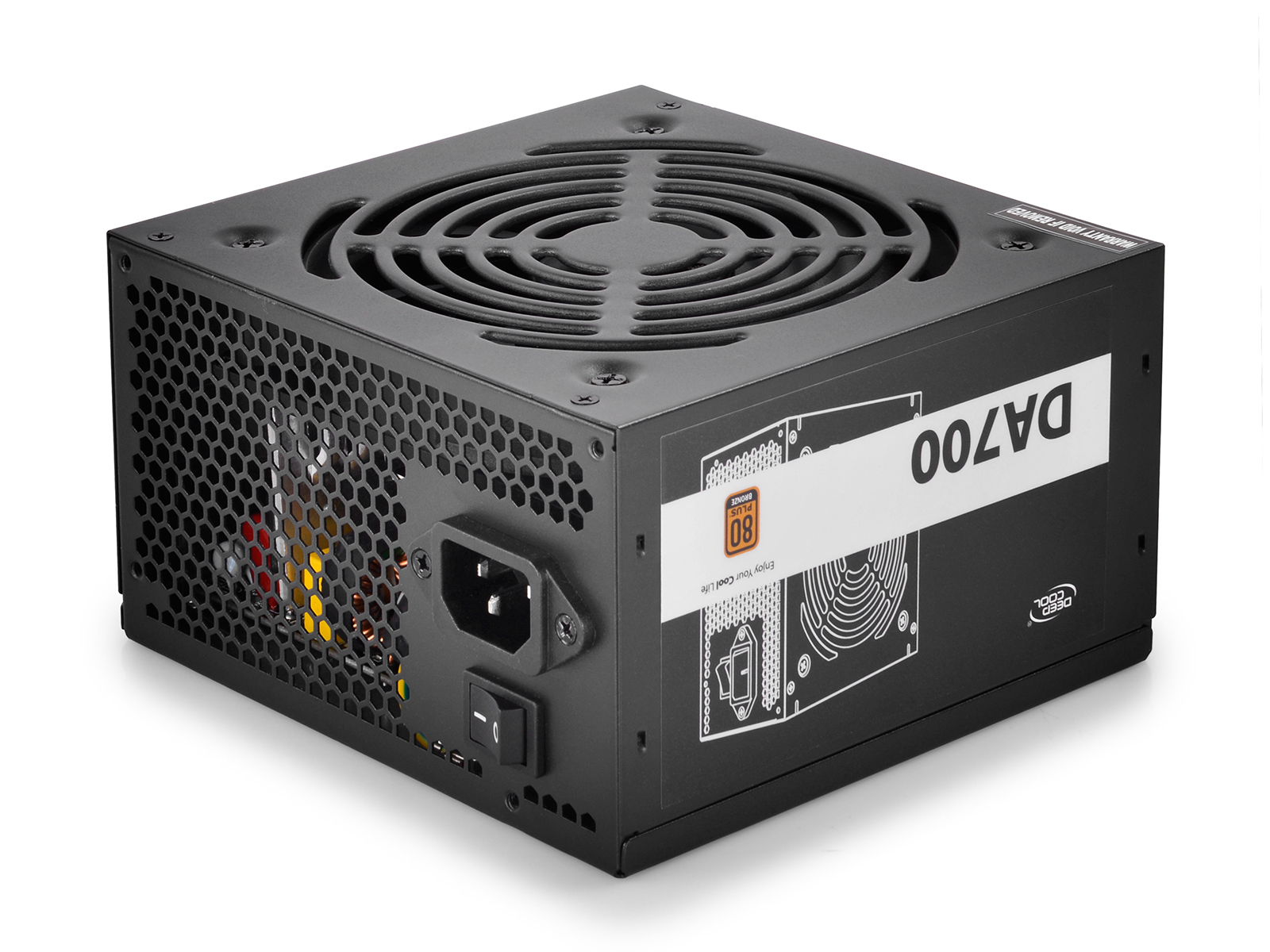

DeepCool PSU 700W Bronze - DA700 - new version
[DP-BZ-DA700N]
№: ++2526 Manufacturer: DeepCool

€73 46

Notify me of updates to

available: no
This product is not available
73.46 EUR

Declaration of Conformity_DeepCool_DP-BZ-DA700N.pdf

Specifications:

Description

DA700 is certified with 80 plus bronze with up to 85% electrical efficiency enabling lower heat generation and lower operation cost. The integrated Active PFC+ PWM Combo Controller will increase the efficiency of exchange and make PFC higher than 99%.Outstanding and stable performance makes it one of the ideal choices for multi-purpose usage.

80PLUS BRONZE

80PLUS Bronze certified provide high energy efficiency up to 85%. Click here to view the certification.

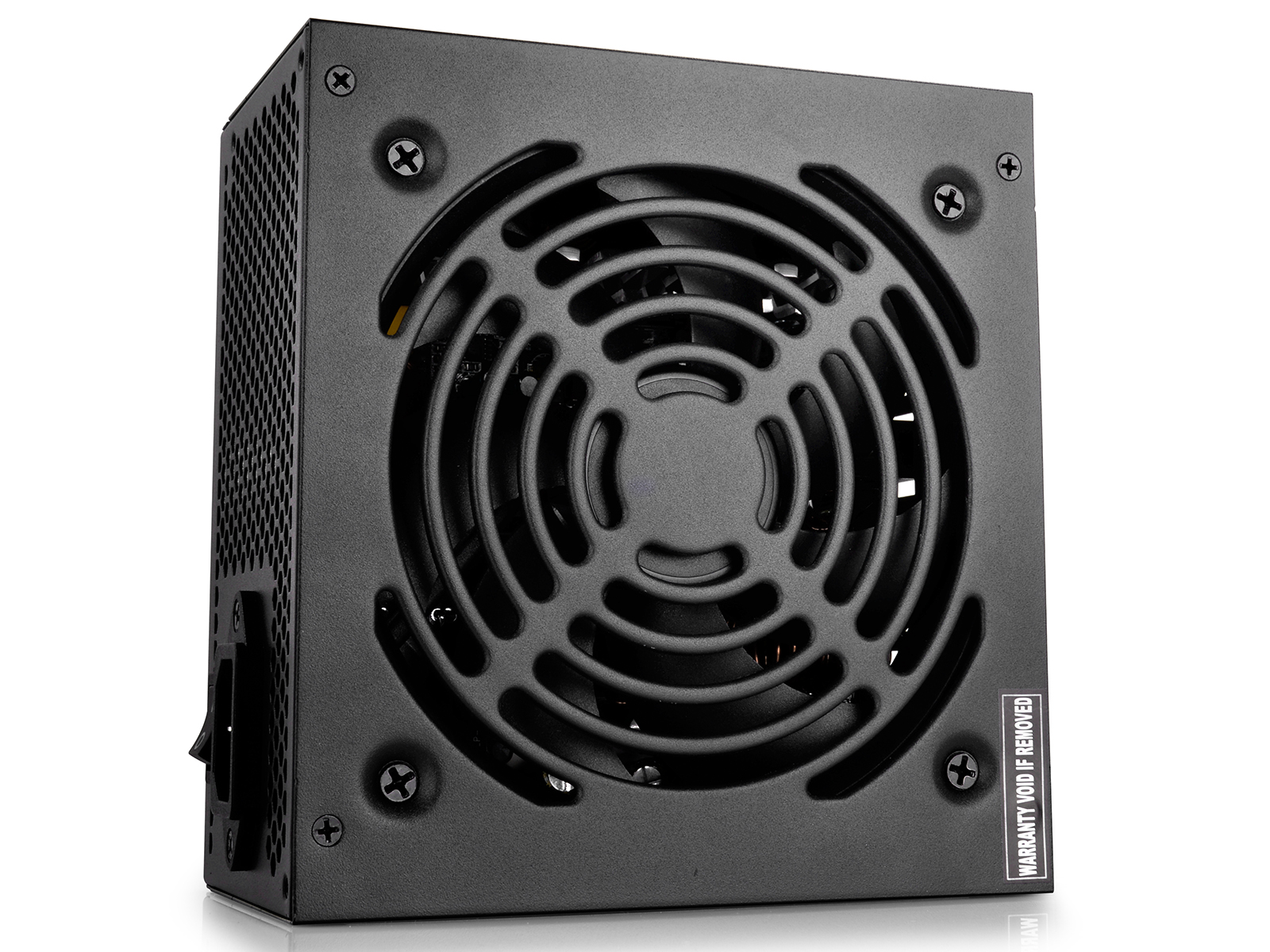

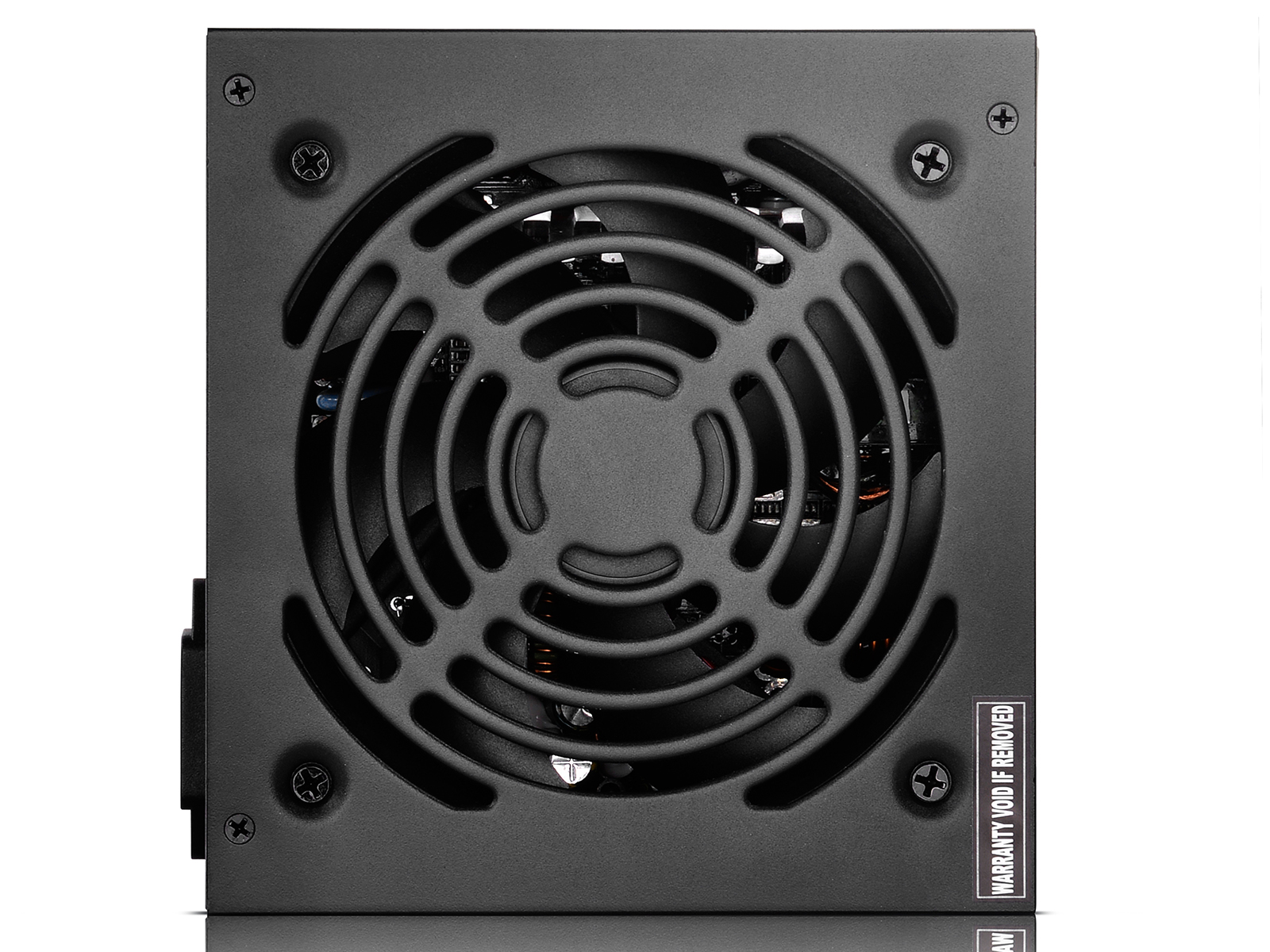

Silent and High Performance Fan

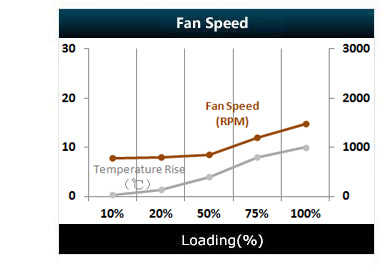

120mm silent fan with temperature controlfunction to provide incredible performance-noise ratio.

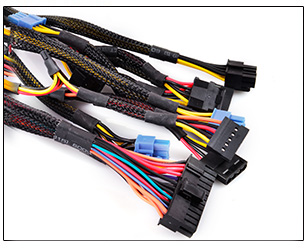

Longer Cable Design

The longer cable design supports cable management perfectly.

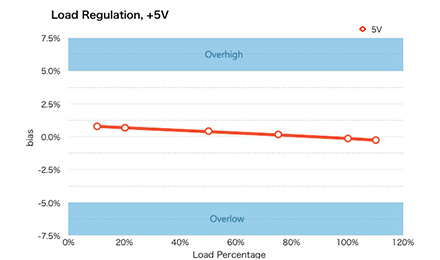

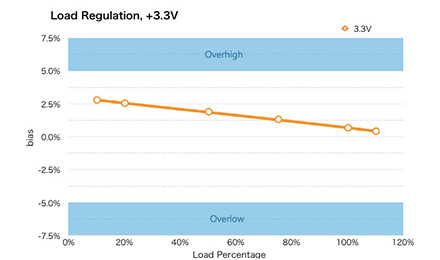

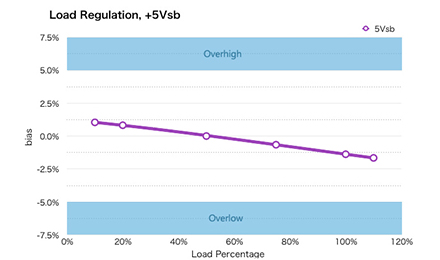

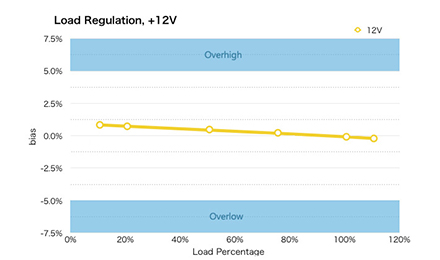

Voltage Regulation

Features

Compliant Intel ATX12V v 2.31

The integrated Active PFC+ PWM Combo Controller will increase the efficiency of exchange and make PFC higher than 99%

80 PLUS® Bronze certified — up to 85% efficiency

120mm silent fan with temperature control function

The longer cable design supports cable management perfectly

Double-Layer EMI Filter protects from electromagnetic interference & restrains noise

Intelligentized eco-friendly chipset, consume < 0.3W in its off-mode, compliant Erp standard

CircuitShield™ —OVP, UVP, SCP, OPP

Supports Multi-Way SLI / CrossFire + Multi-Core CPUs

High reliability with an MTBF of at least 100,000 hours of use

DC to DC design, make it more stable, stronger and higher efficiency

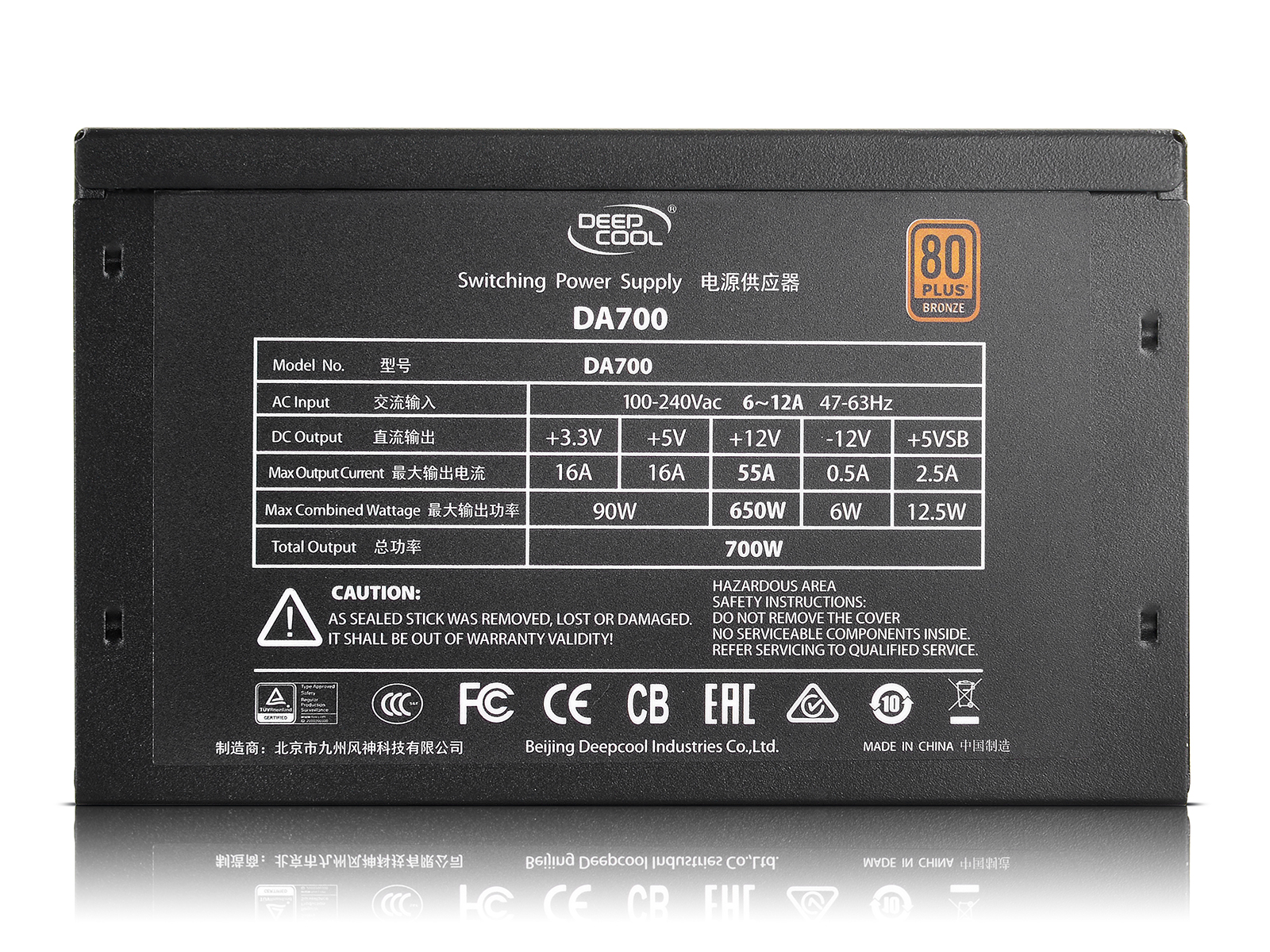

Output

AC INPUT	VOLTAGE		CURRENT	FREQUENCY
AC INPUT	100-240V		6-12A	50/60Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5VSB
CURRENT(Max)	22A	18A	54A	0.3A	2.5A
OUTPUT(Max)	90W		650W	6W	12.5W
TOTAL OUTPUT	700W

Spec

Technical Spec

Model	DA700
Type	ATX 12V V2.31
Certifications	80PLUS Bronze
Dimension	150×140×86mm (W x L x H)
Output Capacity	700W
Input Voltage	100~240V
Input Current	10A
Input Frequency Range	47~63Hz
Fan Size	120mm Silent Fan
PFC	Active PFC (>0.99)
Power Good Signal	100-500ms
Hold Up Time	>16ms
Efficiency	85% Under Typical Load
Protection	OVP / UVP / SCP / OPP / OTP
Operation Temperature	0~40°C
Regulatory	CE / FCC / CCC / CB / EAC / TUV
MTBF	100,000 Hours
