Upgraded high-density water microchannel with powerful self-governed circulation system, 10% more efficient heat dissipation.
Amazing glass design &patented visual external-circulation system.

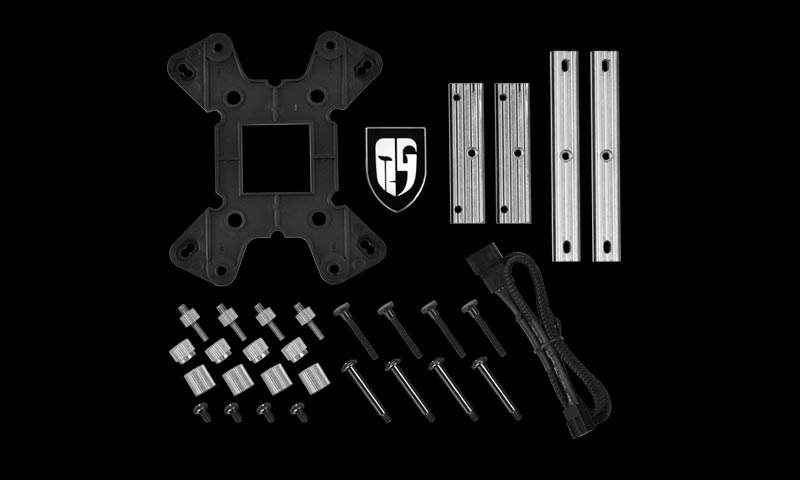

Updated tooling free installation solution, solid 100% metal material clip.

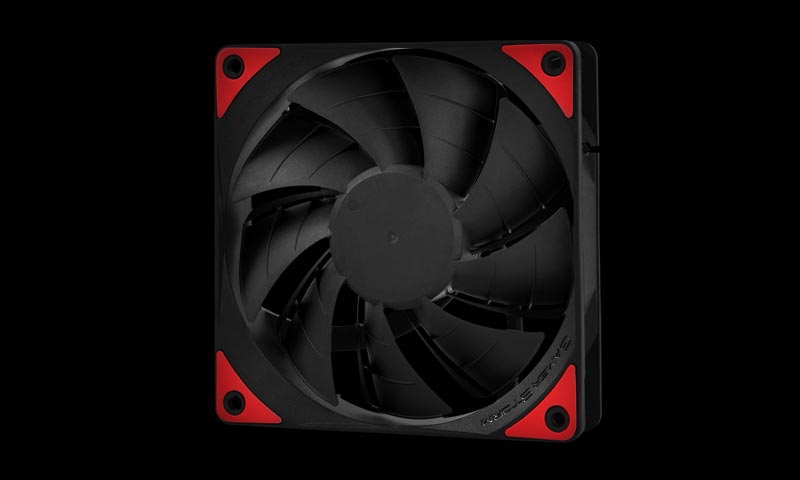

Unique silent TF 120 double-blade fan to offer a higher air pressure for radiator, more efficient to take heat away.
Upgraded anti-explosion rubber tube, anti-corrosion, crush resistance&Thermostable material.
Three-phase induction motor built-in the powerful closed impeller, the stronger liquid flow & bigger delivery head.
Long lifetime ceramic bearing with MTBF 120,000 hours.

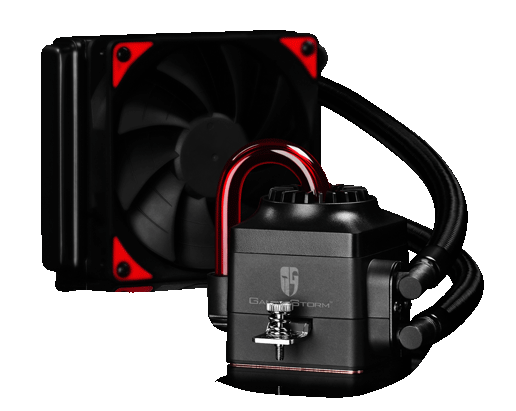

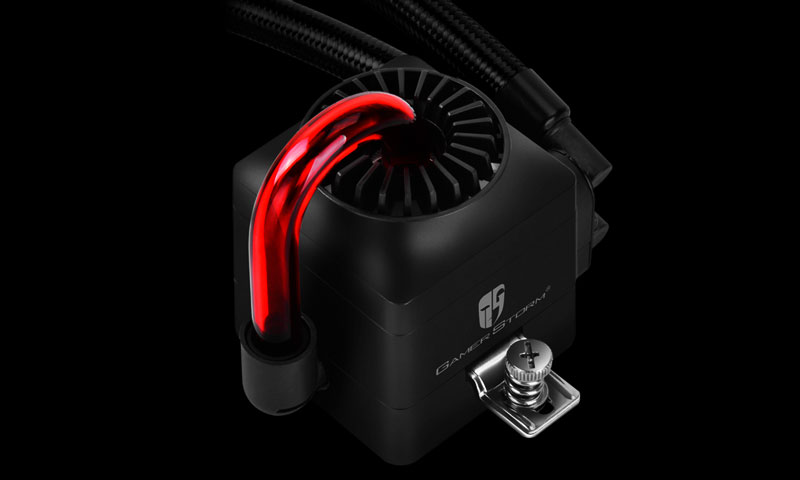

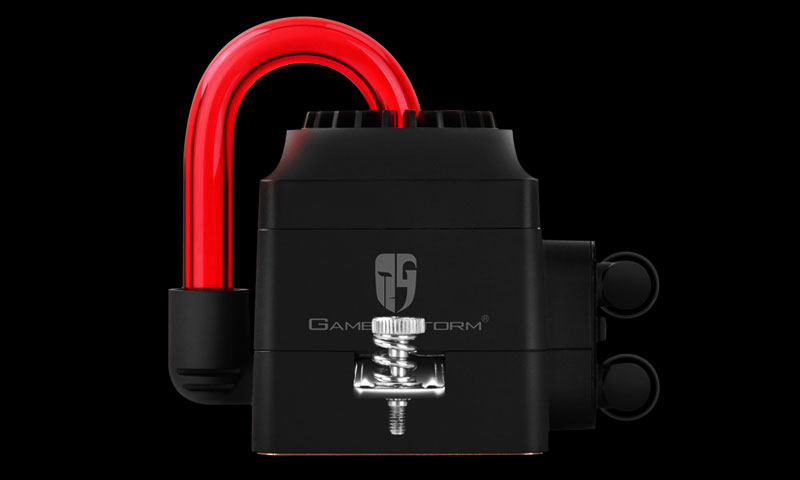

Crazy steam punk appearance &the unique reactor-style pump housing.

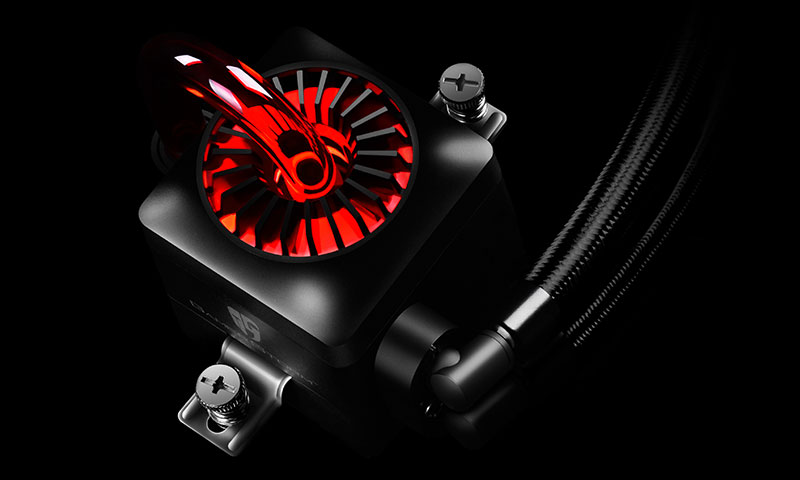

Bionic red LED breathing light lightening up while operating.
Application For
Intel Socket 150W
LGA-2011-V3/LGA2011/LGA1366/LGA1156/LGA1155/LGA1151/LGA1150
High End Desktop i7
Core i7 Extreme/i7/i5/i3
Pentium G
Celeron G
AMD Socket 140W
FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
APU A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Phenom X4/X3/X2
Athlon II X4/X3/X2
Athlon X4/X2
Athlon
Sempron
Business Class
Technical Spec
Fan Dimensions | 120X120X25mm |
Net Weight | 894±10g |
Fan Speed | 500±200-1800±10%RPM |
Fan Air Flow | 76.52CFM(MAX) |
Fan Air Pressure | 3.31mmH2O(MAX) |
Fan Life Expectancy | 50000 hours |
Fan Noise Level | 17.6~31.3dB(A) |
Fan Bearing Type | Hydro Bearing |
Fan Connector | 4Pin |
Fan Rated Voltage | 12VDC |
Fan Rated Current | 0.12±10%A(MAX) |
Fan Power Consumption | 1.44W |

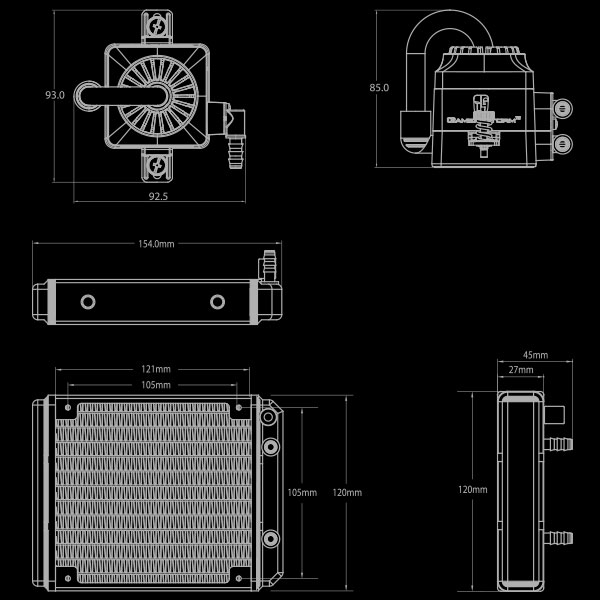

Main system Dimensions | 92.5X93X85mm |

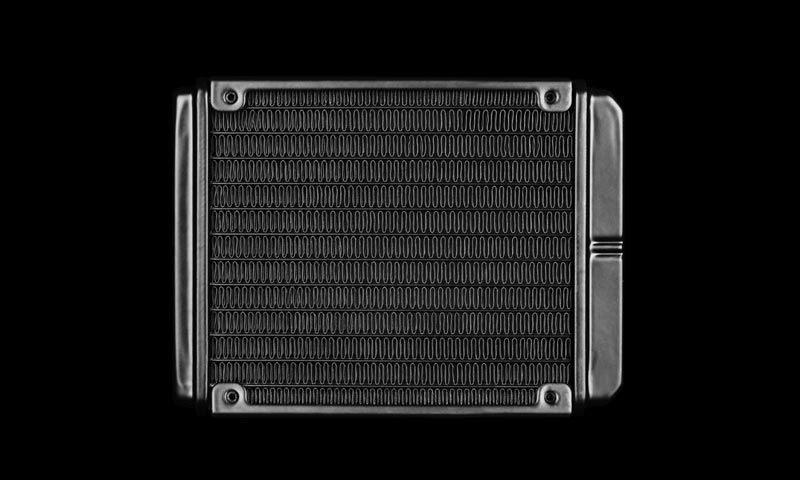

Radiator Dimensions | 154X120X27mm |
Radiator Material | Aluminum |
Pump Life Expectancy | 120000 hours |
Pump Connector | 3Pin |
Pump Operating Voltage | 6~13.8VDC |
Pump Rated Voltage | 12VDC |
Pump Speed | 2200±10%RPM |
Pump Current | 0.16±15%A |
Pump Power Consumption | 1.92W |
