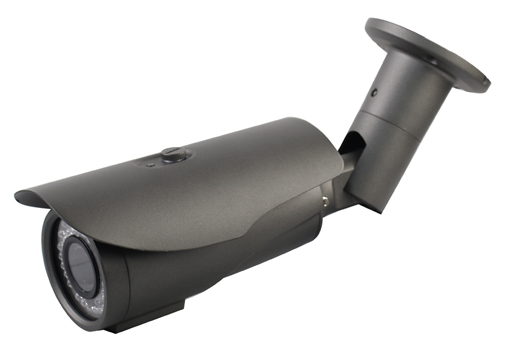

Longse Analog Outdoor Metal Bullet Camera - 800TVL/2.8-12mm F2.0/IR 40m/Black - LIG40SM
[LIG40SM]

№: ++2387   Manufacturer: Longse

Model NO.

LIG40SM

Camera

CCD/CMOS

CMOS

Image Sensor

PC1099N

DSP

/

Horizontal Resolution

800TV Lines

Effective Pixels

960(H)×480(V)

TV System

PAL/NTSC

Electronic Shutter Time

Auto: PAL 1/50-1/100, 000Sec; NTSC 1/60-1/100, 000Sec

Sync System

Internal

Usable Illumination

0.1Lux/F2.0

S/N Ratio

≥50dB

Gamma Correction

0.45

Scanning System

PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec

Video Output

Composite Signal (1.0Vp-p, 75Ω)

Lens

Focus Length

2.8-12mm (6-22mm optional)

Focus Control

Manual

Lens Type

Manual

Pixels

2M Pixels

Auto Iris Support

NO

Night Vision

Infrared LED

￠5X42PCS

Infrared Distance

40M

IR Status

Under 10 Lux By CDS

IR Power On

CDS Auto Control

Camera Features

Day/Night

Color/ B&W

OSD Menu Language

NO

Defog

NO

Sense-up

NO

Smart-IR

NO

Wide Dynamic Range

NO

Backlight Compensation

NO

White Balance

AUTO

Gain Control

AUTO

Noise Reduction

NO

Privacy Masking

NO

Digital Zoom

NO

Picture Adjustment

NO

UTC Support

YES

General

Weatherproof Housing

YES, IP66

Anti-cut Bracket

YES, 3-Axis

Dual Voltage

YES

IR Cut Filter

YES

Heater

YES

Operation Temperature

-10℃ ~ +50℃ RH95% Max

Storage Temperature

-20℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%, 700mA

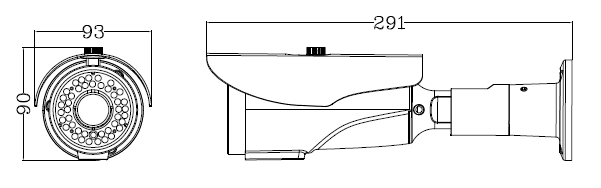

Dimension

291(W) x90(H) x93(D)mm

Weight

1.6Kg
