Model NO.
|
LVWDC20S200-POE
|
|
Camera
|
|
Image Sensor
|
IMX222
|
|
Main processor
|
HI3516C
|
|
Resolution
|
1080P
|
|
Effective Pixels
|
1920(H)*1080(V)
|
|
TV System
|
PAL/NTSC
|
|
Electronic Shutter Time
|
Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec
|
|
Sync System
|
Internal
|
|
Usable Illumination
|
0.01Lux
|
|
S/N Ratio
|
≥52dB
|
|
Scanning System
|
Progressive
|
|
Video Output
|
Network
|
|
Lens
|
|
Focus Length
|
2.8-12mm
|
|
Focus Control
|
Manual
|
|
Lens Type
|
Manual
|
|
Pixels
|
|
|
Night Vision
|
|
Infrared LED
|
￠5X21PCS
|
|
Infrared Distance
|
20M
|
|
IR Status
|
Under 10 Lux By CDS
|
|
IR Power On
|
CDS Auto Control
|
|
Network
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Protocol
|
IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS
|
|
ONVIF
|
Support ONVIF 2.4
|
|
P2P
|
YES, Support QR Code
|
|
POE
|
Support IEEE 802.3af
|
|
WIFI
|
N/A
|
|
Video Delay
|
0.3S (Within the Lan)
|
|
Main Stream
|
1920*1080@30fps
|
|
Sub Stream
|
704*576@30fps,
|
|
352*288@30fps
|
|
IE Brower
|
IE6-11, Google Chrome(IE Tab), Firefox(IE Tab)
|
|
Smart Phone
|
iPhone, iPad, Android, Android Pad
|
|
Camera Features
|
|
Day/Night
|
Color/ B&W (IR-CUT )
|
|
Compression
|
H.264/JPEG,Support record AVI format.
|
|
Image Config
|
Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control)
|
|
Motion Detection
|
Support
|
|
Privacy Masking
|
3 Rectangular Zone
|
|
WDR
|
YES
|
|
Recording Mode
|
NVR/NAS/CMS/Web
|
|
Language
|
Chinese Simplified, Chinese Traditional, English, Bulgarian,
Polish, Farsi, German, Russian, French, Korean, Portuguese,
Japanese, Turkish, Spanish, Hebrew, Italian
|
|
General
|
|
Housing
|
Vandalproof (Metal, IP66)
|
|
Anti-cut Bracket
|
Yes, 3-Axis Bracket Built-in for Lens Adjustment
|
|
IR Cut Filter
|
YES
|
|
Operation Temperature
|
-10℃ ~ +50℃ RH95% Max
|
|
Storage Temperature
|
-20℃ ~ +60℃ RH95% Max
|
|
Power Source
|
Build-in PoE/DC12V±10%, 500mA
|
|

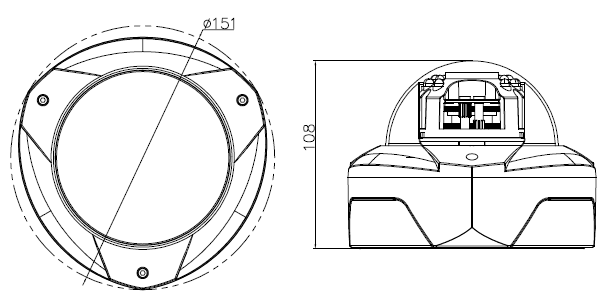

Dimension
|
￠151x 108(H) mm
|
|
Weight
|
1.2KG
|
|
|
|
