Scythe Fan 120mm S-FLEX - Sony S-FDB Bearing - 1600rpm
[S-FLEX SFF21F (1,600 rpm)]

№: ++850   Manufacturer: Scythe

Specifications:

S-FLEX Fan Series is equipped with Sony S-FDB Bearing which promises lowest noise level at highest quality and lifetime (150,000 hours).

Specifications

Model Number:

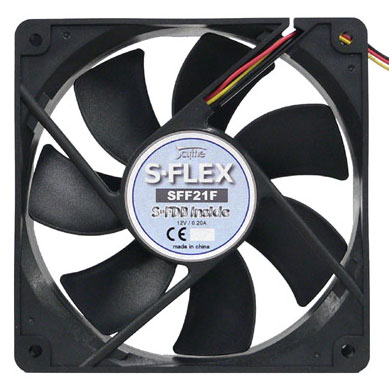

S-FLEX SFF21F (1,600 rpm)

Specifications:
1,600 rpm Version:
63.7 CFM = 109 m³/h | 28.0 dBA | DC 12 V | 0.20 A

Connector:
3-pin (4-pin adaptor included)

Cable Length:
30 cm / 11.81 in

Bearing Type:
S-FDB (Fluid Dynamic Bearing by SONY Corporation)

MTBF:
150 000 hours @25°C (77°F)

S-FLEX™ is a registered trademark of SONY Corporation.

Features

Equipped with Genuine S-FDB* Bearing
This fan is equipped with genuine S-FDB (SONY Fluid Dynamic Bearing) made by SONY corporation.

Market Leading Low-Noise Level

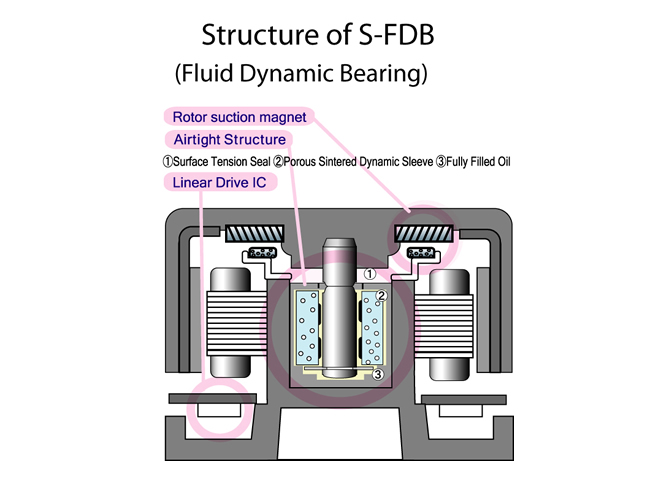

S-FDB technology drastically eliminates the friction between the bearing and the shaft which makes this fan nearly inaudible to human ears. Additional suction magnet optimizes the magnetic force balance within the rotor to achieve the absolute silence. To further achieve the absolute silence, the fan is equipped with the Linear drive IC for reducing electromagnetic noise.

Outstanding Long Life of 150000 Hours
Patent Pending "S-FDB" structure allows the fan to last up to 150000 hours.

Anti-Shock Ability
Conventional ball bearing carries a point contacting structure for the rotation, which gives point supporting situations at dropping impact to damage ball bearing surface which could cause irregular noises. The S-FDB carries a surface contact mechanism for improved anti-shock structure, which is 5 times stronger than the conventional ball bearing.
