Specifications:

Introduction

The SG02F, as the successor to the SG02 is an evolutionary step forward in both performance and the capabilities over the original Sugo chassis, the SG01. With the case now capable of handling even more powerful graphics cards than ever before, the SilverStone engineers were still able to keep the smaller dimension in tact. Although SG02F’s front panel design is unchanged from its predecessor, its styling and function continues to stand out from ordinary SFF designs. The same can also be said of its tried and true chassis layout, which is still capable of accepting larger ATX power supply or optical drives than other SFF cases available. Built based on a brand new steel structure, the SG02F is sure to please potential builders looking for primarily silent applications.

Special Feature

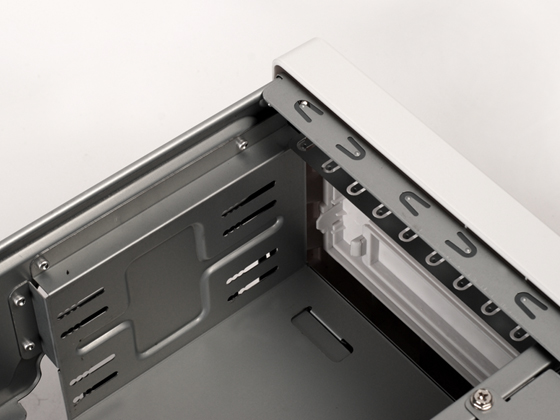

Steel structure for silent builds

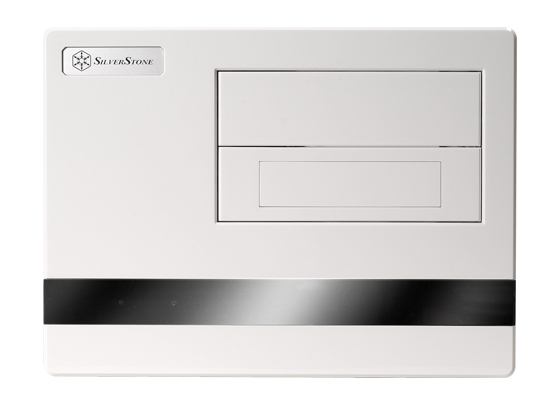

Modern and cleanly styled SFF chassis
Enhanced cooling layout for high performance
Dual 5.25” and 3.5” drive bays
Micro ATX motherboard & ATX PSU compatible
Extended-length expansion cards support

Remark

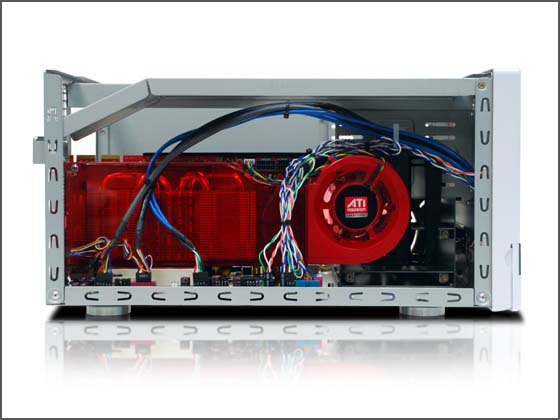

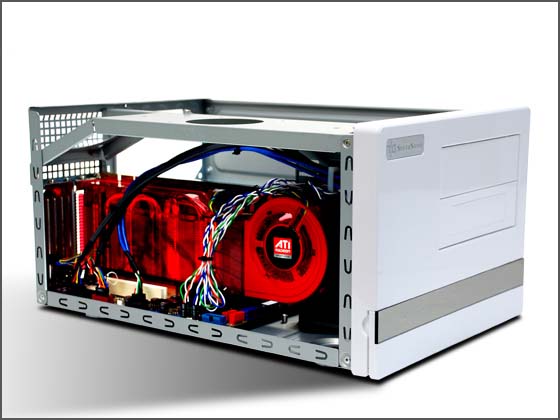

	SG02-F outfitted with 12" long ATI Radeon HD 2900XTX 1GB GDDR4 (OEM version) Graphic card length reference:
		NVIDIA Quadro FX5600 / AMD FireGL V8600/8650 - 12" NVIDIA GeForce GTX280/260 - 10.5" NVIDIA GeForce 9800GTX/9800GTX+ - 10.5" AMD Radeon HD 4870X2 - 10.5 " NVIDIA GeForce 9800GT/9600GT/GTO - 9" AMD Radeon HD 4870/4850 - 9 "

	If an expansion card is longer than 9.6” and it needs to be installed in the first slot, please refer to the manual for installation instructions.

Specifications

Model No.

SST-SG02B-F (black)

SST-SG02W-F (white)

Material

ABS & acrylic front panel, SECC body

Motherboard

Micro ATX

Multimedia

Drive Bay

External

5.25” x 2

3.5" converter x 1

Internal

3.5” x 2

Cooling System

Front

Rear

1 x 80mm fan slot, Optional cross-flow fan

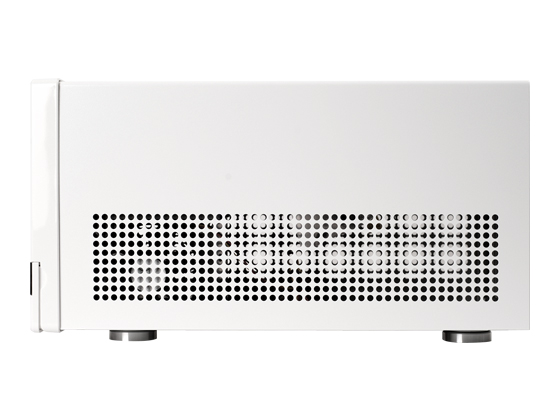

Side

1 x 80mm intake fan 2050rpm Option 80mm or 70mm in thickness of 25mm, 15mm or 10mm

Top

1 x 80mm fan slot

Bottom

Internal

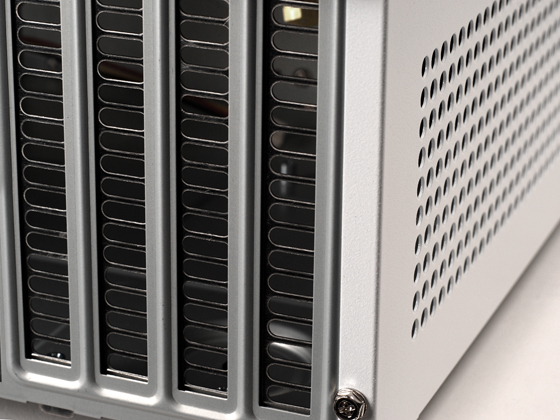

Expansion Slot

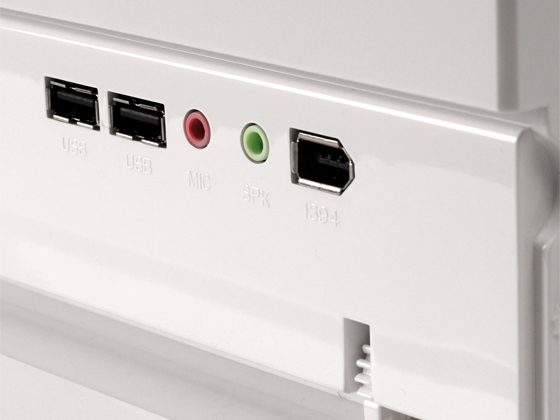

Front I/O Port

USB2.0 x 2
IEEE 1394 x 1
Audio x 1
MIC x 1

Power Supply

Optional standard PS2 (ATX)

Expansion Card

Full size long cards capable (12”)*

Net Weight

4.1 kg

Dimension

270 mm (W) x 212 mm (H) x 393 mm (D)

Extra
