Thermalright CPU Cooler Archon SB-E X2
[1539]

№: ++1539   Manufacturer: Thermalright

Specifications:

Features:

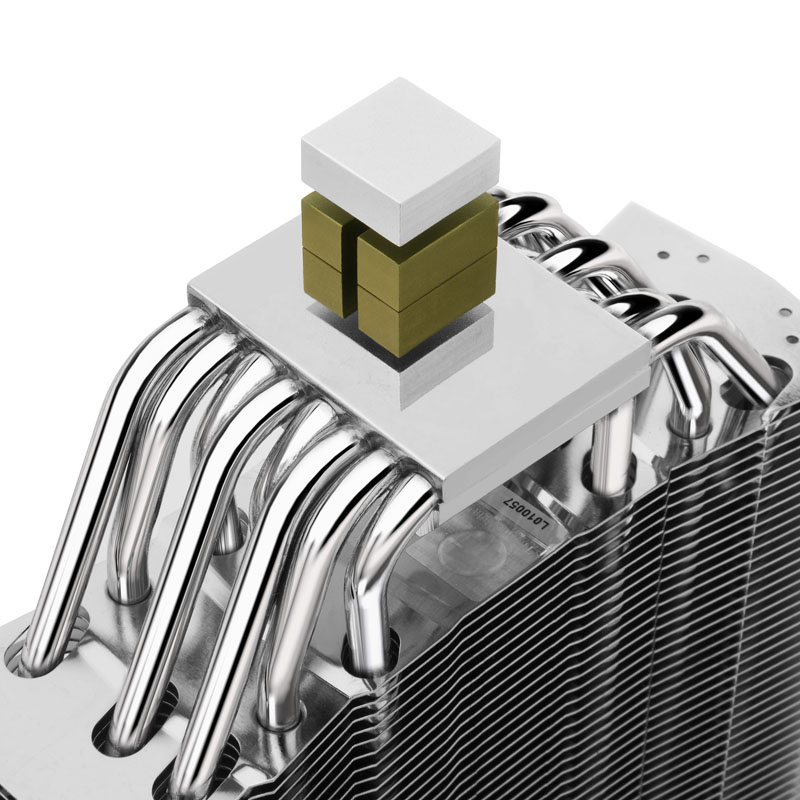

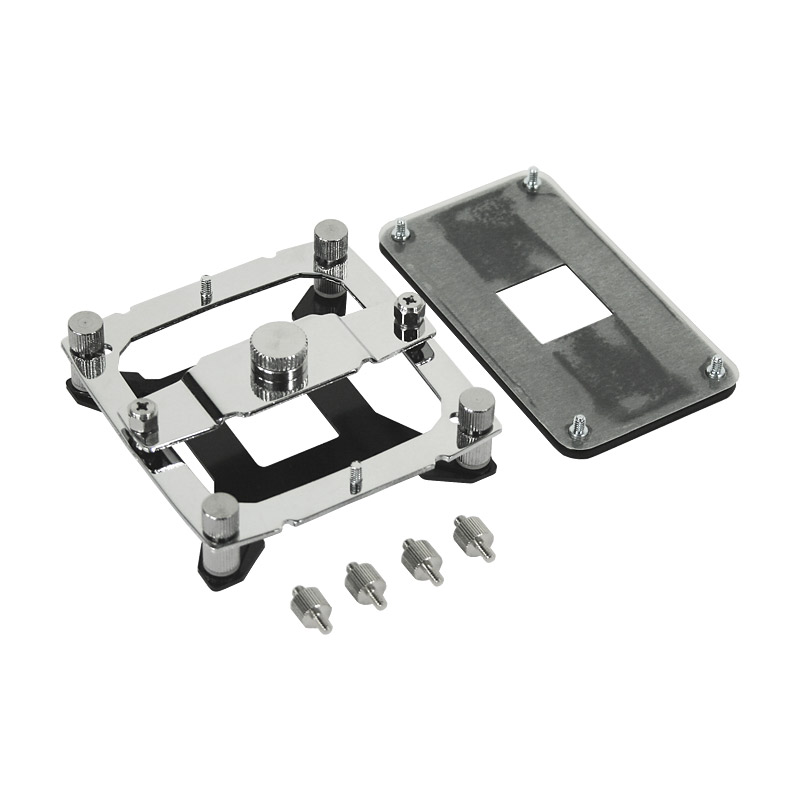

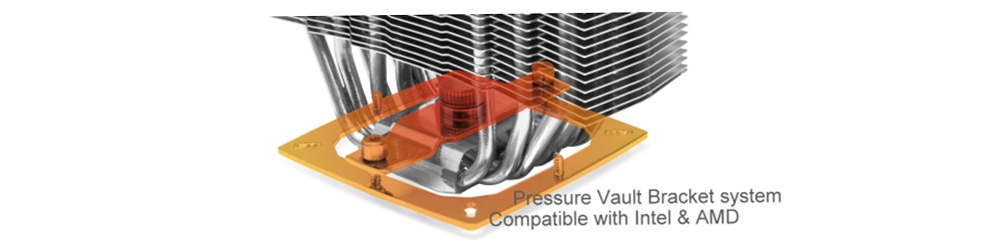

Proprietary Pressure Adjustable Mounting Plate allows you to adjust your mounting pressure between 40- 70lbs of force.

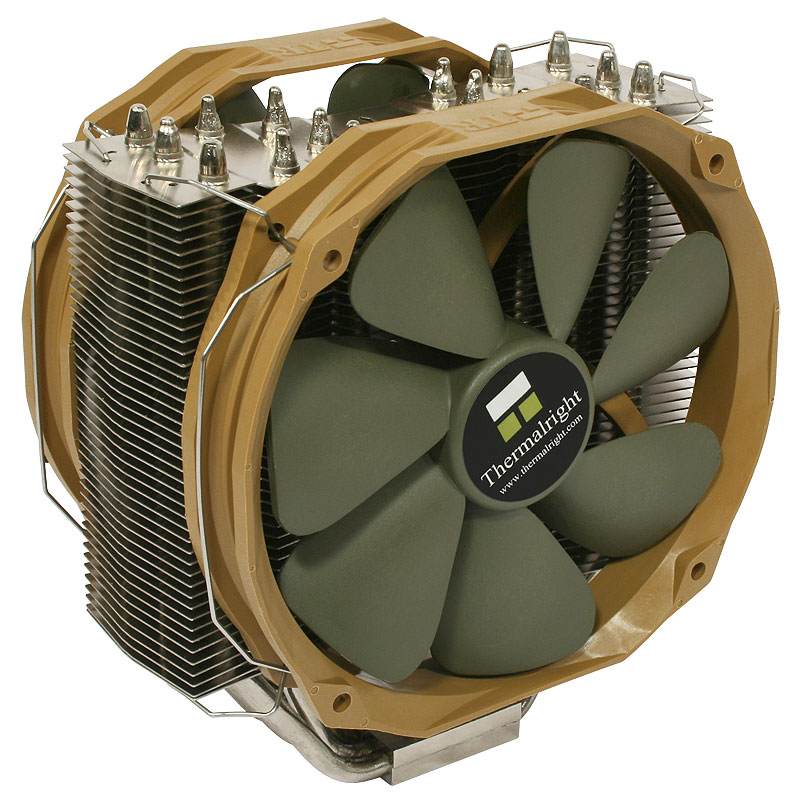

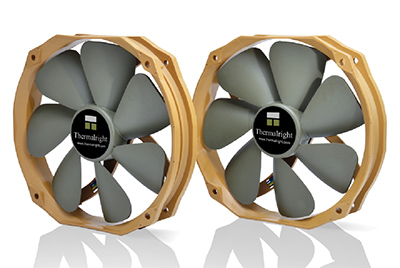

Includes two Thermalright TY-141 140mm fans.  TY-141’s are PWM controlled and with max 73.6 CFM per fan for merely 21 DBA of silence.

Eight Sintered Copper Heatpipes and large surface area, easily cooling down any CPU on the market.

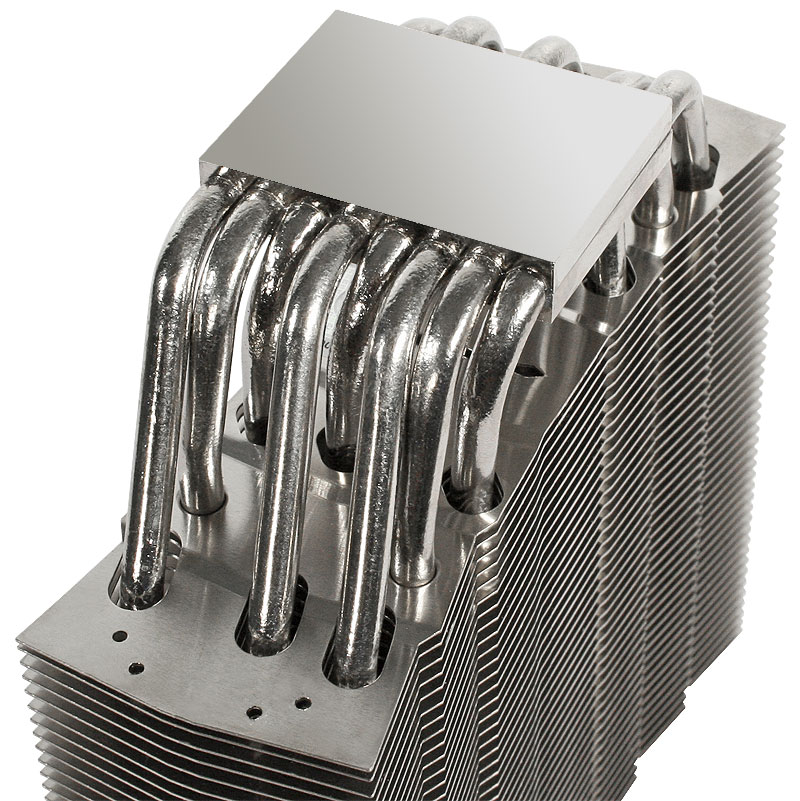

Mirror finish copper heatsink base and full heatsink nickel plating mitigates oxidization while maintaining shine.

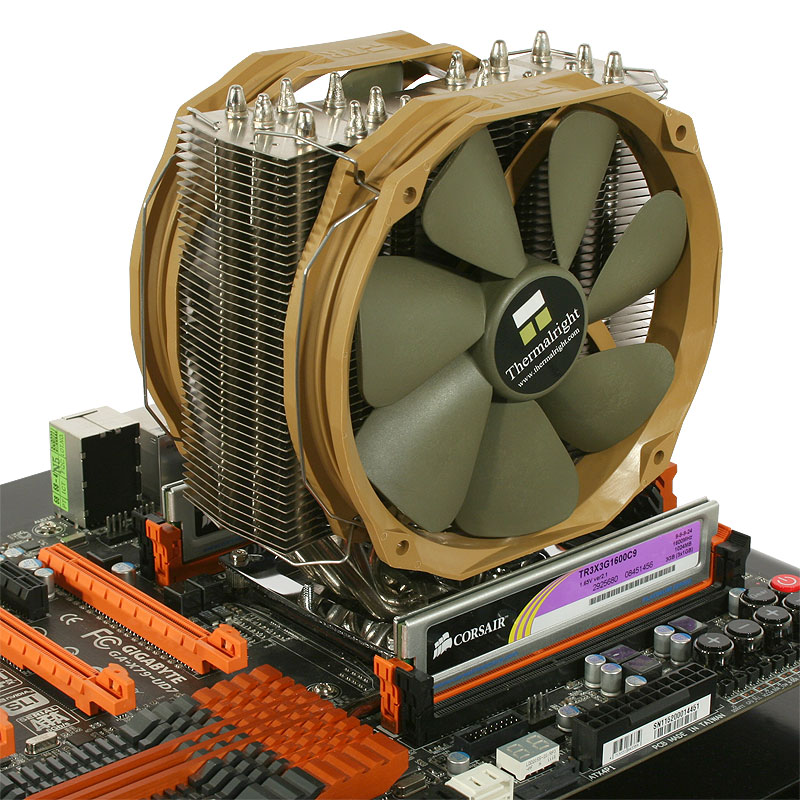

Ever since the introduction of the first Archon “Slim Tower Heatsink” back in 2010, Thermalright has never stopped improving on its own design.  Incorporating our new proprietary Pressure Vault Bracket System we introduce to the world the all new Archon SB-E X2.  Aside from a total overhaul and upgrade of the mounting bracket system, the Archon SB-E X2 will be using two TY-141 high efficient double ball bearing silent fans, giving enthusiasts the perfect mash-up of performance, compatibility and silenceEver since the introduction of the first Archon “Slim Tower Heatsink” back in 2010,
Thermalright has never stopped improving on its own design.

Incorporating our new proprietary Pressure Vault Bracket System we introduce to the world the all new Archon SB-E X2.  Aside from a total overhaul and upgrade of the mounting bracket system, the Archon SB-E X2 will be using two TY-141 high efficient double ball bearing silent fans, giving enthusiasts the perfect mash-up of performance, compatibility and silence!

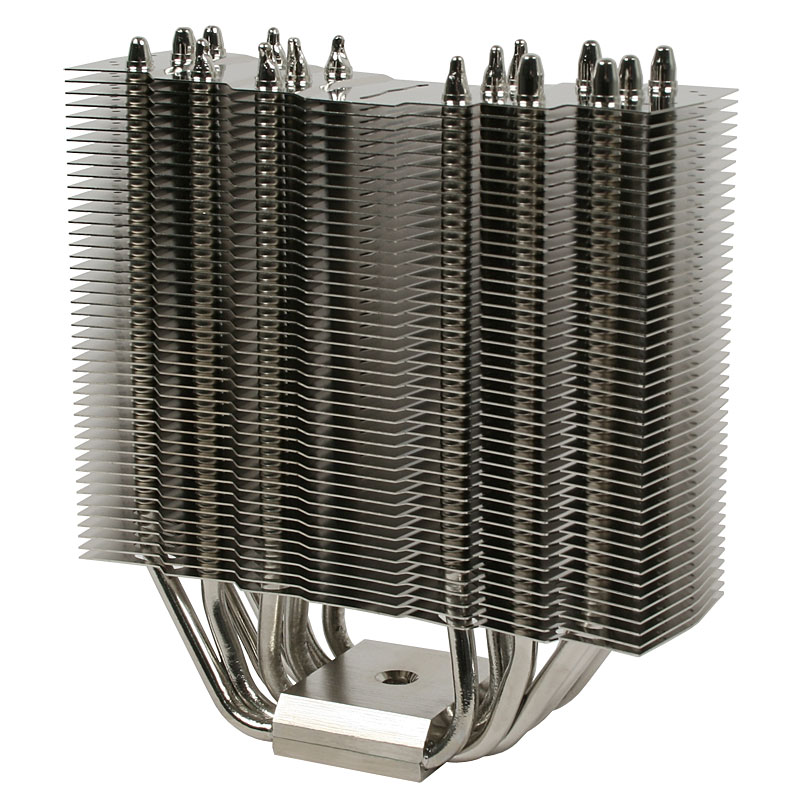

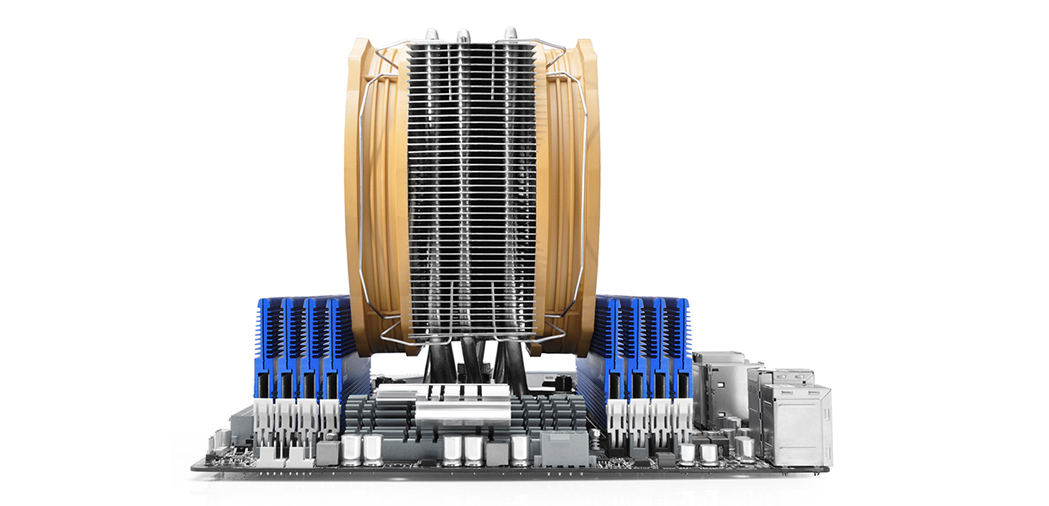

The Archon SB-E X2 inherits the same award wining heatpipe design from the Archon SB-E.  Eight 6mm sintered copper heatpipes along with a massive 170mm x 150mm heatsink footprint allows the pipes to equally disperse heat from the CPU to the heatsink fins, so no bit of airflow is left to waste!  Archon SB-E X2’s Slim Tower design is only 53mm across.  This allows the Archon SB-E X2 to be fully compatible with RAM of all kinds, so power users are free to fill their RAM slots with high-end overclocked RAM.

Technical Spec :

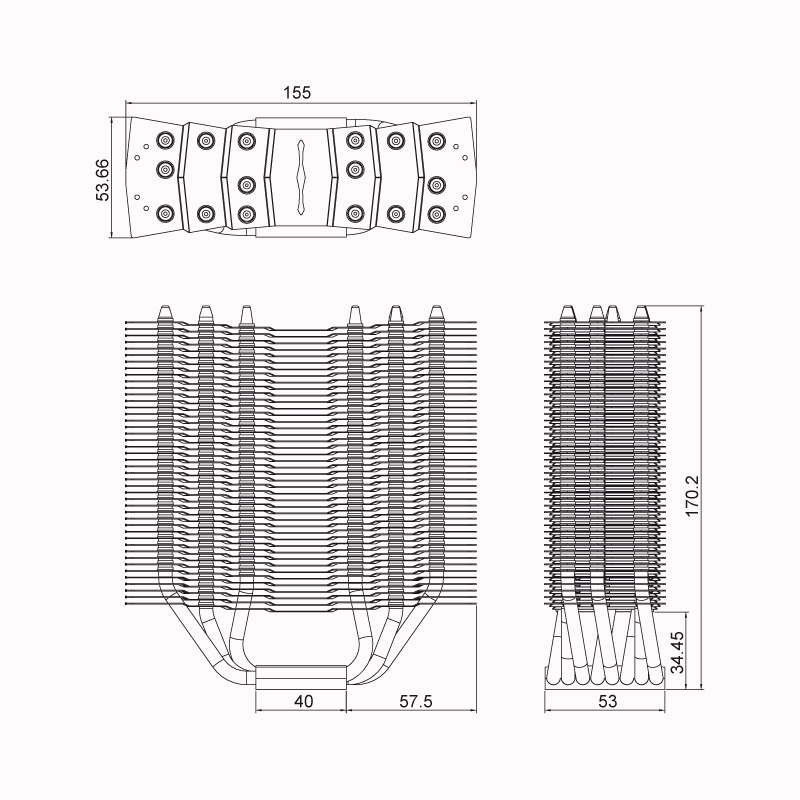

Heatsink Specifications: Dimension: L155 mm x W53.6 mm x H170.2 mm Weight: 750g Heat pipes: Eight 6mm Copper Heatpipes Fin: T = 0.5 mm ; Gap = 1.9 mm Fin Pcs: 28 + 6 + 5 = 39 pcs Copper Base: C1100 Pure Copper Mirror Finished base with Nickel Plating Motherboard to Fin: 27 + 8 = 35 mm
TY-141 FAN Spec Dimension: L152 mm x H140 mm x W26.5 mm Rated Speed: 900~1300RPM±15% Weight: 175g Noise Level: 17~21 dBA Air Flow: 28.3 - 73.6CFM
TY-141 FAN Spec Dimension: L152 mm x H140 mm x W26.5 mm Rated Speed: 900~1300RPM±15% Weight: 175g Noise Level: 17~21 dBA Air Flow: 28.3 - 73.6CFM
