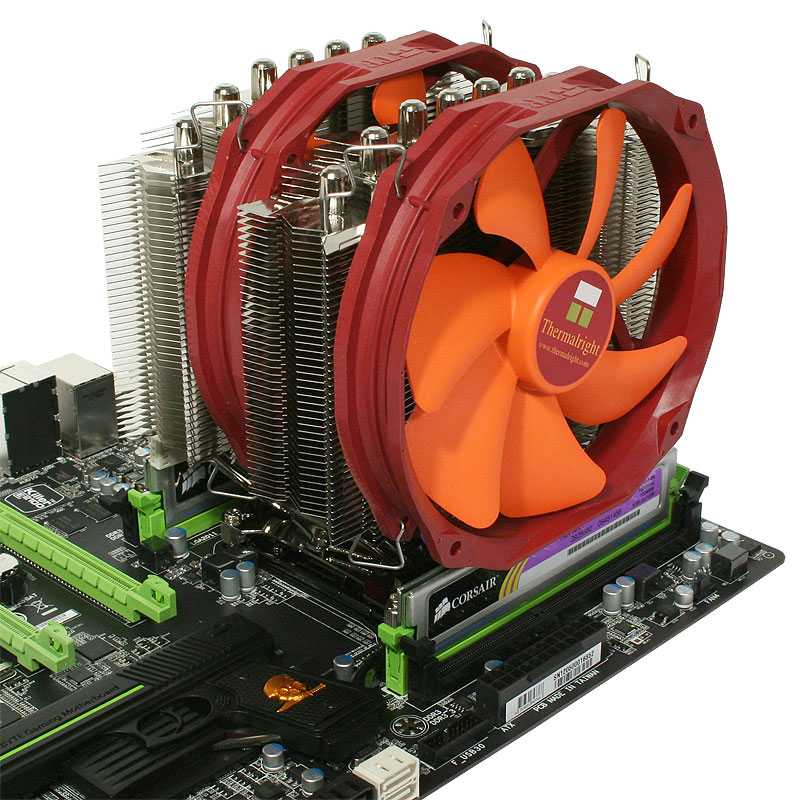

Thermalright CPU Cooler Silver Arrow SB-E Extreme
[1538]

№: ++1538   Manufacturer: Thermalright

Specifications:

Special features:

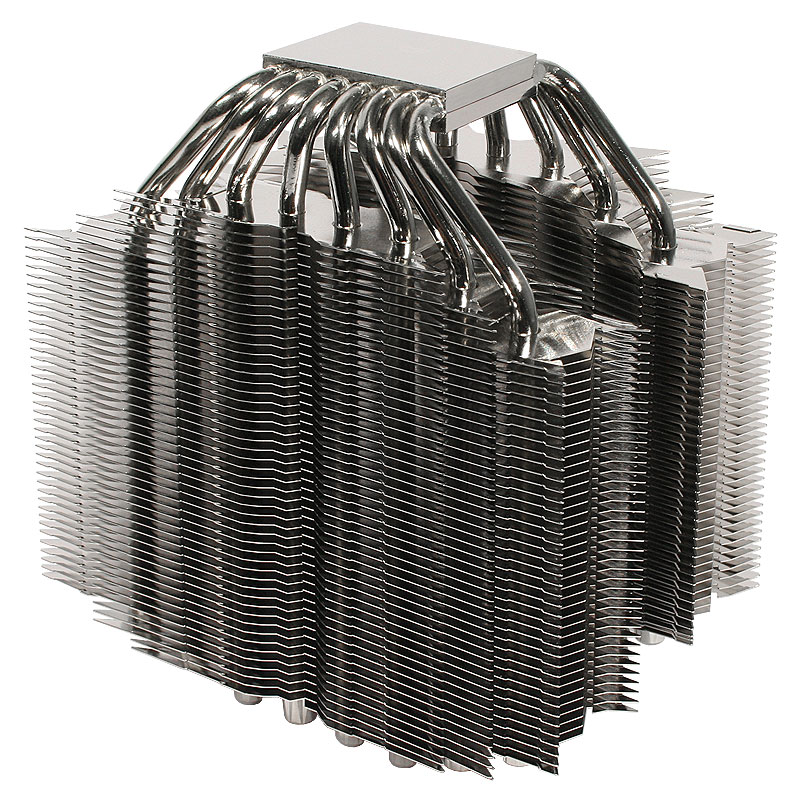

8 X 6mm sintered heat-pipes effectively takes  away excessive heat from the CPU when overclocked, Nickel Plated heat-pipes, slower Oxidation and deterioration of the heat-pipes, provides longer period of Thermal conductivity.

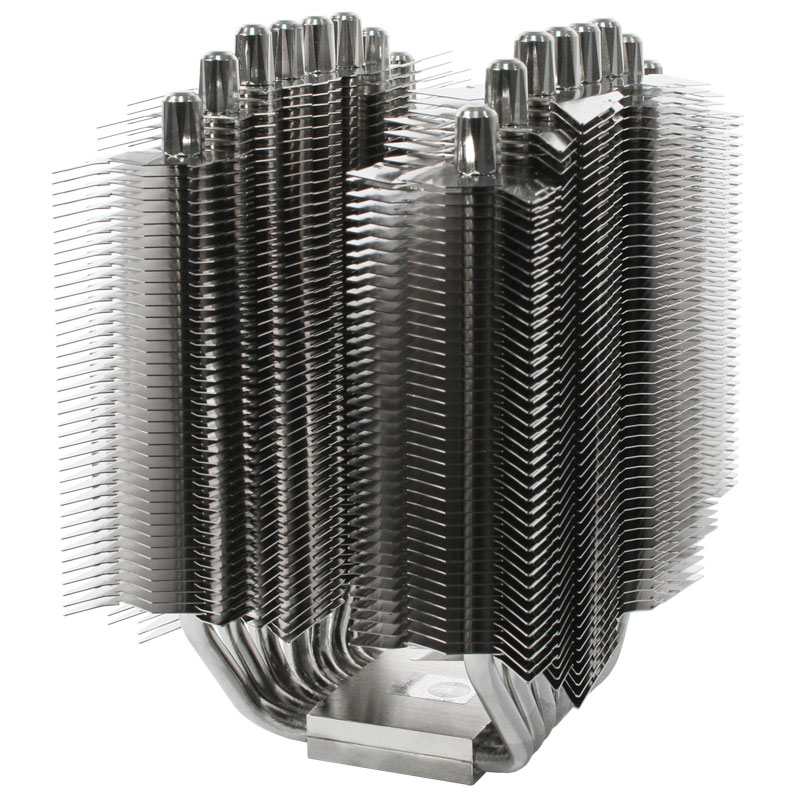

Double fin design , each side with 154mm*120mm heat dissipation area, can be used with 14 or 15 cm fan ( fan clips included).

Special Arrow fin design, which allows cool air to pass through and take heat away rapidly, effectively provide cooling for the cpu.

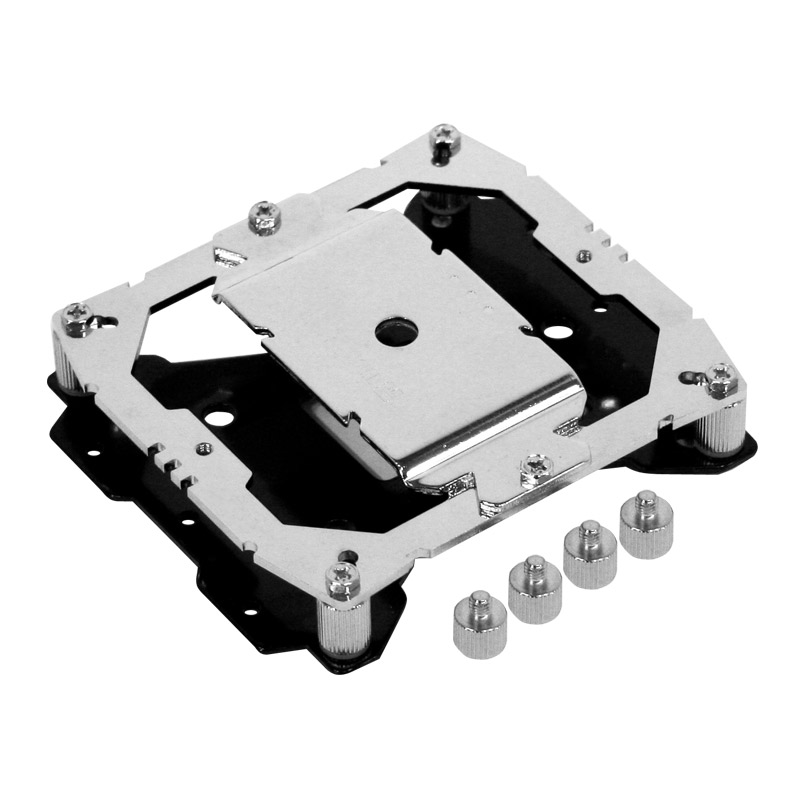

Support Multiple-Platforms. Can be used on Socket 20111150/1155/1156/1366/775 Platform, and AM2/AM2+/AM3/AM3+/FM1 Sockets.

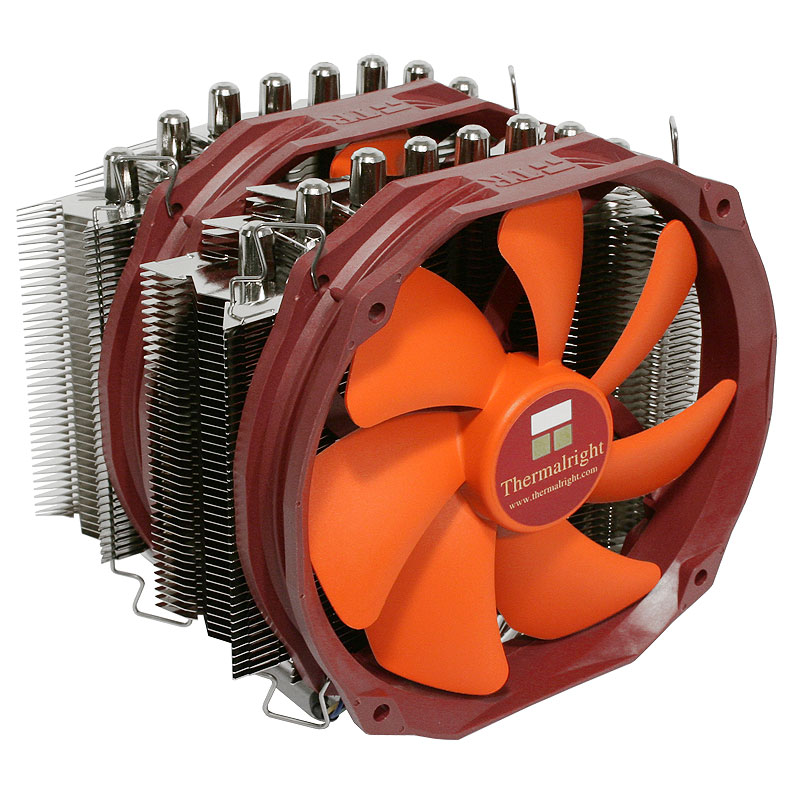

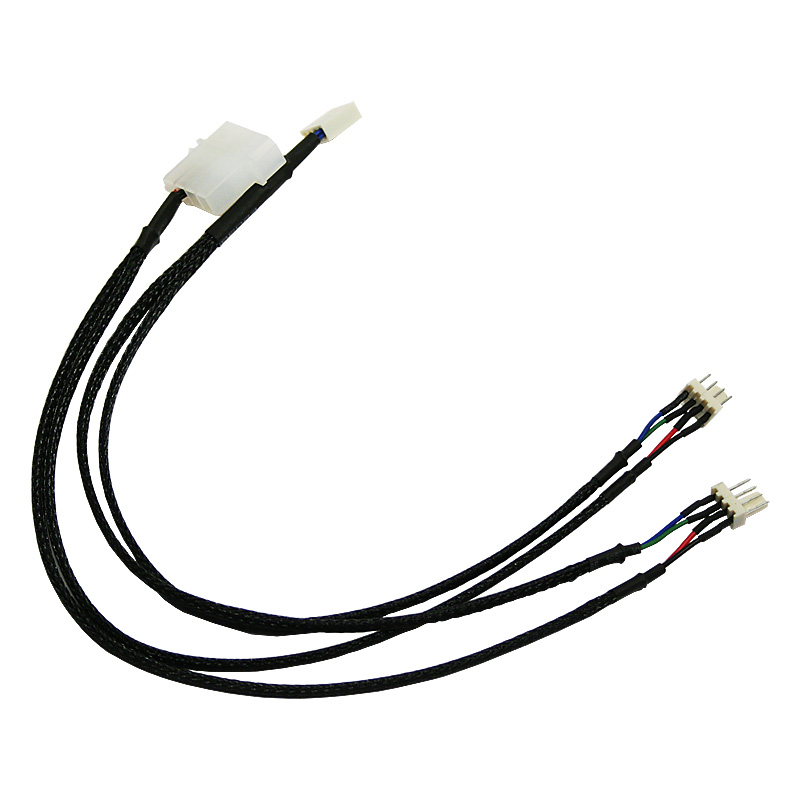

Including Two TY-143 high speed PWM fans and specialized PWM Y-Cable. With the compatibility of up to 3 fans maximum.

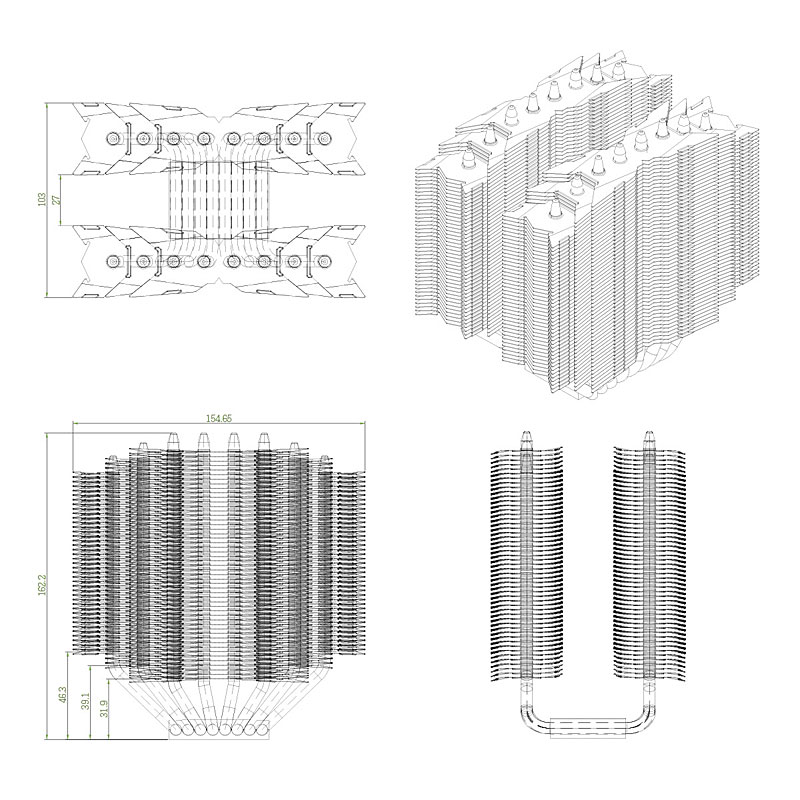

*The TY Series Fan can be pluged into the 3 pin; you can tell from the jack, there is fool-proof design on the jack so wrong installation of the pins are avoided. *This fan is designed with PWM function, so full speed  will apply when pluged into 3 pins instead of 4 pins. *Only use the included PWM Y-Cable when plugging two TY-143 to the same PWM socket.  Do not use third party Y-Cables. Technical Spec :                       Heatsink Specifications: Dimension: L154 mm x W103 mm x H165 mm Weight: 750g Heat pipes: 6mm heatpipe x 8 units Fin: T = 0.3 mm ; Gap = 2.1 mm Fin Pcs: 10 + 12 + 80 = 102 pcs Copper Base: C1100 Pure copper nickel plated Motherboard to Fin:30 + 8 = 38 mm, 38 + 8 = 46 mm, 45 + 8 = 53 mm               TY-143 FAN Spec Dimension: L152 mm x H140 mm x W26.5 mm Weight: 170g Rated Speed: 600 - 2500RPM Noise Level: 21~45dBA Air Flow: 31.4 - 130.0 CFM Connector: 4 Pin (PWM Fan connector)                TY-143 FAN Spec Dimension: L152 mm x H140 mm x W26.5 mm Weight: 170g Rated Speed: 600 - 2500RPM Noise Level: 21~45dBA Air Flow: 31.4 - 130.0 CFM Connector: 4 Pin (PWM Fan connector)
