Specifications:

Origin

The HR-03 series started in the beginning of 2007 and was beloved by many computer hardware enthusiasts. It doesn’t matter if it’s the HR-03 PLUS or the HR-03/R600, they were all able to bring out the best in your high end video card with unprecedented overclocking results by providing maximum cooling protection.

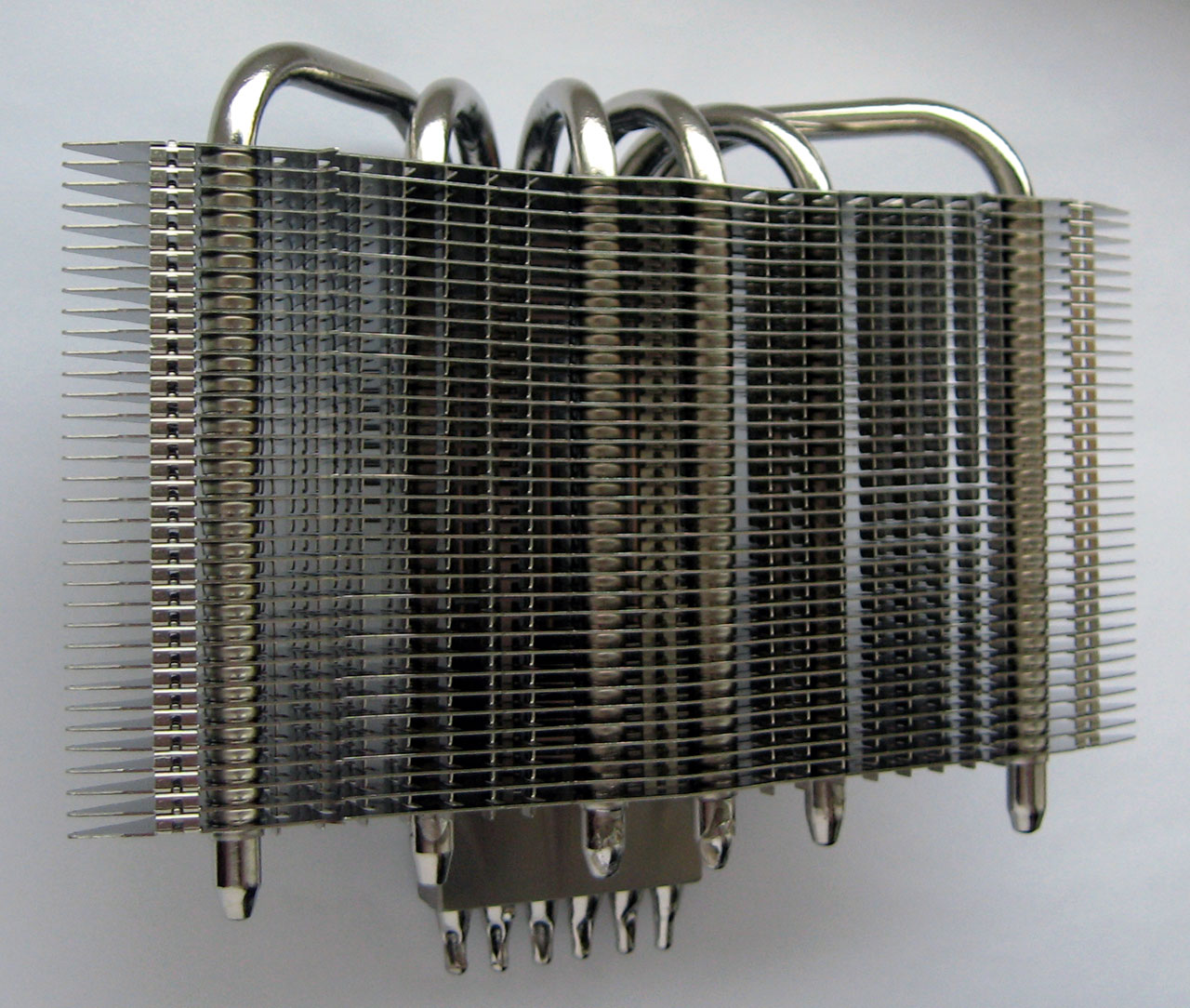

New video cards are constantly on the horizon. The most noticeable ones are the Nvidia G92 and the ATI RV670. Thermalright, of course, is right there again to welcome the new change of guard for extreme cooling and low noise. The new solution is HR-03 GT! HR-03 GT using 6 heatpipes and a double sided heatsink base, can work with any 92mm low noise fan. So if you are not prepared for the onslaught of heat and noise stock coolers generate, get the new HR-03 GT!

Features

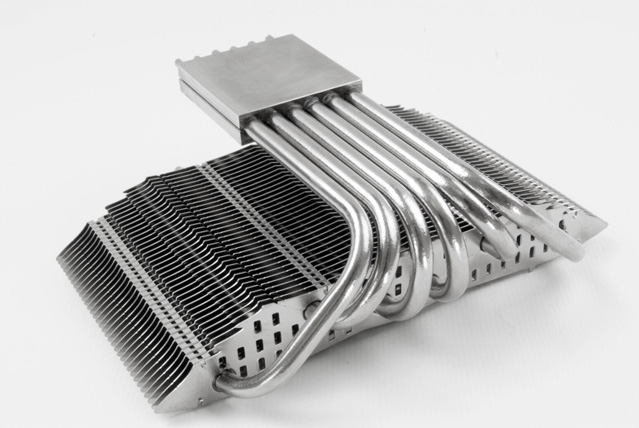

A maximum of 6 heatpipes for maximum amount of heat transfer to work with any of 92mm or smaller fans for best configuration to suit your needs

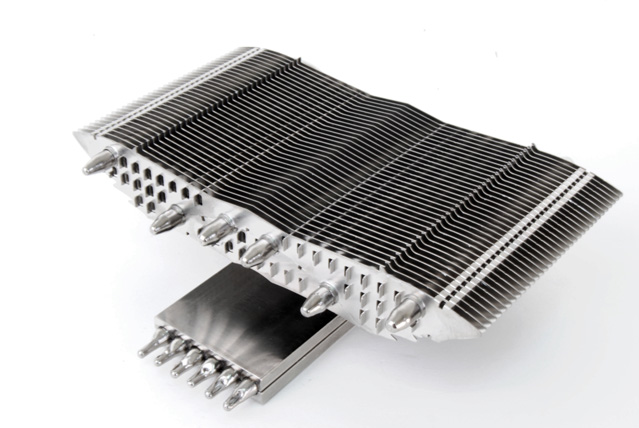

Proprietary two-heatsinks-soldered-to-form-as-one design to maximize cooling capacity
6 heatpipes soldered immensely close to heatsink fins to increase heat transfer efficiency

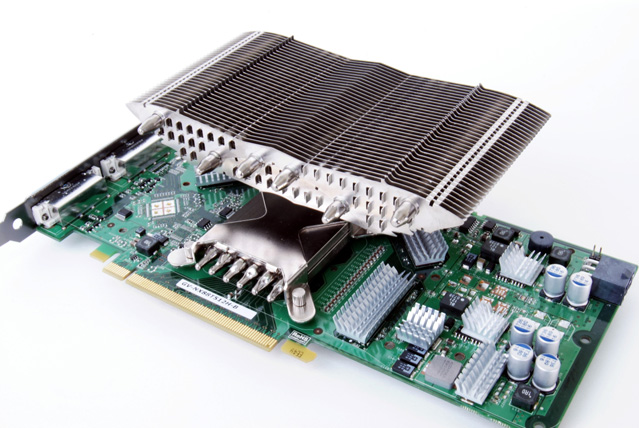

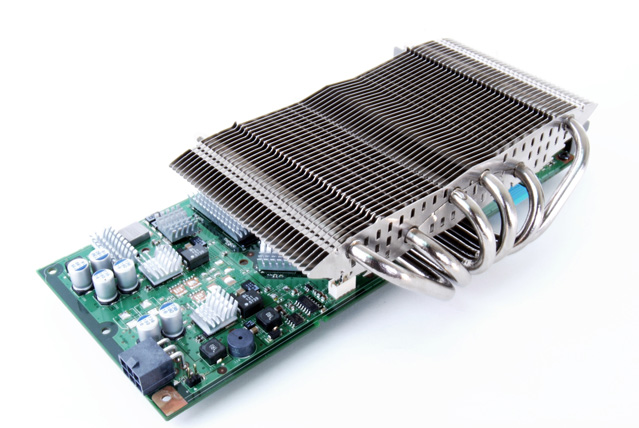

Two ways of mounting the cooler on video card for best space and configuration management in ATX and BTX form factor cases
Light weight and easy no-tool installation
SLI compatible for serious gaming enthusiasts
Cosmetically contoured design for that vanity look

Technical Spec

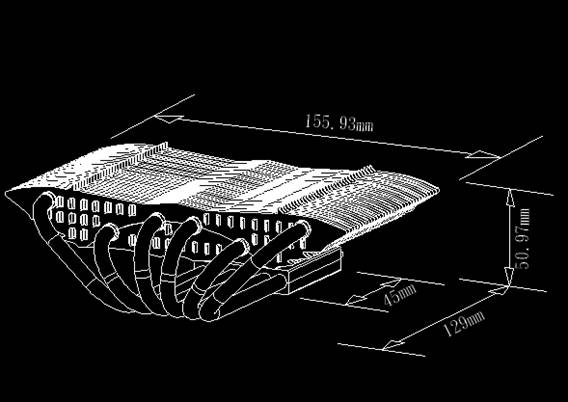

Dimension: L133 x W156 x H38 mm (heatsink only)
Weight: 410g (heatsink only) Recommended Fan (92x25mm)

Graphics Cards Compatibilities

	7800 Series		X1800 Series
	8600GTS Series		X1900 Series
	8800GT 512MB		HD 3850 Series
	8800GTS 512MB (G92)		HD 3870 Series
	9600 GT (G94)		HD 4850 Series
	9800 GTX		HD 4870 Series
	Compatible List		Compatible List

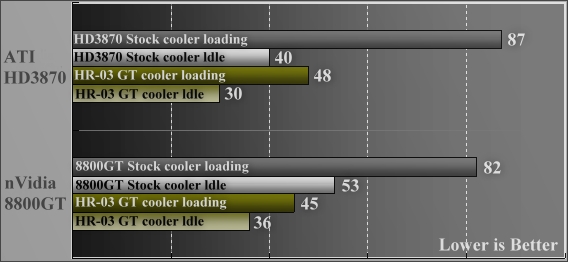

Performance Test

System Used
Processor: Intel E6600 (Duo Core) 1.2V
Processor Cooling: SI-128 SE
Motherboard: Nvidia680i
Graphics Card : Gigabyte 8800GT
VGA Cooler: Nvidia 8800GT HD3870 / Stock Cooler & HR-03 GT
RAM: TeamGroup DDR800 1GB*2Hard Drive: Seagate 80GB

HR-03 GT FAQ



We have a Support Question about compatibility of NEW 8800GT and Thermalright HR-03 PLUS. Is the cooler compatible? What about HR-03 Rev. A? HR-03 PLUS’ mounting mechanism is not compatibly aligned with the mounting holes on the 8800GT so installation is not possible. As for HR-03 Rev. A, technically it can be installed on the 8800 GT but because the PWN IC on the back of the card is not covered by the HR-03 Rev. A, plus the fact that the heat generated by the new 8800 GT far surpasses the 7000-series, we would strongly recommend our new HR-03 GT. more FAQ?
