Xigmatek Cooler Heatpipe Direct Touch Achilles S1284
- PN
- CAC-SXHH4-U02
- Catalog number
- 406
Specifications:
| Heat-pipe Direct Touch |
|

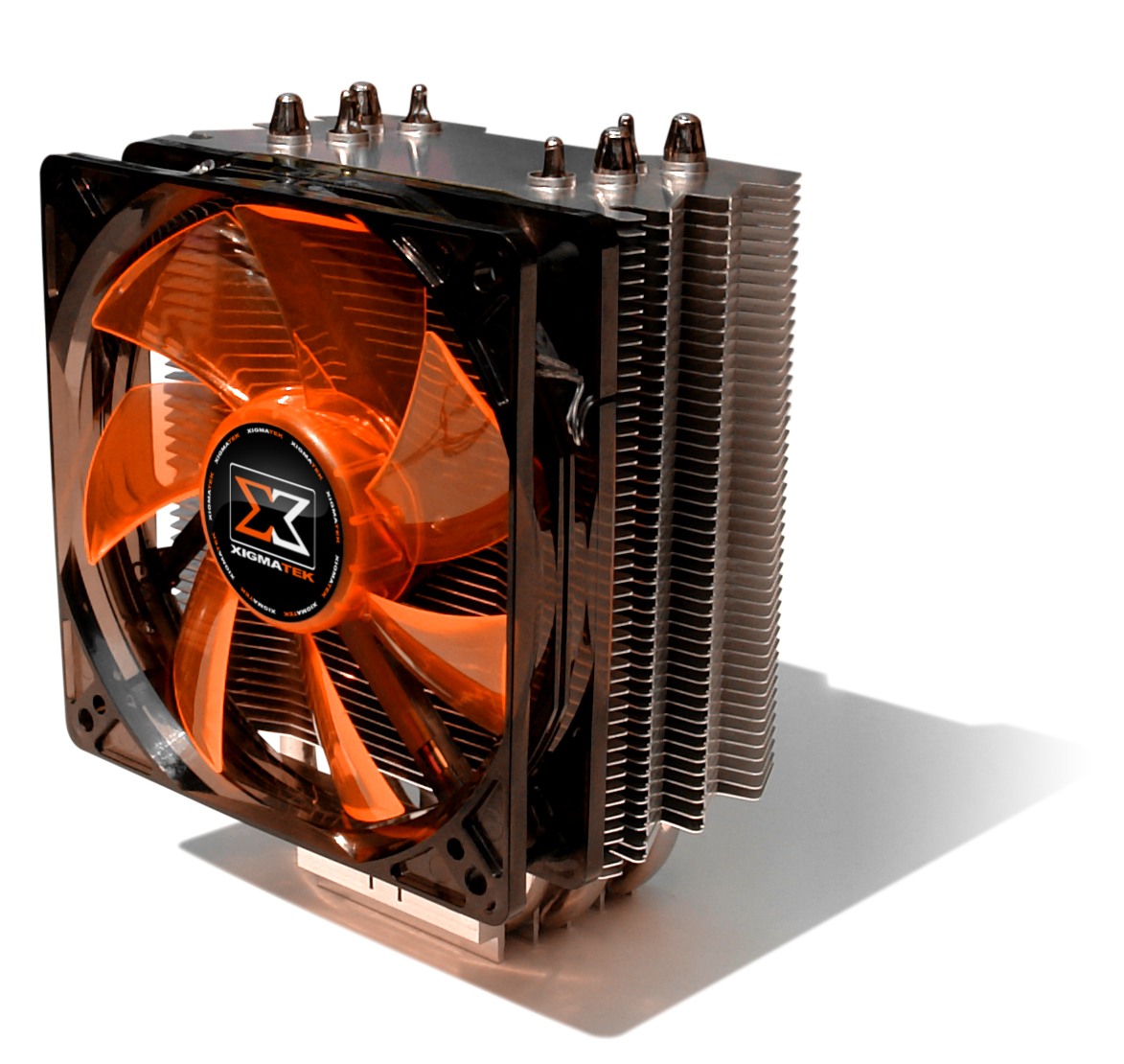

Achilles S1284, a new generation H.D.T. cooler, once again proves that it is possible to do concurrently both good-looking and performance. Its H.D.T. technology and 4pcs Φ8 heat-pipe makes Achilles a remarkable performing and special fan design makes it to reach a silent level. With LED lights, transparent fan, Anti-vibration rubber, Push-pin/Clip for Intel & AMD, Achilles S1284 offers not only friendly, reliable, easy to install, but also powerful performance for users. PRODUCT OVERVIEW |

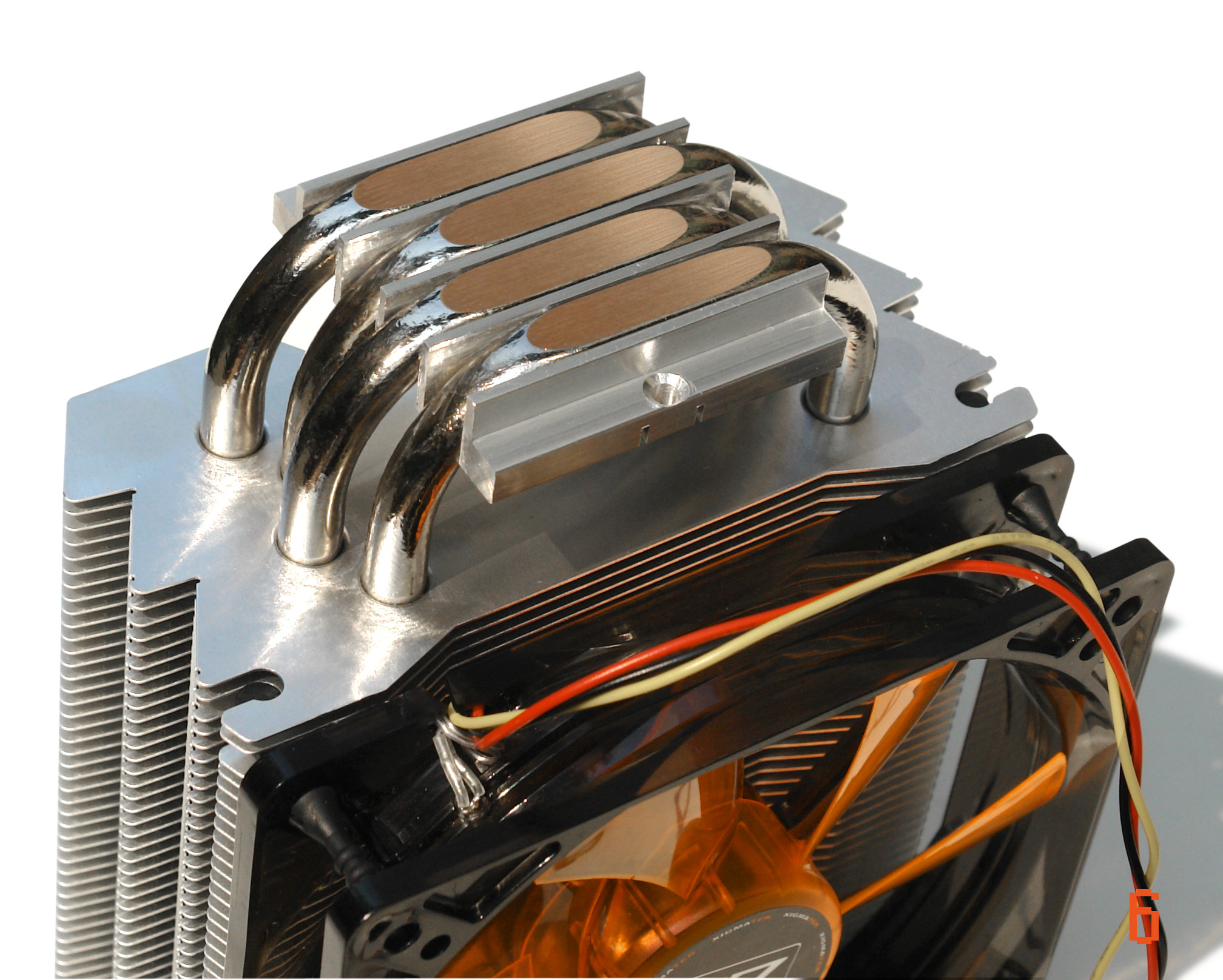

| . | With H.D.T. technology and 4pcs Φ8mm heat-pipe, Achilles S1284 creates most efficient heat conduction and outstanding cooling performance. |
| . | Achilles S1284 combines transparent colorful fan, Nickel Heat-pipe (Φ8mm), 4pcs white LED lights on fan, anti-vibration rubber and Spoiler. |
| . | With anti-vibration rubber and Push-pin/Clip for Intel & AMD application design, Achilles S1284 provides users not only silent level but also easy and quick installation. |
| ||||||||||||||||||||||
|
SPECIFICATION
Product Name ‧ Achilles S1284
Product Number ‧ CAC-SXHH4-U02
Outside Dimension ‧ Dimension 120(W) x 60(H) x 159(D) mm
Heat Sink ‧ Material Aluminum Alloy
‧ Heat-pipe Φ8 x 4
Fan ‧ Dimension 120(W) x 120(H) x 25(D) mm
‧ Voltage Rating 12V
‧ Speed 800~1500 R.P.M.
‧ Bearing Type Rifle Bearing
‧ Air Flow 61.375 CFM
‧ Air Pressure 1.516 mmH2O
‧ Life Expectance 50,000 hrs
‧ Noise Level 20.64 dBA
‧ Available color 4 white LED
‧ Connector 4 Pin with PWM
Weight ‧ 660g (w/fan)
Thermal Resistance ‧ 0.14 ℃/W
APPLICATION
‧ All Intel Socket 775 CPU
‧ Core 2 Extreme / Quad / Duo
‧ Pentium Extreme Edition / D
‧ Celeron D
‧ All AMD Socket AM2 / 754 / 939 / 940 CPU
‧ Athlon 64 / FX / X2 / Opteron / Sempron
